Scheduler

Detailed Description

This module provides the default portable scheduler code.

Collaboration diagram for Scheduler:

Wakeup status codes
#define	MSG_OK   (msg_t)0
	Normal wakeup message.
#define	MSG_TIMEOUT   (msg_t)-1
	Wakeup caused by a timeout condition.
#define	MSG_RESET   (msg_t)-2
	Wakeup caused by a reset condition.

Priority constants
#define	NOPRIO   (tprio_t)0
	Ready list header priority.
#define	IDLEPRIO   (tprio_t)1
	Idle priority.
#define	LOWPRIO   (tprio_t)2
	Lowest priority.
#define	NORMALPRIO   (tprio_t)128
	Normal priority.
#define	HIGHPRIO   (tprio_t)255
	Highest priority.

Thread states
#define	CH_STATE_READY   (tstate_t)0
	Waiting on the ready list.
#define	CH_STATE_CURRENT   (tstate_t)1
	Currently running.
#define	CH_STATE_WTSTART   (tstate_t)2
	Just created.
#define	CH_STATE_SUSPENDED   (tstate_t)3
	Suspended state.
#define	CH_STATE_QUEUED   (tstate_t)4
	On a queue.
#define	CH_STATE_WTSEM   (tstate_t)5
	On a semaphore.
#define	CH_STATE_WTMTX   (tstate_t)6
	On a mutex.
#define	CH_STATE_WTCOND   (tstate_t)7
	On a cond.variable.
#define	CH_STATE_SLEEPING   (tstate_t)8
	Sleeping.
#define	CH_STATE_WTEXIT   (tstate_t)9
	Waiting a thread.
#define	CH_STATE_WTOREVT   (tstate_t)10
	One event.
#define	CH_STATE_WTANDEVT   (tstate_t)11
	Several events.
#define	CH_STATE_SNDMSGQ   (tstate_t)12
	Sending a message, in queue.
#define	CH_STATE_SNDMSG   (tstate_t)13
	Sent a message, waiting answer.
#define	CH_STATE_WTMSG   (tstate_t)14
	Waiting for a message.
#define	CH_STATE_FINAL   (tstate_t)15
	Thread terminated.
#define	CH_STATE_NAMES
	Thread states as array of strings.

Thread flags and attributes
#define	CH_FLAG_MODE_MASK   (tmode_t)3U
	Thread memory mode mask.
#define	CH_FLAG_MODE_STATIC   (tmode_t)0U
	Static thread.
#define	CH_FLAG_MODE_HEAP   (tmode_t)1U
	Thread allocated from a Memory Heap.
#define	CH_FLAG_MODE_MPOOL   (tmode_t)2U
	Thread allocated from a Memory Pool.
#define	CH_FLAG_TERMINATE   (tmode_t)4U
	Termination requested flag.

Macros
#define	firstprio(rlp)
	Returns the priority of the first thread on the given ready list.
#define	__sch_get_currthread()
	Current thread pointer get macro.

Functions
static thread_t *	__sch_ready_behind (thread_t *tp)
	Inserts a thread in the Ready List placing it behind its peers.
static thread_t *	__sch_ready_ahead (thread_t *tp)
	Inserts a thread in the Ready List placing it ahead its peers.
static void	__sch_reschedule_behind (void)
	Switches to the first thread on the runnable queue.
static void	__sch_reschedule_ahead (void)
	Switches to the first thread on the runnable queue.
static void	__sch_wakeup (virtual_timer_t *vtp, void *p)
void	ch_sch_prio_insert (ch_queue_t *qp, ch_queue_t *tp)
	Inserts a thread into a priority ordered queue.
thread_t *	chSchReadyI (thread_t *tp)
	Inserts a thread in the Ready List placing it behind its peers.
void	chSchGoSleepS (tstate_t newstate)
	Puts the current thread to sleep into the specified state.
msg_t	chSchGoSleepTimeoutS (tstate_t newstate, sysinterval_t timeout)
	Puts the current thread to sleep into the specified state with timeout specification.
void	chSchWakeupS (thread_t *ntp, msg_t msg)
	Wakes up a thread.
void	chSchRescheduleS (void)
	Performs a reschedule if a higher priority thread is runnable.
bool	chSchIsPreemptionRequired (void)
	Evaluates if preemption is required.
void	chSchDoPreemption (void)
	Switches to the first thread on the runnable queue.
void	chSchPreemption (void)
	All-in-one preemption code.
void	chSchDoYieldS (void)
	Yields the time slot.
thread_t *	chSchSelectFirst (void)
	Makes runnable the fist thread in the ready list, does not reschedule internally.
void	chSchObjectInit (os_instance_t *oip, const os_instance_config_t *oicp)

Macro Definition Documentation

MSG_OK

#define MSG_OK   (msg_t)0

Normal wakeup message.

Definition at line 39 of file chschd.h.

Referenced by __bsio_push_data(), __get(), __gett(), __put(), __putt(), _ctl(), _put(), _unget(), acc_read_cooked(), acc_read_cooked(), acc_read_raw(), acc_read_raw(), acc_read_raw(), acc_read_raw(), acc_read_raw(), acc_read_raw(), acc_read_raw(), acc_read_raw(), acc_reset_bias(), acc_reset_bias(), acc_reset_bias(), acc_reset_bias(), acc_reset_bias(), acc_reset_bias(), acc_reset_bias(), acc_reset_bias(), acc_reset_sensivity(), acc_reset_sensivity(), acc_reset_sensivity(), acc_reset_sensivity(), acc_reset_sensivity(), acc_reset_sensivity(), acc_reset_sensivity(), acc_reset_sensivity(), acc_set_bias(), acc_set_bias(), acc_set_bias(), acc_set_bias(), acc_set_bias(), acc_set_bias(), acc_set_bias(), acc_set_bias(), acc_set_full_scale(), acc_set_full_scale(), acc_set_full_scale(), acc_set_full_scale(), acc_set_full_scale(), acc_set_full_scale(), acc_set_full_scale(), acc_set_sensivity(), acc_set_sensivity(), acc_set_sensivity(), acc_set_sensivity(), acc_set_sensivity(), acc_set_sensivity(), acc_set_sensivity(), acc_set_sensivity(), acquire_up(), acquire_ut(), adxl317I2CWriteRegister(), adxl317Start(), baro_read_raw(), baro_read_raw(), baro_reset_bias(), baro_reset_bias(), baro_reset_bias(), baro_reset_sensitivity(), baro_reset_sensitivity(), baro_reset_sensivity(), baro_set_bias(), baro_set_bias(), baro_set_bias(), baro_set_sensitivity(), baro_set_sensitivity(), baro_set_sensivity(), bmp085ReadCoefficient(), bsIncomingDataI(), bsRequestDataI(), canReceiveTimeout(), canTransmitTimeout(), chCondSignal(), chCondSignalI(), chDelegateDispatchTimeout(), chEvtSignalI(), chEvtWaitAllTimeout(), chEvtWaitAllTimeout(), chEvtWaitAnyTimeout(), chEvtWaitAnyTimeout(), chEvtWaitOneTimeout(), chFifoSendObject(), chFifoSendObjectAhead(), chFifoSendObjectAheadI(), chFifoSendObjectAheadS(), chFifoSendObjectI(), chFifoSendObjectS(), chGuardedPoolAllocTimeoutS(), chJobDispatch(), chJobDispatchTimeout(), chJobPost(), chJobPostAhead(), chJobPostAheadI(), chJobPostAheadS(), chJobPostI(), chJobPostS(), chMBFetchI(), chMBFetchTimeoutS(), chMBPostAheadI(), chMBPostAheadTimeoutS(), chMBPostI(), chMBPostTimeoutS(), chMsgWaitTimeoutS(), chPipeReadTimeout(), chPipeWriteTimeout(), chSemAddCounterI(), chSemSignal(), chSemSignalI(), chSemSignalWait(), chSemWaitS(), chSemWaitTimeoutS(), chThdCreate(), chThdCreateFromHeap(), chThdCreateFromMemoryPool(), chThdCreateI(), chThdCreateStatic(), chThdStart(), comp_read_raw(), comp_read_raw(), comp_read_raw(), comp_reset_bias(), comp_reset_bias(), comp_reset_bias(), comp_reset_sensivity(), comp_reset_sensivity(), comp_reset_sensivity(), comp_set_bias(), comp_set_bias(), comp_set_bias(), comp_set_full_scale(), comp_set_full_scale(), comp_set_sensivity(), comp_set_sensivity(), comp_set_sensivity(), dacSynchronizeS(), gyro_read_raw(), gyro_read_raw(), gyro_read_raw(), gyro_reset_bias(), gyro_reset_bias(), gyro_reset_bias(), gyro_reset_sensivity(), gyro_reset_sensivity(), gyro_reset_sensivity(), gyro_sample_bias(), gyro_sample_bias(), gyro_sample_bias(), gyro_set_bias(), gyro_set_bias(), gyro_set_bias(), gyro_set_full_scale(), gyro_set_full_scale(), gyro_set_full_scale(), gyro_set_sensivity(), gyro_set_sensivity(), gyro_set_sensivity(), hygro_read_raw(), hygro_reset_bias(), hygro_reset_sensitivity(), hygro_set_bias(), hygro_set_sensitivity(), i2c_lld_master_receive_timeout(), i2c_lld_master_transmit_timeout(), ibqGetFullBufferTimeoutS(), ibqGetTimeout(), ibqPostFullBufferI(), ibqReadTimeout(), iqGetTimeout(), iqPutI(), iqReadTimeout(), mac_lld_get_receive_descriptor(), mac_lld_get_transmit_descriptor(), macWaitReceiveDescriptor(), macWaitTransmitDescriptor(), obqGetEmptyBufferTimeoutS(), obqPutTimeout(), obqReleaseEmptyBufferI(), obqWriteTimeout(), oqGetI(), oqPutI(), oqPutTimeout(), oqWriteTimeout(), osalThreadEnqueueTimeoutS(), osalThreadSuspendS(), osalThreadSuspendTimeoutS(), put(), sdIncomingDataI(), sdRequestDataI(), sens_read_cooked(), sens_read_raw(), sio_lld_control(), sioSynchronizeRX(), sioSynchronizeRXIdle(), sioSynchronizeTX(), sioSynchronizeTXEnd(), spiAbortI(), spiExchange(), spiIgnore(), spiReceive(), spiSend(), spiSynchronizeS(), sync_read(), sync_write(), thermo_read_raw(), thermo_read_raw(), thermo_read_raw(), thermo_reset_bias(), thermo_reset_bias(), thermo_reset_bias(), thermo_reset_bias(), thermo_reset_sensitivity(), thermo_reset_sensitivity(), thermo_reset_sensitivity(), thermo_reset_sensivity(), thermo_set_bias(), thermo_set_bias(), thermo_set_bias(), thermo_set_bias(), thermo_set_sensitivity(), thermo_set_sensitivity(), thermo_set_sensitivity(), thermo_set_sensivity(), uartReceiveTimeout(), uartSendFullTimeout(), uartSendTimeout(), unget(), wspiCommand(), wspiReceive(), and wspiSend().

MSG_TIMEOUT

#define MSG_TIMEOUT   (msg_t)-1

Wakeup caused by a timeout condition.

Definition at line 40 of file chschd.h.

Referenced by __sch_wakeup(), chCondWaitTimeoutS(), chDelegateDispatchTimeout(), chMBFetchI(), chMBPostAheadI(), chMBPostI(), chMsgWaitTimeoutS(), chSemWaitTimeoutS(), chSysTimerHandlerI(), chThdEnqueueTimeoutS(), chThdSuspendTimeoutS(), i2cMasterReceiveTimeout(), i2cMasterTransmitTimeout(), i2cSlaveReceiveTimeout(), i2cSlaveTransmitTimeout(), iqGetI(), iqPutI(), macWaitReceiveDescriptor(), macWaitTransmitDescriptor(), oqGetI(), and oqPutI().

MSG_RESET

#define MSG_RESET   (msg_t)-2

Wakeup caused by a reset condition.

Definition at line 42 of file chschd.h.

Referenced by _get(), _put(), _unget(), _usb_reset(), _usb_suspend(), acc_reset_sensivity(), acc_reset_sensivity(), acc_reset_sensivity(), acc_reset_sensivity(), acc_reset_sensivity(), acc_reset_sensivity(), acc_reset_sensivity(), acc_set_full_scale(), acc_set_full_scale(), acc_set_full_scale(), acc_set_full_scale(), acc_set_full_scale(), acc_set_full_scale(), acc_set_full_scale(), canStop(), chCondBroadcastI(), chMBFetchI(), chMBFetchTimeoutS(), chMBPostAheadI(), chMBPostAheadTimeoutS(), chMBPostI(), chMBPostTimeoutS(), chMBResetI(), chPipeReset(), chSemReset(), chSemResetI(), comp_reset_sensivity(), comp_reset_sensivity(), comp_set_full_scale(), comp_set_full_scale(), gyro_reset_sensivity(), gyro_reset_sensivity(), gyro_reset_sensivity(), gyro_set_full_scale(), gyro_set_full_scale(), gyro_set_full_scale(), ibqGetFullBufferTimeoutS(), ibqResetI(), iqResetI(), obqGetEmptyBufferTimeoutS(), obqResetI(), oqResetI(), sioStop(), spiStopTransferI(), usbDisableEndpointsI(), usbReceive(), usbStop(), and usbTransmit().

NOPRIO

#define NOPRIO   (tprio_t)0

Ready list header priority.

Definition at line 50 of file chschd.h.

IDLEPRIO

#define IDLEPRIO   (tprio_t)1

Idle priority.

Definition at line 52 of file chschd.h.

Referenced by __sch_reschedule_ahead(), __sch_reschedule_behind(), chInstanceObjectInit(), chSchDoPreemption(), chSchGoSleepS(), chSchSelectFirst(), chSchWakeupS(), and chSysGetIdleThreadX().

LOWPRIO

#define LOWPRIO   (tprio_t)2

Lowest priority.

Definition at line 53 of file chschd.h.

NORMALPRIO

#define NORMALPRIO   (tprio_t)128

Normal priority.

Definition at line 54 of file chschd.h.

Referenced by chInstanceObjectInit().

HIGHPRIO

#define HIGHPRIO   (tprio_t)255

Highest priority.

Definition at line 55 of file chschd.h.

Referenced by chThdCreateStatic(), chThdCreateSuspendedI(), and chThdSetPriority().

CH_STATE_READY

#define CH_STATE_READY   (tstate_t)0

Waiting on the ready list.

Definition at line 62 of file chschd.h.

Referenced by __sch_ready_ahead(), __sch_ready_behind(), __sch_wakeup(), and chMtxLockS().

CH_STATE_CURRENT

#define CH_STATE_CURRENT   (tstate_t)1

Currently running.

Definition at line 64 of file chschd.h.

Referenced by __sch_reschedule_ahead(), __sch_reschedule_behind(), chInstanceObjectInit(), chMtxLockS(), chSchDoPreemption(), chSchGoSleepS(), chSchSelectFirst(), and chSchWakeupS().

CH_STATE_WTSTART

#define CH_STATE_WTSTART   (tstate_t)2

Just created.

Definition at line 65 of file chschd.h.

Referenced by __thd_object_init(), chThdStart(), and chThdStartI().

CH_STATE_SUSPENDED

#define CH_STATE_SUSPENDED   (tstate_t)3

Suspended state.

Definition at line 66 of file chschd.h.

Referenced by __sch_wakeup(), chThdResumeI(), chThdResumeS(), chThdSuspendS(), and chThdSuspendTimeoutS().

CH_STATE_QUEUED

#define CH_STATE_QUEUED   (tstate_t)4

On a queue.

Definition at line 67 of file chschd.h.

Referenced by __sch_wakeup(), chThdDoDequeueNextI(), and chThdEnqueueTimeoutS().

CH_STATE_WTSEM

#define CH_STATE_WTSEM   (tstate_t)5

On a semaphore.

Definition at line 68 of file chschd.h.

Referenced by __sch_wakeup(), chMtxLockS(), chSemSignalWait(), chSemWaitS(), and chSemWaitTimeoutS().

CH_STATE_WTMTX

#define CH_STATE_WTMTX   (tstate_t)6

On a mutex.

Definition at line 69 of file chschd.h.

Referenced by chMtxLockS().

CH_STATE_WTCOND

#define CH_STATE_WTCOND   (tstate_t)7

On a cond.variable.

Definition at line 70 of file chschd.h.

Referenced by __sch_wakeup(), chCondWaitS(), chCondWaitTimeoutS(), and chMtxLockS().

CH_STATE_SLEEPING

#define CH_STATE_SLEEPING   (tstate_t)8

Sleeping.

Definition at line 71 of file chschd.h.

Referenced by chThdSleepS().

CH_STATE_WTEXIT

#define CH_STATE_WTEXIT   (tstate_t)9

Waiting a thread.

Definition at line 72 of file chschd.h.

Referenced by chThdWait().

CH_STATE_WTOREVT

#define CH_STATE_WTOREVT   (tstate_t)10

One event.

Definition at line 73 of file chschd.h.

Referenced by chEvtSignalI(), chEvtWaitAny(), chEvtWaitAnyTimeout(), chEvtWaitOne(), and chEvtWaitOneTimeout().

CH_STATE_WTANDEVT

#define CH_STATE_WTANDEVT   (tstate_t)11

Several events.

Definition at line 74 of file chschd.h.

Referenced by chEvtSignalI(), chEvtWaitAll(), and chEvtWaitAllTimeout().

CH_STATE_SNDMSGQ

#define CH_STATE_SNDMSGQ   (tstate_t)12

Sending a message, in queue.

Definition at line 75 of file chschd.h.

Referenced by __sch_wakeup(), chMsgSend(), and chMtxLockS().

CH_STATE_SNDMSG

#define CH_STATE_SNDMSG   (tstate_t)13

Sent a message, waiting answer.

Definition at line 77 of file chschd.h.

Referenced by chMsgGet(), chMsgPollS(), chMsgRelease(), chMsgWaitS(), and chMsgWaitTimeoutS().

CH_STATE_WTMSG

#define CH_STATE_WTMSG   (tstate_t)14

Waiting for a message.

Definition at line 79 of file chschd.h.

Referenced by chMsgSend(), chMsgWaitS(), and chMsgWaitTimeoutS().

CH_STATE_FINAL

#define CH_STATE_FINAL   (tstate_t)15

Thread terminated.

Definition at line 81 of file chschd.h.

Referenced by __sch_ready_ahead(), __sch_ready_behind(), chThdExitS(), chThdRelease(), chThdTerminatedX(), and chThdWait().

CH_STATE_NAMES

#define CH_STATE_NAMES

Value:

  "READY", "CURRENT", "WTSTART", "SUSPENDED", "QUEUED", "WTSEM", "WTMTX",  \
  "WTCOND", "SLEEPING", "WTEXIT", "WTOREVT", "WTANDEVT", "SNDMSGQ",        \
  "SNDMSG", "WTMSG", "FINAL"

Thread states as array of strings.

Each element in an array initialized with this macro can be indexed using the numeric thread state values.

Definition at line 88 of file chschd.h.

CH_FLAG_MODE_MASK

#define CH_FLAG_MODE_MASK   (tmode_t)3U

Thread memory mode mask.

Definition at line 98 of file chschd.h.

Referenced by chThdExitS(), and chThdRelease().

CH_FLAG_MODE_STATIC

#define CH_FLAG_MODE_STATIC   (tmode_t)0U

Static thread.

Definition at line 100 of file chschd.h.

Referenced by __thd_object_init(), and chThdExitS().

CH_FLAG_MODE_HEAP

#define CH_FLAG_MODE_HEAP   (tmode_t)1U

Thread allocated from a Memory Heap.

Definition at line 101 of file chschd.h.

Referenced by chThdCreateFromHeap(), and chThdRelease().

CH_FLAG_MODE_MPOOL

#define CH_FLAG_MODE_MPOOL   (tmode_t)2U

Thread allocated from a Memory Pool.

Definition at line 103 of file chschd.h.

Referenced by chThdCreateFromMemoryPool(), and chThdRelease().

CH_FLAG_TERMINATE

#define CH_FLAG_TERMINATE   (tmode_t)4U

Termination requested flag.

Definition at line 105 of file chschd.h.

Referenced by chThdShouldTerminateX(), and chThdTerminate().

firstprio

#define firstprio

(

rlp

)

Value:

((rlp)->next->prio)

Returns the priority of the first thread on the given ready list.

Function Class:

Not an API, this function is for internal use only.

Definition at line 130 of file chschd.h.

Referenced by chSchDoYieldS(), chSchIsPreemptionRequired(), chSchPreemption(), and chSchRescheduleS().

__sch_get_currthread

#define __sch_get_currthread

(

)

Value:

__instance_get_currthread(currcore)

Current thread pointer get macro.

Note

This macro is not meant to be used in the application code but only from within the kernel, use chThdGetSelfX() instead.

Definition at line 137 of file chschd.h.

Referenced by chEvtAddEventsI(), chEvtGetEventsX(), chRegSetThreadName(), and chThdGetSelfX().

Function Documentation

__sch_ready_behind()

thread_t * __sch_ready_behind ( thread_t * tp )

static

Inserts a thread in the Ready List placing it behind its peers.

The thread is positioned behind all threads with higher or equal priority.

Precondition

The thread must not be already inserted in any list through its next and prev or list corruption would occur.

Postcondition

This function does not reschedule so a call to a rescheduling function must be performed before unlocking the kernel. Note that interrupt handlers always reschedule on exit so an explicit reschedule must not be performed in ISRs.

Parameters

[in]

tp

the thread to be made ready

Returns

The thread pointer.

Function Class:

Not an API, this function is for internal use only.

Definition at line 67 of file chschd.c.

References __trace_ready, ch_pqueue_insert_behind(), CH_STATE_FINAL, CH_STATE_READY, chDbgAssert, ch_thread::hdr, ch_thread::owner, ch_ready_list::pqueue, ch_thread::pqueue, ch_thread::rdymsg, ch_os_instance::rlist, ch_thread::state, threadref, and ch_thread::u.

Referenced by __sch_reschedule_behind(), __sch_wakeup(), chSchDoPreemption(), chSchReadyI(), and chSchWakeupS().

Here is the call graph for this function:

__sch_ready_ahead()

thread_t * __sch_ready_ahead ( thread_t * tp )

static

Inserts a thread in the Ready List placing it ahead its peers.

The thread is positioned ahead all threads with higher or equal priority.

Precondition

The thread must not be already inserted in any list through its next and prev or list corruption would occur.

Postcondition

This function does not reschedule so a call to a rescheduling function must be performed before unlocking the kernel. Note that interrupt handlers always reschedule on exit so an explicit reschedule must not be performed in ISRs.

Parameters

[in]

tp

the thread to be made ready

Returns

The thread pointer.

Function Class:

Not an API, this function is for internal use only.

Definition at line 100 of file chschd.c.

References __trace_ready, ch_pqueue_insert_ahead(), CH_STATE_FINAL, CH_STATE_READY, chDbgAssert, ch_thread::hdr, ch_thread::owner, ch_ready_list::pqueue, ch_thread::pqueue, ch_thread::rdymsg, ch_os_instance::rlist, ch_thread::state, threadref, and ch_thread::u.

Referenced by __sch_reschedule_ahead(), chSchDoPreemption(), chSchSelectFirst(), and chSchWakeupS().

Here is the call graph for this function:

__sch_reschedule_behind()

void __sch_reschedule_behind ( void )

static

Switches to the first thread on the runnable queue.

The current thread is positioned in the ready list behind all threads having the same priority. The thread regains its time quantum.

Note

Not a user function, it is meant to be invoked by the scheduler itself.

Function Class:

Not an API, this function is for internal use only.

Definition at line 127 of file chschd.c.

References __instance_get_currthread, __instance_set_currthread, __sch_ready_behind(), CH_CFG_IDLE_LEAVE_HOOK, CH_CFG_TIME_QUANTUM, ch_pqueue_remove_highest(), CH_STATE_CURRENT, chSysSwitch, currcore, ch_thread::hdr, IDLEPRIO, ch_ready_list::pqueue, ch_thread::pqueue, ch_priority_queue::prio, ch_os_instance::rlist, ch_thread::state, threadref, and ch_thread::ticks.

Referenced by chSchDoYieldS(), and chSchPreemption().

Here is the call graph for this function:

__sch_reschedule_ahead()

void __sch_reschedule_ahead ( void )

static

Switches to the first thread on the runnable queue.

The current thread is positioned in the ready list ahead of all threads having the same priority.

Note

Not a user function, it is meant to be invoked by the scheduler itself.

Function Class:

Not an API, this function is for internal use only.

Definition at line 163 of file chschd.c.

References __instance_get_currthread, __instance_set_currthread, __sch_ready_ahead(), CH_CFG_IDLE_LEAVE_HOOK, ch_pqueue_remove_highest(), CH_STATE_CURRENT, chSysSwitch, currcore, ch_thread::hdr, IDLEPRIO, ch_ready_list::pqueue, ch_thread::pqueue, ch_priority_queue::prio, ch_os_instance::rlist, ch_thread::state, and threadref.

Referenced by chSchPreemption(), and chSchRescheduleS().

Here is the call graph for this function:

__sch_wakeup()

void __sch_wakeup ( virtual_timer_t * vtp, void * p )

static

Definition at line 188 of file chschd.c.

References __sch_ready_behind(), ch_queue_dequeue(), CH_STATE_QUEUED, CH_STATE_READY, CH_STATE_SNDMSGQ, CH_STATE_SUSPENDED, CH_STATE_WTCOND, CH_STATE_WTSEM, chSemFastSignalI, chSysLockFromISR, chSysUnlockFromISR, ch_thread::hdr, MSG_TIMEOUT, ch_thread::queue, ch_thread::rdymsg, ch_thread::state, threadref, ch_thread::u, ch_thread::wtsemp, and ch_thread::wttrp.

Referenced by chSchGoSleepTimeoutS().

Here is the call graph for this function:

ch_sch_prio_insert()

void ch_sch_prio_insert ( ch_queue_t * qp, ch_queue_t * tp )

inline

Inserts a thread into a priority ordered queue.

Note

The insertion is done by scanning the list from the highest priority toward the lowest.

Parameters

[in]	qp	the pointer to the threads list header
[in]	tp	the pointer to the thread to be inserted in the list

Function Class:

Not an API, this function is for internal use only.

Definition at line 250 of file chschd.c.

References ch_queue::next, ch_queue::prev, and threadref.

Referenced by chCondWaitS(), chCondWaitTimeoutS(), and chMtxLockS().

chSchReadyI()

thread_t * chSchReadyI

(

thread_t *

tp

)

Inserts a thread in the Ready List placing it behind its peers.

The thread is positioned behind all threads with higher or equal priority.

Precondition

The thread must not be already inserted in any list through its next and prev or list corruption would occur.

Postcondition

This function does not reschedule so a call to a rescheduling function must be performed before unlocking the kernel. Note that interrupt handlers always reschedule on exit so an explicit reschedule must not be performed in ISRs.

Parameters

[in]

tp

the thread to be made ready

Returns

The thread pointer.

Function Class:

This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 280 of file chschd.c.

References __sch_ready_behind(), chDbgCheck, chDbgCheckClassI, chSysNotifyInstance(), currcore, and ch_thread::owner.

Referenced by chCondBroadcastI(), chCondSignalI(), chEvtSignalI(), chMsgSend(), chMtxLockS(), chMtxUnlock(), chMtxUnlockAllS(), chMtxUnlockS(), chSemAddCounterI(), chSemResetWithMessageI(), chSemSignalI(), chSemSignalWait(), chThdCreateI(), chThdDoDequeueNextI(), chThdExitS(), chThdResumeI(), and chThdStartI().

Here is the call graph for this function:

chSchGoSleepS()

void chSchGoSleepS

(

tstate_t

newstate

)

Puts the current thread to sleep into the specified state.

The thread goes into a sleeping state. The possible Thread States are defined into chschd.h.

Parameters

[in]

newstate

the new thread state

Function Class:

This is an S-Class API, this function can be invoked from within a system lock zone by threads only.

Definition at line 305 of file chschd.c.

References __instance_get_currthread, __instance_set_currthread, CH_CFG_IDLE_ENTER_HOOK, CH_CFG_TIME_QUANTUM, ch_pqueue_remove_highest(), CH_STATE_CURRENT, chDbgAssert, chDbgCheckClassS, chSysGetIdleThreadX(), chSysSwitch, currcore, ch_thread::hdr, IDLEPRIO, ch_thread::owner, ch_ready_list::pqueue, ch_thread::pqueue, ch_priority_queue::prio, ch_os_instance::rlist, ch_thread::state, threadref, and ch_thread::ticks.

Here is the call graph for this function:

chSchGoSleepTimeoutS()

msg_t chSchGoSleepTimeoutS	(	tstate_t	newstate,
		sysinterval_t	timeout )

Puts the current thread to sleep into the specified state with timeout specification.

The thread goes into a sleeping state, if it is not awakened explicitly within the specified timeout then it is forcibly awakened with a MSG_TIMEOUT low level message. The possible Thread States are defined into chschd.h.

Parameters

[in]	newstate	the new thread state
[in]	timeout	the number of ticks before the operation timeouts, the special values are handled as follow: TIME_INFINITE the thread enters an infinite sleep state, this is equivalent to invoking chSchGoSleepS() but, of course, less efficient. TIME_IMMEDIATE this value is not allowed.

Returns

The wakeup message.

Return values

MSG_TIMEOUT

if a timeout occurs.

Function Class:

This is an S-Class API, this function can be invoked from within a system lock zone by threads only.

Definition at line 359 of file chschd.c.

References __instance_get_currthread, __sch_wakeup(), chDbgCheckClassS, chSchGoSleepS, chVTDoResetI(), chVTDoSetI(), chVTIsArmedI(), currcore, ch_thread::rdymsg, TIME_INFINITE, and ch_thread::u.

Referenced by chCondWaitTimeoutS(), chEvtWaitAllTimeout(), chEvtWaitAllTimeout(), chEvtWaitAnyTimeout(), chEvtWaitAnyTimeout(), chEvtWaitOneTimeout(), chMsgSend(), chMsgWaitTimeoutS(), chSemWaitTimeoutS(), chThdEnqueueTimeoutS(), chThdSleepS(), and chThdSuspendTimeoutS().

Here is the call graph for this function:

chSchWakeupS()

void chSchWakeupS	(	thread_t *	ntp,
		msg_t	msg )

Wakes up a thread.

The thread is inserted into the ready list or immediately made running depending on its relative priority compared to the current thread.

Precondition

The thread must not be already inserted in any list through its next and prev or list corruption would occur.

Note

It is equivalent to a chSchReadyI() followed by a chSchRescheduleS() but much more efficient.

The function assumes that the current thread has the highest priority.

Parameters

[in]	ntp	the thread to be made ready
[in]	msg	the wakeup message

Function Class:

This is an S-Class API, this function can be invoked from within a system lock zone by threads only.

Definition at line 397 of file chschd.c.

References __instance_get_currthread, __instance_set_currthread, __sch_ready_ahead(), __sch_ready_behind(), CH_CFG_IDLE_LEAVE_HOOK, CH_STATE_CURRENT, chDbgAssert, chDbgCheckClassS, chSysNotifyInstance(), chSysSwitch, currcore, ch_ready_list::current, ch_thread::hdr, IDLEPRIO, ch_priority_queue::next, ch_thread::owner, ch_ready_list::pqueue, ch_thread::pqueue, ch_priority_queue::prio, ch_thread::rdymsg, ch_os_instance::rlist, ch_thread::state, ch_thread::u, and unlikely.

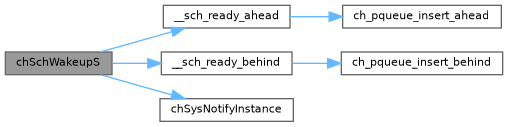

Here is the call graph for this function:

chSchRescheduleS()

void chSchRescheduleS

(

void

)

Performs a reschedule if a higher priority thread is runnable.

If a thread with a higher priority than the current thread is in the ready list then make the higher priority thread running.

Note

Only local threads are considered, other cores are signaled and perform a reschedule locally.

Function Class:

This is an S-Class API, this function can be invoked from within a system lock zone by threads only.

Definition at line 458 of file chschd.c.

References __instance_get_currthread, __sch_reschedule_ahead(), chDbgCheckClassS, currcore, firstprio, ch_thread::hdr, likely, ch_ready_list::pqueue, ch_thread::pqueue, ch_priority_queue::prio, and ch_os_instance::rlist.

Referenced by chBSemSignal(), chCacheReleaseObject(), chCondBroadcast(), chEvtBroadcastFlags(), chEvtSignal(), chGuardedPoolFree(), chGuardedPoolFreeS(), chMBFetchTimeoutS(), chMBPostAheadTimeoutS(), chMBPostTimeoutS(), chMBReset(), chMtxUnlock(), chMtxUnlockAllS(), chPipeReset(), chSemResetWithMessage(), chSemSignal(), chSemSignalWait(), chSysRestoreStatusX(), and chThdSetPriority().

Here is the call graph for this function:

chSchIsPreemptionRequired()

bool chSchIsPreemptionRequired

(

void

)

Evaluates if preemption is required.

The decision is taken by comparing the relative priorities and depending on the state of the round robin timeout counter.

Note

Not a user function, it is meant to be invoked from within the port layer in the IRQ-related preemption code.

Return values

true	if there is a thread that must go in running state immediately.
false	if preemption is not required.

Function Class:

Special function, this function has special requirements see the notes.

Definition at line 485 of file chschd.c.

References __instance_get_currthread, currcore, firstprio, ch_thread::hdr, ch_ready_list::pqueue, ch_thread::pqueue, ch_priority_queue::prio, ch_os_instance::rlist, and ch_thread::ticks.

chSchDoPreemption()

void chSchDoPreemption

(

void

)

Switches to the first thread on the runnable queue.

The current thread is positioned in the ready list behind or ahead of all threads having the same priority depending on if it used its whole time slice.

Note

Not a user function, it is meant to be invoked from within the port layer in the IRQ-related preemption code.

Function Class:

Special function, this function has special requirements see the notes.

Definition at line 517 of file chschd.c.

References __instance_get_currthread, __instance_set_currthread, __sch_ready_ahead(), __sch_ready_behind(), CH_CFG_IDLE_LEAVE_HOOK, CH_CFG_TIME_QUANTUM, ch_pqueue_remove_highest(), CH_STATE_CURRENT, chSysSwitch, currcore, ch_thread::hdr, IDLEPRIO, ch_ready_list::pqueue, ch_thread::pqueue, ch_priority_queue::prio, ch_os_instance::rlist, ch_thread::state, threadref, and ch_thread::ticks.

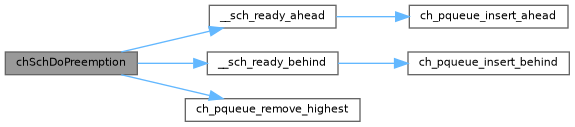

Here is the call graph for this function:

chSchPreemption()

void chSchPreemption

(

void

)

All-in-one preemption code.

Note

Not a user function, it is meant to be invoked from within the port layer in the IRQ-related preemption code.

Function Class:

Special function, this function has special requirements see the notes.

Definition at line 568 of file chschd.c.

References __instance_get_currthread, __sch_reschedule_ahead(), __sch_reschedule_behind(), currcore, firstprio, ch_thread::hdr, likely, ch_ready_list::pqueue, ch_thread::pqueue, ch_priority_queue::prio, ch_os_instance::rlist, and ch_thread::ticks.

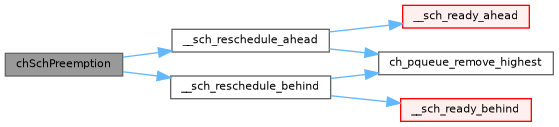

Here is the call graph for this function:

chSchDoYieldS()

void chSchDoYieldS

(

void

)

Yields the time slot.

Yields the CPU control to the next thread in the ready list with equal or higher priority, if any.

Function Class:

This is an S-Class API, this function can be invoked from within a system lock zone by threads only.

Definition at line 602 of file chschd.c.

References __instance_get_currthread, __sch_reschedule_behind(), chDbgCheckClassS, currcore, firstprio, ch_thread::hdr, likely, ch_ready_list::pqueue, ch_thread::pqueue, ch_priority_queue::prio, and ch_os_instance::rlist.

Referenced by chThdYield().

Here is the call graph for this function:

chSchSelectFirst()

thread_t * chSchSelectFirst

(

void

)

Makes runnable the fist thread in the ready list, does not reschedule internally.

The current thread is positioned in the ready list ahead of all threads having the same priority.

Note

Not a user function, it is meant to be invoked by the scheduler itself.

Returns

The pointer to the thread being switched in.

Function Class:

Special function, this function has special requirements see the notes.

Definition at line 627 of file chschd.c.

References __instance_get_currthread, __instance_set_currthread, __sch_ready_ahead(), CH_CFG_IDLE_LEAVE_HOOK, ch_pqueue_remove_highest(), CH_STATE_CURRENT, currcore, ch_thread::hdr, IDLEPRIO, ch_ready_list::pqueue, ch_thread::pqueue, ch_priority_queue::prio, ch_os_instance::rlist, ch_thread::state, and threadref.

Here is the call graph for this function:

chSchObjectInit()

void chSchObjectInit	(	os_instance_t *	oip,
		const os_instance_config_t *	oicp )
