Detailed Description

Collaboration diagram for Events:

Macro Functions
#define	chEvtObjectInit(esp)
	Initializes an Event Source.
#define	chEvtRegisterMask(esp, elp, events)
	Registers an Event Listener on an Event Source.
#define	chEvtRegister(esp, elp, event)
	Registers an Event Listener on an Event Source.
#define	chEvtIsListeningI(esp)
	Verifies if there is at least one `event_listener_t` registered.
#define	chEvtBroadcast(esp)
	Signals all the Event Listeners registered on the specified Event Source.
#define	chEvtBroadcastI(esp)
	Signals all the Event Listeners registered on the specified Event Source.
#define	chEvtAddEventsI(events)
	Adds (OR) a set of events to the current thread, this is much faster than using `chEvtBroadcast()` or `chEvtSignal()`.
#define	chEvtGetEventsX(void)
	Returns the events mask.
#define	chEvtWaitOne(events)
	Waits for exactly one of the specified events.
#define	chEvtWaitAny(events)
	Waits for any of the specified events.
#define	chEvtWaitAll(events)
	Waits for all the specified events.

Data Structures
struct	event_listener
	Event Listener structure. More...
struct	event_source
	Event Source structure. More...

Macros
#define	ALL_EVENTS ((eventmask_t)-1)
	All events allowed mask.
#define	EVENT_MASK(eid)
	Returns an event mask from an event identifier.
#define	_EVENTSOURCE_DATA(name)
	Data part of a static event source initializer.
#define	EVENTSOURCE_DECL(name)
	Static event source initializer.

Typedefs
typedef struct event_listener	event_listener_t
typedef struct event_source	event_source_t
	Event Source structure.
typedef void(*	evhandler_t) (eventid_t id)
	Event Handler callback function.

Functions
void	chEvtRegisterMaskWithFlags (event_source_t esp, event_listener_t elp, eventmask_t events, eventflags_t wflags)
	Registers an Event Listener on an Event Source.
void	chEvtUnregister (event_source_t esp, event_listener_t elp)
	Unregisters an Event Listener from its Event Source.
eventmask_t	chEvtGetAndClearEventsI (eventmask_t events)
	Clears the pending events specified in the events mask.
eventmask_t	chEvtGetAndClearEvents (eventmask_t events)
	Clears the pending events specified in the events mask.
eventmask_t	chEvtAddEvents (eventmask_t events)
	Adds (OR) a set of events to the current thread, this is much faster than using `chEvtBroadcast()` or `chEvtSignal()`.
void	chEvtBroadcastFlagsI (event_source_t *esp, eventflags_t flags)
	Signals all the Event Listeners registered on the specified Event Source.
eventflags_t	chEvtGetAndClearFlags (event_listener_t *elp)
	Returns the flags associated to an `event_listener_t`.
void	chEvtSignal (thread_t *tp, eventmask_t events)
	Adds a set of event flags directly to the specified `thread_t`.
void	chEvtSignalI (thread_t *tp, eventmask_t events)
	Adds a set of event flags directly to the specified `thread_t`.
void	chEvtBroadcastFlags (event_source_t *esp, eventflags_t flags)
	Signals all the Event Listeners registered on the specified Event Source.
eventflags_t	chEvtGetAndClearFlagsI (event_listener_t *elp)
	Returns the unmasked flags associated to an `event_listener_t`.
void	chEvtDispatch (const evhandler_t *handlers, eventmask_t events)
	Invokes the event handlers associated to an event flags mask.
eventmask_t	chEvtWaitOneTimeout (eventmask_t events, sysinterval_t timeout)
	Waits for exactly one of the specified events.
eventmask_t	chEvtWaitAnyTimeout (eventmask_t mask, sysinterval_t timeout)
	Waits for any of the specified events.
eventmask_t	chEvtWaitAllTimeout (eventmask_t mask, sysinterval_t timeout)
	Waits for all the specified events.

Macro Definition Documentation

◆ ALL_EVENTS

#define ALL_EVENTS ((eventmask_t)-1)

All events allowed mask.

Definition at line 89 of file chevt.h.

◆ EVENT_MASK

#define EVENT_MASK ( eid )

Value:

((eventmask_t)1 << (eventmask_t)(eid))

eventmask_t

uint32_t eventmask_t

Definition chearly.h:90

Returns an event mask from an event identifier.

Definition at line 94 of file chevt.h.

◆ _EVENTSOURCE_DATA

#define _EVENTSOURCE_DATA ( name )

Value:

{(event_listener_t *)(&name)}

event_listener_t

struct event_listener event_listener_t

Definition chevents.h:52

Data part of a static event source initializer.

This macro should be used when statically initializing an event source that is part of a bigger structure.

Parameters

name	the name of the event source variable

Definition at line 102 of file chevt.h.

◆ EVENTSOURCE_DECL

#define EVENTSOURCE_DECL ( name )

Value:

event_source_t name = _EVENTSOURCE_DATA(name)

_EVENTSOURCE_DATA

#define _EVENTSOURCE_DATA(name)

Data part of a static event source initializer.

Definition chevt.h:102

event_source_t

struct event_source event_source_t

Event Source structure.

Static event source initializer.

Statically initialized event sources require no explicit initialization using chEvtInit().

Parameters

name	the name of the event source variable

Definition at line 111 of file chevt.h.

◆ chEvtObjectInit

#define chEvtObjectInit ( esp )

Value:

  do {                                           \
  (esp)->next = (event_listener_t *)(esp);                                  \
} while (0)

Initializes an Event Source.

Note: This function can be invoked before the kernel is initialized because it just prepares a event_source_t structure.

Parameters

[in] esp pointer to the event_source_t structure

Function Class:: Object or module nitializer function.

Definition at line 126 of file chevt.h.

◆ chEvtRegisterMask

#define chEvtRegisterMask	(	esp,
		elp,
		events )

Value:

chEvtRegisterMaskWithFlags(esp, elp, events, (eventflags_t)-1)

chEvtRegisterMaskWithFlags

void chEvtRegisterMaskWithFlags(event_source_t *esp, event_listener_t *elp, eventmask_t events, eventflags_t wflags)

Registers an Event Listener on an Event Source.

Definition chevents.c:135

eventflags_t

uint32_t eventflags_t

Definition chearly.h:91

Registers an Event Listener on an Event Source.

Once a thread has registered as listener on an event source it will be notified of all events broadcasted there.

Note: Multiple Event Listeners can specify the same bits to be ORed to different threads.

Parameters

[in]	esp	pointer to the `event_source_t` structure
[out]	elp	pointer to the `event_listener_t` structure
[in]	events	the mask of events to be ORed to the thread when the event source is broadcasted

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 144 of file chevt.h.

Referenced by chEvtRegister().

◆ chEvtRegister

#define chEvtRegister	(	esp,
		elp,
		event )

Value:

chEvtRegisterMask(esp, elp, EVENT_MASK(event))

chEvtRegisterMask

#define chEvtRegisterMask(esp, elp, events)

Registers an Event Listener on an Event Source.

Definition chevt.h:144

EVENT_MASK

#define EVENT_MASK(eid)

Returns an event mask from an event identifier.

Definition chevents.h:97

Registers an Event Listener on an Event Source.

Note: Multiple Event Listeners can use the same event identifier, the listener will share the callback function.

Parameters

[in]	esp	pointer to the `event_source_t` structure
[out]	elp	pointer to the `event_listener_t` structure
[in]	event	numeric identifier assigned to the Event Listener. The value must range between zero and the size, in bit, of the `eventmask_t` type minus one.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 160 of file chevt.h.

◆ chEvtIsListeningI

#define chEvtIsListeningI ( esp )

Value:

(bool)((esp) != (event_source_t *)(esp)->next)

Verifies if there is at least one event_listener_t registered.

Parameters

[in] esp pointer to the event_source_t structure

Returns: The event source status.

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 171 of file chevt.h.

◆ chEvtBroadcast

#define chEvtBroadcast ( esp )

Value:

chEvtBroadcastFlags(esp, (eventflags_t)0)

chEvtBroadcastFlags

void chEvtBroadcastFlags(event_source_t *esp, eventflags_t flags)

Signals all the Event Listeners registered on the specified Event Source.

Definition chevents.c:380

Signals all the Event Listeners registered on the specified Event Source.

Parameters

[in] esp pointer to the event_source_t structure

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 181 of file chevt.h.

◆ chEvtBroadcastI

#define chEvtBroadcastI ( esp )

Value:

chEvtBroadcastFlagsI(esp, (eventflags_t)0)

chEvtBroadcastFlagsI

void chEvtBroadcastFlagsI(event_source_t *esp, eventflags_t flags)

Signals all the Event Listeners registered on the specified Event Source.

Definition chevents.c:346

Signals all the Event Listeners registered on the specified Event Source.

Postcondition: This function does not reschedule so a call to a rescheduling function must be performed before unlocking the kernel. Note that interrupt handlers always reschedule on exit so an explicit reschedule must not be performed in ISRs.

Parameters

[in] esp pointer to the event_source_t structure

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 195 of file chevt.h.

◆ chEvtAddEventsI

#define chEvtAddEventsI ( events )

Value:

(nil.current->epmask |= events)

nil

os_instance_t nil

System data structures.

Definition ch.c:41

Adds (OR) a set of events to the current thread, this is much faster than using chEvtBroadcast() or chEvtSignal().

Parameters

[in] events the events to be added

Returns: The mask of currently pending events.

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 206 of file chevt.h.

Referenced by chEvtAddEvents().

◆ chEvtGetEventsX

#define chEvtGetEventsX ( void )

Value:

(nil.current->epmask)

Returns the events mask.

The pending events mask is returned but not altered in any way.

Returns: The pending events mask.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 216 of file chevt.h.

◆ chEvtWaitOne

#define chEvtWaitOne ( events )

Value:

chEvtWaitOneTimeout(events, TIME_INFINITE)

chEvtWaitOneTimeout

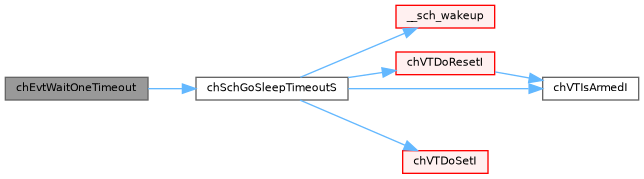

eventmask_t chEvtWaitOneTimeout(eventmask_t events, sysinterval_t timeout)

Waits for exactly one of the specified events.

Definition chevents.c:528

TIME_INFINITE

#define TIME_INFINITE

Infinite interval specification for all functions with a timeout specification.

Definition chtime.h:55

Waits for exactly one of the specified events.

The function waits for one event among those specified in events to become pending then the event is cleared and returned.

Note: One and only one event is served in the function, the one with the lowest event id. The function is meant to be invoked into a loop in order to serve all the pending events.
This means that Event Listeners with a lower event identifier have an higher priority.

Parameters

[in] events events that the function should wait for, ALL_EVENTS enables all the events

Returns: The mask of the lowest event id served and cleared.

Return values

0	if the operation has timed out.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 235 of file chevt.h.

◆ chEvtWaitAny

#define chEvtWaitAny ( events )

Value:

chEvtWaitAnyTimeout(events, TIME_INFINITE)

chEvtWaitAnyTimeout

eventmask_t chEvtWaitAnyTimeout(eventmask_t events, sysinterval_t timeout)

Waits for any of the specified events.

Definition chevents.c:571

Waits for any of the specified events.

The function waits for any event among those specified in mask to become pending then the events are cleared and returned.

Parameters

[in] events events that the function should wait for, ALL_EVENTS enables all the events

Returns: The mask of the served and cleared events.

Return values

0	if the operation has timed out.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 250 of file chevt.h.

◆ chEvtWaitAll

#define chEvtWaitAll ( events )

Value:

chEvtWaitAllTimeout(events, TIME_INFINITE)

chEvtWaitAllTimeout

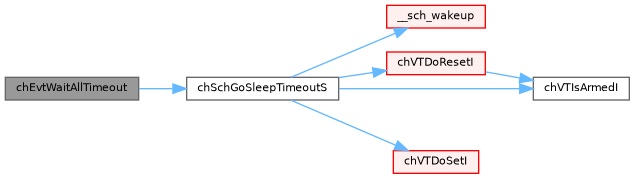

eventmask_t chEvtWaitAllTimeout(eventmask_t events, sysinterval_t timeout)

Waits for all the specified events.

Definition chevents.c:612

Waits for all the specified events.

The function waits for all the events specified in mask to become pending then the events are cleared and returned.

Parameters

[in] events events that the function should wait for, ALL_EVENTS enables all the events

Returns: The mask of the served and cleared events.

Return values

0	if the operation has timed out.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 264 of file chevt.h.

Typedef Documentation

◆ event_listener_t

typedef struct event_listener event_listener_t

Definition at line 49 of file chevt.h.

◆ event_source_t

typedef struct event_source event_source_t

Event Source structure.

◆ evhandler_t

typedef void(* evhandler_t) (eventid_t id)

Event Handler callback function.

Definition at line 80 of file chevt.h.

Function Documentation

◆ chEvtRegisterMaskWithFlags()

void chEvtRegisterMaskWithFlags	(	event_source_t *	esp,
		event_listener_t *	elp,
		eventmask_t	events,
		eventflags_t	wflags )

Registers an Event Listener on an Event Source.

Once a thread has registered as listener on an event source it will be notified of all events broadcasted there.

Note: Multiple Event Listeners can specify the same bits to be ORed to different threads.

Parameters

[in]	esp	pointer to the `event_source_t` structure
[in]	elp	pointer to the `event_listener_t` structure
[in]	events	events to be ORed to the thread when the event source is broadcasted
[in]	wflags	mask of flags the listening thread is interested in

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 71 of file chevt.c.

References chDbgCheck, chSysLock, chSysUnlock, chThdGetSelfX, event_listener::events, event_listener::flags, event_listener::listener, event_listener::next, event_source::next, and event_listener::wflags.

◆ chEvtUnregister()

void chEvtUnregister	(	event_source_t *	esp,
		event_listener_t *	elp )

Unregisters an Event Listener from its Event Source.

Note: If the event listener is not registered on the specified event source then the function does nothing.; For optimal performance it is better to perform the unregister operations in inverse order of the register operations (elements are found on top of the list).

Parameters

[in]	esp	pointer to the `event_source_t` structure
[in]	elp	pointer to the `event_listener_t` structure

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 101 of file chevt.c.

References chDbgCheck, chSysLock, chSysUnlock, and event_listener::next.

◆ chEvtGetAndClearEventsI()

eventmask_t chEvtGetAndClearEventsI ( eventmask_t events )

Clears the pending events specified in the events mask.

Parameters

[in] events the events to be cleared

Returns: The mask of pending events that were cleared.

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 130 of file chevt.c.

References chThdGetSelfX.

Referenced by chEvtGetAndClearEvents().

◆ chEvtGetAndClearEvents()

eventmask_t chEvtGetAndClearEvents ( eventmask_t events )

Clears the pending events specified in the events mask.

Parameters

[in] events the events to be cleared

Returns: The mask of pending events that were cleared.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 147 of file chevt.c.

References chEvtGetAndClearEventsI(), chSysLock, and chSysUnlock.

Here is the call graph for this function:

◆ chEvtAddEvents()

eventmask_t chEvtAddEvents ( eventmask_t events )

Adds (OR) a set of events to the current thread, this is much faster than using chEvtBroadcast() or chEvtSignal().

Parameters

[in] events the events to be added

Returns: The mask of currently pending events.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 166 of file chevt.c.

References chEvtAddEventsI, chSysLock, and chSysUnlock.

◆ chEvtBroadcastFlagsI()

void chEvtBroadcastFlagsI	(	event_source_t *	esp,
		eventflags_t	flags )

Signals all the Event Listeners registered on the specified Event Source.

This function variants ORs the specified event flags to all the threads registered on the event_source_t in addition to the event flags specified by the threads themselves in the event_listener_t objects.

Postcondition: This function does not reschedule so a call to a rescheduling function must be performed before unlocking the kernel. Note that interrupt handlers always reschedule on exit so an explicit reschedule must not be performed in ISRs.

Parameters

[in]	esp	pointer to the `event_source_t` structure
[in]	flags	the flags set to be added to the listener flags mask

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 193 of file chevt.c.

References chDbgCheck, chDbgCheckClassI, chEvtSignalI(), event_listener::events, event_listener::flags, event_listener::listener, event_listener::next, event_source::next, and event_listener::wflags.

Referenced by chEvtBroadcastFlags().

Here is the call graph for this function:

◆ chEvtGetAndClearFlags()

eventflags_t chEvtGetAndClearFlags ( event_listener_t * elp )

Returns the flags associated to an event_listener_t.

The flags are returned and the event_listener_t flags mask is cleared.

Parameters

[in] elp pointer to the event_listener_t structure

Returns: The flags added to the listener by the associated event source.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 225 of file chevt.c.

References chSysLock, chSysUnlock, event_listener::flags, and event_listener::wflags.

◆ chEvtSignal()

void chEvtSignal	(	thread_t *	tp,
		eventmask_t	events )

Adds a set of event flags directly to the specified thread_t.

Parameters

[in]	tp	the thread to be signaled
[in]	events	the event flags set to be ORed

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 244 of file chevt.c.

References chEvtSignalI(), chSchRescheduleS(), chSysLock, and chSysUnlock.

Here is the call graph for this function:

◆ chEvtSignalI()

void chEvtSignalI	(	thread_t *	tp,
		eventmask_t	events )

Adds a set of event flags directly to the specified thread_t.

Postcondition: This function does not reschedule so a call to a rescheduling function must be performed before unlocking the kernel. Note that interrupt handlers always reschedule on exit so an explicit reschedule must not be performed in ISRs.

Parameters

[in]	tp	the thread to be signaled
[in]	events	the event flags set to be ORed

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 264 of file chevt.c.

References chDbgCheck, chDbgCheckClassI, chSchReadyI(), ch_thread::ewmask, MSG_OK, NIL_THD_IS_WTANDEVT, and NIL_THD_IS_WTOREVT.

Referenced by chEvtBroadcastFlagsI(), and chEvtSignal().

Here is the call graph for this function:

◆ chEvtBroadcastFlags()

void chEvtBroadcastFlags	(	event_source_t *	esp,
		eventflags_t	flags )

Signals all the Event Listeners registered on the specified Event Source.

This function variants ORs the specified event flags to all the threads registered on the event_source_t in addition to the event flags specified by the threads themselves in the event_listener_t objects.

Parameters

[in]	esp	pointer to the `event_source_t` structure
[in]	flags	the flags set to be added to the listener flags mask

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 291 of file chevt.c.

References chEvtBroadcastFlagsI(), chSchRescheduleS(), chSysLock, and chSysUnlock.

Here is the call graph for this function:

◆ chEvtGetAndClearFlagsI()

eventflags_t chEvtGetAndClearFlagsI ( event_listener_t * elp )

Returns the unmasked flags associated to an event_listener_t.

The flags are returned and the event_listener_t flags mask is cleared.

Parameters

[in] elp pointer to the event_listener_t structure

Returns: The flags added to the listener by the associated event source.

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 310 of file chevt.c.

References event_listener::flags, and event_listener::wflags.

◆ chEvtDispatch()

void chEvtDispatch	(	const evhandler_t *	handlers,
		eventmask_t	events )

Invokes the event handlers associated to an event flags mask.

Parameters

[in]	events	mask of events to be dispatched
[in]	handlers	an array of `evhandler_t`. The array must have size equal to the number of bits in eventmask_t.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 328 of file chevt.c.

References chDbgAssert, chDbgCheck, and EVENT_MASK.

◆ chEvtWaitOneTimeout()

eventmask_t chEvtWaitOneTimeout	(	eventmask_t	events,
		sysinterval_t	timeout )

Waits for exactly one of the specified events.

The function waits for one event among those specified in events to become pending then the event is cleared and returned.

Note: One and only one event is served in the function, the one with the lowest event id. The function is meant to be invoked into a loop in order to serve all the pending events.
This means that Event Listeners with a lower event identifier have an higher priority.

Parameters

[in]	events	events that the function should wait for, `ALL_EVENTS` enables all the events
[in]	timeout	the number of ticks before the operation timeouts, the following special values are allowed: TIME_IMMEDIATE immediate timeout. TIME_INFINITE no timeout.

Returns: The mask of the lowest event id served and cleared.

Return values

0	if the operation has timed out.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 366 of file chevt.c.

References chSchGoSleepTimeoutS(), chSysLock, chSysUnlock, ch_thread::ewmask, MSG_OK, nil, NIL_STATE_WTOREVT, and TIME_IMMEDIATE.

Here is the call graph for this function:

◆ chEvtWaitAnyTimeout()

eventmask_t chEvtWaitAnyTimeout	(	eventmask_t	mask,
		sysinterval_t	timeout )

Waits for any of the specified events.

The function waits for any event among those specified in mask to become pending then the events are cleared and returned.

Parameters

[in]	mask	mask of the event flags that the function should wait for, `ALL_EVENTS` enables all the events
[in]	timeout	the number of ticks before the operation timeouts, the following special values are allowed: TIME_IMMEDIATE immediate timeout. TIME_INFINITE no timeout.

Returns: The mask of the served and cleared events.

Return values

0	if the operation has timed out.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 411 of file chevt.c.

References chSchGoSleepTimeoutS(), chSysLock, chSysUnlock, ch_thread::ewmask, MSG_OK, nil, NIL_STATE_WTOREVT, and TIME_IMMEDIATE.

Here is the call graph for this function:

◆ chEvtWaitAllTimeout()

eventmask_t chEvtWaitAllTimeout	(	eventmask_t	mask,
		sysinterval_t	timeout )

Waits for all the specified events.

The function waits for all the events specified in mask to become pending then the events are cleared and returned.

Parameters

[in]	mask	mask of the event flags that the function should wait for, `ALL_EVENTS` enables all the events
[in]	timeout	the number of ticks before the operation timeouts, the following special values are allowed: TIME_IMMEDIATE immediate timeout. TIME_INFINITE no timeout.

Returns: The mask of the served and cleared events.

Return values

0	if the operation has timed out.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 453 of file chevt.c.

References chSchGoSleepTimeoutS(), chSysLock, chSysUnlock, ch_thread::ewmask, MSG_OK, nil, NIL_STATE_WTANDEVT, and TIME_IMMEDIATE.

Here is the call graph for this function:

Detailed Description

Macro Functions

Data Structures

Macros

Typedefs

Functions

Macro Definition Documentation

◆ ALL_EVENTS

◆ EVENT_MASK

◆ _EVENTSOURCE_DATA

◆ EVENTSOURCE_DECL

◆ chEvtObjectInit

◆ chEvtRegisterMask

◆ chEvtRegister

◆ chEvtIsListeningI

◆ chEvtBroadcast

◆ chEvtBroadcastI

◆ chEvtAddEventsI

◆ chEvtGetEventsX

◆ chEvtWaitOne

◆ chEvtWaitAny

◆ chEvtWaitAll

Typedef Documentation

◆ event_listener_t

◆ event_source_t

◆ evhandler_t

Function Documentation

◆ chEvtRegisterMaskWithFlags()

◆ chEvtUnregister()

◆ chEvtGetAndClearEventsI()

◆ chEvtGetAndClearEvents()

◆ chEvtAddEvents()

◆ chEvtBroadcastFlagsI()

◆ chEvtGetAndClearFlags()

◆ chEvtSignal()

◆ chEvtSignalI()

◆ chEvtBroadcastFlags()

◆ chEvtGetAndClearFlagsI()

◆ chEvtDispatch()

◆ chEvtWaitOneTimeout()

◆ chEvtWaitAnyTimeout()

◆ chEvtWaitAllTimeout()
