Structure representing a thread. More...

#include <chobjects.h>

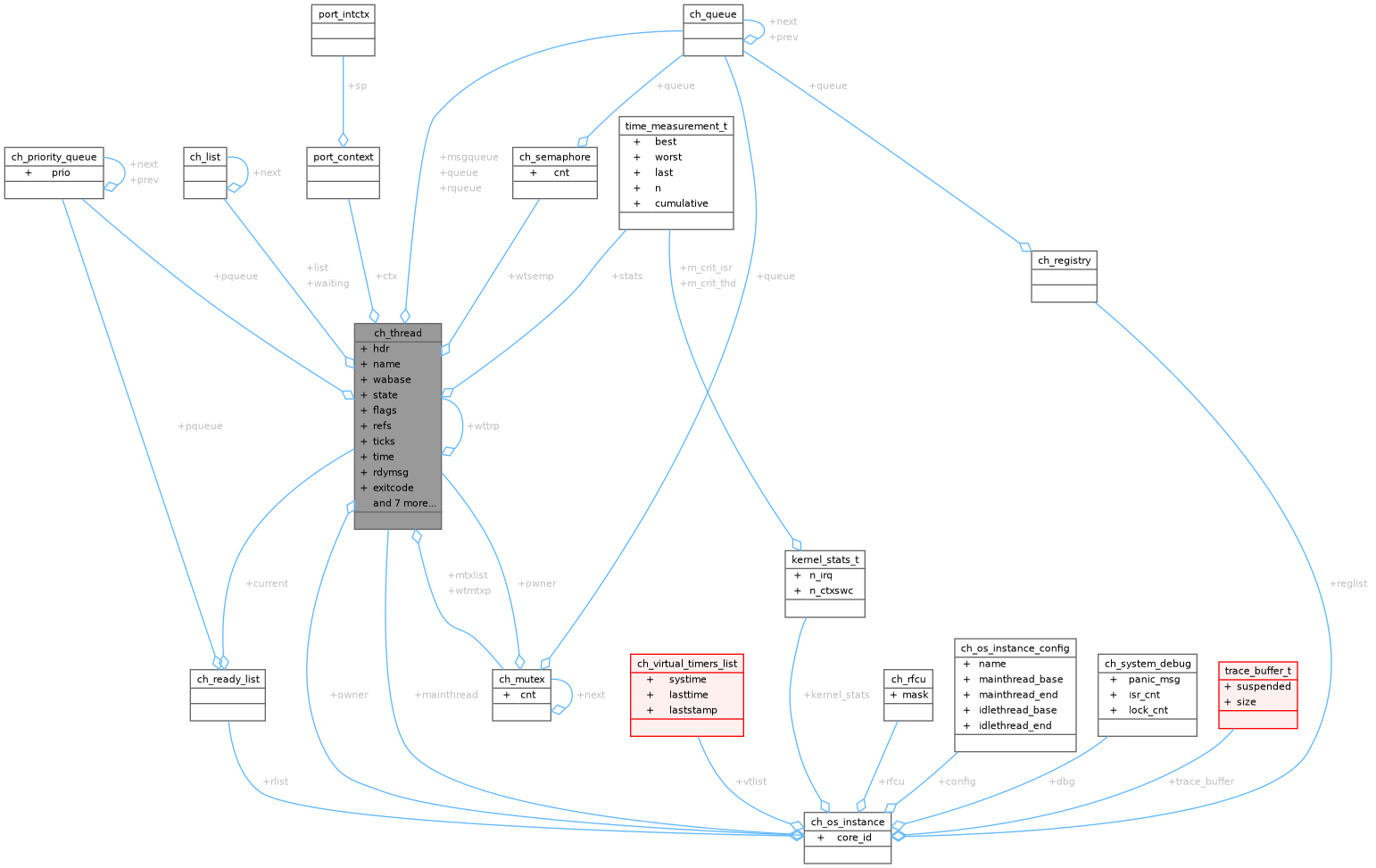

Collaboration diagram for ch_thread:

Data Fields
union {
ch_list_t list
	Threads lists element. More...
ch_queue_t queue
	Threads queues element. More...
ch_priority_queue_t pqueue
	Threads ordered queues element. More...
}	hdr
	Shared list headers.
struct port_context	ctx
	Processor context.
ch_queue_t	rqueue
	Registry queue element.
os_instance_t *	owner
	OS instance owner of this thread.
const char *	name
	Thread name or `NULL`.
stkalign_t *	wabase
	Working area base address.
tstate_t	state
	Current thread state.
tmode_t	flags
	Various thread flags.
trefs_t	refs
	References to this thread.
tslices_t	ticks
	Number of ticks remaining to this thread.
volatile systime_t	time
	Thread consumed time in ticks.
union {
msg_t rdymsg
	Thread wakeup code. More...
msg_t exitcode
	Thread exit code. More...
void * wtobjp
	Pointer to a generic "wait" object. More...
thread_reference_t * wttrp
	Pointer to a generic thread reference object. More...
struct ch_semaphore * wtsemp
	Pointer to a generic semaphore object. More...
struct ch_mutex * wtmtxp
	Pointer to a generic mutex object. More...
eventmask_t ewmask
	Enabled events mask. More...
}	u
	State-specific fields.
ch_list_t	waiting
	Termination waiting list.
ch_queue_t	msgqueue
	Messages queue.
msg_t	sentmsg
	Sent message.
eventmask_t	epending
	Pending events mask.
struct ch_mutex *	mtxlist
	List of the mutexes owned by this thread.
tprio_t	realprio
	Thread's own, non-inherited, priority.
void *	mpool
	Memory Pool where the thread workspace is returned.
time_measurement_t	stats
	Thread statistics.

Detailed Description

Structure representing a thread.

Note: Not all the listed fields are always needed, by switching off some not needed ChibiOS/RT subsystems it is possible to save RAM space by shrinking this structure.

Definition at line 153 of file chobjects.h.

Field Documentation

◆ list

ch_list_t ch_thread::list

Threads lists element.

Definition at line 161 of file chobjects.h.

Referenced by chThdWait().

◆ queue

ch_queue_t ch_thread::queue

Threads queues element.

Definition at line 165 of file chobjects.h.

Referenced by __sch_wakeup(), chCondWaitS(), chCondWaitTimeoutS(), and chMtxLockS().

◆ pqueue

ch_priority_queue_t ch_thread::pqueue

Threads ordered queues element.

Definition at line 169 of file chobjects.h.

Referenced by __sch_ready_ahead(), __sch_ready_behind(), __sch_reschedule_ahead(), __sch_reschedule_behind(), __thd_object_init(), chMtxLockS(), chMtxUnlock(), chMtxUnlockAllS(), chMtxUnlockS(), chSchDoPreemption(), chSchDoYieldS(), chSchGoSleepS(), chSchIsPreemptionRequired(), chSchPreemption(), chSchRescheduleS(), chSchSelectFirst(), chSchWakeupS(), chSysGetIdleThreadX(), chThdGetPriorityX(), and chThdSetPriority().

◆ [union]

union { ... } ch_thread::hdr

◆ ctx

struct port_context ch_thread::ctx

Processor context.

Definition at line 174 of file chobjects.h.

◆ rqueue

ch_queue_t ch_thread::rqueue

Registry queue element.

Definition at line 179 of file chobjects.h.

Referenced by chRegNextThread().

◆ owner

os_instance_t* ch_thread::owner

OS instance owner of this thread.

Definition at line 184 of file chobjects.h.

Referenced by __sch_ready_ahead(), __sch_ready_behind(), __thd_object_init(), chSchGoSleepS(), chSchReadyI(), and chSchWakeupS().

◆ name

const char* ch_thread::name

Thread name or NULL.

Definition at line 189 of file chobjects.h.

Referenced by __thd_object_init(), chRegGetThreadNameX(), and chRegSetThreadNameX().

◆ wabase

stkalign_t* ch_thread::wabase

Working area base address.

Note: This pointer is used for stack overflow checks and for dynamic threading.

Definition at line 198 of file chobjects.h.

Referenced by chInstanceObjectInit(), chThdCreateI(), chThdCreateStatic(), chThdCreateSuspendedI(), and chThdGetWorkingAreaX().

◆ state

tstate_t ch_thread::state

Current thread state.

Definition at line 203 of file chobjects.h.

Referenced by __sch_ready_ahead(), __sch_ready_behind(), __sch_reschedule_ahead(), __sch_reschedule_behind(), __sch_wakeup(), __thd_object_init(), __trace_ready(), __trace_switch(), chEvtSignalI(), chInstanceObjectInit(), chMsgGet(), chMsgPollS(), chMsgRelease(), chMsgSend(), chMsgWaitS(), chMsgWaitTimeoutS(), chMtxLockS(), chSchDoPreemption(), chSchGoSleepS(), chSchGoSleepTimeoutS(), chSchReadyI(), chSchSelectFirst(), chSchWakeupS(), chThdDoDequeueNextI(), chThdExit(), chThdRelease(), chThdResumeI(), chThdResumeS(), chThdStart(), chThdStartI(), chThdTerminatedX(), chThdWait(), nil_find_thread(), and nil_ready_all().

◆ flags

tmode_t ch_thread::flags

Various thread flags.

Definition at line 207 of file chobjects.h.

Referenced by __thd_object_init(), chThdCreateFromHeap(), chThdCreateFromMemoryPool(), chThdExitS(), chThdRelease(), chThdShouldTerminateX(), and chThdTerminate().

◆ refs

trefs_t ch_thread::refs

References to this thread.

Definition at line 212 of file chobjects.h.

Referenced by __thd_object_init(), chRegFirstThread(), chRegNextThread(), chThdAddRef(), chThdExitS(), chThdRelease(), and chThdWait().

◆ ticks

tslices_t ch_thread::ticks

Number of ticks remaining to this thread.

Definition at line 218 of file chobjects.h.

Referenced by __sch_reschedule_behind(), __thd_object_init(), chSchDoPreemption(), chSchGoSleepS(), chSchIsPreemptionRequired(), chSchPreemption(), and chSysTimerHandlerI().

◆ time

volatile systime_t ch_thread::time

Thread consumed time in ticks.

Note: This field can overflow.

Definition at line 225 of file chobjects.h.

Referenced by __thd_object_init(), chSysTimerHandlerI(), and chThdGetTicksX().

◆ rdymsg

msg_t ch_thread::rdymsg

Thread wakeup code.

Note: This field contains the low level message sent to the thread by the waking thread or interrupt handler. The value is valid after exiting the chSchWakeupS() function.

Definition at line 239 of file chobjects.h.

Referenced by __sch_ready_ahead(), __sch_ready_behind(), __sch_wakeup(), chCondBroadcastI(), chCondSignalI(), chCondWaitS(), chEvtSignalI(), chMsgSend(), chSchGoSleepTimeoutS(), chSchWakeupS(), chSemAddCounterI(), chSemResetWithMessageI(), chSemSignalI(), chSemSignalWait(), chSemWaitS(), chThdDoDequeueNextI(), and chThdResumeI().

◆ exitcode

msg_t ch_thread::exitcode

Thread exit code.

Note: The thread termination code is stored in this field in order to be retrieved by the thread performing a chThdWait() on this thread.

Definition at line 246 of file chobjects.h.

Referenced by chThdExitS(), and chThdWait().

◆ wtobjp

void* ch_thread::wtobjp

Pointer to a generic "wait" object.

Note: This field is used to get a generic pointer to a synchronization object and is valid when the thread is in one of the wait states.

Definition at line 253 of file chobjects.h.

Referenced by __trace_switch(), chCondWaitS(), chCondWaitTimeoutS(), chMsgSend(), and chMtxLockS().

◆ wttrp

thread_reference_t* ch_thread::wttrp

Pointer to a generic thread reference object.

Note: This field is used to get a pointer to a synchronization object and is valid when the thread is in CH_STATE_SUSPENDED state.

Definition at line 260 of file chobjects.h.

Referenced by __sch_wakeup(), chThdSuspendS(), and chThdSuspendTimeoutS().

◆ wtsemp

struct ch_semaphore* ch_thread::wtsemp

Pointer to a generic semaphore object.

Note: This field is used to get a pointer to a synchronization object and is valid when the thread is in CH_STATE_WTSEM state.

Definition at line 268 of file chobjects.h.

Referenced by __sch_wakeup(), chSemSignalWait(), chSemWaitS(), and chSemWaitTimeoutS().

◆ wtmtxp

struct ch_mutex* ch_thread::wtmtxp

Pointer to a generic mutex object.

Note: This field is used to get a pointer to a synchronization object and is valid when the thread is in CH_STATE_WTMTX state.

Definition at line 277 of file chobjects.h.

Referenced by chMtxLockS().

◆ ewmask

eventmask_t ch_thread::ewmask

Enabled events mask.

Note: This field is only valid while the thread is in the CH_STATE_WTOREVT or CH_STATE_WTANDEVT states.

Definition at line 285 of file chobjects.h.

Referenced by chEvtSignalI(), chEvtWaitAll(), chEvtWaitAllTimeout(), chEvtWaitAllTimeout(), chEvtWaitAny(), chEvtWaitAnyTimeout(), chEvtWaitAnyTimeout(), chEvtWaitOne(), and chEvtWaitOneTimeout().

◆ [union]

union { ... } ch_thread::u

State-specific fields.

Note: All the fields declared in this union are only valid in the specified state or condition and are thus volatile.

Referenced by __sch_ready_ahead(), __sch_ready_behind(), __sch_wakeup(), __trace_switch(), chCondBroadcastI(), chCondSignalI(), chCondWaitS(), chCondWaitTimeoutS(), chEvtSignalI(), chEvtWaitAll(), chEvtWaitAllTimeout(), chEvtWaitAny(), chEvtWaitAnyTimeout(), chEvtWaitOne(), chEvtWaitOneTimeout(), chMsgSend(), chMtxLockS(), chSchGoSleepTimeoutS(), chSchWakeupS(), chSemAddCounterI(), chSemResetWithMessageI(), chSemSignalI(), chSemSignalWait(), chSemWaitS(), chSemWaitTimeoutS(), chThdDoDequeueNextI(), chThdExitS(), chThdResumeI(), chThdSuspendS(), chThdSuspendTimeoutS(), and chThdWait().

◆ waiting

ch_list_t ch_thread::waiting

Termination waiting list.

Definition at line 292 of file chobjects.h.

Referenced by __thd_object_init(), chThdExitS(), and chThdWait().

◆ msgqueue

ch_queue_t ch_thread::msgqueue

Messages queue.

Definition at line 298 of file chobjects.h.

Referenced by __thd_object_init(), chMsgIsPendingI(), chMsgPollS(), chMsgSend(), chMsgWaitS(), and chMsgWaitTimeoutS().

◆ sentmsg

msg_t ch_thread::sentmsg

Sent message.

Note: This field is intentionally placed outside the u union even though it is only valid while the thread is in the CH_STATE_SNDMSG or CH_STATE_SNDMSGQ states.; The reason for keeping it out of the union is that, when CH_CFG_USE_MESSAGES_PRIORITY is enabled, a thread blocked in CH_STATE_SNDMSGQ can be subject to priority inheritance: the PI walk in chMtxLockS() needs to re-enqueue the sender in the receiver's message queue after boosting its priority, and it does so by storing a back-pointer to that queue in u.wtobjp. At the same time chMsgGet() must still be able to read the sent message value until chMsgRelease() is called. Because both u.wtobjp and sentmsg must coexist while the thread is queued, placing sentmsg in the union would cause them to alias and corrupt each other.

Definition at line 316 of file chobjects.h.

Referenced by chMsgGet(), and chMsgSend().

◆ epending

eventmask_t ch_thread::epending

Pending events mask.

Definition at line 322 of file chobjects.h.

Referenced by __thd_object_init(), chEvtGetAndClearEventsI(), chEvtSignalI(), chEvtWaitAll(), chEvtWaitAllTimeout(), chEvtWaitAny(), chEvtWaitAnyTimeout(), chEvtWaitOne(), and chEvtWaitOneTimeout().

◆ mtxlist

struct ch_mutex* ch_thread::mtxlist

List of the mutexes owned by this thread.

Note: The list is terminated by a NULL in this field.

Definition at line 329 of file chobjects.h.

Referenced by __thd_object_init(), chMtxLockS(), chMtxTryLockS(), chMtxUnlock(), chMtxUnlockAllS(), and chMtxUnlockS().

◆ realprio

tprio_t ch_thread::realprio

Thread's own, non-inherited, priority.

Definition at line 333 of file chobjects.h.

Referenced by __thd_object_init(), chMtxUnlock(), chMtxUnlockAllS(), chMtxUnlockS(), and chThdSetPriority().

◆ mpool

void* ch_thread::mpool

Memory Pool where the thread workspace is returned.

Definition at line 340 of file chobjects.h.

Referenced by chThdCreateFromMemoryPool(), and chThdRelease().

◆ stats

time_measurement_t ch_thread::stats

Thread statistics.

Definition at line 346 of file chobjects.h.

Referenced by __stats_ctxswc(), __thd_object_init(), and chInstanceObjectInit().
