Detailed Description

Threads Registry related APIs and services.

Operation mode

The Threads Registry is a double linked list that holds all the active threads in the system.
Operations defined for the registry:

First, returns the first, in creation order, active thread in the system.
Next, returns the next, in creation order, active thread in the system.

The registry is meant to be mainly a debug feature, for example, using the registry a debugger can enumerate the active threads in any given moment or the shell can print the active threads and their state.
Another possible use is for centralized threads memory management, terminating threads can pulse an event source and an event handler can perform a scansion of the registry in order to recover the memory.

Precondition: In order to use the threads registry the CH_CFG_USE_REGISTRY option must be enabled in chconf.h.

Collaboration diagram for Registry:

Data Structures
struct	chdebug_t
	ChibiOS/RT memory signature record. More...

Macros
#define	REG_HEADER(oip)
	Access to the registry list header.
#define	REG_REMOVE(tp)
	Removes a thread from the registry list.
#define	REG_INSERT(oip, tp)
	Adds a thread to the registry list.

Functions
thread_t *	chRegFirstThread (void)
	Returns the first thread in the system.
thread_t *	chRegNextThread (thread_t *tp)
	Returns the thread next to the specified one.
thread_t *	chRegFindThreadByName (const char *name)
	Retrieves a thread pointer by name.
thread_t *	chRegFindThreadByPointer (thread_t *tp)
	Confirms that a pointer is a valid thread pointer.
thread_t *	chRegFindThreadByWorkingArea (stkalign_t *wa)
	Confirms that a working area is being used by some active thread.
static void	__reg_object_init (registry_t *rp)
	Initializes a registry.
static void	chRegSetThreadName (const char *name)
	Sets the current thread name.
static const char *	chRegGetThreadNameX (thread_t *tp)
	Returns the name of the specified thread.
static void	chRegSetThreadNameX (thread_t tp, const char name)
	Changes the name of the specified thread.

Variables
ROMCONST chdebug_t	ch_debug
ROMCONST chdebug_t	ch_debug

Macro Definition Documentation

◆ REG_HEADER

#define REG_HEADER ( oip )

Value:

(&ch_system.reglist.queue)

ch_registry::queue

ch_queue_t queue

Registry queue header.

Definition chobjects.h:132

ch_system

Type of system data structure.

Definition chobjects.h:457

ch_system::reglist

registry_t reglist

Registry header.

Definition chobjects.h:478

Access to the registry list header.

Definition at line 98 of file chregistry.h.

Referenced by chRegFirstThread(), chRegNextThread(), and chSysIntegrityCheckI().

◆ REG_REMOVE

#define REG_REMOVE ( tp )

Value:

(void) ch_queue_dequeue(&(tp)->rqueue)

ch_queue_dequeue

static ch_queue_t * ch_queue_dequeue(ch_queue_t *p)

Removes an element from a queue and returns it.

Definition chlists.h:318

Removes a thread from the registry list.

Note: This macro is not meant for use in application code.

Parameters

[in] tp thread to remove from the registry

Definition at line 109 of file chregistry.h.

Referenced by chThdExitS(), and chThdRelease().

◆ REG_INSERT

#define REG_INSERT	(		oip,
			tp )

Value:

ch_queue_insert(REG_HEADER(oip), &(tp)->rqueue)

ch_queue_insert

static void ch_queue_insert(ch_queue_t *qp, ch_queue_t *p)

Inserts an element into a queue.

Definition chlists.h:262

REG_HEADER

#define REG_HEADER(oip)

Access to the registry list header.

Definition chregistry.h:98

Adds a thread to the registry list.

Note: This macro is not meant for use in application code.

Parameters

[in]	oip	pointer to the OS instance
[in]	tp	thread to add to the registry

Definition at line 118 of file chregistry.h.

Referenced by __thd_object_init().

Function Documentation

◆ chRegFirstThread()

thread_t * chRegFirstThread ( void )

Returns the first thread in the system.

Returns the most ancient thread in the system, usually this is the main thread unless it terminated. A reference is added to the returned thread in order to make sure its status is not lost.

Note: This function cannot return NULL because there is always at least one thread in the system.

Returns: A reference to the most ancient thread.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 159 of file chregistry.c.

References __CH_OFFSETOF, chSysLock, chSysUnlock, currcore, ch_thread::refs, REG_HEADER, and threadref.

Referenced by chRegFindThreadByName(), chRegFindThreadByPointer(), and chRegFindThreadByWorkingArea().

◆ chRegNextThread()

thread_t * chRegNextThread ( thread_t * tp )

Returns the thread next to the specified one.

The reference counter of the specified thread is decremented and the reference counter of the returned thread is incremented.

Parameters

[in] tp pointer to the thread

Returns: A reference to the next thread.

Return values

NULL	if there is no next thread.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 187 of file chregistry.c.

References __CH_OFFSETOF, chDbgAssert, chSysLock, chSysUnlock, chThdRelease(), currcore, ch_queue::next, ch_thread::refs, REG_HEADER, ch_thread::rqueue, and threadref.

Referenced by chRegFindThreadByName(), chRegFindThreadByPointer(), and chRegFindThreadByWorkingArea().

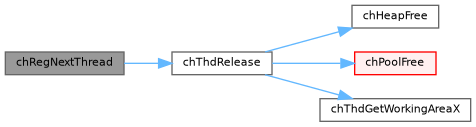

Here is the call graph for this function:

◆ chRegFindThreadByName()

thread_t * chRegFindThreadByName ( const char * name )

Retrieves a thread pointer by name.

Note: The reference counter of the found thread is increased by one so it cannot be disposed incidentally after the pointer has been returned.

Parameters

[in] name the thread name

Returns: A pointer to the found thread.

Return values

NULL	if a matching thread has not been found.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 230 of file chregistry.c.

References chRegFirstThread(), chRegGetThreadNameX(), and chRegNextThread().

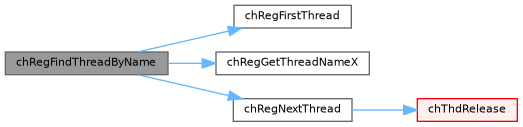

Here is the call graph for this function:

◆ chRegFindThreadByPointer()

thread_t * chRegFindThreadByPointer ( thread_t * tp )

Confirms that a pointer is a valid thread pointer.

Note: The reference counter of the found thread is increased by one so it cannot be disposed incidentally after the pointer has been returned.

Parameters

[in] tp pointer to the thread

Returns: A pointer to the found thread.

Return values

NULL	if a matching thread has not been found.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 257 of file chregistry.c.

References chRegFirstThread(), and chRegNextThread().

Here is the call graph for this function:

◆ chRegFindThreadByWorkingArea()

thread_t * chRegFindThreadByWorkingArea ( stkalign_t * wa )

Confirms that a working area is being used by some active thread.

Note: The reference counter of the found thread is increased by one so it cannot be disposed incidentally after the pointer has been returned.

Parameters

[in] wa pointer to a static working area

Returns: A pointer to the found thread.

Return values

NULL	if a matching thread has not been found.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 286 of file chregistry.c.

References chRegFirstThread(), chRegNextThread(), and chThdGetWorkingAreaX().

Referenced by chThdCreate(), chThdCreateStatic(), and chThdCreateSuspended().

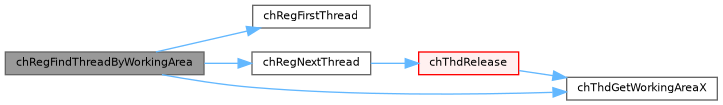

Here is the call graph for this function:

◆ __reg_object_init()

void __reg_object_init ( registry_t * rp )

inlinestatic

Initializes a registry.

Note: Internal use only.

Parameters

[out] rp pointer to a registry_t structure

Function Class:: Object or module nitializer function.

Definition at line 151 of file chregistry.h.

References ch_queue_init(), and ch_registry::queue.

Referenced by chInstanceObjectInit(), and chSysInit().

Here is the call graph for this function:

◆ chRegSetThreadName()

void chRegSetThreadName ( const char * name )

inlinestatic

Sets the current thread name.

Precondition: This function only stores the pointer to the name if the option CH_CFG_USE_REGISTRY is enabled else no action is performed.

Parameters

[in] name thread name as a zero terminated string

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 165 of file chregistry.h.

References __sch_get_currthread.

◆ chRegGetThreadNameX()

const char * chRegGetThreadNameX ( thread_t * tp )

inlinestatic

Returns the name of the specified thread.

Precondition: This function only returns the pointer to the name if the option CH_CFG_USE_REGISTRY is enabled else NULL is returned.

Parameters

[in] tp pointer to the thread

Returns: Thread name as a zero terminated string.

Return values

NULL	if the thread name has not been set.

Definition at line 185 of file chregistry.h.

References ch_thread::name.

Referenced by chRegFindThreadByName().

◆ chRegSetThreadNameX()

void chRegSetThreadNameX	(	thread_t *	tp,
		const char *	name )

inlinestatic

Changes the name of the specified thread.

Precondition: This function only stores the pointer to the name if the option CH_CFG_USE_REGISTRY is enabled else no action is performed.

Parameters

[in]	tp	pointer to the thread
[in]	name	thread name as a zero terminated string

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 205 of file chregistry.h.

References ch_thread::name.

Variable Documentation

◆ ch_debug [1/2]

ROMCONST chdebug_t ch_debug

Definition at line 77 of file chregistry.c.

Referenced by chInstanceObjectInit().

◆ ch_debug [2/2]

ROMCONST chdebug_t ch_debug

extern

Definition at line 77 of file chregistry.c.

Referenced by chInstanceObjectInit().
