Detailed Description

Collaboration diagram for HTS221:

HTS221 data structures and types.
enum	hts221_odr_t { HTS221_ODR_ONE_SHOT = 0x00 , HTS221_ODR_1HZ = 0x01 , HTS221_ODR_7HZ = 0x02 , HTS221_ODR_12P5HZ = 0x03 }
	HTS221 output data rate and bandwidth. More...
enum	hts221_avgh_t { HTS221_AVGH_4 = 0x00 , HTS221_AVGH_8 = 0x01 , HTS221_AVGH_16 = 0x02 , HTS221_AVGH_32 = 0x03 , HTS221_AVGH_64 = 0x04 , HTS221_AVGH_128 = 0x05 , HTS221_AVGH_256 = 0x06 , HTS221_AVGH_512 = 0x07 }
	HTS221 humidity resolution. More...
enum	hts221_avgt_t { HTS221_AVGT_2 = 0x00 , HTS221_AVGT_4 = 0x08 , HTS221_AVGT_8 = 0x10 , HTS221_AVGT_16 = 0x18 , HTS221_AVGT_32 = 0x20 , HTS221_AVGT_64 = 0x28 , HTS221_AVGT_128 = 0x30 , HTS221_AVGT_256 = 0x38 }
	HTS221 temperature resolution. More...
enum	hts221_bdu_t { HTS221_BDU_CONTINUOUS = 0x00 , HTS221_BDU_BLOCKED = 0x40 }
	HTS221 block data update. More...
enum	hts221_state_t { HTS221_UNINIT = 0 , HTS221_STOP = 1 , HTS221_READY = 2 }
	Driver state machine possible states. More...
typedef struct HTS221Driver	HTS221Driver
	Structure representing a HTS221 driver.
#define	_hts221_methods_alone
	`HTS221` specific methods.
#define	_hts221_methods
	`HTS221` specific methods with inherited ones.
#define	_hts221_data
	`HTS221Driver` specific data.

Version identification
#define	EX_HTS221_VERSION "1.1.2"
	HTS221 driver version string.
#define	EX_HTS221_MAJOR 1
	HTS221 driver version major number.
#define	EX_HTS221_MINOR 1
	HTS221 driver version minor number.
#define	EX_HTS221_PATCH 2
	HTS221 driver version patch number.
#define	HTS221_HYGRO_NUMBER_OF_AXES 1U
	HTS221 hygrometer subsystem characteristics.
#define	HTS221_HYGRO_SENS 0.00390625f
#define	HTS221_HYGRO_BIAS 0.0f
#define	HTS221_THERMO_NUMBER_OF_AXES 1U
	HTS221 thermometer subsystem characteristics.
#define	HTS221_THERMO_SENS 0.0015625f
#define	HTS221_THERMO_BIAS 0.0f

HTS221 communication interfaces related bit masks
#define	HTS221_DI_MASK 0xFF
#define	HTS221_DI(n)
#define	HTS221_AD_MASK 0x3F
#define	HTS221_AD(n)
#define	HTS221_MS (1 << 6)
#define	HTS221_RW (1 << 7)
#define	HTS221_SUB_MS (1 << 7)
#define	HTS221_SAD 0x5F

HTS221 register addresses
#define	HTS221_AD_WHO_AM_I 0x0F
#define	HTS221_AD_AV_CONF 0x10
#define	HTS221_AD_CTRL_REG1 0x20
#define	HTS221_AD_CTRL_REG2 0x21
#define	HTS221_AD_CTRL_REG3 0x22
#define	HTS221_AD_STATUS_REG 0x27
#define	HTS221_AD_HUMIDITY_OUT_L 0x28
#define	HTS221_AD_HUMIDITY_OUT_H 0x29
#define	HTS221_AD_TEMP_OUT_L 0x2A
#define	HTS221_AD_TEMP_OUT_H 0x2B
#define	HTS221_AD_CALIB_0 0x30
#define	HTS221_AD_CALIB_1 0x31
#define	HTS221_AD_CALIB_2 0x32
#define	HTS221_AD_CALIB_3 0x33
#define	HTS221_AD_CALIB_4 0x34
#define	HTS221_AD_CALIB_5 0x35
#define	HTS221_AD_CALIB_6 0x36
#define	HTS221_AD_CALIB_7 0x37
#define	HTS221_AD_CALIB_8 0x38
#define	HTS221_AD_CALIB_9 0x39
#define	HTS221_AD_CALIB_A 0x3A
#define	HTS221_AD_CALIB_B 0x3B
#define	HTS221_AD_CALIB_C 0x3C
#define	HTS221_AD_CALIB_D 0x3D
#define	HTS221_AD_CALIB_E 0x3E
#define	HTS221_AD_CALIB_F 0x3F

HTS221_CTRL_REG1 register bits definitions
#define	HTS221_CTRL_REG1_MASK 0x87
#define	HTS221_CTRL_REG1_ODR0 (1 << 0)
#define	HTS221_CTRL_REG1_ODR1 (1 << 1)
#define	HTS221_CTRL_REG1_BDU (1 << 2)
#define	HTS221_CTRL_REG1_PD (1 << 7)

HTS221_CTRL_REG2 register bits definitions
#define	HTS221_CTRL_REG2_MASK 0x83
#define	HTS221_CTRL_REG2_ONE_SHOT (1 << 0)
#define	HTS221_CTRL_REG2_HEATER (1 << 1)
#define	HTS221_CTRL_REG2_BOOT (1 << 7)

HTS221_CTRL_REG3 register bits definitions
#define	HTS221_CTRL_REG3_MASK 0xC4
#define	HTS221_CTRL_REG3_DRDY (1 << 2)
#define	HTS221_CTRL_REG3_PP_OD (1 << 6)
#define	HTS221_CTRL_REG3_INT_H_L (1 << 7)

Configuration options
#define	HTS221_USE_SPI FALSE
	HTS221 SPI interface switch.
#define	HTS221_SHARED_SPI FALSE
	HTS221 shared SPI switch.
#define	HTS221_USE_I2C TRUE
	HTS221 I2C interface switch.
#define	HTS221_SHARED_I2C FALSE
	HTS221 shared I2C switch.
#define	HTS221_USE_ADVANCED FALSE
	HTS221 advanced configurations switch.

Data Structures
struct	HTS221Config
	HTS221 configuration structure. More...
struct	HTS221VMT
	`HTS221` virtual methods table. More...
struct	HTS221Driver
	HTS221 2-axis hygrometer/thermometer class. More...

Macros
#define	HTS221_SEL(mask, offset)
#define	HTS221_FLAG_HYGRO_BIAS 0x01
#define	HTS221_FLAG_HYGRO_SENS 0x02
#define	HTS221_FLAG_THERMO_BIAS 0x04
#define	HTS221_FLAG_THERMO_SENS 0x08
#define	hts221HygrometerGetAxesNumber(devp)
	Return the number of axes of the BaseHygrometer.
#define	hts221HygrometerReadRaw(devp, axes)
	Retrieves raw data from the BaseHygrometer.
#define	hts221HygrometerReadCooked(devp, axes)
	Retrieves cooked data from the BaseHygrometer.
#define	hts221HygrometerSetBias(devp, bp)
	Set bias values for the BaseHygrometer.
#define	hts221HygrometerResetBias(devp)
	Reset bias values for the BaseHygrometer.
#define	hts221HygrometerSetSensitivity(devp, sp)
	Set sensitivity values for the BaseHygrometer.
#define	hts221HygrometerResetSensitivity(devp)
	Reset sensitivity values for the BaseHygrometer.
#define	hts221ThermometerGetAxesNumber(devp)
	Return the number of axes of the BaseThermometer.
#define	hts221ThermometerReadRaw(devp, axes)
	Retrieves raw data from the BaseThermometer.
#define	hts221ThermometerReadCooked(devp, axes)
	Retrieves cooked data from the BaseThermometer.
#define	hts221ThermometerSetBias(devp, bp)
	Set bias values for the BaseThermometer.
#define	hts221ThermometerResetBias(devp)
	Reset bias values for the BaseThermometer.
#define	hts221ThermometerSetSensitivity(devp, sp)
	Set sensitivity values for the BaseThermometer.
#define	hts221ThermometerResetSensitivity(devp)
	Reset sensitivity values for the BaseThermometer.

Functions
static msg_t	hts221I2CReadRegister (I2CDriver i2cp, uint8_t reg, uint8_t rxbuf, size_t n)
	Reads registers value using I2C.
static msg_t	hts221I2CWriteRegister (I2CDriver i2cp, uint8_t txbuf, size_t n)
	Writes a value into a register using I2C.
static msg_t	hts221Calibrate (HTS221Driver *devp)
	Computes biases and sensitivities starting from data stored in calibration registers.
static size_t	hygro_get_axes_number (void *ip)
	Return the number of axes of the BaseHygrometer.
static msg_t	hygro_read_raw (void *ip, int32_t axes[])
	Retrieves raw data from the BaseHygrometer.
static msg_t	hygro_read_cooked (void *ip, float axes[])
	Retrieves cooked data from the BaseHygrometer.
static msg_t	hygro_set_bias (void ip, float bp)
	Set bias values for the BaseHygrometer.
static msg_t	hygro_reset_bias (void *ip)
	Reset bias values for the BaseHygrometer.
static msg_t	hygro_set_sensitivity (void ip, float sp)
	Set sensitivity values for the BaseHygrometer.
static msg_t	hygro_reset_sensitivity (void *ip)
	Reset sensitivity values for the BaseHygrometer.
static size_t	thermo_get_axes_number (void *ip)
	Return the number of axes of the BaseThermometer.
static msg_t	thermo_read_raw (void *ip, int32_t axes[])
	Retrieves raw data from the BaseThermometer.
static msg_t	thermo_read_cooked (void ip, float axis)
	Retrieves cooked data from the BaseThermometer.
static msg_t	thermo_set_bias (void ip, float bp)
	Set bias values for the BaseThermometer.
static msg_t	thermo_reset_bias (void *ip)
	Reset bias values for the BaseThermometer.
static msg_t	thermo_set_sensitivity (void ip, float sp)
	Set sensitivity values for the BaseThermometer.
static msg_t	thermo_reset_sensitivity (void *ip)
	Reset sensitivity values for the BaseThermometer.
void	hts221ObjectInit (HTS221Driver *devp)
	Initializes an instance.
void	hts221Start (HTS221Driver devp, const HTS221Config config)
	Configures and activates HTS221 Complex Driver peripheral.
void	hts221Stop (HTS221Driver *devp)
	Deactivates the HTS221 Complex Driver peripheral.

Variables
static const struct HTS221VMT	vmt_device
static const struct BaseHygrometerVMT	vmt_hygrometer
static const struct BaseThermometerVMT	vmt_thermometer

Macro Definition Documentation

◆ HTS221_SEL

#define HTS221_SEL	(		mask,
			offset )

Value:

(int16_t)(mask << offset)

Definition at line 37 of file hts221.c.

Referenced by hts221Calibrate().

◆ HTS221_FLAG_HYGRO_BIAS

#define HTS221_FLAG_HYGRO_BIAS 0x01

Definition at line 39 of file hts221.c.

◆ HTS221_FLAG_HYGRO_SENS

#define HTS221_FLAG_HYGRO_SENS 0x02

Definition at line 40 of file hts221.c.

◆ HTS221_FLAG_THERMO_BIAS

#define HTS221_FLAG_THERMO_BIAS 0x04

Definition at line 41 of file hts221.c.

◆ HTS221_FLAG_THERMO_SENS

#define HTS221_FLAG_THERMO_SENS 0x08

Definition at line 42 of file hts221.c.

◆ EX_HTS221_VERSION

#define EX_HTS221_VERSION "1.1.2"

HTS221 driver version string.

Definition at line 47 of file hts221.h.

◆ EX_HTS221_MAJOR

#define EX_HTS221_MAJOR 1

HTS221 driver version major number.

Definition at line 52 of file hts221.h.

◆ EX_HTS221_MINOR

#define EX_HTS221_MINOR 1

HTS221 driver version minor number.

Definition at line 57 of file hts221.h.

◆ EX_HTS221_PATCH

#define EX_HTS221_PATCH 2

HTS221 driver version patch number.

Definition at line 62 of file hts221.h.

◆ HTS221_HYGRO_NUMBER_OF_AXES

#define HTS221_HYGRO_NUMBER_OF_AXES 1U

HTS221 hygrometer subsystem characteristics.

Note: Sensitivity is expressed as rH/LSB whereas rH stand for percentage of relative humidity.; Bias is expressed as rH.

Definition at line 72 of file hts221.h.

Referenced by hts221ObjectInit(), and hygro_get_axes_number().

◆ HTS221_HYGRO_SENS

#define HTS221_HYGRO_SENS 0.00390625f

Definition at line 74 of file hts221.h.

◆ HTS221_HYGRO_BIAS

#define HTS221_HYGRO_BIAS 0.0f

Definition at line 75 of file hts221.h.

◆ HTS221_THERMO_NUMBER_OF_AXES

#define HTS221_THERMO_NUMBER_OF_AXES 1U

HTS221 thermometer subsystem characteristics.

Note: Sensitivity is expressed as �C/LSB.; Bias is expressed as �C.

Definition at line 85 of file hts221.h.

Referenced by hts221ObjectInit(), and thermo_get_axes_number().

◆ HTS221_THERMO_SENS

#define HTS221_THERMO_SENS 0.0015625f

Definition at line 87 of file hts221.h.

◆ HTS221_THERMO_BIAS

#define HTS221_THERMO_BIAS 0.0f

Definition at line 88 of file hts221.h.

◆ HTS221_DI_MASK

#define HTS221_DI_MASK 0xFF

Definition at line 95 of file hts221.h.

◆ HTS221_DI

#define HTS221_DI ( n )

Value:

(1 << n)

Definition at line 96 of file hts221.h.

◆ HTS221_AD_MASK

#define HTS221_AD_MASK 0x3F

Definition at line 97 of file hts221.h.

◆ HTS221_AD

#define HTS221_AD ( n )

Value:

(1 << n)

Definition at line 98 of file hts221.h.

◆ HTS221_MS

#define HTS221_MS (1 << 6)

Definition at line 99 of file hts221.h.

◆ HTS221_RW

#define HTS221_RW (1 << 7)

Definition at line 100 of file hts221.h.

◆ HTS221_SUB_MS

#define HTS221_SUB_MS (1 << 7)

Definition at line 102 of file hts221.h.

Referenced by hts221I2CReadRegister(), and hts221I2CWriteRegister().

◆ HTS221_SAD

#define HTS221_SAD 0x5F

Definition at line 104 of file hts221.h.

Referenced by hts221I2CReadRegister(), and hts221I2CWriteRegister().

◆ HTS221_AD_WHO_AM_I

#define HTS221_AD_WHO_AM_I 0x0F

Definition at line 111 of file hts221.h.

◆ HTS221_AD_AV_CONF

#define HTS221_AD_AV_CONF 0x10

Definition at line 112 of file hts221.h.

Referenced by hts221Start().

◆ HTS221_AD_CTRL_REG1

#define HTS221_AD_CTRL_REG1 0x20

Definition at line 113 of file hts221.h.

Referenced by hts221Start(), and hts221Stop().

◆ HTS221_AD_CTRL_REG2

#define HTS221_AD_CTRL_REG2 0x21

Definition at line 114 of file hts221.h.

◆ HTS221_AD_CTRL_REG3

#define HTS221_AD_CTRL_REG3 0x22

Definition at line 115 of file hts221.h.

◆ HTS221_AD_STATUS_REG

#define HTS221_AD_STATUS_REG 0x27

Definition at line 116 of file hts221.h.

◆ HTS221_AD_HUMIDITY_OUT_L

#define HTS221_AD_HUMIDITY_OUT_L 0x28

Definition at line 117 of file hts221.h.

Referenced by hygro_read_raw().

◆ HTS221_AD_HUMIDITY_OUT_H

#define HTS221_AD_HUMIDITY_OUT_H 0x29

Definition at line 118 of file hts221.h.

◆ HTS221_AD_TEMP_OUT_L

#define HTS221_AD_TEMP_OUT_L 0x2A

Definition at line 119 of file hts221.h.

Referenced by thermo_read_raw().

◆ HTS221_AD_TEMP_OUT_H

#define HTS221_AD_TEMP_OUT_H 0x2B

Definition at line 120 of file hts221.h.

◆ HTS221_AD_CALIB_0

#define HTS221_AD_CALIB_0 0x30

Definition at line 121 of file hts221.h.

Referenced by hts221Calibrate().

◆ HTS221_AD_CALIB_1

#define HTS221_AD_CALIB_1 0x31

Definition at line 122 of file hts221.h.

◆ HTS221_AD_CALIB_2

#define HTS221_AD_CALIB_2 0x32

Definition at line 123 of file hts221.h.

◆ HTS221_AD_CALIB_3

#define HTS221_AD_CALIB_3 0x33

Definition at line 124 of file hts221.h.

◆ HTS221_AD_CALIB_4

#define HTS221_AD_CALIB_4 0x34

Definition at line 125 of file hts221.h.

◆ HTS221_AD_CALIB_5

#define HTS221_AD_CALIB_5 0x35

Definition at line 126 of file hts221.h.

◆ HTS221_AD_CALIB_6

#define HTS221_AD_CALIB_6 0x36

Definition at line 127 of file hts221.h.

◆ HTS221_AD_CALIB_7

#define HTS221_AD_CALIB_7 0x37

Definition at line 128 of file hts221.h.

◆ HTS221_AD_CALIB_8

#define HTS221_AD_CALIB_8 0x38

Definition at line 129 of file hts221.h.

◆ HTS221_AD_CALIB_9

#define HTS221_AD_CALIB_9 0x39

Definition at line 130 of file hts221.h.

◆ HTS221_AD_CALIB_A

#define HTS221_AD_CALIB_A 0x3A

Definition at line 131 of file hts221.h.

◆ HTS221_AD_CALIB_B

#define HTS221_AD_CALIB_B 0x3B

Definition at line 132 of file hts221.h.

◆ HTS221_AD_CALIB_C

#define HTS221_AD_CALIB_C 0x3C

Definition at line 133 of file hts221.h.

◆ HTS221_AD_CALIB_D

#define HTS221_AD_CALIB_D 0x3D

Definition at line 134 of file hts221.h.

◆ HTS221_AD_CALIB_E

#define HTS221_AD_CALIB_E 0x3E

Definition at line 135 of file hts221.h.

◆ HTS221_AD_CALIB_F

#define HTS221_AD_CALIB_F 0x3F

Definition at line 136 of file hts221.h.

◆ HTS221_CTRL_REG1_MASK

#define HTS221_CTRL_REG1_MASK 0x87

Definition at line 143 of file hts221.h.

◆ HTS221_CTRL_REG1_ODR0

#define HTS221_CTRL_REG1_ODR0 (1 << 0)

Definition at line 144 of file hts221.h.

◆ HTS221_CTRL_REG1_ODR1

#define HTS221_CTRL_REG1_ODR1 (1 << 1)

Definition at line 145 of file hts221.h.

◆ HTS221_CTRL_REG1_BDU

#define HTS221_CTRL_REG1_BDU (1 << 2)

Definition at line 146 of file hts221.h.

◆ HTS221_CTRL_REG1_PD

#define HTS221_CTRL_REG1_PD (1 << 7)

Definition at line 147 of file hts221.h.

Referenced by hts221Start().

◆ HTS221_CTRL_REG2_MASK

#define HTS221_CTRL_REG2_MASK 0x83

Definition at line 154 of file hts221.h.

◆ HTS221_CTRL_REG2_ONE_SHOT

#define HTS221_CTRL_REG2_ONE_SHOT (1 << 0)

Definition at line 155 of file hts221.h.

◆ HTS221_CTRL_REG2_HEATER

#define HTS221_CTRL_REG2_HEATER (1 << 1)

Definition at line 156 of file hts221.h.

◆ HTS221_CTRL_REG2_BOOT

#define HTS221_CTRL_REG2_BOOT (1 << 7)

Definition at line 157 of file hts221.h.

◆ HTS221_CTRL_REG3_MASK

#define HTS221_CTRL_REG3_MASK 0xC4

Definition at line 164 of file hts221.h.

◆ HTS221_CTRL_REG3_DRDY

#define HTS221_CTRL_REG3_DRDY (1 << 2)

Definition at line 165 of file hts221.h.

◆ HTS221_CTRL_REG3_PP_OD

#define HTS221_CTRL_REG3_PP_OD (1 << 6)

Definition at line 166 of file hts221.h.

◆ HTS221_CTRL_REG3_INT_H_L

#define HTS221_CTRL_REG3_INT_H_L (1 << 7)

Definition at line 167 of file hts221.h.

◆ HTS221_USE_SPI

#define HTS221_USE_SPI FALSE

HTS221 SPI interface switch.

If set to TRUE the support for SPI is included.

Note: The default is FALSE.

Definition at line 184 of file hts221.h.

◆ HTS221_SHARED_SPI

#define HTS221_SHARED_SPI FALSE

HTS221 shared SPI switch.

If set to TRUE the device acquires SPI bus ownership on each transaction.

Note: The default is FALSE. Requires SPI_USE_MUTUAL_EXCLUSION

Definition at line 194 of file hts221.h.

◆ HTS221_USE_I2C

#define HTS221_USE_I2C TRUE

HTS221 I2C interface switch.

If set to TRUE the support for I2C is included.

Note: The default is TRUE.

Definition at line 203 of file hts221.h.

◆ HTS221_SHARED_I2C

#define HTS221_SHARED_I2C FALSE

HTS221 shared I2C switch.

If set to TRUE the device acquires I2C bus ownership on each transaction.

Note: The default is FALSE. Requires I2C_USE_MUTUAL_EXCLUSION

Definition at line 213 of file hts221.h.

◆ HTS221_USE_ADVANCED

#define HTS221_USE_ADVANCED FALSE

HTS221 advanced configurations switch.

If set to TRUE more configurations are available.

Note: The default is FALSE.

Definition at line 222 of file hts221.h.

◆ _hts221_methods_alone

#define _hts221_methods_alone

HTS221 specific methods.

Note: No methods so far, just a common ancestor interface.

Definition at line 390 of file hts221.h.

◆ _hts221_methods

#define _hts221_methods

Value:

_base_object_methods \

_hts221_methods_alone

HTS221 specific methods with inherited ones.

Definition at line 395 of file hts221.h.

◆ _hts221_data

#define _hts221_data

Value:

  /* Driver state.*/                                                        \
  hts221_state_t            state;                                          \
  /* Current configuration data.*/                                          \
  const HTS221Config        *config;                                        \
  /* Hygrometer subsystem axes number.*/                                    \
  size_t                    hygroaxes;                                      \
  /* Hygrometer subsystem current sensitivity.*/                            \
  float                     hygrosensitivity;                               \
  /* Hygrometer subsystem current bias .*/                                  \
  float                     hygrobias;                                      \
  /* Hygrometer subsystem factory sensitivity.*/                            \
  float                     hygrofactorysensitivity;                        \
  /* Hygrometer subsystem factory bias .*/                                  \
  float                     hygrofactorybias;                               \
  /* Thermometer subsystem axes number.*/                                   \
  size_t                    thermoaxes;                                     \
  /* Thermometer subsystem current sensitivity.*/                           \
  float                     thermosensitivity;                              \
  /* Thermometer subsystem current bias.*/                                  \
  float                     thermobias;                                     \
  /* Thermometer subsystem factory sensitivity.*/                           \
  float                     thermofactorysensitivity;                       \
  /* Thermometer subsystem factory bias.*/                                  \
  float                     thermofactorybias;

HTS221Driver specific data.

Definition at line 411 of file hts221.h.

◆ hts221HygrometerGetAxesNumber

#define hts221HygrometerGetAxesNumber ( devp )

Value:

hygrometerGetAxesNumber(&((devp)->hygro_if))

Return the number of axes of the BaseHygrometer.

Parameters

[in] devp pointer to HTS221Driver.

Returns: the number of axes.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 464 of file hts221.h.

◆ hts221HygrometerReadRaw

#define hts221HygrometerReadRaw	(		devp,
			axes )

Value:

hygrometerReadRaw(&((devp)->hygro_if), axes)

hygrometerReadRaw

#define hygrometerReadRaw(ip, dp)

Hygrometer read raw data.

Definition ex_hygrometer.h:122

Retrieves raw data from the BaseHygrometer.

Note: This data is retrieved from MEMS register without any algebraical manipulation.; The axes array must be at least the same size of the BaseHygrometer axes number.

Parameters

[in]	devp	pointer to `HTS221Driver`.
[out]	axes	a buffer which would be filled with raw data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 485 of file hts221.h.

◆ hts221HygrometerReadCooked

#define hts221HygrometerReadCooked	(		devp,
			axes )

Value:

hygrometerReadCooked(&((devp)->hygro_if), axes)

hygrometerReadCooked

#define hygrometerReadCooked(ip, dp)

Hygrometer read cooked data.

Definition ex_hygrometer.h:137

Retrieves cooked data from the BaseHygrometer.

Note: This data is manipulated according to the formula cooked = (raw * sensitivity) - bias.; Final data is expressed as rH.; The axes array must be at least the same size of the BaseHygrometer axes number.

Parameters

[in]	devp	pointer to `HTS221Driver`.
[out]	axes	a buffer which would be filled with cooked data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 507 of file hts221.h.

◆ hts221HygrometerSetBias

#define hts221HygrometerSetBias	(		devp,
			bp )

Value:

hygrometerSetBias(&((devp)->hygro_if), bp)

hygrometerSetBias

#define hygrometerSetBias(ip, bp)

Updates hygrometer bias data from received buffer.

Definition ex_hygrometer.h:154

Set bias values for the BaseHygrometer.

Note: Bias must be expressed as rH.; The bias buffer must be at least the same size of the BaseHygrometer axes number.

Parameters

[in]	devp	pointer to `HTS221Driver`.
[in]	bp	a buffer which contains biases.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 524 of file hts221.h.

◆ hts221HygrometerResetBias

#define hts221HygrometerResetBias ( devp )

Value:

hygrometerResetBias(&((devp)->hygro_if))

hygrometerResetBias

#define hygrometerResetBias(ip)

Reset hygrometer bias data restoring it to zero.

Definition ex_hygrometer.h:168

Reset bias values for the BaseHygrometer.

Note: Default biases value are obtained from device datasheet when available otherwise they are considered zero.

Parameters

[in] devp pointer to HTS221Driver.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 539 of file hts221.h.

◆ hts221HygrometerSetSensitivity

#define hts221HygrometerSetSensitivity	(		devp,
			sp )

Value:

hygrometerSetSensitivity(&((devp)->hygro_if), sp)

hygrometerSetSensitivity

#define hygrometerSetSensitivity(ip, sp)

Updates hygrometer sensitivity data from received buffer.

Definition ex_hygrometer.h:185

Set sensitivity values for the BaseHygrometer.

Note: Sensitivity must be expressed as rH/LSB.; The sensitivity buffer must be at least the same size of the BaseHygrometer axes number.

Parameters

[in]	devp	pointer to `HTS221Driver`.
[in]	sp	a buffer which contains sensitivities.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 556 of file hts221.h.

◆ hts221HygrometerResetSensitivity

#define hts221HygrometerResetSensitivity ( devp )

Value:

hygrometerResetSensitivity(&((devp)->hygro_if))

hygrometerResetSensitivity

#define hygrometerResetSensitivity(ip)

Reset hygrometer sensitivity data restoring it to its typical value.

Definition ex_hygrometer.h:200

Reset sensitivity values for the BaseHygrometer.

Note: Default sensitivities value are obtained from device datasheet.

Parameters

[in] devp pointer to HTS221Driver.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 570 of file hts221.h.

◆ hts221ThermometerGetAxesNumber

#define hts221ThermometerGetAxesNumber ( devp )

Value:

thermometerGetAxesNumber(&((devp)->thermo_if))

Return the number of axes of the BaseThermometer.

Parameters

[in] devp pointer to HTS221Driver.

Returns: the number of axes.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 582 of file hts221.h.

◆ hts221ThermometerReadRaw

#define hts221ThermometerReadRaw	(		devp,
			axes )

Value:

thermometerReadRaw(&((devp)->thermo_if), axes)

thermometerReadRaw

#define thermometerReadRaw(ip, dp)

Thermometer read raw data.

Definition ex_thermometer.h:122

Retrieves raw data from the BaseThermometer.

Note: This data is retrieved from MEMS register without any algebraical manipulation.; The axes array must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	devp	pointer to `HTS221Driver`.
[out]	axes	a buffer which would be filled with raw data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 603 of file hts221.h.

◆ hts221ThermometerReadCooked

#define hts221ThermometerReadCooked	(		devp,
			axes )

Value:

thermometerReadCooked(&((devp)->thermo_if), axes)

thermometerReadCooked

#define thermometerReadCooked(ip, dp)

Thermometer read cooked data.

Definition ex_thermometer.h:137

Retrieves cooked data from the BaseThermometer.

Note: This data is manipulated according to the formula cooked = (raw * sensitivity) - bias.; Final data is expressed as �C.; The axes array must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	devp	pointer to `HTS221Driver`.
[out]	axes	a buffer which would be filled with cooked data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 625 of file hts221.h.

◆ hts221ThermometerSetBias

#define hts221ThermometerSetBias	(		devp,
			bp )

Value:

thermometerSetBias(&((devp)->thermo_if), bp)

thermometerSetBias

#define thermometerSetBias(ip, bp)

Updates thermometer bias data from received buffer.

Definition ex_thermometer.h:154

Set bias values for the BaseThermometer.

Note: Bias must be expressed as �C.; The bias buffer must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	devp	pointer to `HTS221Driver`.
[in]	bp	a buffer which contains biases.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 642 of file hts221.h.

◆ hts221ThermometerResetBias

#define hts221ThermometerResetBias ( devp )

Value:

thermometerResetBias(&((devp)->thermo_if))

thermometerResetBias

#define thermometerResetBias(ip)

Reset thermometer bias data restoring it to zero.

Definition ex_thermometer.h:168

Reset bias values for the BaseThermometer.

Note: Default biases value are obtained from device datasheet when available otherwise they are considered zero.

Parameters

[in] devp pointer to HTS221Driver.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 657 of file hts221.h.

◆ hts221ThermometerSetSensitivity

#define hts221ThermometerSetSensitivity	(		devp,
			sp )

Value:

thermometerSetSensitivity(&((devp)->thermo_if), sp)

thermometerSetSensitivity

#define thermometerSetSensitivity(ip, sp)

Updates thermometer sensitivity data from received buffer.

Definition ex_thermometer.h:185

Set sensitivity values for the BaseThermometer.

Note: Sensitivity must be expressed as �C/LSB.; The sensitivity buffer must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	devp	pointer to `HTS221Driver`.
[in]	sp	a buffer which contains sensitivities.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 674 of file hts221.h.

◆ hts221ThermometerResetSensitivity

#define hts221ThermometerResetSensitivity ( devp )

Value:

thermometerResetSensitivity(&((devp)->thermo_if))

thermometerResetSensitivity

#define thermometerResetSensitivity(ip)

Reset thermometer sensitivity data restoring it to its typical value.

Definition ex_thermometer.h:200

Reset sensitivity values for the BaseThermometer.

Note: Default sensitivities value are obtained from device datasheet.

Parameters

[in] devp pointer to HTS221Driver.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 688 of file hts221.h.

Typedef Documentation

◆ HTS221Driver

typedef struct HTS221Driver HTS221Driver

Structure representing a HTS221 driver.

Definition at line 268 of file hts221.h.

Enumeration Type Documentation

◆ hts221_odr_t

enum hts221_odr_t

HTS221 output data rate and bandwidth.

Enumerator
HTS221_ODR_ONE_SHOT	One shot.
HTS221_ODR_1HZ	Output data rate 1 Hz.
HTS221_ODR_7HZ	Output data rate 7 Hz.
HTS221_ODR_12P5HZ	Output data rate 12.5 Hz.

Definition at line 273 of file hts221.h.

◆ hts221_avgh_t

enum hts221_avgh_t

HTS221 humidity resolution.

Enumerator
HTS221_AVGH_4	Number of internal average is 4.
HTS221_AVGH_8	Number of internal average is 8.
HTS221_AVGH_16	Number of internal average is 16.
HTS221_AVGH_32	Number of internal average is 32.
HTS221_AVGH_64	Number of internal average is 64.
HTS221_AVGH_128	Number of internal average is 128.
HTS221_AVGH_256	Number of internal average is 256.
HTS221_AVGH_512	Number of internal average is 512.

Definition at line 283 of file hts221.h.

◆ hts221_avgt_t

enum hts221_avgt_t

HTS221 temperature resolution.

Enumerator
HTS221_AVGT_2	Number of internal average is 2.
HTS221_AVGT_4	Number of internal average is 4.
HTS221_AVGT_8	Number of internal average is 8.
HTS221_AVGT_16	Number of internal average is 16.
HTS221_AVGT_32	Number of internal average is 32.
HTS221_AVGT_64	Number of internal average is 64.
HTS221_AVGT_128	Number of internal average is 128.
HTS221_AVGT_256	Number of internal average is 256.

Definition at line 297 of file hts221.h.

◆ hts221_bdu_t

enum hts221_bdu_t

HTS221 block data update.

Enumerator
HTS221_BDU_CONTINUOUS	Block data continuously updated.
HTS221_BDU_BLOCKED	Block data updated after reading.

Definition at line 311 of file hts221.h.

◆ hts221_state_t

enum hts221_state_t

Driver state machine possible states.

Enumerator
HTS221_UNINIT	Not initialized.
HTS221_STOP	Stopped.
HTS221_READY	Ready.

Definition at line 319 of file hts221.h.

Function Documentation

◆ hts221I2CReadRegister()

msg_t hts221I2CReadRegister	(	I2CDriver *	i2cp,
		uint8_t	reg,
		uint8_t *	rxbuf,
		size_t	n )

static

Reads registers value using I2C.

Precondition: The I2C interface must be initialized and the driver started.

Parameters

[in]	i2cp	pointer to the I2C interface
[in]	reg	first sub-register address
[out]	rxbuf	pointer to an output buffer
[in]	n	number of consecutive register to read

Returns: the operation status.

Function Class:: Not an API, this function is for internal use only.

Definition at line 69 of file hts221.c.

References HTS221_SAD, HTS221_SUB_MS, i2cMasterTransmitTimeout(), and TIME_INFINITE.

Referenced by hts221Calibrate(), hygro_read_raw(), and thermo_read_raw().

Here is the call graph for this function:

◆ hts221I2CWriteRegister()

msg_t hts221I2CWriteRegister	(	I2CDriver *	i2cp,
		uint8_t *	txbuf,
		size_t	n )

static

Writes a value into a register using I2C.

Precondition: The I2C interface must be initialized and the driver started.

Parameters

[in]	i2cp	pointer to the I2C interface
[in]	txbuf	buffer containing sub-address value in first position and values to write
[in]	n	size of txbuf less one (not considering the first element)

Returns: the operation status.

Function Class:: Not an API, this function is for internal use only.

Definition at line 92 of file hts221.c.

References HTS221_SAD, HTS221_SUB_MS, i2cMasterTransmitTimeout(), and TIME_INFINITE.

Referenced by hts221Start(), and hts221Stop().

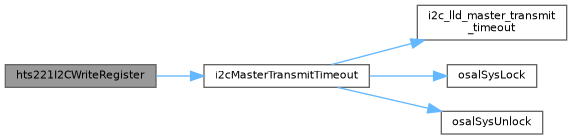

Here is the call graph for this function:

◆ hts221Calibrate()

msg_t hts221Calibrate ( HTS221Driver * devp )

static

Computes biases and sensitivities starting from data stored in calibration registers.

Note: Factory bias and sensitivity values are stored into the driver structure.

Parameters

[in] devp pointer to the HTS221 interface

Returns: the operation status.

Function Class:: Not an API, this function is for internal use only.

Definition at line 112 of file hts221.c.

References HTS221_AD_CALIB_0, HTS221_SEL, and hts221I2CReadRegister().

Referenced by hts221Start().

Here is the call graph for this function:

◆ hygro_get_axes_number()

size_t hygro_get_axes_number ( void * ip )

static

Return the number of axes of the BaseHygrometer.

Parameters

[in] ip pointer to BaseHygrometer interface.

Returns: the number of axes.

Definition at line 173 of file hts221.c.

References HTS221_HYGRO_NUMBER_OF_AXES.

◆ hygro_read_raw()

msg_t hygro_read_raw	(	void *	ip,
		int32_t	axes[] )

static

Retrieves raw data from the BaseHygrometer.

Note: This data is retrieved from MEMS register without any algebraical manipulation.; The axes array must be at least the same size of the BaseHygrometer axes number.

Parameters

[in]	ip	pointer to `BaseHygrometer` interface.
[out]	axes	a buffer which would be filled with raw data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 195 of file hts221.c.

References HTS221_AD_HUMIDITY_OUT_L, HTS221_READY, hts221I2CReadRegister(), I2C_READY, i2cAcquireBus(), i2cReleaseBus(), i2cStart(), MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

Referenced by hygro_read_cooked().

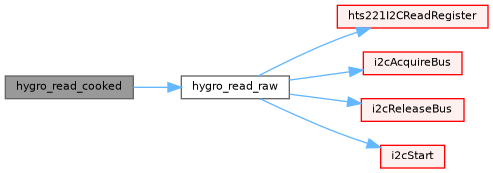

Here is the call graph for this function:

◆ hygro_read_cooked()

msg_t hygro_read_cooked	(	void *	ip,
		float	axes[] )

static

Retrieves cooked data from the BaseHygrometer.

Note: This data is manipulated according to the formula cooked = (raw * sensitivity) - bias.; Final data is expressed as rH.; The axes array must be at least the same size of the BaseHygrometer axes number.

Parameters

[in]	ip	pointer to `BaseHygrometer` interface.
[out]	axes	a buffer which would be filled with cooked data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 249 of file hts221.c.

References HTS221_READY, hygro_read_raw(), objGetInstance, osalDbgAssert, and osalDbgCheck.

Here is the call graph for this function:

◆ hygro_set_bias()

msg_t hygro_set_bias	(	void *	ip,
		float *	bp )

static

Set bias values for the BaseHygrometer.

Note: Bias must be expressed as rH.; The bias buffer must be at least the same size of the BaseHygrometer axes number.

Parameters

[in]	ip	pointer to `BaseHygrometer` interface.
[in]	bp	a buffer which contains biases.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 284 of file hts221.c.

References HTS221_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ hygro_reset_bias()

msg_t hygro_reset_bias ( void * ip )

static

Reset bias values for the BaseHygrometer.

Note: Default biases value are obtained from device datasheet when available otherwise they are considered zero.

Parameters

[in] ip pointer to BaseHygrometer interface.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 310 of file hts221.c.

References HTS221_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ hygro_set_sensitivity()

msg_t hygro_set_sensitivity	(	void *	ip,
		float *	sp )

static

Set sensitivity values for the BaseHygrometer.

Note: Sensitivity must be expressed as rH/LSB.; The sensitivity buffer must be at least the same size of the BaseHygrometer axes number.

Parameters

[in]	ip	pointer to `BaseHygrometer` interface.
[in]	sp	a buffer which contains sensitivities.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 338 of file hts221.c.

References HTS221_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ hygro_reset_sensitivity()

msg_t hygro_reset_sensitivity ( void * ip )

static

Reset sensitivity values for the BaseHygrometer.

Note: Default sensitivities value are obtained from device datasheet.

Parameters

[in] ip pointer to BaseHygrometer interface.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 363 of file hts221.c.

References HTS221_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ thermo_get_axes_number()

size_t thermo_get_axes_number ( void * ip )

static

Return the number of axes of the BaseThermometer.

Parameters

[in] ip pointer to BaseThermometer interface.

Returns: the number of axes.

Definition at line 386 of file hts221.c.

References HTS221_THERMO_NUMBER_OF_AXES.

◆ thermo_read_raw()

msg_t thermo_read_raw	(	void *	ip,
		int32_t	axes[] )

static

Retrieves raw data from the BaseThermometer.

Note: This data is retrieved from MEMS register without any algebraical manipulation.; The axes array must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	ip	pointer to `BaseThermometer` interface.
[out]	axes	a buffer which would be filled with raw data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 408 of file hts221.c.

References HTS221_AD_TEMP_OUT_L, HTS221_READY, hts221I2CReadRegister(), I2C_READY, i2cAcquireBus(), i2cReleaseBus(), i2cStart(), MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

Referenced by thermo_read_cooked().

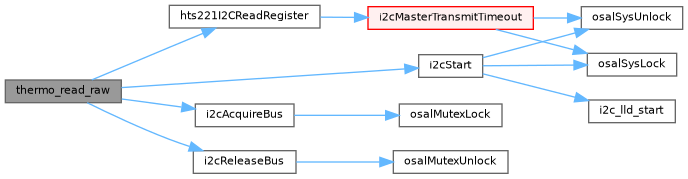

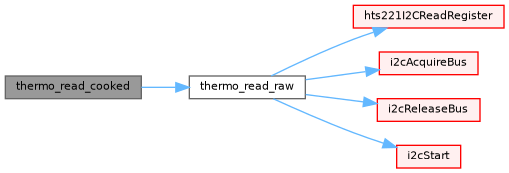

Here is the call graph for this function:

◆ thermo_read_cooked()

msg_t thermo_read_cooked	(	void *	ip,
		float *	axis )

static

Retrieves cooked data from the BaseThermometer.

Note: This data is manipulated according to the formula cooked = (raw * sensitivity) - bias.; Final data is expressed as °C.; The axes array must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	ip	pointer to `BaseThermometer` interface.
[out]	axis	a buffer which would be filled with cooked data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 462 of file hts221.c.

References HTS221_READY, objGetInstance, osalDbgAssert, osalDbgCheck, and thermo_read_raw().

Here is the call graph for this function:

◆ thermo_set_bias()

msg_t thermo_set_bias	(	void *	ip,
		float *	bp )

static

Set bias values for the BaseThermometer.

Note: Bias must be expressed as °C.; The bias buffer must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	ip	pointer to `BaseThermometer` interface.
[in]	bp	a buffer which contains biases.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 494 of file hts221.c.

References HTS221_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ thermo_reset_bias()

msg_t thermo_reset_bias ( void * ip )

static

Reset bias values for the BaseThermometer.

Note: Default biases value are obtained from device datasheet when available otherwise they are considered zero.

Parameters

[in] ip pointer to BaseThermometer interface.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 521 of file hts221.c.

References HTS221_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ thermo_set_sensitivity()

msg_t thermo_set_sensitivity	(	void *	ip,
		float *	sp )

static

Set sensitivity values for the BaseThermometer.

Note: Sensitivity must be expressed as °C/LSB.; The sensitivity buffer must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	ip	pointer to `BaseThermometer` interface.
[in]	sp	a buffer which contains sensitivities.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 550 of file hts221.c.

References HTS221_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ thermo_reset_sensitivity()

msg_t thermo_reset_sensitivity ( void * ip )

static

Reset sensitivity values for the BaseThermometer.

Note: Default sensitivities value are obtained from device datasheet.

Parameters

[in] ip pointer to BaseThermometer interface.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 576 of file hts221.c.

References HTS221_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ hts221ObjectInit()

void hts221ObjectInit ( HTS221Driver * devp )

Initializes an instance.

Parameters

[out] devp pointer to the HTS221Driver object

Function Class:: Object or module nitializer function.

Definition at line 622 of file hts221.c.

References HTS221_HYGRO_NUMBER_OF_AXES, HTS221_STOP, HTS221_THERMO_NUMBER_OF_AXES, HTS221Driver::hygro_if, HTS221Driver::thermo_if, BaseHygrometer::vmt, BaseThermometer::vmt, HTS221Driver::vmt, vmt_device, vmt_hygrometer, and vmt_thermometer.

◆ hts221Start()

void hts221Start	(	HTS221Driver *	devp,
		const HTS221Config *	config )

Configures and activates HTS221 Complex Driver peripheral.

Parameters

[in]	devp	pointer to the `HTS221Driver` object
[in]	config	pointer to the `HTS221Config` object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 647 of file hts221.c.

References HTS221_AD_AV_CONF, HTS221_AD_CTRL_REG1, HTS221_CTRL_REG1_PD, HTS221_READY, HTS221_STOP, hts221Calibrate(), hts221I2CWriteRegister(), i2cAcquireBus(), i2cReleaseBus(), i2cStart(), osalDbgAssert, osalDbgCheck, and osalThreadSleepMilliseconds.

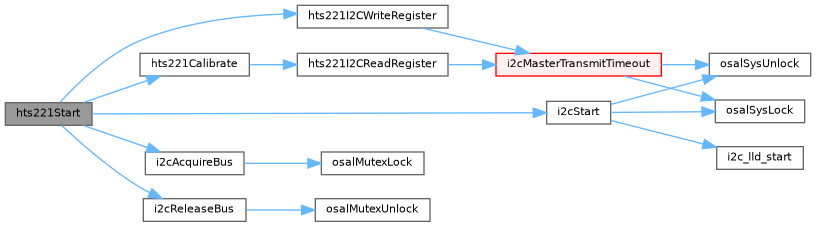

Here is the call graph for this function:

◆ hts221Stop()

void hts221Stop ( HTS221Driver * devp )

Deactivates the HTS221 Complex Driver peripheral.

Parameters

[in] devp pointer to the HTS221Driver object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 755 of file hts221.c.

References HTS221_AD_CTRL_REG1, HTS221_READY, HTS221_STOP, hts221I2CWriteRegister(), i2cAcquireBus(), i2cReleaseBus(), i2cStart(), i2cStop(), osalDbgAssert, and osalDbgCheck.

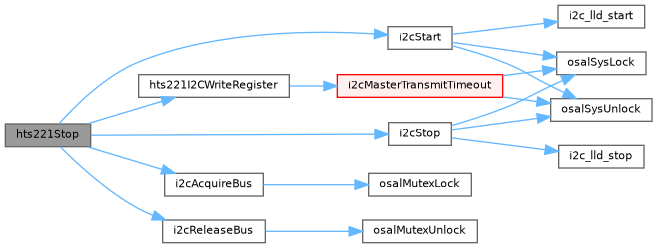

Here is the call graph for this function:

Variable Documentation

◆ vmt_device

const struct HTS221VMT vmt_device

static

Initial value:

= {
  (size_t)0
}

Definition at line 593 of file hts221.c.

◆ vmt_hygrometer

const struct BaseHygrometerVMT vmt_hygrometer

static

Initial value:

= {
  sizeof(struct HTS221VMT*),
  hygro_get_axes_number, hygro_read_raw, hygro_read_cooked,
  hygro_set_bias, hygro_reset_bias, hygro_set_sensitivity,
  hygro_reset_sensitivity
}

Definition at line 597 of file hts221.c.

Referenced by hts221ObjectInit().

◆ vmt_thermometer

const struct BaseThermometerVMT vmt_thermometer

static

Initial value:

= {
  sizeof(struct HTS221VMT*) + sizeof(BaseHygrometer),
  thermo_get_axes_number, thermo_read_raw, thermo_read_cooked,
  thermo_set_bias, thermo_reset_bias, thermo_set_sensitivity,
  thermo_reset_sensitivity
}

Definition at line 604 of file hts221.c.

Referenced by hts221ObjectInit(), lps22hbObjectInit(), and lps25hObjectInit().

Detailed Description

HTS221 data structures and types.

Version identification

HTS221 communication interfaces related bit masks

HTS221 register addresses

HTS221_CTRL_REG1 register bits definitions

HTS221_CTRL_REG2 register bits definitions

HTS221_CTRL_REG3 register bits definitions

Configuration options

Data Structures

Macros

Functions

Variables

Macro Definition Documentation

◆ HTS221_SEL

◆ HTS221_FLAG_HYGRO_BIAS

◆ HTS221_FLAG_HYGRO_SENS

◆ HTS221_FLAG_THERMO_BIAS

◆ HTS221_FLAG_THERMO_SENS

◆ EX_HTS221_VERSION

◆ EX_HTS221_MAJOR

◆ EX_HTS221_MINOR

◆ EX_HTS221_PATCH

◆ HTS221_HYGRO_NUMBER_OF_AXES

◆ HTS221_HYGRO_SENS

◆ HTS221_HYGRO_BIAS

◆ HTS221_THERMO_NUMBER_OF_AXES

◆ HTS221_THERMO_SENS

◆ HTS221_THERMO_BIAS

◆ HTS221_DI_MASK

◆ HTS221_DI

◆ HTS221_AD_MASK

◆ HTS221_AD

◆ HTS221_MS

◆ HTS221_RW

◆ HTS221_SUB_MS

◆ HTS221_SAD

◆ HTS221_AD_WHO_AM_I

◆ HTS221_AD_AV_CONF

◆ HTS221_AD_CTRL_REG1

◆ HTS221_AD_CTRL_REG2

◆ HTS221_AD_CTRL_REG3

◆ HTS221_AD_STATUS_REG

◆ HTS221_AD_HUMIDITY_OUT_L

◆ HTS221_AD_HUMIDITY_OUT_H

◆ HTS221_AD_TEMP_OUT_L

◆ HTS221_AD_TEMP_OUT_H

◆ HTS221_AD_CALIB_0

◆ HTS221_AD_CALIB_1

◆ HTS221_AD_CALIB_2

◆ HTS221_AD_CALIB_3

◆ HTS221_AD_CALIB_4

◆ HTS221_AD_CALIB_5

◆ HTS221_AD_CALIB_6

◆ HTS221_AD_CALIB_7

◆ HTS221_AD_CALIB_8

◆ HTS221_AD_CALIB_9

◆ HTS221_AD_CALIB_A

◆ HTS221_AD_CALIB_B

◆ HTS221_AD_CALIB_C

◆ HTS221_AD_CALIB_D

◆ HTS221_AD_CALIB_E

◆ HTS221_AD_CALIB_F

◆ HTS221_CTRL_REG1_MASK

◆ HTS221_CTRL_REG1_ODR0

◆ HTS221_CTRL_REG1_ODR1

◆ HTS221_CTRL_REG1_BDU

◆ HTS221_CTRL_REG1_PD

◆ HTS221_CTRL_REG2_MASK

◆ HTS221_CTRL_REG2_ONE_SHOT

◆ HTS221_CTRL_REG2_HEATER

◆ HTS221_CTRL_REG2_BOOT

◆ HTS221_CTRL_REG3_MASK

◆ HTS221_CTRL_REG3_DRDY

◆ HTS221_CTRL_REG3_PP_OD

◆ HTS221_CTRL_REG3_INT_H_L

◆ HTS221_USE_SPI

◆ HTS221_SHARED_SPI

◆ HTS221_USE_I2C

◆ HTS221_SHARED_I2C
