Detailed Description

Collaboration diagram for LPS22HB:

LPS22HB data structures and types.
enum	lps22hb_sad_t { LPS22HB_SAD_GND = 0x5C , LPS22HB_SAD_VCC = 0x5D }
	LPS22HB slave address. More...
enum	lps22hb_odr_t { LPS22HB_ODR_PD = 0x00 , LPS22HB_ODR_1HZ = 0x10 , LPS22HB_ODR_10HZ = 0x20 , LPS22HB_ODR_25HZ = 0x30 , LPS22HB_ODR_50HZ = 0x40 , LPS22HB_ODR_75HZ = 0x50 }
	LPS22HB output data rate and bandwidth. More...
enum	lps22hb_lp_t { LPS22HB_LP_DISABLED = 0x00 , LPS22HB_LP_ODR_9 = 0x08 , LPS22HB_LP_ODR_20 = 0x0C }
	LPS22HB pressure resolution. More...
enum	lps22hb_bdu_t { LPS22HB_BDU_CONTINUOUS = 0x00 , LPS22HB_BDU_BLOCKED = 0x40 }
	LPS22HB block data update. More...
enum	lps22hb_state_t { LPS22HB_UNINIT = 0 , LPS22HB_STOP = 1 , LPS22HB_READY = 2 }
	Driver state machine possible states. More...
typedef struct LPS22HBDriver	LPS22HBDriver
	Structure representing a LPS22HB driver.
#define	_lps22hb_methods_alone
	`LPS22HB` specific methods.
#define	_lps22hb_methods
	`LPS22HB` specific methods with inherited ones.
#define	_lps22hb_data
	`LPS22HBDriver` specific data.

Version identification
#define	EX_LPS22HB_VERSION "1.0.2"
	LPS22HB driver version string.
#define	EX_LPS22HB_MAJOR 1
	LPS22HB driver version major number.
#define	EX_LPS22HB_MINOR 0
	LPS22HB driver version minor number.
#define	EX_LPS22HB_PATCH 2
	LPS22HB driver version patch number.
#define	LPS22HB_BARO_NUMBER_OF_AXES 1U
	LPS22HB barometer subsystem characteristics.
#define	LPS22HB_BARO_SENS 0.00024414f
#define	LPS22HB_BARO_BIAS 0.0f
#define	LPS22HB_THERMO_NUMBER_OF_AXES 1U
	LPS22HB thermometer subsystem characteristics.
#define	LPS22HB_THERMO_SENS 0.01f
#define	LPS22HB_THERMO_BIAS 0.0f

LPS22HB communication interfaces related bit masks
#define	LPS22HB_DI_MASK 0xFF
#define	LPS22HB_DI(n)
#define	LPS22HB_AD_MASK 0x3F
#define	LPS22HB_AD(n)
#define	LPS22HB_MS (1 << 6)
#define	LPS22HB_RW (1 << 7)
#define	LPS22HB_SUB_MS (1 << 7)

LPS22HB register addresses
#define	LPS22HB_AD_INT_CFG 0x0B
#define	LPS22HB_AD_THS_P_L 0x0C
#define	LPS22HB_AD_THS_P_H 0x0D
#define	LPS22HB_AD_WHO_AM_I 0x0F
#define	LPS22HB_AD_CTRL_REG1 0x10
#define	LPS22HB_AD_CTRL_REG2 0x11
#define	LPS22HB_AD_CTRL_REG3 0x12
#define	LPS22HB_AD_FIFO_CTRL 0x14
#define	LPS22HB_AD_REF_P_XL 0x15
#define	LPS22HB_AD_REF_P_L 0x16
#define	LPS22HB_AD_REF_P_H 0x17
#define	LPS22HB_AD_RPDS_L 0x18
#define	LPS22HB_AD_RPDS_H 0x19
#define	LPS22HB_AD_RES_CONF 0x1A
#define	LPS22HB_AD_INT_SRC 0x25
#define	LPS22HB_AD_FIFO_SRC 0x26
#define	LPS22HB_AD_STATUS_REG 0x27
#define	LPS22HB_AD_PRESS_OUT_XL 0x28
#define	LPS22HB_AD_PRESS_OUT_L 0x29
#define	LPS22HB_AD_PRESS_OUT_H 0x2A
#define	LPS22HB_AD_TEMP_OUT_L 0x2B
#define	LPS22HB_AD_TEMP_OUT_H 0x2C
#define	LPS22HB_AD_LPFP_RES 0x33

LPS22HB_INT_CFG register bits definitions
#define	LPS22HB_INT_CFG_MASK 0xFF
#define	LPS22HB_INT_CFG_PHE (1 << 0)
#define	LPS22HB_INT_CFG_PLE (1 << 1)
#define	LPS22HB_INT_CFG_LIR (1 << 2)
#define	LPS22HB_INT_CFG_DIFF_EN (1 << 3)
#define	LPS22HB_INT_CFG_RESET_AZ (1 << 4)
#define	LPS22HB_INT_CFG_AUTOZERO (1 << 5)
#define	LPS22HB_INT_CFG_RESET_ARP (1 << 6)
#define	LPS22HB_INT_CFG_AUTORIFP (1 << 7)

LPS22HB_CTRL_REG1 register bits definitions
#define	LPS22HB_CTRL_REG1_MASK 0x7F
#define	LPS22HB_CTRL_REG1_SIM (1 << 0)
#define	LPS22HB_CTRL_REG1_BDU (1 << 1)
#define	LPS22HB_CTRL_REG1_LPFP_CFG (1 << 2)
#define	LPS22HB_CTRL_REG1_LPFP_EN (1 << 3)
#define	LPS22HB_CTRL_REG1_ODR0 (1 << 4)
#define	LPS22HB_CTRL_REG1_ODR1 (1 << 5)
#define	LPS22HB_CTRL_REG1_ODR2 (1 << 6)

LPS22HB_CTRL_REG2 register bits definitions
#define	LPS22HB_CTRL_REG2_MASK 0xFD
#define	LPS22HB_CTRL_REG2_ONE_SHOT (1 << 0)
#define	LPS22HB_CTRL_REG2_SWRESET (1 << 2)
#define	LPS22HB_CTRL_REG2_I2C_DIS (1 << 3)
#define	LPS22HB_CTRL_REG2_IF_ADD_INC (1 << 4)
#define	LPS22HB_CTRL_REG2_STOP_ON_FTH (1 << 5)
#define	LPS22HB_CTRL_REG2_FIFO_EN (1 << 6)
#define	LPS22HB_CTRL_REG2_BOOT (1 << 7)

LPS22HB_CTRL_REG3 register bits definitions
#define	LPS22HB_CTRL_REG3_MASK 0xFF
#define	LPS22HB_CTRL_REG3_INT_S1 (1 << 0)
#define	LPS22HB_CTRL_REG3_INT_S2 (1 << 1)
#define	LPS22HB_CTRL_REG3_DRDY (1 << 2)
#define	LPS22HB_CTRL_REG3_F_OVR (1 << 3)
#define	LPS22HB_CTRL_REG3_F_FTH (1 << 4)
#define	LPS22HB_CTRL_REG3_F_FSS5 (1 << 5)
#define	LPS22HB_CTRL_REG3_PP_OD (1 << 6)
#define	LPS22HB_CTRL_REG3_INT_H_L (1 << 7)

LPS22HB_INT_SRC register bits definitions
#define	LPS22HB_INT_SRC_MASK 0x87
#define	LPS22HB_INT_SRC_PH (1 << 0)
#define	LPS22HB_INT_SRC_PL (1 << 1)
#define	LPS22HB_INT_SRC_IA (1 << 2)
#define	LPS22HB_INT_SRC_BOOT_STATUS (1 << 8)

Configuration options
#define	LPS22HB_USE_SPI FALSE
	LPS22HB SPI interface switch.
#define	LPS22HB_SHARED_SPI FALSE
	LPS22HB shared SPI switch.
#define	LPS22HB_USE_I2C TRUE
	LPS22HB I2C interface switch.
#define	LPS22HB_SHARED_I2C FALSE
	LPS22HB shared I2C switch.
#define	LPS22HB_USE_ADVANCED FALSE
	LPS22HB advanced configurations switch.

Data Structures
struct	LPS22HBConfig
	LPS22HB configuration structure. More...
struct	LPS22HBVMT
	`LPS22HB` virtual methods table. More...
struct	LPS22HBDriver
	LPS22HB 2-axis barometer/thermometer class. More...

Macros
#define	lps22hbI2CWriteRegister(i2cp, sad, txbuf, n)
	Writes a value into a register using I2C.
#define	lps22hbBarometerGetAxesNumber(devp)
	Return the number of axes of the BaseBarometer.
#define	lps22hbBarometerReadRaw(devp, axes)
	Retrieves raw data from the BaseBarometer.
#define	lps22hbBarometerReadCooked(devp, axes)
	Retrieves cooked data from the BaseBarometer.
#define	lps22hbBarometerSetBias(devp, bp)
	Set bias values for the BaseBarometer.
#define	lps22hbBarometerResetBias(devp)
	Reset bias values for the BaseBarometer.
#define	lps22hbBarometerSetSensitivity(devp, sp)
	Set sensitivity values for the BaseBarometer.
#define	lps22hbBarometerResetSensitivity(devp)
	Reset sensitivity values for the BaseBarometer.
#define	lps22hbThermometerGetAxesNumber(devp)
	Return the number of axes of the BaseThermometer.
#define	lps22hbThermometerReadRaw(devp, axes)
	Retrieves raw data from the BaseThermometer.
#define	lps22hbThermometerReadCooked(devp, axes)
	Retrieves cooked data from the BaseThermometer.
#define	lps22hbThermometerSetBias(devp, bp)
	Set bias values for the BaseThermometer.
#define	lps22hbThermometerResetBias(devp)
	Reset bias values for the BaseThermometer.
#define	lps22hbThermometerSetSensitivity(devp, sp)
	Set sensitivity values for the BaseThermometer.
#define	lps22hbThermometerResetSensitivity(devp)
	Reset sensitivity values for the BaseThermometer.

Functions
static msg_t	lps22hbI2CReadRegister (I2CDriver i2cp, lps22hb_sad_t sad, uint8_t reg, uint8_t rxbuf, size_t n)
	Reads registers value using I2C.
static size_t	baro_get_axes_number (void *ip)
	Return the number of axes of the BaseBarometer.
static msg_t	baro_read_raw (void *ip, int32_t axes[])
	Retrieves raw data from the BaseBarometer.
static msg_t	baro_read_cooked (void *ip, float axes[])
	Retrieves cooked data from the BaseBarometer.
static msg_t	baro_set_bias (void ip, float bp)
	Set bias values for the BaseBarometer.
static msg_t	baro_reset_bias (void *ip)
	Reset bias values for the BaseBarometer.
static msg_t	baro_set_sensitivity (void ip, float sp)
	Set sensitivity values for the BaseBarometer.
static msg_t	baro_reset_sensitivity (void *ip)
	Reset sensitivity values for the BaseBarometer.
static size_t	thermo_get_axes_number (void *ip)
	Return the number of axes of the BaseThermometer.
static msg_t	thermo_read_raw (void *ip, int32_t axes[])
	Retrieves raw data from the BaseThermometer.
static msg_t	thermo_read_cooked (void ip, float axis)
	Retrieves cooked data from the BaseThermometer.
static msg_t	thermo_set_bias (void ip, float bp)
	Set bias values for the BaseThermometer.
static msg_t	thermo_reset_bias (void *ip)
	Reset bias values for the BaseThermometer.
static msg_t	thermo_set_sensitivity (void ip, float sp)
	Set sensitivity values for the BaseThermometer.
static msg_t	thermo_reset_sensitivity (void *ip)
	Reset sensitivity values for the BaseThermometer.
void	lps22hbObjectInit (LPS22HBDriver *devp)
	Initializes an instance.
void	lps22hbStart (LPS22HBDriver devp, const LPS22HBConfig config)
	Configures and activates LPS22HB Complex Driver peripheral.
void	lps22hbStop (LPS22HBDriver *devp)
	Deactivates the LPS22HB Complex Driver peripheral.

Variables
static const struct LPS22HBVMT	vmt_device
static const struct BaseBarometerVMT	vmt_barometer
static const struct BaseThermometerVMT	vmt_thermometer

Macro Definition Documentation

◆ lps22hbI2CWriteRegister

#define lps22hbI2CWriteRegister	(	i2cp,
		sad,
		txbuf,
		n )

Value:

i2cMasterTransmitTimeout(i2cp, sad, txbuf, n + 1, NULL, 0, \

TIME_INFINITE)

i2cMasterTransmitTimeout

msg_t i2cMasterTransmitTimeout(I2CDriver *i2cp, i2caddr_t addr, const uint8_t *txbuf, size_t txbytes, uint8_t *rxbuf, size_t rxbytes, sysinterval_t timeout)

Sends data via the I2C bus.

Definition hal_i2c.c:187

TIME_INFINITE

#define TIME_INFINITE

Infinite interval specification for all functions with a timeout specification.

Definition chtime.h:55

Writes a value into a register using I2C.

Precondition: The I2C interface must be initialized and the driver started.

Parameters

[in]	i2cp	pointer to the I2C interface
[in]	sad	slave address without R bit
[in]	txbuf	buffer containing sub-address value in first position and values to write
[in]	n	size of txbuf less one (not considering the first element)

Returns: the operation status.

Function Class:: Not an API, this function is for internal use only.

Definition at line 84 of file lps22hb.c.

Referenced by lps22hbStart(), and lps22hbStop().

◆ EX_LPS22HB_VERSION

#define EX_LPS22HB_VERSION "1.0.2"

LPS22HB driver version string.

Definition at line 46 of file lps22hb.h.

◆ EX_LPS22HB_MAJOR

#define EX_LPS22HB_MAJOR 1

LPS22HB driver version major number.

Definition at line 51 of file lps22hb.h.

◆ EX_LPS22HB_MINOR

#define EX_LPS22HB_MINOR 0

LPS22HB driver version minor number.

Definition at line 56 of file lps22hb.h.

◆ EX_LPS22HB_PATCH

#define EX_LPS22HB_PATCH 2

LPS22HB driver version patch number.

Definition at line 61 of file lps22hb.h.

◆ LPS22HB_BARO_NUMBER_OF_AXES

#define LPS22HB_BARO_NUMBER_OF_AXES 1U

LPS22HB barometer subsystem characteristics.

Note: Sensitivity is expressed as hPa/LSB whereas hPa stand for hectopascal.; Bias is expressed as hPa.

Definition at line 72 of file lps22hb.h.

Referenced by baro_get_axes_number(), and lps22hbObjectInit().

◆ LPS22HB_BARO_SENS

#define LPS22HB_BARO_SENS 0.00024414f

Definition at line 74 of file lps22hb.h.

Referenced by baro_reset_bias(), baro_reset_sensitivity(), and lps22hbStart().

◆ LPS22HB_BARO_BIAS

#define LPS22HB_BARO_BIAS 0.0f

Definition at line 75 of file lps22hb.h.

Referenced by lps22hbStart().

◆ LPS22HB_THERMO_NUMBER_OF_AXES

#define LPS22HB_THERMO_NUMBER_OF_AXES 1U

LPS22HB thermometer subsystem characteristics.

Note: Sensitivity is expressed as �C/LSB.; Bias is expressed as �C.

Definition at line 85 of file lps22hb.h.

Referenced by lps22hbObjectInit(), and thermo_get_axes_number().

◆ LPS22HB_THERMO_SENS

#define LPS22HB_THERMO_SENS 0.01f

Definition at line 87 of file lps22hb.h.

Referenced by lps22hbStart(), and thermo_reset_sensitivity().

◆ LPS22HB_THERMO_BIAS

#define LPS22HB_THERMO_BIAS 0.0f

Definition at line 88 of file lps22hb.h.

Referenced by lps22hbStart(), and thermo_reset_bias().

◆ LPS22HB_DI_MASK

#define LPS22HB_DI_MASK 0xFF

Definition at line 95 of file lps22hb.h.

◆ LPS22HB_DI

#define LPS22HB_DI ( n )

Value:

(1 << n)

Definition at line 96 of file lps22hb.h.

◆ LPS22HB_AD_MASK

#define LPS22HB_AD_MASK 0x3F

Definition at line 97 of file lps22hb.h.

◆ LPS22HB_AD

#define LPS22HB_AD ( n )

Value:

(1 << n)

Definition at line 98 of file lps22hb.h.

◆ LPS22HB_MS

#define LPS22HB_MS (1 << 6)

Definition at line 99 of file lps22hb.h.

◆ LPS22HB_RW

#define LPS22HB_RW (1 << 7)

Definition at line 100 of file lps22hb.h.

◆ LPS22HB_SUB_MS

#define LPS22HB_SUB_MS (1 << 7)

Definition at line 102 of file lps22hb.h.

◆ LPS22HB_AD_INT_CFG

#define LPS22HB_AD_INT_CFG 0x0B

Definition at line 109 of file lps22hb.h.

◆ LPS22HB_AD_THS_P_L

#define LPS22HB_AD_THS_P_L 0x0C

Definition at line 110 of file lps22hb.h.

◆ LPS22HB_AD_THS_P_H

#define LPS22HB_AD_THS_P_H 0x0D

Definition at line 111 of file lps22hb.h.

◆ LPS22HB_AD_WHO_AM_I

#define LPS22HB_AD_WHO_AM_I 0x0F

Definition at line 112 of file lps22hb.h.

◆ LPS22HB_AD_CTRL_REG1

#define LPS22HB_AD_CTRL_REG1 0x10

Definition at line 113 of file lps22hb.h.

Referenced by lps22hbStart(), and lps22hbStop().

◆ LPS22HB_AD_CTRL_REG2

#define LPS22HB_AD_CTRL_REG2 0x11

Definition at line 114 of file lps22hb.h.

Referenced by lps22hbStart().

◆ LPS22HB_AD_CTRL_REG3

#define LPS22HB_AD_CTRL_REG3 0x12

Definition at line 115 of file lps22hb.h.

◆ LPS22HB_AD_FIFO_CTRL

#define LPS22HB_AD_FIFO_CTRL 0x14

Definition at line 116 of file lps22hb.h.

◆ LPS22HB_AD_REF_P_XL

#define LPS22HB_AD_REF_P_XL 0x15

Definition at line 117 of file lps22hb.h.

◆ LPS22HB_AD_REF_P_L

#define LPS22HB_AD_REF_P_L 0x16

Definition at line 118 of file lps22hb.h.

◆ LPS22HB_AD_REF_P_H

#define LPS22HB_AD_REF_P_H 0x17

Definition at line 119 of file lps22hb.h.

◆ LPS22HB_AD_RPDS_L

#define LPS22HB_AD_RPDS_L 0x18

Definition at line 120 of file lps22hb.h.

◆ LPS22HB_AD_RPDS_H

#define LPS22HB_AD_RPDS_H 0x19

Definition at line 121 of file lps22hb.h.

◆ LPS22HB_AD_RES_CONF

#define LPS22HB_AD_RES_CONF 0x1A

Definition at line 122 of file lps22hb.h.

◆ LPS22HB_AD_INT_SRC

#define LPS22HB_AD_INT_SRC 0x25

Definition at line 123 of file lps22hb.h.

◆ LPS22HB_AD_FIFO_SRC

#define LPS22HB_AD_FIFO_SRC 0x26

Definition at line 124 of file lps22hb.h.

◆ LPS22HB_AD_STATUS_REG

#define LPS22HB_AD_STATUS_REG 0x27

Definition at line 125 of file lps22hb.h.

◆ LPS22HB_AD_PRESS_OUT_XL

#define LPS22HB_AD_PRESS_OUT_XL 0x28

Definition at line 126 of file lps22hb.h.

Referenced by baro_read_raw().

◆ LPS22HB_AD_PRESS_OUT_L

#define LPS22HB_AD_PRESS_OUT_L 0x29

Definition at line 127 of file lps22hb.h.

◆ LPS22HB_AD_PRESS_OUT_H

#define LPS22HB_AD_PRESS_OUT_H 0x2A

Definition at line 128 of file lps22hb.h.

◆ LPS22HB_AD_TEMP_OUT_L

#define LPS22HB_AD_TEMP_OUT_L 0x2B

Definition at line 129 of file lps22hb.h.

Referenced by thermo_read_raw().

◆ LPS22HB_AD_TEMP_OUT_H

#define LPS22HB_AD_TEMP_OUT_H 0x2C

Definition at line 130 of file lps22hb.h.

◆ LPS22HB_AD_LPFP_RES

#define LPS22HB_AD_LPFP_RES 0x33

Definition at line 131 of file lps22hb.h.

◆ LPS22HB_INT_CFG_MASK

#define LPS22HB_INT_CFG_MASK 0xFF

Definition at line 138 of file lps22hb.h.

◆ LPS22HB_INT_CFG_PHE

#define LPS22HB_INT_CFG_PHE (1 << 0)

Definition at line 139 of file lps22hb.h.

◆ LPS22HB_INT_CFG_PLE

#define LPS22HB_INT_CFG_PLE (1 << 1)

Definition at line 140 of file lps22hb.h.

◆ LPS22HB_INT_CFG_LIR

#define LPS22HB_INT_CFG_LIR (1 << 2)

Definition at line 141 of file lps22hb.h.

◆ LPS22HB_INT_CFG_DIFF_EN

#define LPS22HB_INT_CFG_DIFF_EN (1 << 3)

Definition at line 142 of file lps22hb.h.

◆ LPS22HB_INT_CFG_RESET_AZ

#define LPS22HB_INT_CFG_RESET_AZ (1 << 4)

Definition at line 143 of file lps22hb.h.

◆ LPS22HB_INT_CFG_AUTOZERO

#define LPS22HB_INT_CFG_AUTOZERO (1 << 5)

Definition at line 144 of file lps22hb.h.

◆ LPS22HB_INT_CFG_RESET_ARP

#define LPS22HB_INT_CFG_RESET_ARP (1 << 6)

Definition at line 145 of file lps22hb.h.

◆ LPS22HB_INT_CFG_AUTORIFP

#define LPS22HB_INT_CFG_AUTORIFP (1 << 7)

Definition at line 146 of file lps22hb.h.

◆ LPS22HB_CTRL_REG1_MASK

#define LPS22HB_CTRL_REG1_MASK 0x7F

Definition at line 153 of file lps22hb.h.

◆ LPS22HB_CTRL_REG1_SIM

#define LPS22HB_CTRL_REG1_SIM (1 << 0)

Definition at line 154 of file lps22hb.h.

◆ LPS22HB_CTRL_REG1_BDU

#define LPS22HB_CTRL_REG1_BDU (1 << 1)

Definition at line 155 of file lps22hb.h.

◆ LPS22HB_CTRL_REG1_LPFP_CFG

#define LPS22HB_CTRL_REG1_LPFP_CFG (1 << 2)

Definition at line 156 of file lps22hb.h.

◆ LPS22HB_CTRL_REG1_LPFP_EN

#define LPS22HB_CTRL_REG1_LPFP_EN (1 << 3)

Definition at line 157 of file lps22hb.h.

◆ LPS22HB_CTRL_REG1_ODR0

#define LPS22HB_CTRL_REG1_ODR0 (1 << 4)

Definition at line 158 of file lps22hb.h.

◆ LPS22HB_CTRL_REG1_ODR1

#define LPS22HB_CTRL_REG1_ODR1 (1 << 5)

Definition at line 159 of file lps22hb.h.

◆ LPS22HB_CTRL_REG1_ODR2

#define LPS22HB_CTRL_REG1_ODR2 (1 << 6)

Definition at line 160 of file lps22hb.h.

◆ LPS22HB_CTRL_REG2_MASK

#define LPS22HB_CTRL_REG2_MASK 0xFD

Definition at line 167 of file lps22hb.h.

◆ LPS22HB_CTRL_REG2_ONE_SHOT

#define LPS22HB_CTRL_REG2_ONE_SHOT (1 << 0)

Definition at line 168 of file lps22hb.h.

◆ LPS22HB_CTRL_REG2_SWRESET

#define LPS22HB_CTRL_REG2_SWRESET (1 << 2)

Definition at line 169 of file lps22hb.h.

◆ LPS22HB_CTRL_REG2_I2C_DIS

#define LPS22HB_CTRL_REG2_I2C_DIS (1 << 3)

Definition at line 170 of file lps22hb.h.

◆ LPS22HB_CTRL_REG2_IF_ADD_INC

#define LPS22HB_CTRL_REG2_IF_ADD_INC (1 << 4)

Definition at line 171 of file lps22hb.h.

Referenced by lps22hbStart().

◆ LPS22HB_CTRL_REG2_STOP_ON_FTH

#define LPS22HB_CTRL_REG2_STOP_ON_FTH (1 << 5)

Definition at line 172 of file lps22hb.h.

◆ LPS22HB_CTRL_REG2_FIFO_EN

#define LPS22HB_CTRL_REG2_FIFO_EN (1 << 6)

Definition at line 173 of file lps22hb.h.

◆ LPS22HB_CTRL_REG2_BOOT

#define LPS22HB_CTRL_REG2_BOOT (1 << 7)

Definition at line 174 of file lps22hb.h.

◆ LPS22HB_CTRL_REG3_MASK

#define LPS22HB_CTRL_REG3_MASK 0xFF

Definition at line 181 of file lps22hb.h.

◆ LPS22HB_CTRL_REG3_INT_S1

#define LPS22HB_CTRL_REG3_INT_S1 (1 << 0)

Definition at line 182 of file lps22hb.h.

◆ LPS22HB_CTRL_REG3_INT_S2

#define LPS22HB_CTRL_REG3_INT_S2 (1 << 1)

Definition at line 183 of file lps22hb.h.

◆ LPS22HB_CTRL_REG3_DRDY

#define LPS22HB_CTRL_REG3_DRDY (1 << 2)

Definition at line 184 of file lps22hb.h.

◆ LPS22HB_CTRL_REG3_F_OVR

#define LPS22HB_CTRL_REG3_F_OVR (1 << 3)

Definition at line 185 of file lps22hb.h.

◆ LPS22HB_CTRL_REG3_F_FTH

#define LPS22HB_CTRL_REG3_F_FTH (1 << 4)

Definition at line 186 of file lps22hb.h.

◆ LPS22HB_CTRL_REG3_F_FSS5

#define LPS22HB_CTRL_REG3_F_FSS5 (1 << 5)

Definition at line 187 of file lps22hb.h.

◆ LPS22HB_CTRL_REG3_PP_OD

#define LPS22HB_CTRL_REG3_PP_OD (1 << 6)

Definition at line 188 of file lps22hb.h.

◆ LPS22HB_CTRL_REG3_INT_H_L

#define LPS22HB_CTRL_REG3_INT_H_L (1 << 7)

Definition at line 189 of file lps22hb.h.

◆ LPS22HB_INT_SRC_MASK

#define LPS22HB_INT_SRC_MASK 0x87

Definition at line 196 of file lps22hb.h.

◆ LPS22HB_INT_SRC_PH

#define LPS22HB_INT_SRC_PH (1 << 0)

Definition at line 197 of file lps22hb.h.

◆ LPS22HB_INT_SRC_PL

#define LPS22HB_INT_SRC_PL (1 << 1)

Definition at line 198 of file lps22hb.h.

◆ LPS22HB_INT_SRC_IA

#define LPS22HB_INT_SRC_IA (1 << 2)

Definition at line 199 of file lps22hb.h.

◆ LPS22HB_INT_SRC_BOOT_STATUS

#define LPS22HB_INT_SRC_BOOT_STATUS (1 << 8)

Definition at line 200 of file lps22hb.h.

◆ LPS22HB_USE_SPI

#define LPS22HB_USE_SPI FALSE

LPS22HB SPI interface switch.

If set to TRUE the support for SPI is included.

Note: The default is FALSE.

Definition at line 217 of file lps22hb.h.

◆ LPS22HB_SHARED_SPI

#define LPS22HB_SHARED_SPI FALSE

LPS22HB shared SPI switch.

If set to TRUE the device acquires SPI bus ownership on each transaction.

Note: The default is FALSE. Requires SPI_USE_MUTUAL_EXCLUSION.

Definition at line 227 of file lps22hb.h.

◆ LPS22HB_USE_I2C

#define LPS22HB_USE_I2C TRUE

LPS22HB I2C interface switch.

If set to TRUE the support for I2C is included.

Note: The default is TRUE.

Definition at line 236 of file lps22hb.h.

◆ LPS22HB_SHARED_I2C

#define LPS22HB_SHARED_I2C FALSE

LPS22HB shared I2C switch.

If set to TRUE the device acquires I2C bus ownership on each transaction.

Note: The default is FALSE. Requires I2C_USE_MUTUAL_EXCLUSION.

Definition at line 246 of file lps22hb.h.

◆ LPS22HB_USE_ADVANCED

#define LPS22HB_USE_ADVANCED FALSE

LPS22HB advanced configurations switch.

If set to TRUE more configurations are available.

Note: The default is FALSE.

Definition at line 255 of file lps22hb.h.

◆ _lps22hb_methods_alone

#define _lps22hb_methods_alone

LPS22HB specific methods.

Note: No methods so far, just a common ancestor interface.

Definition at line 414 of file lps22hb.h.

◆ _lps22hb_methods

#define _lps22hb_methods

Value:

_base_object_methods \

_lps22hb_methods_alone

LPS22HB specific methods with inherited ones.

Definition at line 419 of file lps22hb.h.

◆ _lps22hb_data

#define _lps22hb_data

Value:

  /* Driver state.*/                                                        \
  lps22hb_state_t           state;                                          \
  /* Current configuration data.*/                                          \
  const LPS22HBConfig       *config;                                        \
  /* Barometer subsystem axes number.*/                                     \
  size_t                    baroaxes;                                       \
  /* Barometer subsystem current sensitivity.*/                             \
  float                     barosensitivity;                                \
  /* Barometer subsystem current bias .*/                                   \
  float                     barobias;                                       \
  /* Thermometer subsystem axes number.*/                                   \
  size_t                    thermoaxes;                                     \
  /* Thermometer subsystem current sensitivity.*/                           \
  float                     thermosensitivity;                              \
  /* Thermometer subsystem current bias.*/                                  \
  float                     thermobias;

LPS22HBDriver specific data.

Definition at line 435 of file lps22hb.h.

◆ lps22hbBarometerGetAxesNumber

#define lps22hbBarometerGetAxesNumber ( devp )

Value:

barometerGetAxesNumber(&((devp)->baro_if))

Return the number of axes of the BaseBarometer.

Parameters

[in] devp pointer to LPS22HBDriver.

Returns: the number of axes.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 480 of file lps22hb.h.

◆ lps22hbBarometerReadRaw

#define lps22hbBarometerReadRaw	(		devp,
			axes )

Value:

barometerReadRaw(&((devp)->baro_if), axes)

barometerReadRaw

#define barometerReadRaw(ip, dp)

Barometer read raw data.

Definition ex_barometer.h:122

Retrieves raw data from the BaseBarometer.

Note: This data is retrieved from MEMS register without any algebraical manipulation.; The axes array must be at least the same size of the BaseBarometer axes number.

Parameters

[in]	devp	pointer to `LPS22HBDriver`.
[out]	axes	a buffer which would be filled with raw data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 501 of file lps22hb.h.

◆ lps22hbBarometerReadCooked

#define lps22hbBarometerReadCooked	(		devp,
			axes )

Value:

barometerReadCooked(&((devp)->baro_if), axes)

barometerReadCooked

#define barometerReadCooked(ip, dp)

Barometer read cooked data.

Definition ex_barometer.h:137

Retrieves cooked data from the BaseBarometer.

Note: This data is manipulated according to the formula cooked = (raw * sensitivity) - bias.; Final data is expressed as hPa.; The axes array must be at least the same size of the BaseBarometer axes number.

Parameters

[in]	devp	pointer to `LPS22HBDriver`.
[out]	axes	a buffer which would be filled with cooked data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 523 of file lps22hb.h.

◆ lps22hbBarometerSetBias

#define lps22hbBarometerSetBias	(		devp,
			bp )

Value:

barometerSetBias(&((devp)->baro_if), bp)

barometerSetBias

#define barometerSetBias(ip, bp)

Updates barometer bias data from received buffer.

Definition ex_barometer.h:154

Set bias values for the BaseBarometer.

Note: Bias must be expressed as hPa.; The bias buffer must be at least the same size of the BaseBarometer axes number.

Parameters

[in]	devp	pointer to `LPS22HBDriver`.
[in]	bp	a buffer which contains biases.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 540 of file lps22hb.h.

◆ lps22hbBarometerResetBias

#define lps22hbBarometerResetBias ( devp )

Value:

barometerResetBias(&((devp)->baro_if))

barometerResetBias

#define barometerResetBias(ip)

Reset barometer bias data restoring it to zero.

Definition ex_barometer.h:168

Reset bias values for the BaseBarometer.

Note: Default biases value are obtained from device datasheet when available otherwise they are considered zero.

Parameters

[in] devp pointer to LPS22HBDriver.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 555 of file lps22hb.h.

◆ lps22hbBarometerSetSensitivity

#define lps22hbBarometerSetSensitivity	(		devp,
			sp )

Value:

barometerSetSensitivity(&((devp)->baro_if), sp)

barometerSetSensitivity

#define barometerSetSensitivity(ip, sp)

Updates barometer sensitivity data from received buffer.

Definition ex_barometer.h:185

Set sensitivity values for the BaseBarometer.

Note: Sensitivity must be expressed as hPa/LSB.; The sensitivity buffer must be at least the same size of the BaseBarometer axes number.

Parameters

[in]	devp	pointer to `LPS22HBDriver`.
[in]	sp	a buffer which contains sensitivities.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 572 of file lps22hb.h.

◆ lps22hbBarometerResetSensitivity

#define lps22hbBarometerResetSensitivity ( devp )

Value:

barometerResetSensitivity(&((devp)->baro_if))

barometerResetSensitivity

#define barometerResetSensitivity(ip)

Reset barometer sensitivity data restoring it to its typical value.

Definition ex_barometer.h:200

Reset sensitivity values for the BaseBarometer.

Note: Default sensitivities value are obtained from device datasheet.

Parameters

[in] devp pointer to LPS22HBDriver.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 586 of file lps22hb.h.

◆ lps22hbThermometerGetAxesNumber

#define lps22hbThermometerGetAxesNumber ( devp )

Value:

thermometerGetAxesNumber(&((devp)->thermo_if))

Return the number of axes of the BaseThermometer.

Parameters

[in] devp pointer to LPS22HBDriver.

Returns: the number of axes.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 598 of file lps22hb.h.

◆ lps22hbThermometerReadRaw

#define lps22hbThermometerReadRaw	(		devp,
			axes )

Value:

thermometerReadRaw(&((devp)->thermo_if), axes)

thermometerReadRaw

#define thermometerReadRaw(ip, dp)

Thermometer read raw data.

Definition ex_thermometer.h:122

Retrieves raw data from the BaseThermometer.

Note: This data is retrieved from MEMS register without any algebraical manipulation.; The axes array must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	devp	pointer to `LPS22HBDriver`.
[out]	axes	a buffer which would be filled with raw data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 619 of file lps22hb.h.

◆ lps22hbThermometerReadCooked

#define lps22hbThermometerReadCooked	(		devp,
			axes )

Value:

thermometerReadCooked(&((devp)->thermo_if), axes)

thermometerReadCooked

#define thermometerReadCooked(ip, dp)

Thermometer read cooked data.

Definition ex_thermometer.h:137

Retrieves cooked data from the BaseThermometer.

Note: This data is manipulated according to the formula cooked = (raw * sensitivity) - bias.; Final data is expressed as °C.; The axes array must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	devp	pointer to `LPS22HBDriver`.
[out]	axes	a buffer which would be filled with cooked data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 641 of file lps22hb.h.

◆ lps22hbThermometerSetBias

#define lps22hbThermometerSetBias	(		devp,
			bp )

Value:

thermometerSetBias(&((devp)->thermo_if), bp)

thermometerSetBias

#define thermometerSetBias(ip, bp)

Updates thermometer bias data from received buffer.

Definition ex_thermometer.h:154

Set bias values for the BaseThermometer.

Note: Bias must be expressed as °C.; The bias buffer must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	devp	pointer to `LPS22HBDriver`.
[in]	bp	a buffer which contains biases.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 658 of file lps22hb.h.

◆ lps22hbThermometerResetBias

#define lps22hbThermometerResetBias ( devp )

Value:

thermometerResetBias(&((devp)->thermo_if))

thermometerResetBias

#define thermometerResetBias(ip)

Reset thermometer bias data restoring it to zero.

Definition ex_thermometer.h:168

Reset bias values for the BaseThermometer.

Note: Default biases value are obtained from device datasheet when available otherwise they are considered zero.

Parameters

[in] devp pointer to LPS22HBDriver.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 673 of file lps22hb.h.

◆ lps22hbThermometerSetSensitivity

#define lps22hbThermometerSetSensitivity	(		devp,
			sp )

Value:

thermometerSetSensitivity(&((devp)->thermo_if), sp)

thermometerSetSensitivity

#define thermometerSetSensitivity(ip, sp)

Updates thermometer sensitivity data from received buffer.

Definition ex_thermometer.h:185

Set sensitivity values for the BaseThermometer.

Note: Sensitivity must be expressed as °C/LSB.; The sensitivity buffer must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	devp	pointer to `LPS22HBDriver`.
[in]	sp	a buffer which contains sensitivities.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 690 of file lps22hb.h.

◆ lps22hbThermometerResetSensitivity

#define lps22hbThermometerResetSensitivity ( devp )

Value:

thermometerResetSensitivity(&((devp)->thermo_if))

thermometerResetSensitivity

#define thermometerResetSensitivity(ip)

Reset thermometer sensitivity data restoring it to its typical value.

Definition ex_thermometer.h:200

Reset sensitivity values for the BaseThermometer.

Note: Default sensitivities value are obtained from device datasheet.

Parameters

[in] devp pointer to LPS22HBDriver.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 704 of file lps22hb.h.

Typedef Documentation

◆ LPS22HBDriver

typedef struct LPS22HBDriver LPS22HBDriver

Structure representing a LPS22HB driver.

Definition at line 301 of file lps22hb.h.

Enumeration Type Documentation

◆ lps22hb_sad_t

enum lps22hb_sad_t

LPS22HB slave address.

Enumerator
LPS22HB_SAD_GND	Slave Address when SA0 is to GND
LPS22HB_SAD_VCC	Slave Address when SA0 is to VCC

Definition at line 306 of file lps22hb.h.

◆ lps22hb_odr_t

enum lps22hb_odr_t

LPS22HB output data rate and bandwidth.

Enumerator
LPS22HB_ODR_PD	Power down.
LPS22HB_ODR_1HZ	Output data rate 1 Hz.
LPS22HB_ODR_10HZ	Output data rate 10 Hz.
LPS22HB_ODR_25HZ	Output data rate 25 Hz.
LPS22HB_ODR_50HZ	Output data rate 50 Hz.
LPS22HB_ODR_75HZ	Output data rate 75 Hz.

Definition at line 314 of file lps22hb.h.

◆ lps22hb_lp_t

enum lps22hb_lp_t

LPS22HB pressure resolution.

Enumerator
LPS22HB_LP_DISABLED	LP Filter disabled.
LPS22HB_LP_ODR_9	LP Filter enabled. Cut-off ORD/9.
LPS22HB_LP_ODR_20	LP Filter enabled. Cut-off ORD/20.

Definition at line 326 of file lps22hb.h.

◆ lps22hb_bdu_t

enum lps22hb_bdu_t

LPS22HB block data update.

Enumerator
LPS22HB_BDU_CONTINUOUS	Block data continuously updated.
LPS22HB_BDU_BLOCKED	Block data updated after reading.

Definition at line 335 of file lps22hb.h.

◆ lps22hb_state_t

enum lps22hb_state_t

Driver state machine possible states.

Enumerator
LPS22HB_UNINIT	Not initialized.
LPS22HB_STOP	Stopped.
LPS22HB_READY	Ready.

Definition at line 343 of file lps22hb.h.

Function Documentation

◆ lps22hbI2CReadRegister()

msg_t lps22hbI2CReadRegister	(	I2CDriver *	i2cp,
		lps22hb_sad_t	sad,
		uint8_t	reg,
		uint8_t *	rxbuf,
		size_t	n )

static

Reads registers value using I2C.

Precondition: The I2C interface must be initialized and the driver started.

Parameters

[in]	i2cp	pointer to the I2C interface
[in]	sad	slave address without R bit
[in]	reg	first sub-register address
[out]	rxbuf	pointer to an output buffer
[in]	n	number of consecutive register to read

Returns: the operation status.

Function Class:: Not an API, this function is for internal use only.

Definition at line 63 of file lps22hb.c.

References i2cMasterTransmitTimeout(), and TIME_INFINITE.

Referenced by baro_read_raw(), and thermo_read_raw().

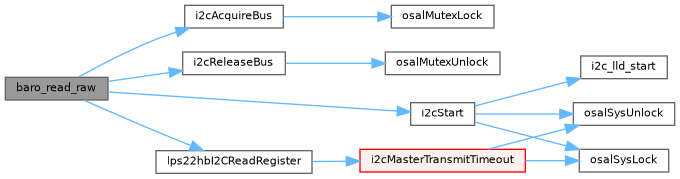

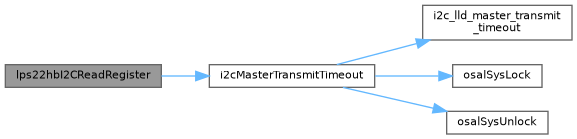

Here is the call graph for this function:

◆ baro_get_axes_number()

size_t baro_get_axes_number ( void * ip )

static

Return the number of axes of the BaseBarometer.

Parameters

[in] ip pointer to BaseBarometer interface.

Returns: the number of axes.

Definition at line 96 of file lps22hb.c.

References LPS22HB_BARO_NUMBER_OF_AXES.

◆ baro_read_raw()

msg_t baro_read_raw	(	void *	ip,
		int32_t	axes[] )

static

Retrieves raw data from the BaseBarometer.

Note: This data is retrieved from MEMS register without any algebraical manipulation.; The axes array must be at least the same size of the BaseBarometer axes number.

Parameters

[in]	ip	pointer to `BaseBarometer` interface.
[out]	axes	a buffer which would be filled with raw data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 118 of file lps22hb.c.

References I2C_READY, i2cAcquireBus(), i2cReleaseBus(), i2cStart(), LPS22HB_AD_PRESS_OUT_XL, LPS22HB_READY, lps22hbI2CReadRegister(), MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

Referenced by baro_read_cooked().

Here is the call graph for this function:

◆ baro_read_cooked()

msg_t baro_read_cooked	(	void *	ip,
		float	axes[] )

static

Retrieves cooked data from the BaseBarometer.

Note: This data is manipulated according to the formula cooked = (raw * sensitivity) - bias.; Final data is expressed as hPa.; The axes array must be at least the same size of the BaseBarometer axes number.

Parameters

[in]	ip	pointer to `BaseBarometer` interface.
[out]	axes	a buffer which would be filled with cooked data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 170 of file lps22hb.c.

References baro_read_raw(), LPS22HB_READY, objGetInstance, osalDbgAssert, and osalDbgCheck.

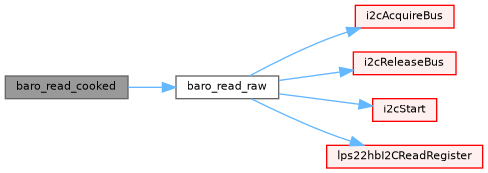

Here is the call graph for this function:

◆ baro_set_bias()

msg_t baro_set_bias	(	void *	ip,
		float *	bp )

static

Set bias values for the BaseBarometer.

Note: Bias must be expressed as hPa.; The bias buffer must be at least the same size of the BaseBarometer axes number.

Parameters

[in]	ip	pointer to `BaseBarometer` interface.
[in]	bp	a buffer which contains biases.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 205 of file lps22hb.c.

References LPS22HB_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ baro_reset_bias()

msg_t baro_reset_bias ( void * ip )

static

Reset bias values for the BaseBarometer.

Note: Default biases value are obtained from device datasheet when available otherwise they are considered zero.

Parameters

[in] ip pointer to BaseBarometer interface.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 231 of file lps22hb.c.

References LPS22HB_BARO_SENS, LPS22HB_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ baro_set_sensitivity()

msg_t baro_set_sensitivity	(	void *	ip,
		float *	sp )

static

Set sensitivity values for the BaseBarometer.

Note: Sensitivity must be expressed as hPa/LSB.; The sensitivity buffer must be at least the same size of the BaseBarometer axes number.

Parameters

[in]	ip	pointer to `BaseBarometer` interface.
[in]	sp	a buffer which contains sensitivities.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 259 of file lps22hb.c.

References LPS22HB_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ baro_reset_sensitivity()

msg_t baro_reset_sensitivity ( void * ip )

static

Reset sensitivity values for the BaseBarometer.

Note: Default sensitivities value are obtained from device datasheet.

Parameters

[in] ip pointer to BaseBarometer interface.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 284 of file lps22hb.c.

References LPS22HB_BARO_SENS, LPS22HB_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ thermo_get_axes_number()

size_t thermo_get_axes_number ( void * ip )

static

Return the number of axes of the BaseThermometer.

Parameters

[in] ip pointer to BaseThermometer interface.

Returns: the number of axes.

Definition at line 307 of file lps22hb.c.

References LPS22HB_THERMO_NUMBER_OF_AXES.

◆ thermo_read_raw()

msg_t thermo_read_raw	(	void *	ip,
		int32_t	axes[] )

static

Retrieves raw data from the BaseThermometer.

Note: This data is retrieved from MEMS register without any algebraical manipulation.; The axes array must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	ip	pointer to `BaseThermometer` interface.
[out]	axes	a buffer which would be filled with raw data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 329 of file lps22hb.c.

References I2C_READY, i2cAcquireBus(), i2cReleaseBus(), i2cStart(), LPS22HB_AD_TEMP_OUT_L, LPS22HB_READY, lps22hbI2CReadRegister(), MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

Referenced by thermo_read_cooked().

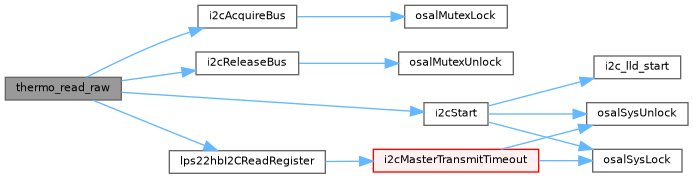

Here is the call graph for this function:

◆ thermo_read_cooked()

msg_t thermo_read_cooked	(	void *	ip,
		float *	axis )

static

Retrieves cooked data from the BaseThermometer.

Note: This data is manipulated according to the formula cooked = (raw * sensitivity) - bias.; Final data is expressed as °C.; The axes array must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	ip	pointer to `BaseThermometer` interface.
[out]	axis	a buffer which would be filled with cooked data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 383 of file lps22hb.c.

References LPS22HB_READY, objGetInstance, osalDbgAssert, osalDbgCheck, and thermo_read_raw().

Here is the call graph for this function:

◆ thermo_set_bias()

msg_t thermo_set_bias	(	void *	ip,
		float *	bp )

static

Set bias values for the BaseThermometer.

Note: Bias must be expressed as °C.; The bias buffer must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	ip	pointer to `BaseThermometer` interface.
[in]	bp	a buffer which contains biases.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 415 of file lps22hb.c.

References LPS22HB_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ thermo_reset_bias()

msg_t thermo_reset_bias ( void * ip )

static

Reset bias values for the BaseThermometer.

Note: Default biases value are obtained from device datasheet when available otherwise they are considered zero.

Parameters

[in] ip pointer to BaseThermometer interface.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 442 of file lps22hb.c.

References LPS22HB_READY, LPS22HB_THERMO_BIAS, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ thermo_set_sensitivity()

msg_t thermo_set_sensitivity	(	void *	ip,
		float *	sp )

static

Set sensitivity values for the BaseThermometer.

Note: Sensitivity must be expressed as °C/LSB.; The sensitivity buffer must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	ip	pointer to `BaseThermometer` interface.
[in]	sp	a buffer which contains sensitivities.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 471 of file lps22hb.c.

References LPS22HB_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ thermo_reset_sensitivity()

msg_t thermo_reset_sensitivity ( void * ip )

static

Reset sensitivity values for the BaseThermometer.

Note: Default sensitivities value are obtained from device datasheet.

Parameters

[in] ip pointer to BaseThermometer interface.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 497 of file lps22hb.c.

References LPS22HB_READY, LPS22HB_THERMO_SENS, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ lps22hbObjectInit()

void lps22hbObjectInit ( LPS22HBDriver * devp )

Initializes an instance.

Parameters

[out] devp pointer to the LPS22HBDriver object

Function Class:: Object or module nitializer function.

Definition at line 543 of file lps22hb.c.

References LPS22HBDriver::baro_if, LPS22HB_BARO_NUMBER_OF_AXES, LPS22HB_STOP, LPS22HB_THERMO_NUMBER_OF_AXES, LPS22HBDriver::thermo_if, BaseBarometer::vmt, BaseThermometer::vmt, LPS22HBDriver::vmt, vmt_barometer, vmt_device, and vmt_thermometer.

◆ lps22hbStart()

void lps22hbStart	(	LPS22HBDriver *	devp,
		const LPS22HBConfig *	config )

Configures and activates LPS22HB Complex Driver peripheral.

Parameters

[in]	devp	pointer to the `LPS22HBDriver` object
[in]	config	pointer to the `LPS22HBConfig` object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 565 of file lps22hb.c.

References hal_i2c_driver::config, i2cAcquireBus(), LPS22HBConfig::i2cp, i2cReleaseBus(), i2cStart(), LPS22HB_AD_CTRL_REG1, LPS22HB_AD_CTRL_REG2, LPS22HB_BARO_BIAS, LPS22HB_BARO_SENS, LPS22HB_CTRL_REG2_IF_ADD_INC, LPS22HB_READY, LPS22HB_STOP, LPS22HB_THERMO_BIAS, LPS22HB_THERMO_SENS, lps22hbI2CWriteRegister, osalDbgAssert, osalDbgCheck, and osalThreadSleepMilliseconds.

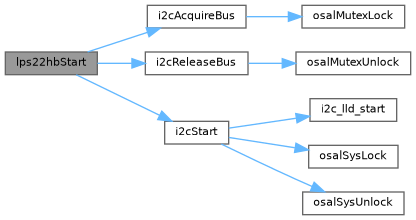

Here is the call graph for this function:

◆ lps22hbStop()

void lps22hbStop ( LPS22HBDriver * devp )

Deactivates the LPS22HB Complex Driver peripheral.

Parameters

[in] devp pointer to the LPS22HBDriver object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 659 of file lps22hb.c.

References i2cAcquireBus(), i2cReleaseBus(), i2cStart(), i2cStop(), LPS22HB_AD_CTRL_REG1, LPS22HB_READY, LPS22HB_STOP, lps22hbI2CWriteRegister, osalDbgAssert, and osalDbgCheck.

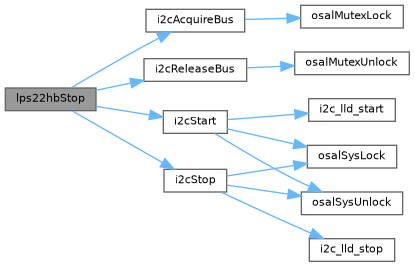

Here is the call graph for this function:

Variable Documentation

◆ vmt_device

const struct LPS22HBVMT vmt_device

static

Initial value:

= {
  (size_t)0
}

Definition at line 514 of file lps22hb.c.

◆ vmt_barometer

const struct BaseBarometerVMT vmt_barometer

static

Initial value:

= {
  sizeof(struct LPS22HBVMT*),
  baro_get_axes_number, baro_read_raw, baro_read_cooked,
  baro_set_bias, baro_reset_bias, baro_set_sensitivity,
  baro_reset_sensitivity
}

Definition at line 518 of file lps22hb.c.

Referenced by lps22hbObjectInit(), and lps25hObjectInit().

◆ vmt_thermometer

const struct BaseThermometerVMT vmt_thermometer

static

Initial value:

= {
  sizeof(struct LPS22HBVMT*) + sizeof(BaseBarometer),
  thermo_get_axes_number, thermo_read_raw, thermo_read_cooked,
  thermo_set_bias, thermo_reset_bias, thermo_set_sensitivity,
  thermo_reset_sensitivity
}

Definition at line 525 of file lps22hb.c.

Detailed Description

LPS22HB data structures and types.

Version identification

LPS22HB communication interfaces related bit masks

LPS22HB register addresses

LPS22HB_INT_CFG register bits definitions

LPS22HB_CTRL_REG1 register bits definitions

LPS22HB_CTRL_REG2 register bits definitions

LPS22HB_CTRL_REG3 register bits definitions

LPS22HB_INT_SRC register bits definitions

Configuration options

Data Structures

Macros

Functions

Variables

Macro Definition Documentation

◆ lps22hbI2CWriteRegister

◆ EX_LPS22HB_VERSION

◆ EX_LPS22HB_MAJOR

◆ EX_LPS22HB_MINOR

◆ EX_LPS22HB_PATCH

◆ LPS22HB_BARO_NUMBER_OF_AXES

◆ LPS22HB_BARO_SENS

◆ LPS22HB_BARO_BIAS

◆ LPS22HB_THERMO_NUMBER_OF_AXES

◆ LPS22HB_THERMO_SENS

◆ LPS22HB_THERMO_BIAS

◆ LPS22HB_DI_MASK

◆ LPS22HB_DI

◆ LPS22HB_AD_MASK

◆ LPS22HB_AD

◆ LPS22HB_MS

◆ LPS22HB_RW

◆ LPS22HB_SUB_MS

◆ LPS22HB_AD_INT_CFG

◆ LPS22HB_AD_THS_P_L

◆ LPS22HB_AD_THS_P_H

◆ LPS22HB_AD_WHO_AM_I

◆ LPS22HB_AD_CTRL_REG1

◆ LPS22HB_AD_CTRL_REG2

◆ LPS22HB_AD_CTRL_REG3

◆ LPS22HB_AD_FIFO_CTRL

◆ LPS22HB_AD_REF_P_XL

◆ LPS22HB_AD_REF_P_L

◆ LPS22HB_AD_REF_P_H

◆ LPS22HB_AD_RPDS_L

◆ LPS22HB_AD_RPDS_H

◆ LPS22HB_AD_RES_CONF

◆ LPS22HB_AD_INT_SRC

◆ LPS22HB_AD_FIFO_SRC

◆ LPS22HB_AD_STATUS_REG

◆ LPS22HB_AD_PRESS_OUT_XL

◆ LPS22HB_AD_PRESS_OUT_L

◆ LPS22HB_AD_PRESS_OUT_H

◆ LPS22HB_AD_TEMP_OUT_L

◆ LPS22HB_AD_TEMP_OUT_H

◆ LPS22HB_AD_LPFP_RES

◆ LPS22HB_INT_CFG_MASK

◆ LPS22HB_INT_CFG_PHE

◆ LPS22HB_INT_CFG_PLE

◆ LPS22HB_INT_CFG_LIR

◆ LPS22HB_INT_CFG_DIFF_EN

◆ LPS22HB_INT_CFG_RESET_AZ

◆ LPS22HB_INT_CFG_AUTOZERO

◆ LPS22HB_INT_CFG_RESET_ARP

◆ LPS22HB_INT_CFG_AUTORIFP

◆ LPS22HB_CTRL_REG1_MASK

◆ LPS22HB_CTRL_REG1_SIM

◆ LPS22HB_CTRL_REG1_BDU

◆ LPS22HB_CTRL_REG1_LPFP_CFG

◆ LPS22HB_CTRL_REG1_LPFP_EN

◆ LPS22HB_CTRL_REG1_ODR0

◆ LPS22HB_CTRL_REG1_ODR1

◆ LPS22HB_CTRL_REG1_ODR2

◆ LPS22HB_CTRL_REG2_MASK

◆ LPS22HB_CTRL_REG2_ONE_SHOT

◆ LPS22HB_CTRL_REG2_SWRESET

◆ LPS22HB_CTRL_REG2_I2C_DIS

◆ LPS22HB_CTRL_REG2_IF_ADD_INC

◆ LPS22HB_CTRL_REG2_STOP_ON_FTH
