Detailed Description

Collaboration diagram for ADXL317:

ADXL317 data structures and types
enum	adxl317_sad_t { ADXL317_SAD_GND = 0x53 , ADXL317_SAD_VCC = 0x1D }
	ADXL317 Slave Address. More...
enum	adxl317_state_t { ADXL317_UNINIT = 0 , ADXL317_STOP = 1 , ADXL317_READY = 2 }
	Driver state machine possible states. More...
enum	adxl317_acc_x_lp_t { ADXL317_ACC_X_LP_DISABLED = 0x00 , ADXL317_ACC_X_LP_500 = 0x4F , ADXL317_ACC_X_LP_1000 = 0x4A , ADXL317_ACC_X_LP_2000 = 0x45 , ADXL317_ACC_X_LP_4000 = 0x40 }
	ADXL317 X LP filter. More...
enum	adxl317_acc_y_lp_t { ADXL317_ACC_Y_LP_DISABLED = 0x00 , ADXL317_ACC_Y_LP_500 = 0x4F , ADXL317_ACC_Y_LP_1000 = 0x4A , ADXL317_ACC_Y_LP_2000 = 0x45 , ADXL317_ACC_Y_LP_4000 = 0x40 }
	ADXL317 Y LP filter. More...
enum	adxl317_acc_z_lp_t { ADXL317_ACC_Z_LP_DISABLED = 0x00 , ADXL317_ACC_Z_LP_500 = 0x4F , ADXL317_ACC_Z_LP_1000 = 0x4A , ADXL317_ACC_Z_LP_2000 = 0x45 , ADXL317_ACC_Z_LP_4000 = 0x40 }
	ADXL317 Z LP filter. More...
enum	adxl317_acc_x_hp_t { ADXL317_ACC_X_HP_DISABLED = 0x00 , ADXL317_ACC_X_HP_29 = 0x80 , ADXL317_ACC_X_HP_7 = 0x90 , ADXL317_ACC_X_HP_1 = 0xA0 , ADXL317_ACC_X_HP_0_5 = 0xB0 }
	ADXL317 X HP filter. More...
enum	adxl317_acc_y_hp_t { ADXL317_ACC_Y_HP_DISABLED = 0x00 , ADXL317_ACC_Y_HP_29 = 0x80 , ADXL317_ACC_Y_HP_7 = 0x90 , ADXL317_ACC_Y_HP_1 = 0xA0 , ADXL317_ACC_Y_HP_0_5 = 0xB0 }
	ADXL317 Y HP filter. More...
enum	adxl317_acc_z_hp_t { ADXL317_ACC_Z_HP_DISABLED = 0x00 , ADXL317_ACC_Z_HP_29 = 0x80 , ADXL317_ACC_Z_HP_7 = 0x90 , ADXL317_ACC_Z_HP_1 = 0xA0 , ADXL317_ACC_Z_HP_0_5 = 0xB0 }
	ADXL317 Z HP filter. More...
typedef struct ADXL317Driver	ADXL317Driver
	Structure representing a ADXL317 driver.
#define	_adxl317_methods_alone
	`ADXL317` specific methods.
#define	_adxl317_methods
	`ADXL317` specific methods with inherited ones.
#define	_adxl317_data
	`ADXL317Driver` specific data.

Version identification
#define	EX_ADXL317_VERSION "1.0.0"
	ADXL317 driver version string.
#define	EX_ADXL317_MAJOR 1
	ADXL317 driver version major number.
#define	EX_ADXL317_MINOR 0
	ADXL317 driver version minor number.
#define	EX_ADXL317_PATCH 0
	ADXL317 driver version patch number.
#define	ADXL317_ACC_NUMBER_OF_AXES 3U
	ADXL317 accelerometer subsystem characteristics.
#define	ADXL317_ACC_SENS 2.0f
#define	ADXL317_ACC_BIAS 0.0f

ADXL317 register addresses
#define	ADXL317_AD_DEVID_0 0x00
#define	ADXL317_AD_DEVID_1 0x01
#define	ADXL317_AD_USER_REG_KEY 0x80
#define	ADXL317_AD_I2C_CFGO 0x81
#define	ADXL317_AD_I2C_CFG1 0x82
#define	ADXL317_AD_CLK_RATE 0x83
#define	ADXL317_AD_X_ST 0x84
#define	ADXL317_AD_X_FILT 0x85
#define	ADXL317_AD_Y_ST 0x86
#define	ADXL317_AD_Y_FILT 0x87
#define	ADXL317_AD_Z_ST 0x88
#define	ADXL317_AD_Z_FILT 0x89
#define	ADXL317_AD_X_DATA_LO 0x8A
#define	ADXL317_AD_X_DATA_HI 0x8B
#define	ADXL317_AD_Y_DATA_LO 0x8C
#define	ADXL317_AD_Y_DATA_HI 0x8D
#define	ADXL317_AD_Z_DATA_LO 0x8E
#define	ADXL317_AD_Z_DATA_HI 0x8F

ADXL317 Device Identifier
#define	ADXL317_DEVID_0 0x22

ADXL317 Device User Reg Key for Register Write Enable
#define	ADXL317_USER_REG_KEY_0 0xBC
#define	ADXL317_USER_REG_KEY_1 0x43

ADXL317 Default filter
LP (CIC and IIR cascade) with cut off at 4kHz HP disabled
#define	ADXL317_DEFAULT_FILTER 0x40

ADXL317_I2S_CFG0 register bits definitions
#define	ADXL317_I2S_CFG0_MASK 0xF3
#define	ADXL317_I2S_CFG0_TDMMODE_0 (1 << 0)
#define	ADXL317_I2S_CFG0_TDMMODE_1 (1 << 1)
#define	ADXL317_I2S_CFG0_TDMSS (1 << 4)
#define	ADXL317_I2S_CFG0_ALT (1 << 5)
#define	ADXL317_I2S_CFG0_EARLY (1 << 6)
#define	ADXL317_I2S_CFG0_INV (1 << 7)

ADXL317_I2S_CFG1 register bits definitions
#define	ADXL317_I2S_CFG1_MASK 0x07
#define	ADXL317_I2S_CFG1_TX0EN (1 << 0)
#define	ADXL317_I2S_CFG1_TX1EN (1 << 1)
#define	ADXL317_I2S_CFG1_TXBCLKINV (1 << 3)

ADXL317_CLOCK_RATE register bits definitions
#define	ADXL317_CLOCK_RATE_MASK 0x07
#define	ADXL317_CLOCK_RATE_A2B_CLK_RATE_0 (1 << 0)
#define	ADXL317_CLOCK_RATE_A2B_CLK_RATE_1 (1 << 1)
#define	ADXL317_CLOCK_RATE_A2B_CLK_RATE_2 (1 << 3)

Configuration options
#define	ADXL317_USE_I2C TRUE
	ADXL317 I2C interface switch.
#define	ADXL317_SHARED_I2C FALSE
	ADXL317 shared I2C switch.
#define	ADXL317_USE_ADVANCED FALSE
	ADXL317 advanced configurations switch.
#define	ADXL317_MAX_BUFF_SIZE 6
	ADXL317 internal maximum communication buffer sizes.

Data Structures
struct	adxl317_acc_lp_t
	ADXL317 LP filter configuration. More...
struct	adxl317_acc_hp_t
	ADXL317 HP filter configuration. More...
struct	ADXL317Config
	ADXL317 configuration structure. More...
struct	ADXL317VMT
	`ADXL317` virtual methods table. More...
struct	ADXL317Driver
	ADXL317 3-axis accelerometer class. More...

Macros
#define	adxl317AccelerometerGetAxesNumber(devp)
	Return the number of axes of the BaseAccelerometer.
#define	adxl317AccelerometerReadRaw(devp, axes)
	Retrieves raw data from the BaseAccelerometer.
#define	adxl317AccelerometerReadCooked(devp, axes)
	Retrieves cooked data from the BaseAccelerometer.

Functions

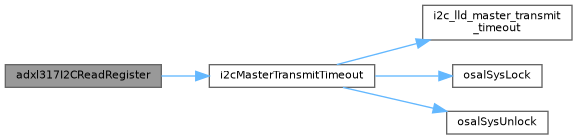

static msg_t	adxl317I2CReadRegister (ADXL317Driver devp, uint8_t reg, uint8_t b, size_t n)
	Reads a generic register value using I2C.
static msg_t	adxl317I2CWriteRegister (ADXL317Driver devp, uint8_t reg, uint8_t b, size_t n)
	Writes a value into a generic register using I2C.
static size_t	acc_get_axes_number (void *ip)
	Return the number of axes of the BaseAccelerometer.
static msg_t	acc_read_raw (void *ip, int32_t axes[])
	Retrieves raw data from the BaseAccelerometer.
static msg_t	acc_read_cooked (void *ip, float axes[])
	Retrieves cooked data from the BaseAccelerometer.
static msg_t	acc_set_bias (void ip, float bp)
	Set bias values for the BaseAccelerometer.
static msg_t	acc_reset_bias (void *ip)
	Reset bias values for the BaseAccelerometer.
static msg_t	acc_set_sensivity (void ip, float sp)
	Set sensitivity values for the BaseAccelerometer.
static msg_t	acc_reset_sensivity (void *ip)
	Reset sensitivity values for the BaseAccelerometer.
void	adxl317ObjectInit (ADXL317Driver devp, uint8_t txbp, uint8_t *rxbp)
	Initializes an instance.

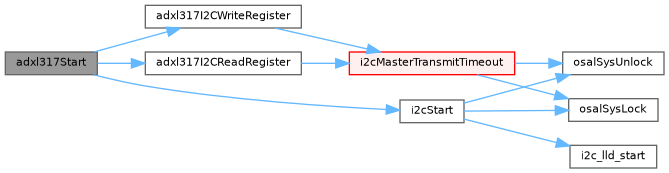

msg_t	adxl317Start (ADXL317Driver devp, const ADXL317Config config)
	Configures and activates ADXL317 Complex Driver peripheral.

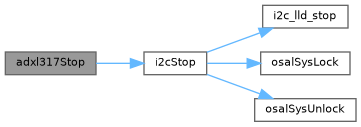

void	adxl317Stop (ADXL317Driver *devp)
	Deactivates the ADXL317 Complex Driver peripheral.

Variables
static const struct ADXL317VMT	vmt_device
static const struct BaseAccelerometerVMT	vmt_accelerometer

Macro Definition Documentation

◆ EX_ADXL317_VERSION

#define EX_ADXL317_VERSION "1.0.0"

ADXL317 driver version string.

Definition at line 46 of file adxl317.h.

◆ EX_ADXL317_MAJOR

#define EX_ADXL317_MAJOR 1

ADXL317 driver version major number.

Definition at line 51 of file adxl317.h.

◆ EX_ADXL317_MINOR

#define EX_ADXL317_MINOR 0

ADXL317 driver version minor number.

Definition at line 56 of file adxl317.h.

◆ EX_ADXL317_PATCH

#define EX_ADXL317_PATCH 0

ADXL317 driver version patch number.

Definition at line 61 of file adxl317.h.

◆ ADXL317_ACC_NUMBER_OF_AXES

#define ADXL317_ACC_NUMBER_OF_AXES 3U

ADXL317 accelerometer subsystem characteristics.

Note: Sensitivity is expressed as milli-G/LSB whereas 1 milli-G = 0.00980665 m/s^2.; Bias is expressed as milli-G.

Definition at line 72 of file adxl317.h.

Referenced by acc_get_axes_number(), acc_read_cooked(), acc_read_raw(), acc_reset_bias(), acc_reset_sensivity(), acc_set_bias(), acc_set_sensivity(), adxl317ObjectInit(), and adxl317Start().

◆ ADXL317_ACC_SENS

#define ADXL317_ACC_SENS 2.0f

Definition at line 75 of file adxl317.h.

Referenced by acc_reset_sensivity(), and adxl317Start().

◆ ADXL317_ACC_BIAS

#define ADXL317_ACC_BIAS 0.0f

Definition at line 76 of file adxl317.h.

Referenced by acc_reset_bias(), and adxl317Start().

◆ ADXL317_AD_DEVID_0

#define ADXL317_AD_DEVID_0 0x00

Definition at line 84 of file adxl317.h.

Referenced by adxl317Start().

◆ ADXL317_AD_DEVID_1

#define ADXL317_AD_DEVID_1 0x01

Definition at line 85 of file adxl317.h.

◆ ADXL317_AD_USER_REG_KEY

#define ADXL317_AD_USER_REG_KEY 0x80

Definition at line 86 of file adxl317.h.

Referenced by adxl317Start().

◆ ADXL317_AD_I2C_CFGO

#define ADXL317_AD_I2C_CFGO 0x81

Definition at line 87 of file adxl317.h.

◆ ADXL317_AD_I2C_CFG1

#define ADXL317_AD_I2C_CFG1 0x82

Definition at line 88 of file adxl317.h.

◆ ADXL317_AD_CLK_RATE

#define ADXL317_AD_CLK_RATE 0x83

Definition at line 89 of file adxl317.h.

◆ ADXL317_AD_X_ST

#define ADXL317_AD_X_ST 0x84

Definition at line 90 of file adxl317.h.

◆ ADXL317_AD_X_FILT

#define ADXL317_AD_X_FILT 0x85

Definition at line 91 of file adxl317.h.

Referenced by adxl317Start().

◆ ADXL317_AD_Y_ST

#define ADXL317_AD_Y_ST 0x86

Definition at line 92 of file adxl317.h.

◆ ADXL317_AD_Y_FILT

#define ADXL317_AD_Y_FILT 0x87

Definition at line 93 of file adxl317.h.

Referenced by adxl317Start().

◆ ADXL317_AD_Z_ST

#define ADXL317_AD_Z_ST 0x88

Definition at line 94 of file adxl317.h.

◆ ADXL317_AD_Z_FILT

#define ADXL317_AD_Z_FILT 0x89

Definition at line 95 of file adxl317.h.

Referenced by adxl317Start().

◆ ADXL317_AD_X_DATA_LO

#define ADXL317_AD_X_DATA_LO 0x8A

Definition at line 96 of file adxl317.h.

Referenced by acc_read_raw().

◆ ADXL317_AD_X_DATA_HI

#define ADXL317_AD_X_DATA_HI 0x8B

Definition at line 97 of file adxl317.h.

◆ ADXL317_AD_Y_DATA_LO

#define ADXL317_AD_Y_DATA_LO 0x8C

Definition at line 98 of file adxl317.h.

◆ ADXL317_AD_Y_DATA_HI

#define ADXL317_AD_Y_DATA_HI 0x8D

Definition at line 99 of file adxl317.h.

◆ ADXL317_AD_Z_DATA_LO

#define ADXL317_AD_Z_DATA_LO 0x8E

Definition at line 100 of file adxl317.h.

◆ ADXL317_AD_Z_DATA_HI

#define ADXL317_AD_Z_DATA_HI 0x8F

Definition at line 101 of file adxl317.h.

◆ ADXL317_DEVID_0

#define ADXL317_DEVID_0 0x22

Definition at line 108 of file adxl317.h.

Referenced by adxl317Start().

◆ ADXL317_USER_REG_KEY_0

#define ADXL317_USER_REG_KEY_0 0xBC

Definition at line 115 of file adxl317.h.

Referenced by adxl317Start().

◆ ADXL317_USER_REG_KEY_1

#define ADXL317_USER_REG_KEY_1 0x43

Definition at line 116 of file adxl317.h.

Referenced by adxl317Start().

◆ ADXL317_DEFAULT_FILTER

#define ADXL317_DEFAULT_FILTER 0x40

Definition at line 125 of file adxl317.h.

Referenced by adxl317Start().

◆ ADXL317_I2S_CFG0_MASK

#define ADXL317_I2S_CFG0_MASK 0xF3

Definition at line 132 of file adxl317.h.

◆ ADXL317_I2S_CFG0_TDMMODE_0

#define ADXL317_I2S_CFG0_TDMMODE_0 (1 << 0)

Definition at line 133 of file adxl317.h.

◆ ADXL317_I2S_CFG0_TDMMODE_1

#define ADXL317_I2S_CFG0_TDMMODE_1 (1 << 1)

Definition at line 134 of file adxl317.h.

◆ ADXL317_I2S_CFG0_TDMSS

#define ADXL317_I2S_CFG0_TDMSS (1 << 4)

Definition at line 135 of file adxl317.h.

◆ ADXL317_I2S_CFG0_ALT

#define ADXL317_I2S_CFG0_ALT (1 << 5)

Definition at line 136 of file adxl317.h.

◆ ADXL317_I2S_CFG0_EARLY

#define ADXL317_I2S_CFG0_EARLY (1 << 6)

Definition at line 137 of file adxl317.h.

◆ ADXL317_I2S_CFG0_INV

#define ADXL317_I2S_CFG0_INV (1 << 7)

Definition at line 138 of file adxl317.h.

◆ ADXL317_I2S_CFG1_MASK

#define ADXL317_I2S_CFG1_MASK 0x07

Definition at line 145 of file adxl317.h.

◆ ADXL317_I2S_CFG1_TX0EN

#define ADXL317_I2S_CFG1_TX0EN (1 << 0)

Definition at line 146 of file adxl317.h.

◆ ADXL317_I2S_CFG1_TX1EN

#define ADXL317_I2S_CFG1_TX1EN (1 << 1)

Definition at line 147 of file adxl317.h.

◆ ADXL317_I2S_CFG1_TXBCLKINV

#define ADXL317_I2S_CFG1_TXBCLKINV (1 << 3)

Definition at line 148 of file adxl317.h.

◆ ADXL317_CLOCK_RATE_MASK

#define ADXL317_CLOCK_RATE_MASK 0x07

Definition at line 155 of file adxl317.h.

◆ ADXL317_CLOCK_RATE_A2B_CLK_RATE_0

#define ADXL317_CLOCK_RATE_A2B_CLK_RATE_0 (1 << 0)

Definition at line 156 of file adxl317.h.

◆ ADXL317_CLOCK_RATE_A2B_CLK_RATE_1

#define ADXL317_CLOCK_RATE_A2B_CLK_RATE_1 (1 << 1)

Definition at line 157 of file adxl317.h.

◆ ADXL317_CLOCK_RATE_A2B_CLK_RATE_2

#define ADXL317_CLOCK_RATE_A2B_CLK_RATE_2 (1 << 3)

Definition at line 158 of file adxl317.h.

◆ ADXL317_USE_I2C

#define ADXL317_USE_I2C TRUE

ADXL317 I2C interface switch.

If set to TRUE the support for I2C is included.

Note: The default is FALSE.

Definition at line 175 of file adxl317.h.

◆ ADXL317_SHARED_I2C

#define ADXL317_SHARED_I2C FALSE

ADXL317 shared I2C switch.

If set to TRUE the device acquires I2C bus ownership on each transaction.

Note: The default is FALSE. Requires I2C_USE_MUTUAL_EXCLUSION.

Definition at line 185 of file adxl317.h.

◆ ADXL317_USE_ADVANCED

#define ADXL317_USE_ADVANCED FALSE

ADXL317 advanced configurations switch.

If set to TRUE more configurations are available.

Note: The default is FALSE.

Definition at line 194 of file adxl317.h.

◆ ADXL317_MAX_BUFF_SIZE

#define ADXL317_MAX_BUFF_SIZE 6

ADXL317 internal maximum communication buffer sizes.

Definition at line 201 of file adxl317.h.

Referenced by adxl317I2CWriteRegister().

◆ _adxl317_methods_alone

#define _adxl317_methods_alone

ADXL317 specific methods.

Definition at line 378 of file adxl317.h.

◆ _adxl317_methods

#define _adxl317_methods

Value:

_base_object_methods \

_adxl317_methods_alone

ADXL317 specific methods with inherited ones.

Definition at line 384 of file adxl317.h.

◆ _adxl317_data

#define _adxl317_data

Value:

  _base_sensor_data                                                         \
  /* Driver state.*/                                                        \
  adxl317_state_t           state;                                          \
  /* Current configuration data.*/                                          \
  const ADXL317Config       *config;                                        \
  /* Accelerometer subsystem axes number.*/                                 \
  size_t                    accaxes;                                        \
  /* Accelerometer subsystem current sensitivity.*/                         \
  float                     accsensitivity[ADXL317_ACC_NUMBER_OF_AXES];     \
  /* Accelerometer subsystem current bias .*/                               \
  float                     accbias[ADXL317_ACC_NUMBER_OF_AXES];            \
  /* Accelerometer subsystem current full scale value.*/                    \
  float                     accfullscale;                                   \
  /* Accelerometer communication tx buffer pointer.*/                       \
  uint8_t*                  commtxp;                                        \
  /* Accelerometer communication rx buffer pointer.*/                       \
  uint8_t*                  commrxp;

ADXL317Driver specific data.

Definition at line 400 of file adxl317.h.

◆ adxl317AccelerometerGetAxesNumber

#define adxl317AccelerometerGetAxesNumber ( devp )

Value:

accelerometerGetAxesNumber(&((devp)->acc_if))

accelerometerGetAxesNumber

#define accelerometerGetAxesNumber(ip)

Accelerometer get axes number.

Definition ex_accelerometer.h:107

Return the number of axes of the BaseAccelerometer.

Parameters

[in] devp pointer to ADXL317Driver.

Returns: the number of axes.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 444 of file adxl317.h.

◆ adxl317AccelerometerReadRaw

#define adxl317AccelerometerReadRaw	(		devp,
			axes )

Value:

accelerometerReadRaw(&((devp)->acc_if), axes)

accelerometerReadRaw

#define accelerometerReadRaw(ip, dp)

Accelerometer read raw data.

Definition ex_accelerometer.h:122

Retrieves raw data from the BaseAccelerometer.

Note: This data is retrieved from MEMS register without any algebraical manipulation.; The axes array must be at least the same size of the BaseAccelerometer axes number.

Parameters

[in]	devp	pointer to `ADXL317Driver`.
[out]	axes	a buffer which would be filled with raw data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 465 of file adxl317.h.

◆ adxl317AccelerometerReadCooked

#define adxl317AccelerometerReadCooked	(		devp,
			axes )

Value:

accelerometerReadCooked(&((devp)->acc_if), axes)

accelerometerReadCooked

#define accelerometerReadCooked(ip, dp)

Accelerometer read cooked data.

Definition ex_accelerometer.h:137

Retrieves cooked data from the BaseAccelerometer.

Note: This data is manipulated according to the formula cooked = (raw * sensitivity) - bias.; Final data is expressed as milli-G.; The axes array must be at least the same size of the BaseAccelerometer axes number.

Parameters

[in]	devp	pointer to `ADXL317Driver`.
[out]	axes	a buffer which would be filled with cooked data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 487 of file adxl317.h.

Typedef Documentation

◆ ADXL317Driver

typedef struct ADXL317Driver ADXL317Driver

Structure representing a ADXL317 driver.

Definition at line 228 of file adxl317.h.

Enumeration Type Documentation

◆ adxl317_sad_t

enum adxl317_sad_t

ADXL317 Slave Address.

Enumerator
ADXL317_SAD_GND	SAD pin connected to GND.
ADXL317_SAD_VCC	SAD pin connected to VCC.

Definition at line 233 of file adxl317.h.

◆ adxl317_state_t

enum adxl317_state_t

Driver state machine possible states.

Enumerator
ADXL317_UNINIT	Not initialized.
ADXL317_STOP	Stopped.
ADXL317_READY	Ready.

Definition at line 241 of file adxl317.h.

◆ adxl317_acc_x_lp_t

enum adxl317_acc_x_lp_t

ADXL317 X LP filter.

The X LP filter is a cascade of the 2 LP filters: CIC, always enabled, and IIR, that can be disabled.

Enumerator
ADXL317_ACC_X_LP_DISABLED	LP disabled.
ADXL317_ACC_X_LP_500	LP cut-off 506 Hz.
ADXL317_ACC_X_LP_1000	LP cut-off 1012 Hz.
ADXL317_ACC_X_LP_2000	LP cut-off 2025 Hz.
ADXL317_ACC_X_LP_4000	LP cut-off 4051 Hz.

Definition at line 252 of file adxl317.h.

◆ adxl317_acc_y_lp_t

enum adxl317_acc_y_lp_t

ADXL317 Y LP filter.

The Y LP filter is a cascade of the 2 LP filters: CIC, always enabled, and IIR, that can be disabled.

Enumerator
ADXL317_ACC_Y_LP_DISABLED	LP disabled.
ADXL317_ACC_Y_LP_500	LP cut-off 506 Hz.
ADXL317_ACC_Y_LP_1000	LP cut-off 1012 Hz.
ADXL317_ACC_Y_LP_2000	LP cut-off 2025 Hz.
ADXL317_ACC_Y_LP_4000	LP cut-off 4051 Hz.

Definition at line 265 of file adxl317.h.

◆ adxl317_acc_z_lp_t

enum adxl317_acc_z_lp_t

ADXL317 Z LP filter.

The Z LP filter is a cascade of the 2 LP filters: CIC, always enabled, and IIR, that can be disabled.

Enumerator
ADXL317_ACC_Z_LP_DISABLED	LP disabled.
ADXL317_ACC_Z_LP_500	LP cut-off 506 Hz.
ADXL317_ACC_Z_LP_1000	LP cut-off 1012 Hz.
ADXL317_ACC_Z_LP_2000	LP cut-off 2025 Hz.
ADXL317_ACC_Z_LP_4000	LP cut-off 4051 Hz.

Definition at line 278 of file adxl317.h.

◆ adxl317_acc_x_hp_t

enum adxl317_acc_x_hp_t

ADXL317 X HP filter.

The X HP filter is HPF filter.

Enumerator
ADXL317_ACC_X_HP_DISABLED	HP disabled.
ADXL317_ACC_X_HP_29	HP enabled with cut-off 29.8 Hz.
ADXL317_ACC_X_HP_7	HP enabled with cut-off 7.46 Hz.
ADXL317_ACC_X_HP_1	HP enabled with cut-off 1.85 Hz.
ADXL317_ACC_X_HP_0_5	HP enabled with cut-off 0.46 Hz.

Definition at line 299 of file adxl317.h.

◆ adxl317_acc_y_hp_t

enum adxl317_acc_y_hp_t

ADXL317 Y HP filter.

The Y HP filter is HPF filter.

Enumerator
ADXL317_ACC_Y_HP_DISABLED	HP disabled.
ADXL317_ACC_Y_HP_29	HP enabled with cut-off 29.8 Hz.
ADXL317_ACC_Y_HP_7	HP enabled with cut-off 7.46 Hz.
ADXL317_ACC_Y_HP_1	HP enabled with cut-off 1.85 Hz.
ADXL317_ACC_Y_HP_0_5	HP enabled with cut-off 0.46 Hz.

Definition at line 311 of file adxl317.h.

◆ adxl317_acc_z_hp_t

enum adxl317_acc_z_hp_t

ADXL317 Z HP filter.

The Z HP filter is HPF filter.

Enumerator
ADXL317_ACC_Z_HP_DISABLED	HP disabled.
ADXL317_ACC_Z_HP_29	HP enabled with cut-off 29.8 Hz.
ADXL317_ACC_Z_HP_7	HP enabled with cut-off 7.46 Hz.
ADXL317_ACC_Z_HP_1	HP enabled with cut-off 1.85 Hz.
ADXL317_ACC_Z_HP_0_5	HP enabled with cut-off 0.46 Hz.

Definition at line 323 of file adxl317.h.

Function Documentation

◆ adxl317I2CReadRegister()

msg_t adxl317I2CReadRegister	(	ADXL317Driver *	devp,
		uint8_t	reg,
		uint8_t *	b,
		size_t	n )

static

Reads a generic register value using I2C.

Precondition: The I2C interface must be initialized and the driver started.

Parameters

[in]	devp	pointer to `ADXL317Driver` interface.
[in]	reg	starting register address
[in]	b	pointer to an output buffer
[in]	n	number of consecutive registers to read.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more errors occurred.
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 64 of file adxl317.c.

References ADXL317_SAD_GND, i2cMasterTransmitTimeout(), and TIME_INFINITE.

Referenced by acc_read_raw(), and adxl317Start().

Here is the call graph for this function:

◆ adxl317I2CWriteRegister()

msg_t adxl317I2CWriteRegister	(	ADXL317Driver *	devp,
		uint8_t	reg,
		uint8_t *	b,
		size_t	n )

static

Writes a value into a generic register using I2C.

Precondition: The I2C interface must be initialized and the driver started.

Parameters

[in]	devp	pointer to `ADXL317Driver` interface.
[in]	reg	starting register address
[in]	b	pointer to a buffer of values
[in]	n	number of adjacent registers to write.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more errors occurred.
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 86 of file adxl317.c.

References ADXL317_MAX_BUFF_SIZE, ADXL317_SAD_GND, i2cMasterTransmitTimeout(), MSG_OK, and TIME_INFINITE.

Referenced by adxl317Start().

Here is the call graph for this function:

◆ acc_get_axes_number()

size_t acc_get_axes_number ( void * ip )

static

Return the number of axes of the BaseAccelerometer.

Parameters

[in] ip pointer to BaseAccelerometer interface.

Returns: the number of axes.

Definition at line 115 of file adxl317.c.

References ADXL317_ACC_NUMBER_OF_AXES.

◆ acc_read_raw()

msg_t acc_read_raw	(	void *	ip,
		int32_t	axes[] )

static

Retrieves raw data from the BaseAccelerometer.

Note: This data is retrieved from MEMS register without any algebraical manipulation.; The axes array must be at least the same size of the BaseAccelerometer axes number.

Parameters

[in]	ip	pointer to `BaseAccelerometer` interface.
[out]	axes	a buffer which would be filled with raw data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 137 of file adxl317.c.

References ADXL317_ACC_NUMBER_OF_AXES, ADXL317_AD_X_DATA_LO, ADXL317_READY, adxl317I2CReadRegister(), MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

Referenced by acc_read_cooked().

Here is the call graph for this function:

◆ acc_read_cooked()

msg_t acc_read_cooked	(	void *	ip,
		float	axes[] )

static

Retrieves cooked data from the BaseAccelerometer.

Note: This data is manipulated according to the formula cooked = (raw * sensitivity) - bias.; Final data is expressed as milli-G.; The axes array must be at least the same size of the BaseAccelerometer axes number.

Parameters

[in]	ip	pointer to `BaseAccelerometer` interface.
[out]	axes	a buffer which would be filled with cooked data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 185 of file adxl317.c.

References acc_read_raw(), ADXL317_ACC_NUMBER_OF_AXES, ADXL317_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

Here is the call graph for this function:

◆ acc_set_bias()

msg_t acc_set_bias	(	void *	ip,
		float *	bp )

static

Set bias values for the BaseAccelerometer.

Note: Bias must be expressed as milli-G.; The bias buffer must be at least the same size of the BaseAccelerometer axes number.

Parameters

[in]	ip	pointer to `BaseAccelerometer` interface.
[in]	bp	a buffer which contains biases.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 222 of file adxl317.c.

References ADXL317_ACC_NUMBER_OF_AXES, ADXL317_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ acc_reset_bias()

msg_t acc_reset_bias ( void * ip )

static

Reset bias values for the BaseAccelerometer.

Note: Default biases value are obtained from device datasheet when available otherwise they are considered zero.

Parameters

[in] ip pointer to BaseAccelerometer interface.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 251 of file adxl317.c.

References ADXL317_ACC_BIAS, ADXL317_ACC_NUMBER_OF_AXES, ADXL317_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ acc_set_sensivity()

msg_t acc_set_sensivity	(	void *	ip,
		float *	sp )

static

Set sensitivity values for the BaseAccelerometer.

Note: Sensitivity must be expressed as milli-G/LSB.; The sensitivity buffer must be at least the same size of the BaseAccelerometer axes number.

Parameters

[in]	ip	pointer to `BaseAccelerometer` interface.
[in]	sp	a buffer which contains sensitivities.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 281 of file adxl317.c.

References ADXL317_ACC_NUMBER_OF_AXES, ADXL317_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ acc_reset_sensivity()

msg_t acc_reset_sensivity ( void * ip )

static

Reset sensitivity values for the BaseAccelerometer.

Note: Default sensitivities value are obtained from device datasheet.

Parameters

[in] ip pointer to BaseAccelerometer interface.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	otherwise.

Definition at line 310 of file adxl317.c.

References ADXL317_ACC_NUMBER_OF_AXES, ADXL317_ACC_SENS, ADXL317_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ adxl317ObjectInit()

void adxl317ObjectInit	(	ADXL317Driver *	devp,
		uint8_t *	txbp,
		uint8_t *	rxbp )

Initializes an instance.

The buffer should be at least large ADXL317_COMM_BUFF_SIZE.

Note: The communication buffer could be used by DMAs.

Parameters

[out]	devp	pointer to the `ADXL317Driver` object
[in]	txbp	pointer to a buffer used as communication tx buffer
[in]	rxbp	pointer to a buffer used as communication rx buffer

Function Class:: Object or module nitializer function.

Definition at line 353 of file adxl317.c.

References ADXL317Driver::acc_if, ADXL317_ACC_NUMBER_OF_AXES, ADXL317_STOP, ADXL317Driver::vmt, BaseAccelerometer::vmt, vmt_accelerometer, and vmt_device.

◆ adxl317Start()

msg_t adxl317Start	(	ADXL317Driver *	devp,
		const ADXL317Config *	config )

Configures and activates ADXL317 Complex Driver peripheral.

Parameters

[in]	devp	pointer to the `ADXL317Driver` object
[in]	config	pointer to the `ADXL317Config` object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 374 of file adxl317.c.

References ADXL317_ACC_BIAS, ADXL317_ACC_NUMBER_OF_AXES, ADXL317_ACC_SENS, ADXL317_AD_DEVID_0, ADXL317_AD_USER_REG_KEY, ADXL317_AD_X_FILT, ADXL317_AD_Y_FILT, ADXL317_AD_Z_FILT, ADXL317_DEFAULT_FILTER, ADXL317_DEVID_0, ADXL317_READY, ADXL317_STOP, ADXL317_USER_REG_KEY_0, ADXL317_USER_REG_KEY_1, adxl317I2CReadRegister(), adxl317I2CWriteRegister(), i2cStart(), MSG_OK, osalDbgAssert, osalDbgCheck, and osalThreadSleepMilliseconds.

Here is the call graph for this function:

◆ adxl317Stop()

void adxl317Stop ( ADXL317Driver * devp )

Deactivates the ADXL317 Complex Driver peripheral.

Parameters

[in] devp pointer to the ADXL317Driver object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 474 of file adxl317.c.

References ADXL317_READY, ADXL317_STOP, i2cStop(), osalDbgAssert, and osalDbgCheck.

Here is the call graph for this function:

Variable Documentation

◆ vmt_device

const struct ADXL317VMT vmt_device

static

Initial value:

= {
  (size_t)0
}

Definition at line 328 of file adxl317.c.

Referenced by adxl317ObjectInit(), adxl355ObjectInit(), hts221ObjectInit(), l3gd20ObjectInit(), lis302dlObjectInit(), lis3dshObjectInit(), lis3mdlObjectInit(), lps22hbObjectInit(), lps25hObjectInit(), lsm303agrObjectInit(), lsm303dlhcObjectInit(), lsm6ds0ObjectInit(), and lsm6dslObjectInit().

◆ vmt_accelerometer

const struct BaseAccelerometerVMT vmt_accelerometer

static

Initial value:

= {
  sizeof(struct ADXL317VMT*),
  acc_get_axes_number, acc_read_raw, acc_read_cooked,
  acc_set_bias, acc_reset_bias, acc_set_sensivity, acc_reset_sensivity
}

Definition at line 332 of file adxl317.c.

Referenced by adxl317ObjectInit(), adxl355ObjectInit(), lis302dlObjectInit(), lis3dshObjectInit(), lsm303agrObjectInit(), lsm303dlhcObjectInit(), lsm6ds0ObjectInit(), and lsm6dslObjectInit().

Detailed Description

ADXL317 data structures and types

Version identification

ADXL317 register addresses

ADXL317 Device Identifier

ADXL317 Device User Reg Key for Register Write Enable

ADXL317 Default filter

ADXL317_I2S_CFG0 register bits definitions

ADXL317_I2S_CFG1 register bits definitions

ADXL317_CLOCK_RATE register bits definitions

Configuration options

Data Structures

Macros

Functions

Variables

Macro Definition Documentation

◆ EX_ADXL317_VERSION

◆ EX_ADXL317_MAJOR

◆ EX_ADXL317_MINOR

◆ EX_ADXL317_PATCH

◆ ADXL317_ACC_NUMBER_OF_AXES

◆ ADXL317_ACC_SENS

◆ ADXL317_ACC_BIAS

◆ ADXL317_AD_DEVID_0

◆ ADXL317_AD_DEVID_1

◆ ADXL317_AD_USER_REG_KEY

◆ ADXL317_AD_I2C_CFGO

◆ ADXL317_AD_I2C_CFG1

◆ ADXL317_AD_CLK_RATE

◆ ADXL317_AD_X_ST

◆ ADXL317_AD_X_FILT

◆ ADXL317_AD_Y_ST

◆ ADXL317_AD_Y_FILT

◆ ADXL317_AD_Z_ST

◆ ADXL317_AD_Z_FILT

◆ ADXL317_AD_X_DATA_LO

◆ ADXL317_AD_X_DATA_HI

◆ ADXL317_AD_Y_DATA_LO

◆ ADXL317_AD_Y_DATA_HI

◆ ADXL317_AD_Z_DATA_LO

◆ ADXL317_AD_Z_DATA_HI

◆ ADXL317_DEVID_0

◆ ADXL317_USER_REG_KEY_0

◆ ADXL317_USER_REG_KEY_1

◆ ADXL317_DEFAULT_FILTER

◆ ADXL317_I2S_CFG0_MASK

◆ ADXL317_I2S_CFG0_TDMMODE_0

◆ ADXL317_I2S_CFG0_TDMMODE_1

◆ ADXL317_I2S_CFG0_TDMSS

◆ ADXL317_I2S_CFG0_ALT

◆ ADXL317_I2S_CFG0_EARLY

◆ ADXL317_I2S_CFG0_INV

◆ ADXL317_I2S_CFG1_MASK

◆ ADXL317_I2S_CFG1_TX0EN

◆ ADXL317_I2S_CFG1_TX1EN

◆ ADXL317_I2S_CFG1_TXBCLKINV

◆ ADXL317_CLOCK_RATE_MASK

◆ ADXL317_CLOCK_RATE_A2B_CLK_RATE_0

◆ ADXL317_CLOCK_RATE_A2B_CLK_RATE_1

◆ ADXL317_CLOCK_RATE_A2B_CLK_RATE_2

◆ ADXL317_USE_I2C

◆ ADXL317_SHARED_I2C

◆ ADXL317_USE_ADVANCED

◆ ADXL317_MAX_BUFF_SIZE

◆ _adxl317_methods_alone

◆ _adxl317_methods

◆ _adxl317_data

◆ adxl317AccelerometerGetAxesNumber

◆ adxl317AccelerometerReadRaw

◆ adxl317AccelerometerReadCooked

Typedef Documentation

◆ ADXL317Driver

Enumeration Type Documentation

◆ adxl317_sad_t

◆ adxl317_state_t

◆ adxl317_acc_x_lp_t

◆ adxl317_acc_y_lp_t

◆ adxl317_acc_z_lp_t

◆ adxl317_acc_x_hp_t

◆ adxl317_acc_y_hp_t
