Detailed Description

Collaboration diagram for LIS302DL:

LIS302DL data structures and types
enum	lis302dl_acc_fs_t { LIS302DL_ACC_FS_2G = 0x00 , LIS302DL_ACC_FS_8G = 0x20 }
	LIS302DL full scale. More...
enum	lis302dl_acc_odr_t { LIS302DL_ACC_ODR_100HZ = 0x00 , LIS302DL_ACC_ODR_400HZ = 0x80 }
	LIS302DL output data rate and bandwidth. More...
enum	lis302dl_acc_hp_t { LIS302DL_ACC_HP_DISABLED = 0x00 , LIS302DL_ACC_HP_0 = 0x10 , LIS302DL_ACC_HP_1 = 0x11 , LIS302DL_ACC_HP_2 = 0x12 , LIS302DL_ACC_HP_3 = 0x13 }
	LIS302DL high pass filtering. More...
enum	lis302dl_state_t { LIS302DL_UNINIT = 0 , LIS302DL_STOP = 1 , LIS302DL_READY = 2 }
	Driver state machine possible states. More...
typedef struct LIS302DLDriver	LIS302DLDriver
	Structure representing a LIS302DL driver.
#define	_lis302dl_methods_alone
	`LIS302DL` specific methods.
#define	_lis302dl_methods
	`LIS302DL` specific methods with inherited ones.
#define	_lis302dl_data
	`LIS302DLDriver` specific data.

Version identification
#define	EX_LIS302DL_VERSION "1.1.2"
	LIS302DL driver version string.
#define	EX_LIS302DL_MAJOR 1
	LIS302DL driver version major number.
#define	EX_LIS302DL_MINOR 1
	LIS302DL driver version minor number.
#define	EX_LIS302DL_PATCH 2
	LIS302DL driver version patch number.
#define	LIS302DL_ACC_NUMBER_OF_AXES 3U
	LIS302DL accelerometer subsystem characteristics.
#define	LIS302DL_ACC_2G 2.0f
#define	LIS302DL_ACC_8G 8.0f
#define	LIS302DL_ACC_SENS_2G 18.0f
#define	LIS302DL_ACC_SENS_8G 72.0f
#define	LIS302DL_ACC_BIAS 0.0f

LIS302DL communication interfaces related bit masks
#define	LIS302DL_DI_MASK 0xFF
#define	LIS302DL_DI(n)
#define	LIS302DL_AD_MASK 0x3F
#define	LIS302DL_AD(n)
#define	LIS302DL_MS (1 << 6)
#define	LIS302DL_RW (1 << 7)

LIS302DL register addresses
#define	LIS302DL_AD_WHO_AM_I 0x0F
#define	LIS302DL_AD_CTRL_REG1 0x20
#define	LIS302DL_AD_CTRL_REG2 0x21
#define	LIS302DL_AD_CTRL_REG3 0x22
#define	LIS302DL_AD_HP_FILER_RESET 0x23
#define	LIS302DL_AD_STATUS_REG 0x27
#define	LIS302DL_AD_OUT_X 0x29
#define	LIS302DL_AD_OUT_Y 0x2B
#define	LIS302DL_AD_OUT_Z 0x2D
#define	LIS302DL_AD_FF_WU_CFG_1 0x30
#define	LIS302DL_AD_FF_WU_SRC_1 0x31
#define	LIS302DL_AD_FF_WU_THS_1 0x32
#define	LIS302DL_AD_FF_WU_DURATION_1 0x33
#define	LIS302DL_AD_FF_WU_CFG_2 0x34
#define	LIS302DL_AD_FF_WU_SRC_2 0x35
#define	LIS302DL_AD_FF_WU_THS_2 0x36
#define	LIS302DL_AD_FF_WU_DURATION_2 0x37
#define	LIS302DL_AD_CLICK_CFG 0x38
#define	LIS302DL_AD_CLICK_SRC 0x39
#define	LIS302DL_AD_CLICK_THSY_X 0x3B
#define	LIS302DL_AD_CLICK_THSZ 0x3C
#define	LIS302DL_AD_CLICK_TIME_LIMIT 0x3D
#define	LIS302DL_AD_CLICK_LATENCY 0x3E
#define	LIS302DL_AD_CLICK_WINDOW 0x3F

LIS302DL_CTRL_REG1 register bits definitions
#define	LIS302DL_CTRL_REG1_MASK 0xFF
#define	LIS302DL_CTRL_REG1_XEN (1 << 0)
#define	LIS302DL_CTRL_REG1_YEN (1 << 1)
#define	LIS302DL_CTRL_REG1_ZEN (1 << 2)
#define	LIS302DL_CTRL_REG1_STM (1 << 3)
#define	LIS302DL_CTRL_REG1_STP (1 << 4)
#define	LIS302DL_CTRL_REG1_FS_MASK 0x20
#define	LIS302DL_CTRL_REG1_FS (1 << 5)
#define	LIS302DL_CTRL_REG1_PD (1 << 6)
#define	LIS302DL_CTRL_REG1_DR (1 << 7)

LIS302DL_CTRL_REG2 register bits definitions
#define	LIS302DL_CTRL_REG2_MASK 0xDF
#define	LIS302DL_CTRL_REG2_HPCF1 (1 << 0)
#define	LIS302DL_CTRL_REG2_HPCF2 (1 << 1)
#define	LIS302DL_CTRL_REG2_HPFFWU1 (1 << 2)
#define	LIS302DL_CTRL_REG2_HPFFWU2 (1 << 3)
#define	LIS302DL_CTRL_REG2_FDS (1 << 4)
#define	LIS302DL_CTRL_REG2_BOOT (1 << 6)
#define	LIS302DL_CTRL_REG2_SIM (1 << 7)

LIS302DL_CTRL_REG3 register bits definitions
#define	LIS302DL_CTRL_REG3_MASK 0xFF
#define	LIS302DL_CTRL_REG3_I1CFG0 (1 << 0)
#define	LIS302DL_CTRL_REG3_I1CFG1 (1 << 1)
#define	LIS302DL_CTRL_REG3_I1CFG2 (1 << 2)
#define	LIS302DL_CTRL_REG3_I2CFG0 (1 << 3)
#define	LIS302DL_CTRL_REG3_I2CFG1 (1 << 4)
#define	LIS302DL_CTRL_REG3_I2CFG2 (1 << 5)
#define	LIS302DL_CTRL_REG3_PP_OD (1 << 6)
#define	LIS302DL_CTRL_REG3_IHL (1 << 7)

Configuration options
#define	LIS302DL_USE_SPI TRUE
	LIS302DL SPI interface switch.
#define	LIS302DL_SHARED_SPI FALSE
	LIS302DL shared SPI switch.
#define	LIS302DL_USE_I2C FALSE
	LIS302DL I2C interface switch.
#define	LIS302DL_SHARED_I2C FALSE
	LIS302DL shared I2C switch.
#define	LIS302DL_USE_ADVANCED FALSE
	LIS302DL advanced configurations switch.

Data Structures
struct	LIS302DLConfig
	LIS302DL configuration structure. More...
struct	LIS302DLVMT
	`LIS302DL` accelerometer virtual methods table. More...
struct	LIS302DLDriver
	LIS302DL 3-axis accelerometer class. More...

Macros
#define	lis302dlAccelerometerGetAxesNumber(devp)
	Return the number of axes of the BaseAccelerometer.
#define	lis302dlAccelerometerReadRaw(devp, axes)
	Retrieves raw data from the BaseAccelerometer.
#define	lis302dlAccelerometerReadCooked(devp, axes)
	Retrieves cooked data from the BaseAccelerometer.
#define	lis302dlAccelerometerSetBias(devp, bp)
	Set bias values for the BaseAccelerometer.
#define	lis302dlAccelerometerResetBias(devp)
	Reset bias values for the BaseAccelerometer.
#define	lis302dlAccelerometerSetSensitivity(devp, sp)
	Set sensitivity values for the BaseAccelerometer.
#define	lis302dlAccelerometerResetSensitivity(devp)
	Reset sensitivity values for the BaseAccelerometer.
#define	lis302dlAccelerometerSetFullScale(devp, fs)
	Changes the LIS302DLDriver accelerometer fullscale value.

Functions

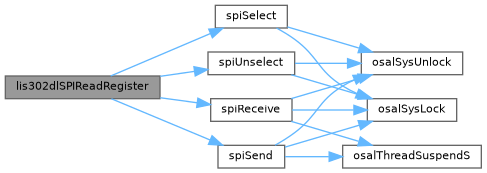

static void	lis302dlSPIReadRegister (SPIDriver spip, uint8_t reg, size_t n, uint8_t b)
	Reads a generic register value using SPI.

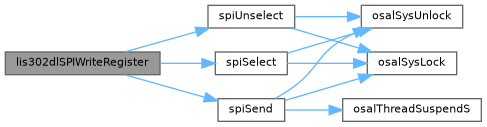

static void	lis302dlSPIWriteRegister (SPIDriver spip, uint8_t reg, size_t n, uint8_t b)
	Writes a value into a generic register using SPI.
static size_t	acc_get_axes_number (void *ip)
	Return the number of axes of the BaseAccelerometer.

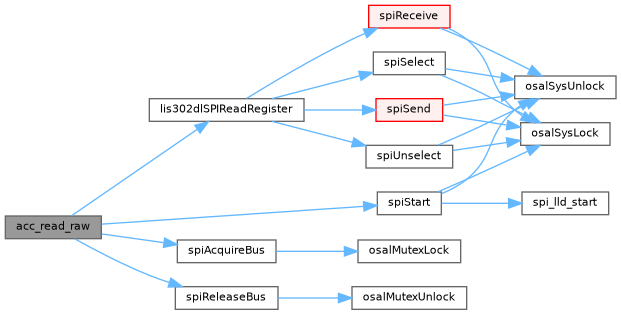

static msg_t	acc_read_raw (void *ip, int32_t axes[])
	Retrieves raw data from the BaseAccelerometer.

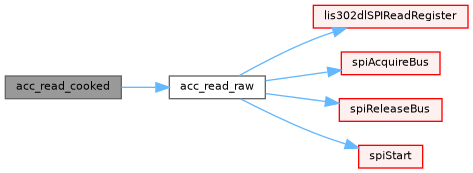

static msg_t	acc_read_cooked (void *ip, float axes[])
	Retrieves cooked data from the BaseAccelerometer.
static msg_t	acc_set_bias (void ip, float bp)
	Set bias values for the BaseAccelerometer.
static msg_t	acc_reset_bias (void *ip)
	Reset bias values for the BaseAccelerometer.
static msg_t	acc_set_sensivity (void ip, float sp)
	Set sensitivity values for the BaseAccelerometer.
static msg_t	acc_reset_sensivity (void *ip)
	Reset sensitivity values for the BaseAccelerometer.

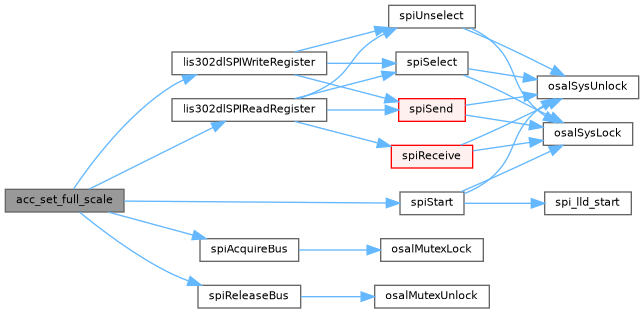

static msg_t	acc_set_full_scale (LIS302DLDriver *devp, lis302dl_acc_fs_t fs)
	Changes the LIS302DLDriver accelerometer fullscale value.
void	lis302dlObjectInit (LIS302DLDriver *devp)
	Initializes an instance.

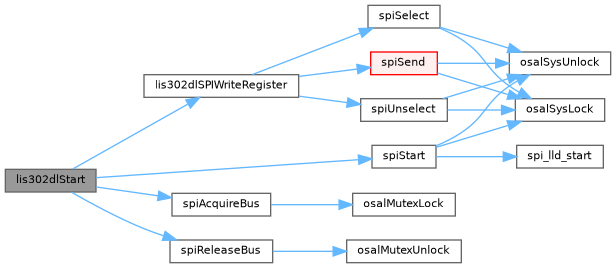

void	lis302dlStart (LIS302DLDriver devp, const LIS302DLConfig config)
	Configures and activates LIS302DL Complex Driver peripheral.

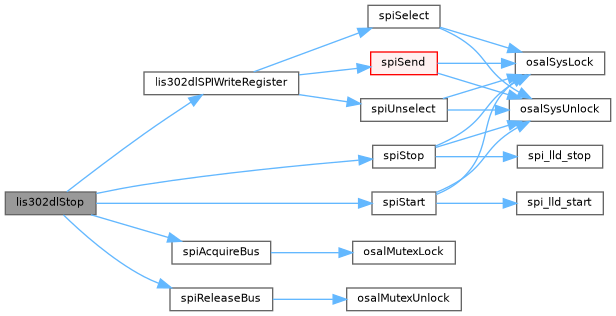

void	lis302dlStop (LIS302DLDriver *devp)
	Deactivates the LIS302DL Complex Driver peripheral.

Variables
static const struct LIS302DLVMT	vmt_device
static const struct BaseAccelerometerVMT	vmt_accelerometer

Macro Definition Documentation

◆ EX_LIS302DL_VERSION

#define EX_LIS302DL_VERSION "1.1.2"

LIS302DL driver version string.

Definition at line 46 of file lis302dl.h.

◆ EX_LIS302DL_MAJOR

#define EX_LIS302DL_MAJOR 1

LIS302DL driver version major number.

Definition at line 51 of file lis302dl.h.

◆ EX_LIS302DL_MINOR

#define EX_LIS302DL_MINOR 1

LIS302DL driver version minor number.

Definition at line 56 of file lis302dl.h.

◆ EX_LIS302DL_PATCH

#define EX_LIS302DL_PATCH 2

LIS302DL driver version patch number.

Definition at line 61 of file lis302dl.h.

◆ LIS302DL_ACC_NUMBER_OF_AXES

#define LIS302DL_ACC_NUMBER_OF_AXES 3U

LIS302DL accelerometer subsystem characteristics.

Note: Sensitivity is expressed as milli-G/LSB whereas 1 milli-G = 0.00980665 m/s^2.; Bias is expressed as milli-G.

Definition at line 72 of file lis302dl.h.

Referenced by acc_get_axes_number(), acc_read_cooked(), acc_read_raw(), acc_reset_bias(), acc_reset_sensivity(), acc_set_bias(), acc_set_full_scale(), acc_set_sensivity(), lis302dlObjectInit(), and lis302dlStart().

◆ LIS302DL_ACC_2G

#define LIS302DL_ACC_2G 2.0f

Definition at line 74 of file lis302dl.h.

Referenced by acc_set_full_scale(), and lis302dlStart().

◆ LIS302DL_ACC_8G

#define LIS302DL_ACC_8G 8.0f

Definition at line 75 of file lis302dl.h.

Referenced by acc_set_full_scale(), and lis302dlStart().

◆ LIS302DL_ACC_SENS_2G

#define LIS302DL_ACC_SENS_2G 18.0f

Definition at line 77 of file lis302dl.h.

Referenced by acc_reset_sensivity(), and lis302dlStart().

◆ LIS302DL_ACC_SENS_8G

#define LIS302DL_ACC_SENS_8G 72.0f

Definition at line 78 of file lis302dl.h.

Referenced by acc_reset_sensivity(), and lis302dlStart().

◆ LIS302DL_ACC_BIAS

#define LIS302DL_ACC_BIAS 0.0f

Definition at line 80 of file lis302dl.h.

Referenced by acc_reset_bias(), and lis302dlStart().

◆ LIS302DL_DI_MASK

#define LIS302DL_DI_MASK 0xFF

Definition at line 87 of file lis302dl.h.

◆ LIS302DL_DI

#define LIS302DL_DI ( n )

Value:

(1 << n)

Definition at line 88 of file lis302dl.h.

◆ LIS302DL_AD_MASK

#define LIS302DL_AD_MASK 0x3F

Definition at line 89 of file lis302dl.h.

◆ LIS302DL_AD

#define LIS302DL_AD ( n )

Value:

(1 << n)

Definition at line 90 of file lis302dl.h.

◆ LIS302DL_MS

#define LIS302DL_MS (1 << 6)

Definition at line 91 of file lis302dl.h.

Referenced by lis302dlSPIReadRegister(), and lis302dlSPIWriteRegister().

◆ LIS302DL_RW

#define LIS302DL_RW (1 << 7)

Definition at line 92 of file lis302dl.h.

Referenced by lis302dlSPIReadRegister().

◆ LIS302DL_AD_WHO_AM_I

#define LIS302DL_AD_WHO_AM_I 0x0F

Definition at line 99 of file lis302dl.h.

◆ LIS302DL_AD_CTRL_REG1

#define LIS302DL_AD_CTRL_REG1 0x20

Definition at line 100 of file lis302dl.h.

Referenced by acc_set_full_scale(), lis302dlStart(), and lis302dlStop().

◆ LIS302DL_AD_CTRL_REG2

#define LIS302DL_AD_CTRL_REG2 0x21

Definition at line 101 of file lis302dl.h.

◆ LIS302DL_AD_CTRL_REG3

#define LIS302DL_AD_CTRL_REG3 0x22

Definition at line 102 of file lis302dl.h.

◆ LIS302DL_AD_HP_FILER_RESET

#define LIS302DL_AD_HP_FILER_RESET 0x23

Definition at line 103 of file lis302dl.h.

◆ LIS302DL_AD_STATUS_REG

#define LIS302DL_AD_STATUS_REG 0x27

Definition at line 104 of file lis302dl.h.

◆ LIS302DL_AD_OUT_X

#define LIS302DL_AD_OUT_X 0x29

Definition at line 105 of file lis302dl.h.

Referenced by acc_read_raw().

◆ LIS302DL_AD_OUT_Y

#define LIS302DL_AD_OUT_Y 0x2B

Definition at line 106 of file lis302dl.h.

◆ LIS302DL_AD_OUT_Z

#define LIS302DL_AD_OUT_Z 0x2D

Definition at line 107 of file lis302dl.h.

◆ LIS302DL_AD_FF_WU_CFG_1

#define LIS302DL_AD_FF_WU_CFG_1 0x30

Definition at line 108 of file lis302dl.h.

◆ LIS302DL_AD_FF_WU_SRC_1

#define LIS302DL_AD_FF_WU_SRC_1 0x31

Definition at line 109 of file lis302dl.h.

◆ LIS302DL_AD_FF_WU_THS_1

#define LIS302DL_AD_FF_WU_THS_1 0x32

Definition at line 110 of file lis302dl.h.

◆ LIS302DL_AD_FF_WU_DURATION_1

#define LIS302DL_AD_FF_WU_DURATION_1 0x33

Definition at line 111 of file lis302dl.h.

◆ LIS302DL_AD_FF_WU_CFG_2

#define LIS302DL_AD_FF_WU_CFG_2 0x34

Definition at line 112 of file lis302dl.h.

◆ LIS302DL_AD_FF_WU_SRC_2

#define LIS302DL_AD_FF_WU_SRC_2 0x35

Definition at line 113 of file lis302dl.h.

◆ LIS302DL_AD_FF_WU_THS_2

#define LIS302DL_AD_FF_WU_THS_2 0x36

Definition at line 114 of file lis302dl.h.

◆ LIS302DL_AD_FF_WU_DURATION_2

#define LIS302DL_AD_FF_WU_DURATION_2 0x37

Definition at line 115 of file lis302dl.h.

◆ LIS302DL_AD_CLICK_CFG

#define LIS302DL_AD_CLICK_CFG 0x38

Definition at line 116 of file lis302dl.h.

◆ LIS302DL_AD_CLICK_SRC

#define LIS302DL_AD_CLICK_SRC 0x39

Definition at line 117 of file lis302dl.h.

◆ LIS302DL_AD_CLICK_THSY_X

#define LIS302DL_AD_CLICK_THSY_X 0x3B

Definition at line 118 of file lis302dl.h.

◆ LIS302DL_AD_CLICK_THSZ

#define LIS302DL_AD_CLICK_THSZ 0x3C

Definition at line 119 of file lis302dl.h.

◆ LIS302DL_AD_CLICK_TIME_LIMIT

#define LIS302DL_AD_CLICK_TIME_LIMIT 0x3D

Definition at line 120 of file lis302dl.h.

◆ LIS302DL_AD_CLICK_LATENCY

#define LIS302DL_AD_CLICK_LATENCY 0x3E

Definition at line 121 of file lis302dl.h.

◆ LIS302DL_AD_CLICK_WINDOW

#define LIS302DL_AD_CLICK_WINDOW 0x3F

Definition at line 122 of file lis302dl.h.

◆ LIS302DL_CTRL_REG1_MASK

#define LIS302DL_CTRL_REG1_MASK 0xFF

Definition at line 129 of file lis302dl.h.

◆ LIS302DL_CTRL_REG1_XEN

#define LIS302DL_CTRL_REG1_XEN (1 << 0)

Definition at line 130 of file lis302dl.h.

Referenced by lis302dlStart().

◆ LIS302DL_CTRL_REG1_YEN

#define LIS302DL_CTRL_REG1_YEN (1 << 1)

Definition at line 131 of file lis302dl.h.

Referenced by lis302dlStart().

◆ LIS302DL_CTRL_REG1_ZEN

#define LIS302DL_CTRL_REG1_ZEN (1 << 2)

Definition at line 132 of file lis302dl.h.

Referenced by lis302dlStart().

◆ LIS302DL_CTRL_REG1_STM

#define LIS302DL_CTRL_REG1_STM (1 << 3)

Definition at line 133 of file lis302dl.h.

◆ LIS302DL_CTRL_REG1_STP

#define LIS302DL_CTRL_REG1_STP (1 << 4)

Definition at line 134 of file lis302dl.h.

◆ LIS302DL_CTRL_REG1_FS_MASK

#define LIS302DL_CTRL_REG1_FS_MASK 0x20

Definition at line 135 of file lis302dl.h.

Referenced by acc_set_full_scale().

◆ LIS302DL_CTRL_REG1_FS

#define LIS302DL_CTRL_REG1_FS (1 << 5)

Definition at line 136 of file lis302dl.h.

◆ LIS302DL_CTRL_REG1_PD

#define LIS302DL_CTRL_REG1_PD (1 << 6)

Definition at line 137 of file lis302dl.h.

Referenced by lis302dlStart().

◆ LIS302DL_CTRL_REG1_DR

#define LIS302DL_CTRL_REG1_DR (1 << 7)

Definition at line 138 of file lis302dl.h.

◆ LIS302DL_CTRL_REG2_MASK

#define LIS302DL_CTRL_REG2_MASK 0xDF

Definition at line 145 of file lis302dl.h.

◆ LIS302DL_CTRL_REG2_HPCF1

#define LIS302DL_CTRL_REG2_HPCF1 (1 << 0)

Definition at line 146 of file lis302dl.h.

◆ LIS302DL_CTRL_REG2_HPCF2

#define LIS302DL_CTRL_REG2_HPCF2 (1 << 1)

Definition at line 147 of file lis302dl.h.

◆ LIS302DL_CTRL_REG2_HPFFWU1

#define LIS302DL_CTRL_REG2_HPFFWU1 (1 << 2)

Definition at line 148 of file lis302dl.h.

◆ LIS302DL_CTRL_REG2_HPFFWU2

#define LIS302DL_CTRL_REG2_HPFFWU2 (1 << 3)

Definition at line 149 of file lis302dl.h.

◆ LIS302DL_CTRL_REG2_FDS

#define LIS302DL_CTRL_REG2_FDS (1 << 4)

Definition at line 150 of file lis302dl.h.

◆ LIS302DL_CTRL_REG2_BOOT

#define LIS302DL_CTRL_REG2_BOOT (1 << 6)

Definition at line 151 of file lis302dl.h.

◆ LIS302DL_CTRL_REG2_SIM

#define LIS302DL_CTRL_REG2_SIM (1 << 7)

Definition at line 152 of file lis302dl.h.

◆ LIS302DL_CTRL_REG3_MASK

#define LIS302DL_CTRL_REG3_MASK 0xFF

Definition at line 159 of file lis302dl.h.

◆ LIS302DL_CTRL_REG3_I1CFG0

#define LIS302DL_CTRL_REG3_I1CFG0 (1 << 0)

Definition at line 160 of file lis302dl.h.

◆ LIS302DL_CTRL_REG3_I1CFG1

#define LIS302DL_CTRL_REG3_I1CFG1 (1 << 1)

Definition at line 161 of file lis302dl.h.

◆ LIS302DL_CTRL_REG3_I1CFG2

#define LIS302DL_CTRL_REG3_I1CFG2 (1 << 2)

Definition at line 162 of file lis302dl.h.

◆ LIS302DL_CTRL_REG3_I2CFG0

#define LIS302DL_CTRL_REG3_I2CFG0 (1 << 3)

Definition at line 163 of file lis302dl.h.

◆ LIS302DL_CTRL_REG3_I2CFG1

#define LIS302DL_CTRL_REG3_I2CFG1 (1 << 4)

Definition at line 164 of file lis302dl.h.

◆ LIS302DL_CTRL_REG3_I2CFG2

#define LIS302DL_CTRL_REG3_I2CFG2 (1 << 5)

Definition at line 165 of file lis302dl.h.

◆ LIS302DL_CTRL_REG3_PP_OD

#define LIS302DL_CTRL_REG3_PP_OD (1 << 6)

Definition at line 166 of file lis302dl.h.

◆ LIS302DL_CTRL_REG3_IHL

#define LIS302DL_CTRL_REG3_IHL (1 << 7)

Definition at line 167 of file lis302dl.h.

◆ LIS302DL_USE_SPI

#define LIS302DL_USE_SPI TRUE

LIS302DL SPI interface switch.

If set to TRUE the support for SPI is included.

Note: The default is TRUE.

Definition at line 184 of file lis302dl.h.

◆ LIS302DL_SHARED_SPI

#define LIS302DL_SHARED_SPI FALSE

LIS302DL shared SPI switch.

If set to TRUE the device acquires SPI bus ownership on each transaction.

Note: The default is FALSE. Requires SPI_USE_MUTUAL_EXCLUSION.

Definition at line 194 of file lis302dl.h.

◆ LIS302DL_USE_I2C

#define LIS302DL_USE_I2C FALSE

LIS302DL I2C interface switch.

If set to TRUE the support for I2C is included.

Note: The default is FALSE.

Definition at line 203 of file lis302dl.h.

◆ LIS302DL_SHARED_I2C

#define LIS302DL_SHARED_I2C FALSE

LIS302DL shared I2C switch.

If set to TRUE the device acquires I2C bus ownership on each transaction.

Note: The default is FALSE. Requires I2C_USE_MUTUAL_EXCLUSION.

Definition at line 213 of file lis302dl.h.

◆ LIS302DL_USE_ADVANCED

#define LIS302DL_USE_ADVANCED FALSE

LIS302DL advanced configurations switch.

If set to TRUE more configurations are available.

Note: The default is FALSE.

Definition at line 222 of file lis302dl.h.

◆ _lis302dl_methods_alone

#define _lis302dl_methods_alone

Value:

/* Change full scale value of LIS302DL .*/ \

msg_t (*set_full_scale)(LIS302DLDriver *devp, lis302dl_acc_fs_t fs);

lis302dl_acc_fs_t

LIS302DL full scale.

Definition lis302dl.h:273

LIS302DLDriver

LIS302DL 3-axis accelerometer class.

Definition lis302dl.h:399

LIS302DL specific methods.

Definition at line 358 of file lis302dl.h.

◆ _lis302dl_methods

#define _lis302dl_methods

Value:

_base_object_methods \

_lis302dl_methods_alone

LIS302DL specific methods with inherited ones.

Definition at line 366 of file lis302dl.h.

◆ _lis302dl_data

#define _lis302dl_data

Value:

  /* Driver state.*/                                                        \
  lis302dl_state_t          state;                                          \
  /* Current configuration data.*/                                          \
  const LIS302DLConfig      *config;                                        \
  /* Accelerometer subsystem axes number.*/                                 \
  size_t                    accaxes;                                        \
  /* Current sensitivity.*/                                                 \
  float                     accsensitivity[LIS302DL_ACC_NUMBER_OF_AXES];    \
  /* Bias data.*/                                                           \
  int32_t                   accbias[LIS302DL_ACC_NUMBER_OF_AXES];           \
  /* Current full scale value.*/                                            \
  float                     accfullscale;

LIS302DLDriver specific data.

Definition at line 382 of file lis302dl.h.

◆ lis302dlAccelerometerGetAxesNumber

#define lis302dlAccelerometerGetAxesNumber ( devp )

Value:

accelerometerGetAxesNumber(&((devp)->acc_if))

accelerometerGetAxesNumber

#define accelerometerGetAxesNumber(ip)

Accelerometer get axes number.

Definition ex_accelerometer.h:107

Return the number of axes of the BaseAccelerometer.

Parameters

[in] devp pointer to LIS302DLDriver.

Returns: the number of axes.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 421 of file lis302dl.h.

◆ lis302dlAccelerometerReadRaw

#define lis302dlAccelerometerReadRaw	(		devp,
			axes )

Value:

accelerometerReadRaw(&((devp)->acc_if), axes)

accelerometerReadRaw

#define accelerometerReadRaw(ip, dp)

Accelerometer read raw data.

Definition ex_accelerometer.h:122

Retrieves raw data from the BaseAccelerometer.

Note: This data is retrieved from MEMS register without any algebraical manipulation.; The axes array must be at least the same size of the BaseAccelerometer axes number.

Parameters

[in]	devp	pointer to `LIS302DLDriver`.
[out]	axes	a buffer which would be filled with raw data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 442 of file lis302dl.h.

◆ lis302dlAccelerometerReadCooked

#define lis302dlAccelerometerReadCooked	(		devp,
			axes )

Value:

accelerometerReadCooked(&((devp)->acc_if), axes)

accelerometerReadCooked

#define accelerometerReadCooked(ip, dp)

Accelerometer read cooked data.

Definition ex_accelerometer.h:137

Retrieves cooked data from the BaseAccelerometer.

Note: This data is manipulated according to the formula cooked = (raw * sensitivity) - bias.; Final data is expressed as milli-G.; The axes array must be at least the same size of the BaseAccelerometer axes number.

Parameters

[in]	devp	pointer to `LIS302DLDriver`.
[out]	axes	a buffer which would be filled with cooked data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 464 of file lis302dl.h.

◆ lis302dlAccelerometerSetBias

#define lis302dlAccelerometerSetBias	(		devp,
			bp )

Value:

accelerometerSetBias(&((devp)->acc_if), bp)

accelerometerSetBias

#define accelerometerSetBias(ip, bp)

Updates accelerometer bias data from received buffer.

Definition ex_accelerometer.h:155

Set bias values for the BaseAccelerometer.

Note: Bias must be expressed as milli-G.; The bias buffer must be at least the same size of the BaseAccelerometer axes number.

Parameters

[in]	devp	pointer to `LIS302DLDriver`.
[in]	bp	a buffer which contains biases.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 481 of file lis302dl.h.

◆ lis302dlAccelerometerResetBias

#define lis302dlAccelerometerResetBias ( devp )

Value:

accelerometerResetBias(&((devp)->acc_if))

accelerometerResetBias

#define accelerometerResetBias(ip)

Reset accelerometer bias data restoring it to zero.

Definition ex_accelerometer.h:169

Reset bias values for the BaseAccelerometer.

Note: Default biases value are obtained from device datasheet when available otherwise they are considered zero.

Parameters

[in] devp pointer to LIS302DLDriver.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 496 of file lis302dl.h.

◆ lis302dlAccelerometerSetSensitivity

#define lis302dlAccelerometerSetSensitivity	(		devp,
			sp )

Value:

accelerometerSetSensitivity(&((devp)->acc_if), sp)

accelerometerSetSensitivity

#define accelerometerSetSensitivity(ip, sp)

Updates accelerometer sensitivity data from received buffer.

Definition ex_accelerometer.h:186

Set sensitivity values for the BaseAccelerometer.

Note: Sensitivity must be expressed as milli-G/LSB.; The sensitivity buffer must be at least the same size of the BaseAccelerometer axes number.

Parameters

[in]	devp	pointer to `LIS302DLDriver`.
[in]	sp	a buffer which contains sensitivities.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 513 of file lis302dl.h.

◆ lis302dlAccelerometerResetSensitivity

#define lis302dlAccelerometerResetSensitivity ( devp )

Value:

accelerometerResetSensitivity(&((devp)->acc_if))

accelerometerResetSensitivity

#define accelerometerResetSensitivity(ip)

Reset accelerometer sensitivity data restoring it to its typical value.

Definition ex_accelerometer.h:201

Reset sensitivity values for the BaseAccelerometer.

Note: Default sensitivities value are obtained from device datasheet.

Parameters

[in] devp pointer to LIS302DLDriver.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	otherwise.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 528 of file lis302dl.h.

◆ lis302dlAccelerometerSetFullScale

#define lis302dlAccelerometerSetFullScale	(		devp,
			fs )

Value:

(devp)->vmt->acc_set_full_scale(devp, fs)

vmt

static const struct EFlashDriverVMT vmt

Definition hal_efl.c:71

Changes the LIS302DLDriver accelerometer fullscale value.

Note: This function also rescale sensitivities and biases based on previous and next fullscale value.; A recalibration is highly suggested after calling this function.

Parameters

[in]	devp	pointer to `LIS302DLDriver`.
[in]	fs	new fullscale value.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	otherwise.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 546 of file lis302dl.h.

Typedef Documentation

◆ LIS302DLDriver

typedef struct LIS302DLDriver LIS302DLDriver

Structure representing a LIS302DL driver.

Definition at line 268 of file lis302dl.h.

Enumeration Type Documentation

◆ lis302dl_acc_fs_t

enum lis302dl_acc_fs_t

LIS302DL full scale.

Enumerator
LIS302DL_ACC_FS_2G	Full scale �2g.
LIS302DL_ACC_FS_8G	Full scale �8g.

Definition at line 273 of file lis302dl.h.

◆ lis302dl_acc_odr_t

enum lis302dl_acc_odr_t

LIS302DL output data rate and bandwidth.

Enumerator
LIS302DL_ACC_ODR_100HZ	ODR 100 Hz.
LIS302DL_ACC_ODR_400HZ	ODR 400 Hz.

Definition at line 281 of file lis302dl.h.

◆ lis302dl_acc_hp_t

enum lis302dl_acc_hp_t

LIS302DL high pass filtering.

Enumerator
LIS302DL_ACC_HP_DISABLED	HP bypassed.
LIS302DL_ACC_HP_0	HP cutoff 2Hz (ODR 100Hz) or 8Hz
LIS302DL_ACC_HP_1	HP cutoff 1Hz or 4Hz
LIS302DL_ACC_HP_2	HP cutoff 0.5Hz or 2Hz
LIS302DL_ACC_HP_3	HP cutoff 0.25Hz or 1Hz

Definition at line 289 of file lis302dl.h.

◆ lis302dl_state_t

enum lis302dl_state_t

Driver state machine possible states.

Enumerator
LIS302DL_UNINIT	Not initialized.
LIS302DL_STOP	Stopped.
LIS302DL_READY	Ready.

Definition at line 300 of file lis302dl.h.

Function Documentation

◆ lis302dlSPIReadRegister()

void lis302dlSPIReadRegister	(	SPIDriver *	spip,
		uint8_t	reg,
		size_t	n,
		uint8_t *	b )

static

Reads a generic register value using SPI.

Precondition: The SPI interface must be initialized and the driver started.

Parameters

[in]	spip	pointer to the SPI interface
[in]	reg	starting register address
[in]	n	number of adjacent registers to write
[in]	b	pointer to a buffer.

Definition at line 59 of file lis302dl.c.

References LIS302DL_MS, LIS302DL_RW, spiReceive(), spiSelect(), spiSend(), and spiUnselect().

Referenced by acc_read_raw(), and acc_set_full_scale().

Here is the call graph for this function:

◆ lis302dlSPIWriteRegister()

void lis302dlSPIWriteRegister	(	SPIDriver *	spip,
		uint8_t	reg,
		size_t	n,
		uint8_t *	b )

static

Writes a value into a generic register using SPI.

Precondition: The SPI interface must be initialized and the driver started.

Parameters

[in]	spip	pointer to the SPI interface
[in]	reg	starting register address
[in]	n	number of adjacent registers to write
[in]	b	pointer to a buffer of values.

Definition at line 78 of file lis302dl.c.

References LIS302DL_MS, spiSelect(), spiSend(), and spiUnselect().

Referenced by acc_set_full_scale(), lis302dlStart(), and lis302dlStop().

Here is the call graph for this function:

◆ acc_get_axes_number()

size_t acc_get_axes_number ( void * ip )

static

Return the number of axes of the BaseAccelerometer.

Parameters

[in] ip pointer to BaseAccelerometer interface.

Returns: the number of axes.

Definition at line 96 of file lis302dl.c.

References LIS302DL_ACC_NUMBER_OF_AXES.

◆ acc_read_raw()

msg_t acc_read_raw	(	void *	ip,
		int32_t	axes[] )

static

Retrieves raw data from the BaseAccelerometer.

Note: This data is retrieved from MEMS register without any algebraical manipulation.; The axes array must be at least the same size of the BaseAccelerometer axes number.

Parameters

[in]	ip	pointer to `BaseAccelerometer` interface.
[out]	axes	a buffer which would be filled with raw data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 118 of file lis302dl.c.

References LIS302DL_ACC_NUMBER_OF_AXES, LIS302DL_AD_OUT_X, LIS302DL_READY, lis302dlSPIReadRegister(), MSG_OK, objGetInstance, osalDbgAssert, osalDbgCheck, SPI_READY, spiAcquireBus(), spiReleaseBus(), and spiStart().

Referenced by acc_read_cooked().

Here is the call graph for this function:

◆ acc_read_cooked()

msg_t acc_read_cooked	(	void *	ip,
		float	axes[] )

static

Retrieves cooked data from the BaseAccelerometer.

Note: This data is manipulated according to the formula cooked = (raw * sensitivity) - bias.; Final data is expressed as milli-G.; The axes array must be at least the same size of the BaseAccelerometer axes number.

Parameters

[in]	ip	pointer to `BaseAccelerometer` interface.
[out]	axes	a buffer which would be filled with cooked data.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using `i2cGetErrors()`.
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 171 of file lis302dl.c.

References acc_read_raw(), LIS302DL_ACC_NUMBER_OF_AXES, LIS302DL_READY, objGetInstance, osalDbgAssert, and osalDbgCheck.

Here is the call graph for this function:

◆ acc_set_bias()

msg_t acc_set_bias	(	void *	ip,
		float *	bp )

static

Set bias values for the BaseAccelerometer.

Note: Bias must be expressed as milli-G.; The bias buffer must be at least the same size of the BaseAccelerometer axes number.

Parameters

[in]	ip	pointer to `BaseAccelerometer` interface.
[in]	bp	a buffer which contains biases.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 204 of file lis302dl.c.

References LIS302DL_ACC_NUMBER_OF_AXES, LIS302DL_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ acc_reset_bias()

msg_t acc_reset_bias ( void * ip )

static

Reset bias values for the BaseAccelerometer.

Note: Default biases value are obtained from device datasheet when available otherwise they are considered zero.

Parameters

[in] ip pointer to BaseAccelerometer interface.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 233 of file lis302dl.c.

References LIS302DL_ACC_BIAS, LIS302DL_ACC_NUMBER_OF_AXES, LIS302DL_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ acc_set_sensivity()

msg_t acc_set_sensivity	(	void *	ip,
		float *	sp )

static

Set sensitivity values for the BaseAccelerometer.

Note: Sensitivity must be expressed as milli-G/LSB.; The sensitivity buffer must be at least the same size of the BaseAccelerometer axes number.

Parameters

[in]	ip	pointer to `BaseAccelerometer` interface.
[in]	sp	a buffer which contains sensitivities.

Returns: The operation status.

Return values

MSG_OK if the function succeeded.

Definition at line 263 of file lis302dl.c.

References LIS302DL_ACC_NUMBER_OF_AXES, LIS302DL_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ acc_reset_sensivity()

msg_t acc_reset_sensivity ( void * ip )

static

Reset sensitivity values for the BaseAccelerometer.

Note: Default sensitivities value are obtained from device datasheet.

Parameters

[in] ip pointer to BaseAccelerometer interface.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	otherwise.

Definition at line 292 of file lis302dl.c.

References FALSE, LIS302DL_ACC_FS_2G, LIS302DL_ACC_FS_8G, LIS302DL_ACC_NUMBER_OF_AXES, LIS302DL_ACC_SENS_2G, LIS302DL_ACC_SENS_8G, LIS302DL_READY, MSG_OK, MSG_RESET, objGetInstance, osalDbgAssert, and osalDbgCheck.

◆ acc_set_full_scale()

msg_t acc_set_full_scale	(	LIS302DLDriver *	devp,
		lis302dl_acc_fs_t	fs )

static

Changes the LIS302DLDriver accelerometer fullscale value.

Note: This function also rescale sensitivities and biases based on previous and next fullscale value.; A recalibration is highly suggested after calling this function.

Parameters

[in]	devp	pointer to `LIS302DLDriver` interface.
[in]	fs	new fullscale value.

Returns: The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	otherwise.

Definition at line 332 of file lis302dl.c.

References LIS302DL_ACC_2G, LIS302DL_ACC_8G, LIS302DL_ACC_FS_2G, LIS302DL_ACC_FS_8G, LIS302DL_ACC_NUMBER_OF_AXES, LIS302DL_AD_CTRL_REG1, LIS302DL_CTRL_REG1_FS_MASK, LIS302DL_READY, lis302dlSPIReadRegister(), lis302dlSPIWriteRegister(), MSG_OK, MSG_RESET, osalDbgAssert, osalDbgCheck, SPI_READY, spiAcquireBus(), spiReleaseBus(), and spiStart().

Here is the call graph for this function:

◆ lis302dlObjectInit()

void lis302dlObjectInit ( LIS302DLDriver * devp )

Initializes an instance.

Parameters

[out] devp pointer to the LIS302DLDriver object

Function Class:: Object or module nitializer function.

Definition at line 427 of file lis302dl.c.

References LIS302DLDriver::acc_if, LIS302DL_ACC_NUMBER_OF_AXES, LIS302DL_STOP, BaseAccelerometer::vmt, LIS302DLDriver::vmt, vmt_accelerometer, and vmt_device.

◆ lis302dlStart()

void lis302dlStart	(	LIS302DLDriver *	devp,
		const LIS302DLConfig *	config )

Configures and activates LIS302DL Complex Driver peripheral.

Parameters

[in]	devp	pointer to the `LIS302DLDriver` object
[in]	config	pointer to the `LIS302DLConfig` object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 446 of file lis302dl.c.

References hal_spi_driver::config, FALSE, LIS302DL_ACC_2G, LIS302DL_ACC_8G, LIS302DL_ACC_BIAS, LIS302DL_ACC_FS_2G, LIS302DL_ACC_FS_8G, LIS302DL_ACC_NUMBER_OF_AXES, LIS302DL_ACC_SENS_2G, LIS302DL_ACC_SENS_8G, LIS302DL_AD_CTRL_REG1, LIS302DL_CTRL_REG1_PD, LIS302DL_CTRL_REG1_XEN, LIS302DL_CTRL_REG1_YEN, LIS302DL_CTRL_REG1_ZEN, LIS302DL_READY, LIS302DL_STOP, lis302dlSPIWriteRegister(), osalDbgAssert, osalDbgCheck, osalThreadSleepMilliseconds, spiAcquireBus(), LIS302DLConfig::spip, spiReleaseBus(), and spiStart().

Here is the call graph for this function:

◆ lis302dlStop()

void lis302dlStop ( LIS302DLDriver * devp )

Deactivates the LIS302DL Complex Driver peripheral.

Parameters

[in] devp pointer to the LIS302DLDriver object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 530 of file lis302dl.c.

References LIS302DL_AD_CTRL_REG1, LIS302DL_READY, LIS302DL_STOP, lis302dlSPIWriteRegister(), osalDbgAssert, osalDbgCheck, spiAcquireBus(), spiReleaseBus(), spiStart(), and spiStop().

Here is the call graph for this function:

Variable Documentation

◆ vmt_device

const struct LIS302DLVMT vmt_device

static

Initial value:

= {
  (size_t)0,
  acc_set_full_scale
}

Definition at line 405 of file lis302dl.c.

◆ vmt_accelerometer

const struct BaseAccelerometerVMT vmt_accelerometer

static

Initial value:

= {
  sizeof(struct LIS302DLVMT*),
  acc_get_axes_number, acc_read_raw, acc_read_cooked,
  acc_set_bias, acc_reset_bias, acc_set_sensivity, acc_reset_sensivity
}

Definition at line 410 of file lis302dl.c.

Detailed Description

LIS302DL data structures and types

Version identification

LIS302DL communication interfaces related bit masks

LIS302DL register addresses

LIS302DL_CTRL_REG1 register bits definitions

LIS302DL_CTRL_REG2 register bits definitions

LIS302DL_CTRL_REG3 register bits definitions

Configuration options

Data Structures

Macros

Functions

Variables

Macro Definition Documentation

◆ EX_LIS302DL_VERSION

◆ EX_LIS302DL_MAJOR

◆ EX_LIS302DL_MINOR

◆ EX_LIS302DL_PATCH

◆ LIS302DL_ACC_NUMBER_OF_AXES

◆ LIS302DL_ACC_2G

◆ LIS302DL_ACC_8G

◆ LIS302DL_ACC_SENS_2G

◆ LIS302DL_ACC_SENS_8G

◆ LIS302DL_ACC_BIAS

◆ LIS302DL_DI_MASK

◆ LIS302DL_DI

◆ LIS302DL_AD_MASK

◆ LIS302DL_AD

◆ LIS302DL_MS

◆ LIS302DL_RW

◆ LIS302DL_AD_WHO_AM_I

◆ LIS302DL_AD_CTRL_REG1

◆ LIS302DL_AD_CTRL_REG2

◆ LIS302DL_AD_CTRL_REG3

◆ LIS302DL_AD_HP_FILER_RESET

◆ LIS302DL_AD_STATUS_REG

◆ LIS302DL_AD_OUT_X

◆ LIS302DL_AD_OUT_Y

◆ LIS302DL_AD_OUT_Z

◆ LIS302DL_AD_FF_WU_CFG_1

◆ LIS302DL_AD_FF_WU_SRC_1

◆ LIS302DL_AD_FF_WU_THS_1

◆ LIS302DL_AD_FF_WU_DURATION_1

◆ LIS302DL_AD_FF_WU_CFG_2

◆ LIS302DL_AD_FF_WU_SRC_2

◆ LIS302DL_AD_FF_WU_THS_2

◆ LIS302DL_AD_FF_WU_DURATION_2

◆ LIS302DL_AD_CLICK_CFG

◆ LIS302DL_AD_CLICK_SRC

◆ LIS302DL_AD_CLICK_THSY_X

◆ LIS302DL_AD_CLICK_THSZ

◆ LIS302DL_AD_CLICK_TIME_LIMIT

◆ LIS302DL_AD_CLICK_LATENCY

◆ LIS302DL_AD_CLICK_WINDOW

◆ LIS302DL_CTRL_REG1_MASK

◆ LIS302DL_CTRL_REG1_XEN

◆ LIS302DL_CTRL_REG1_YEN

◆ LIS302DL_CTRL_REG1_ZEN

◆ LIS302DL_CTRL_REG1_STM

◆ LIS302DL_CTRL_REG1_STP

◆ LIS302DL_CTRL_REG1_FS_MASK

◆ LIS302DL_CTRL_REG1_FS

◆ LIS302DL_CTRL_REG1_PD

◆ LIS302DL_CTRL_REG1_DR

◆ LIS302DL_CTRL_REG2_MASK

◆ LIS302DL_CTRL_REG2_HPCF1

◆ LIS302DL_CTRL_REG2_HPCF2

◆ LIS302DL_CTRL_REG2_HPFFWU1

◆ LIS302DL_CTRL_REG2_HPFFWU2

◆ LIS302DL_CTRL_REG2_FDS

◆ LIS302DL_CTRL_REG2_BOOT

◆ LIS302DL_CTRL_REG2_SIM

◆ LIS302DL_CTRL_REG3_MASK

◆ LIS302DL_CTRL_REG3_I1CFG0

◆ LIS302DL_CTRL_REG3_I1CFG1

◆ LIS302DL_CTRL_REG3_I1CFG2

◆ LIS302DL_CTRL_REG3_I2CFG0

◆ LIS302DL_CTRL_REG3_I2CFG1

◆ LIS302DL_CTRL_REG3_I2CFG2

◆ LIS302DL_CTRL_REG3_PP_OD
