Detailed Description

Collaboration diagram for Pipes:

Data Structures
struct	pipe_t
	Structure representing a pipe object. More...

Macros
#define	PC_INIT(p)
#define	PC_LOCK(p)
#define	PC_UNLOCK(p)
#define	PW_INIT(p)
#define	PW_LOCK(p)
#define	PW_UNLOCK(p)
#define	PR_INIT(p)
#define	PR_LOCK(p)
#define	PR_UNLOCK(p)
#define	__PIPE_DATA(name, buffer, size)
	Data part of a static pipe initializer.
#define	PIPE_DECL(name, buffer, size)
	Static pipe initializer.

Functions
static size_t	pipe_write (pipe_t pp, const uint8_t bp, size_t n)
	Non-blocking pipe write.
static size_t	pipe_read (pipe_t pp, uint8_t bp, size_t n)
	Non-blocking pipe read.
void	chPipeObjectInit (pipe_t pp, uint8_t buf, size_t n)
	Initializes a `mailbox_t` object.
void	chPipeReset (pipe_t *pp)
	Resets a `pipe_t` object.
size_t	chPipeWriteTimeout (pipe_t pp, const uint8_t bp, size_t n, sysinterval_t timeout)
	Pipe write with timeout.
size_t	chPipeReadTimeout (pipe_t pp, uint8_t bp, size_t n, sysinterval_t timeout)
	Pipe read with timeout.
static size_t	chPipeGetSize (const pipe_t *pp)
	Returns the pipe buffer size as number of bytes.
static size_t	chPipeGetUsedCount (const pipe_t *pp)
	Returns the number of used byte slots into a pipe.
static size_t	chPipeGetFreeCount (const pipe_t *pp)
	Returns the number of free byte slots into a pipe.
static void	chPipeResume (pipe_t *pp)
	Terminates the reset state.

Macro Definition Documentation

◆ PC_INIT

#define PC_INIT ( p )

Value:

chMtxObjectInit(&(p)->cmtx)

chMtxObjectInit

void chMtxObjectInit(mutex_t *mp)

Initializes s mutex_t structure.

Definition chmtx.c:103

Definition at line 54 of file chpipes.c.

Referenced by chPipeObjectInit().

◆ PC_LOCK

#define PC_LOCK ( p )

Value:

chMtxLock(&(p)->cmtx)

chMtxLock

void chMtxLock(mutex_t *mp)

Locks the specified mutex.

Definition chmtx.c:123

Definition at line 55 of file chpipes.c.

Referenced by chPipeReset(), pipe_read(), and pipe_write().

◆ PC_UNLOCK

#define PC_UNLOCK ( p )

Value:

chMtxUnlock(&(p)->cmtx)

chMtxUnlock

void chMtxUnlock(mutex_t *mp)

Unlocks the specified mutex.

Definition chmtx.c:326

Definition at line 56 of file chpipes.c.

Referenced by chPipeReset(), pipe_read(), and pipe_write().

◆ PW_INIT

#define PW_INIT ( p )

Value:

chMtxObjectInit(&(p)->wmtx)

Definition at line 57 of file chpipes.c.

Referenced by chPipeObjectInit().

◆ PW_LOCK

#define PW_LOCK ( p )

Value:

chMtxLock(&(p)->wmtx)

Definition at line 58 of file chpipes.c.

Referenced by chPipeWriteTimeout().

◆ PW_UNLOCK

#define PW_UNLOCK ( p )

Value:

chMtxUnlock(&(p)->wmtx)

Definition at line 59 of file chpipes.c.

Referenced by chPipeWriteTimeout().

◆ PR_INIT

#define PR_INIT ( p )

Value:

chMtxObjectInit(&(p)->rmtx)

Definition at line 60 of file chpipes.c.

Referenced by chPipeObjectInit().

◆ PR_LOCK

#define PR_LOCK ( p )

Value:

chMtxLock(&(p)->rmtx)

Definition at line 61 of file chpipes.c.

Referenced by chPipeReadTimeout().

◆ PR_UNLOCK

#define PR_UNLOCK ( p )

Value:

chMtxUnlock(&(p)->rmtx)

Definition at line 62 of file chpipes.c.

Referenced by chPipeReadTimeout().

◆ __PIPE_DATA

#define __PIPE_DATA	(	name,
		buffer,
		size )

Value:

  {                                   \
  (uint8_t *)(buffer),                                                      \
  (uint8_t *)(buffer) + size,                                               \
  (uint8_t *)(buffer),                                                      \
  (uint8_t *)(buffer),                                                      \
  (size_t)0,                                                                \
  false,                                                                    \
  NULL,                                                                     \
  NULL,                                                                     \
  __MUTEX_DATA(name.cmtx),                                                  \
  __MUTEX_DATA(name.wmtx),                                                  \
  __MUTEX_DATA(name.rmtx),                                                  \
}

Data part of a static pipe initializer.

This macro should be used when statically initializing a pipe that is part of a bigger structure.

Parameters

[in]	name	the name of the pipe variable
[in]	buffer	pointer to the pipe buffer array of `uint8_t`
[in]	size	number of `uint8_t` elements in the buffer array

Definition at line 88 of file chpipes.h.

◆ PIPE_DECL

#define PIPE_DECL	(	name,
		buffer,
		size )

Value:

pipe_t name = __PIPE_DATA(name, buffer, size)

__PIPE_DATA

#define __PIPE_DATA(name, buffer, size)

Data part of a static pipe initializer.

Definition chpipes.h:88

pipe_t

Structure representing a pipe object.

Definition chpipes.h:52

Static pipe initializer.

Statically initialized pipes require no explicit initialization using chPipeObjectInit().

Parameters

[in]	name	the name of the pipe variable
[in]	buffer	pointer to the pipe buffer array of `uint8_t`
[in]	size	number of `uint8_t` elements in the buffer array

Definition at line 126 of file chpipes.h.

Function Documentation

◆ pipe_write()

size_t pipe_write	(	pipe_t *	pp,
		const uint8_t *	bp,
		size_t	n )

static

Non-blocking pipe write.

The function writes data from a buffer to a pipe. The operation completes when the specified amount of data has been transferred or when the pipe buffer has been filled.

Parameters

[in]	pp	the pointer to an initialized `pipe_t` object
[in]	bp	pointer to the data buffer
[in]	n	the maximum amount of data to be transferred, the value 0 is reserved

Returns: The number of bytes effectively transferred.

Function Class:: Not an API, this function is for internal use only.

Definition at line 105 of file chpipes.c.

References pipe_t::buffer, chPipeGetFreeCount(), pipe_t::cnt, PC_LOCK, PC_UNLOCK, pipe_t::top, and pipe_t::wrptr.

Referenced by chPipeWriteTimeout().

Here is the call graph for this function:

◆ pipe_read()

size_t pipe_read	(	pipe_t *	pp,
		uint8_t *	bp,
		size_t	n )

static

Non-blocking pipe read.

The function reads data from a pipe into a buffer. The operation completes when the specified amount of data has been transferred or when the pipe buffer has been emptied.

Parameters

[in]	pp	the pointer to an initialized `pipe_t` object
[out]	bp	pointer to the data buffer
[in]	n	the maximum amount of data to be transferred, the value 0 is reserved

Returns: The number of bytes effectively transferred.

Function Class:: Not an API, this function is for internal use only.

Definition at line 156 of file chpipes.c.

References pipe_t::buffer, chPipeGetUsedCount(), pipe_t::cnt, PC_LOCK, PC_UNLOCK, pipe_t::rdptr, and pipe_t::top.

Referenced by chPipeReadTimeout().

Here is the call graph for this function:

◆ chPipeObjectInit()

void chPipeObjectInit	(	pipe_t *	pp,
		uint8_t *	buf,
		size_t	n )

Initializes a mailbox_t object.

Parameters

[out]	pp	the pointer to the `pipe_t` structure to be initialized
[in]	buf	pointer to the pipe buffer as an array of `uint8_t`
[in]	n	number of elements in the buffer array

Function Class:: Object or module nitializer function.

Definition at line 207 of file chpipes.c.

References pipe_t::buffer, chDbgCheck, pipe_t::cnt, PC_INIT, PR_INIT, PW_INIT, pipe_t::rdptr, pipe_t::reset, pipe_t::rtr, pipe_t::top, pipe_t::wrptr, and pipe_t::wtr.

Referenced by chFactoryCreatePipe().

◆ chPipeReset()

void chPipeReset ( pipe_t * pp )

Resets a pipe_t object.

All the waiting threads are resumed with status MSG_RESET and the queued data is lost.

Postcondition: The pipe is in reset state, all operations will fail and return MSG_RESET until the mailbox is enabled again using chPipeResumeX().

Parameters

[in] pp the pointer to an initialized pipe_t object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 236 of file chpipes.c.

References pipe_t::buffer, chDbgCheck, chSchRescheduleS(), chSysLock, chSysUnlock, chThdResumeI(), pipe_t::cnt, MSG_RESET, PC_LOCK, PC_UNLOCK, pipe_t::rdptr, pipe_t::reset, pipe_t::rtr, pipe_t::wrptr, and pipe_t::wtr.

Here is the call graph for this function:

◆ chPipeWriteTimeout()

size_t chPipeWriteTimeout	(	pipe_t *	pp,
		const uint8_t *	bp,
		size_t	n,
		sysinterval_t	timeout )

Pipe write with timeout.

The function writes data from a buffer to a pipe. The operation completes when the specified amount of data has been transferred or after the specified timeout or if the pipe has been reset.

Parameters

[in]	pp	the pointer to an initialized `pipe_t` object
[in]	bp	pointer to the data buffer
[in]	n	the number of bytes to be written, the value 0 is reserved
[in]	timeout	the number of ticks before the operation timeouts, the following special values are allowed: TIME_IMMEDIATE immediate timeout. TIME_INFINITE no timeout.

Returns: The number of bytes effectively transferred. A number lower than n means that a timeout occurred or the pipe went in reset state.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 278 of file chpipes.c.

References chDbgCheck, chSysLock, chSysUnlock, chThdResume(), chThdSuspendTimeoutS(), MSG_OK, pipe_write(), PW_LOCK, PW_UNLOCK, pipe_t::reset, pipe_t::rtr, and pipe_t::wtr.

Here is the call graph for this function:

◆ chPipeReadTimeout()

size_t chPipeReadTimeout	(	pipe_t *	pp,
		uint8_t *	bp,
		size_t	n,
		sysinterval_t	timeout )

Pipe read with timeout.

The function reads data from a pipe into a buffer. The operation completes when the specified amount of data has been transferred or after the specified timeout or if the pipe has been reset.

Parameters

[in]	pp	the pointer to an initialized `pipe_t` object
[out]	bp	pointer to the data buffer
[in]	n	the number of bytes to be read, the value 0 is reserved
[in]	timeout	the number of ticks before the operation timeouts, the following special values are allowed: TIME_IMMEDIATE immediate timeout. TIME_INFINITE no timeout.

Returns: The number of bytes effectively transferred. A number lower than n means that a timeout occurred or the pipe went in reset state.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 343 of file chpipes.c.

References chDbgCheck, chSysLock, chSysUnlock, chThdResume(), chThdSuspendTimeoutS(), MSG_OK, pipe_read(), PR_LOCK, PR_UNLOCK, pipe_t::reset, pipe_t::rtr, and pipe_t::wtr.

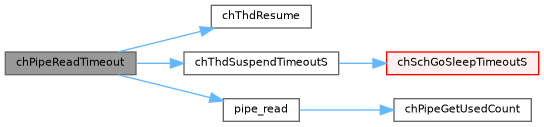

Here is the call graph for this function:

◆ chPipeGetSize()

size_t chPipeGetSize ( const pipe_t * pp )

inlinestatic

Returns the pipe buffer size as number of bytes.

Parameters

[in] pp the pointer to an initialized pipe_t object

Returns: The size of the pipe.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 158 of file chpipes.h.

References pipe_t::buffer, and pipe_t::top.

Referenced by chPipeGetFreeCount().

◆ chPipeGetUsedCount()

size_t chPipeGetUsedCount ( const pipe_t * pp )

inlinestatic

Returns the number of used byte slots into a pipe.

Parameters

[in] pp the pointer to an initialized pipe_t object

Returns: The number of queued bytes.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 174 of file chpipes.h.

References pipe_t::cnt.

Referenced by chPipeGetFreeCount(), and pipe_read().

◆ chPipeGetFreeCount()

size_t chPipeGetFreeCount ( const pipe_t * pp )

inlinestatic

Returns the number of free byte slots into a pipe.

Parameters

[in] pp the pointer to an initialized pipe_t object

Returns: The number of empty byte slots.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 187 of file chpipes.h.

References chPipeGetSize(), and chPipeGetUsedCount().

Referenced by pipe_write().

Here is the call graph for this function:

◆ chPipeResume()

void chPipeResume ( pipe_t * pp )

inlinestatic

Terminates the reset state.

Parameters

[in] pp the pointer to an initialized pipe_t object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 199 of file chpipes.h.

References pipe_t::reset.
