Detailed Description

Collaboration diagram for Binary Semaphores:

Data Structures
struct	ch_binary_semaphore
	Binary semaphore type. More...

Macros
#define	__BSEMAPHORE_DATA(name, taken)
	Data part of a static semaphore initializer.
#define	BSEMAPHORE_DECL(name, taken)
	Static semaphore initializer.

Typedefs
typedef struct ch_binary_semaphore	binary_semaphore_t
	Binary semaphore type.

Functions
static void	chBSemObjectInit (binary_semaphore_t *bsp, bool taken)
	Initializes a binary semaphore.
static msg_t	chBSemWait (binary_semaphore_t *bsp)
	Wait operation on the binary semaphore.
static msg_t	chBSemWaitS (binary_semaphore_t *bsp)
	Wait operation on the binary semaphore.
static msg_t	chBSemWaitTimeoutS (binary_semaphore_t *bsp, sysinterval_t timeout)
	Wait operation on the binary semaphore.
static msg_t	chBSemWaitTimeout (binary_semaphore_t *bsp, sysinterval_t timeout)
	Wait operation on the binary semaphore.
static void	chBSemResetI (binary_semaphore_t *bsp, bool taken)
	Reset operation on the binary semaphore.
static void	chBSemReset (binary_semaphore_t *bsp, bool taken)
	Reset operation on the binary semaphore.
static void	chBSemSignalI (binary_semaphore_t *bsp)
	Performs a signal operation on a binary semaphore.
static void	chBSemSignal (binary_semaphore_t *bsp)
	Performs a signal operation on a binary semaphore.
static bool	chBSemGetStateI (const binary_semaphore_t *bsp)
	Returns the binary semaphore current state.

Macro Definition Documentation

◆ __BSEMAPHORE_DATA

#define __BSEMAPHORE_DATA	(		name,
			taken )

Value:

{__SEMAPHORE_DATA(name.sem, ((taken) ? 0 : 1))}

__SEMAPHORE_DATA

#define __SEMAPHORE_DATA(name, n)

Data part of a static semaphore initializer.

Definition rt/include/chsem.h:71

Data part of a static semaphore initializer.

This macro should be used when statically initializing a semaphore that is part of a bigger structure.

Parameters

[in]	name	the name of the semaphore variable
[in]	taken	the semaphore initial state

Definition at line 91 of file chbsem.h.

◆ BSEMAPHORE_DECL

#define BSEMAPHORE_DECL	(		name,
			taken )

Value:

binary_semaphore_t name = __BSEMAPHORE_DATA(name, taken)

__BSEMAPHORE_DATA

#define __BSEMAPHORE_DATA(name, taken)

Data part of a static semaphore initializer.

Definition chbsem.h:91

binary_semaphore_t

struct ch_binary_semaphore binary_semaphore_t

Binary semaphore type.

Static semaphore initializer.

Statically initialized semaphores require no explicit initialization using chBSemInit().

Parameters

[in]	name	the name of the semaphore variable
[in]	taken	the semaphore initial state

Definition at line 102 of file chbsem.h.

Typedef Documentation

◆ binary_semaphore_t

typedef struct ch_binary_semaphore binary_semaphore_t

Binary semaphore type.

Function Documentation

◆ chBSemObjectInit()

void chBSemObjectInit	(	binary_semaphore_t *	bsp,
		bool	taken )

inlinestatic

Initializes a binary semaphore.

Parameters

[out]	bsp	pointer to a `binary_semaphore_t` structure
[in]	taken	initial state of the binary semaphore: false, the initial state is not taken. true, the initial state is taken.

Function Class:: Object or module nitializer function.

Definition at line 124 of file chbsem.h.

References chSemObjectInit, and ch_binary_semaphore::sem.

◆ chBSemWait()

msg_t chBSemWait ( binary_semaphore_t * bsp )

inlinestatic

Wait operation on the binary semaphore.

Parameters

[in] bsp pointer to a binary_semaphore_t structure

Returns: A message specifying how the invoking thread has been released from the semaphore.

Return values

MSG_OK	if the binary semaphore has been successfully taken.
MSG_RESET	if the binary semaphore has been reset using `chBSemReset()`.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 141 of file chbsem.h.

References chSemWait, and ch_binary_semaphore::sem.

◆ chBSemWaitS()

msg_t chBSemWaitS ( binary_semaphore_t * bsp )

inlinestatic

Wait operation on the binary semaphore.

Parameters

[in] bsp pointer to a binary_semaphore_t structure

Returns: A message specifying how the invoking thread has been released from the semaphore.

Return values

MSG_OK	if the binary semaphore has been successfully taken.
MSG_RESET	if the binary semaphore has been reset using `chBSemReset()`.

Function Class:: This is an S-Class API, this function can be invoked from within a system lock zone by threads only.

Definition at line 158 of file chbsem.h.

References chDbgCheckClassS, chSemWaitS, and ch_binary_semaphore::sem.

◆ chBSemWaitTimeoutS()

msg_t chBSemWaitTimeoutS	(	binary_semaphore_t *	bsp,
		sysinterval_t	timeout )

inlinestatic

Wait operation on the binary semaphore.

Parameters

[in]	bsp	pointer to a `binary_semaphore_t` structure
[in]	timeout	the number of ticks before the operation timeouts, the following special values are allowed: TIME_IMMEDIATE immediate timeout. TIME_INFINITE no timeout.

Returns: A message specifying how the invoking thread has been released from the semaphore.

Return values

MSG_OK	if the binary semaphore has been successfully taken.
MSG_RESET	if the binary semaphore has been reset using `chBSemReset()`.
MSG_TIMEOUT	if the binary semaphore has not been signaled or reset within the specified timeout.

Function Class:: This is an S-Class API, this function can be invoked from within a system lock zone by threads only.

Definition at line 184 of file chbsem.h.

References chDbgCheckClassS, chSemWaitTimeoutS(), and ch_binary_semaphore::sem.

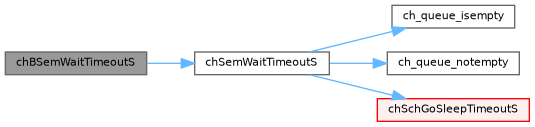

Here is the call graph for this function:

◆ chBSemWaitTimeout()

msg_t chBSemWaitTimeout	(	binary_semaphore_t *	bsp,
		sysinterval_t	timeout )

inlinestatic

Wait operation on the binary semaphore.

Parameters

[in]	bsp	pointer to a `binary_semaphore_t` structure
[in]	timeout	the number of ticks before the operation timeouts, the following special values are allowed: TIME_IMMEDIATE immediate timeout. TIME_INFINITE no timeout.

Returns: A message specifying how the invoking thread has been released from the semaphore.

Return values

MSG_OK	if the binary semaphore has been successfully taken.
MSG_RESET	if the binary semaphore has been reset using `chBSemReset()`.
MSG_TIMEOUT	if the binary semaphore has not been signaled or reset within the specified timeout.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 211 of file chbsem.h.

References chSemWaitTimeout(), and ch_binary_semaphore::sem.

Here is the call graph for this function:

◆ chBSemResetI()

void chBSemResetI	(	binary_semaphore_t *	bsp,
		bool	taken )

inlinestatic

Reset operation on the binary semaphore.

Note: The released threads can recognize they were waked up by a reset rather than a signal because the chBSemWait() will return MSG_RESET instead of MSG_OK.; This function does not reschedule.

Parameters

[in]	bsp	pointer to a `binary_semaphore_t` structure
[in]	taken	new state of the binary semaphore false, the new state is not taken. true, the new state is taken.

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 232 of file chbsem.h.

References chDbgCheckClassI, chSemResetI, and ch_binary_semaphore::sem.

◆ chBSemReset()

void chBSemReset	(	binary_semaphore_t *	bsp,
		bool	taken )

inlinestatic

Reset operation on the binary semaphore.

Note: The released threads can recognize they were waked up by a reset rather than a signal because the chBSemWait() will return MSG_RESET instead of MSG_OK.

Parameters

[in]	bsp	pointer to a `binary_semaphore_t` structure
[in]	taken	new state of the binary semaphore false, the new state is not taken. true, the new state is taken.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 253 of file chbsem.h.

References chSemReset, and ch_binary_semaphore::sem.

◆ chBSemSignalI()

void chBSemSignalI ( binary_semaphore_t * bsp )

inlinestatic

Performs a signal operation on a binary semaphore.

Note: This function does not reschedule.

Parameters

[in] bsp pointer to a binary_semaphore_t structure

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 266 of file chbsem.h.

References chDbgCheckClassI, chSemSignalI(), ch_semaphore::cnt, and ch_binary_semaphore::sem.

Referenced by chBSemSignal().

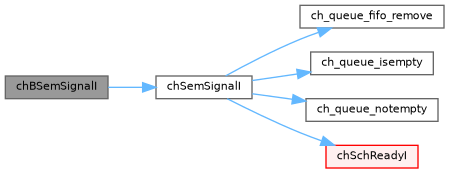

Here is the call graph for this function:

◆ chBSemSignal()

void chBSemSignal ( binary_semaphore_t * bsp )

inlinestatic

Performs a signal operation on a binary semaphore.

Parameters

[in] bsp pointer to a binary_semaphore_t structure

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 282 of file chbsem.h.

References chBSemSignalI(), chSchRescheduleS(), chSysLock, and chSysUnlock.

Here is the call graph for this function:

◆ chBSemGetStateI()

bool chBSemGetStateI ( const binary_semaphore_t * bsp )

inlinestatic

Returns the binary semaphore current state.

Parameters

[in] bsp pointer to a binary_semaphore_t structure

Returns: The binary semaphore current state.

Return values

false	if the binary semaphore is not taken.
true	if the binary semaphore is taken.

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 300 of file chbsem.h.

References chDbgCheckClassI, ch_semaphore::cnt, and ch_binary_semaphore::sem.
