ch_os_instance Struct Reference

System instance data structure. More...

#include <chobjects.h>

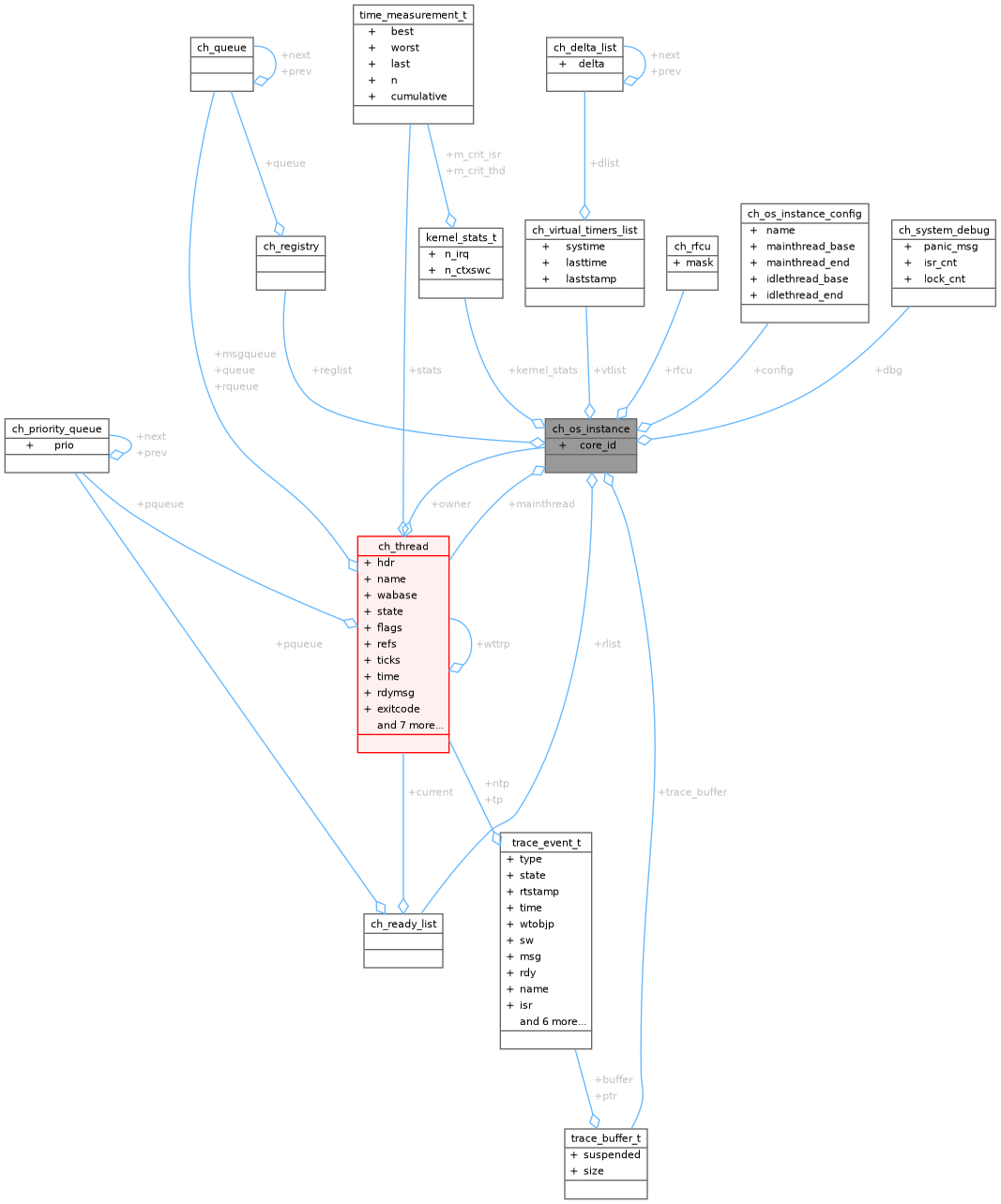

Collaboration diagram for ch_os_instance:

Data Fields
ready_list_t	rlist
	Ready list header.
virtual_timers_list_t	vtlist
	Virtual timers delta list header.
registry_t	reglist
	Registry header.
core_id_t	core_id
	Core associated to this instance.
rfcu_t	rfcu
	Runtime Faults Collection Unit for this instance.
const os_instance_config_t *	config
	Pointer to the instance configuration data.
thread_t	mainthread
	Main thread descriptor.
system_debug_t	dbg
	System debug.
trace_buffer_t	trace_buffer
	Trace buffer.
kernel_stats_t	kernel_stats
	Global kernel statistics.

Detailed Description

System instance data structure.

Definition at line 394 of file chobjects.h.

Field Documentation

rlist

ready_list_t ch_os_instance::rlist

Ready list header.

Definition at line 398 of file chobjects.h.

Referenced by __sch_ready_ahead(), __sch_ready_behind(), __sch_reschedule_ahead(), __sch_reschedule_behind(), chInstanceObjectInit(), chSchDoPreemption(), chSchDoYieldS(), chSchGoSleepS(), chSchIsPreemptionRequired(), chSchPreemption(), chSchRescheduleS(), chSchSelectFirst(), chSchWakeupS(), and chSysIntegrityCheckI().

vtlist

virtual_timers_list_t ch_os_instance::vtlist

Virtual timers delta list header.

Definition at line 402 of file chobjects.h.

Referenced by chInstanceObjectInit(), chSysIntegrityCheckI(), and chVTGetTimeStampI().

reglist

registry_t ch_os_instance::reglist

Registry header.

Note

This field is present only if the SMP mode is disabled.

Definition at line 409 of file chobjects.h.

Referenced by chInstanceObjectInit().

core_id

core_id_t ch_os_instance::core_id

Core associated to this instance.

Definition at line 414 of file chobjects.h.

Referenced by chInstanceObjectInit().

rfcu

rfcu_t ch_os_instance::rfcu

Runtime Faults Collection Unit for this instance.

Note

This field is present only if the SMP mode is disabled.

Definition at line 420 of file chobjects.h.

Referenced by chInstanceObjectInit(), and chRFCUGetAndClearFaultsI().

config

const os_instance_config_t* ch_os_instance::config

Pointer to the instance configuration data.

Definition at line 425 of file chobjects.h.

Referenced by chInstanceObjectInit().

mainthread

thread_t ch_os_instance::mainthread

Main thread descriptor.

Definition at line 429 of file chobjects.h.

Referenced by chInstanceObjectInit().

dbg

system_debug_t ch_os_instance::dbg

System debug.

Definition at line 433 of file chobjects.h.

Referenced by __dbg_check_disable(), __dbg_check_enable(), __dbg_check_enter_isr(), __dbg_check_leave_isr(), __dbg_check_lock(), __dbg_check_lock_from_isr(), __dbg_check_suspend(), __dbg_check_unlock(), __dbg_check_unlock_from_isr(), chDbgCheckClassI(), chDbgCheckClassS(), and chInstanceObjectInit().

trace_buffer

trace_buffer_t ch_os_instance::trace_buffer

Trace buffer.

Definition at line 438 of file chobjects.h.

Referenced by __trace_halt(), __trace_isr_enter(), __trace_isr_leave(), __trace_ready(), __trace_switch(), chInstanceObjectInit(), chTraceWriteI(), and trace_next().

kernel_stats

kernel_stats_t ch_os_instance::kernel_stats

Global kernel statistics.

Definition at line 444 of file chobjects.h.

Referenced by chInstanceObjectInit().
