Detailed Description

Mutexes related APIs and services.

Operation mode

A mutex is a threads synchronization object that can be in two distinct states:

Not owned (unlocked).
Owned by a thread (locked).

Operations defined for mutexes:

Lock: The mutex is checked, if the mutex is not owned by some other thread then it is associated to the locking thread else the thread is queued on the mutex in a list ordered by priority.
Unlock: The mutex is released by the owner and the highest priority thread waiting in the queue, if any, is resumed and made owner of the mutex.

Constraints

In ChibiOS/RT the Unlock operations must always be performed in lock-reverse order. This restriction both improves the performance and is required for an efficient implementation of the priority inheritance mechanism.
Operating under this restriction also ensures that deadlocks are no possible.

Recursive mode

By default mutexes are not recursive, this mean that it is not possible to take a mutex already owned by the same thread. It is possible to enable the recursive behavior by enabling the option CH_CFG_USE_MUTEXES_RECURSIVE.

The priority inversion problem

The mutexes in ChibiOS/RT implements the full priority inheritance mechanism in order handle the priority inversion problem.
When a thread is queued on a mutex, any thread, directly or indirectly, holding the mutex gains the same priority of the waiting thread (if their priority was not already equal or higher). The mechanism works with any number of nested mutexes and any number of involved threads. The algorithm complexity (worst case) is N with N equal to the number of nested mutexes.

Precondition: In order to use the mutex APIs the CH_CFG_USE_MUTEXES option must be enabled in chconf.h.

Postcondition: Enabling mutexes requires 5-12 (depending on the architecture) extra bytes in the thread_t structure.

Macros
#define	__MUTEX_DATA(name) {__CH_QUEUE_DATA(name.queue), NULL, NULL, 0}
	Data part of a static mutex initializer. More...

#define	MUTEX_DECL(name) mutex_t name = __MUTEX_DATA(name)
	Static mutex initializer. More...

Typedefs
typedef struct ch_mutex	mutex_t
	Type of a mutex structure. More...

Data Structures
struct	ch_mutex
	Mutex structure. More...

Functions
void	chMtxObjectInit (mutex_t *mp)
	Initializes s `mutex_t` structure. More...

void	chMtxLock (mutex_t *mp)
	Locks the specified mutex. More...

void	chMtxLockS (mutex_t *mp)
	Locks the specified mutex. More...

bool	chMtxTryLock (mutex_t *mp)
	Tries to lock a mutex. More...

bool	chMtxTryLockS (mutex_t *mp)
	Tries to lock a mutex. More...

void	chMtxUnlock (mutex_t *mp)
	Unlocks the specified mutex. More...

void	chMtxUnlockS (mutex_t *mp)
	Unlocks the specified mutex. More...

void	chMtxUnlockAllS (void)
	Unlocks all mutexes owned by the invoking thread. More...

void	chMtxUnlockAll (void)
	Unlocks all mutexes owned by the invoking thread. More...

static bool	chMtxQueueNotEmptyS (mutex_t *mp)
	Returns `true` if the mutex queue contains at least a waiting thread. More...

static thread_t *	chMtxGetOwnerI (mutex_t *mp)
	Returns the mutex owner thread. More...

static mutex_t *	chMtxGetNextMutexX (void)
	Returns the next mutex in the mutexes stack of the current thread. More...

Macro Definition Documentation

◆ __MUTEX_DATA

#define __MUTEX_DATA ( name ) {__CH_QUEUE_DATA(name.queue), NULL, NULL, 0}

Data part of a static mutex initializer.

This macro should be used when statically initializing a mutex that is part of a bigger structure.

Parameters

[in] name the name of the mutex variable

Definition at line 81 of file chmtx.h.

◆ MUTEX_DECL

#define MUTEX_DECL ( name ) mutex_t name = __MUTEX_DATA(name)

Static mutex initializer.

Statically initialized mutexes require no explicit initialization using chMtxInit().

Parameters

[in] name the name of the mutex variable

Definition at line 93 of file chmtx.h.

Typedef Documentation

◆ mutex_t

typedef struct ch_mutex mutex_t

Type of a mutex structure.

Definition at line 52 of file chmtx.h.

Function Documentation

◆ chMtxObjectInit()

void chMtxObjectInit ( mutex_t * mp )

Initializes s mutex_t structure.

Parameters

[out] mp pointer to a mutex_t structure

Function Class:: Initializer, this function just initializes an object and can be invoked before the kernel is initialized.

Definition at line 103 of file chmtx.c.

References ch_queue_init(), chDbgCheck, ch_mutex::cnt, ch_mutex::owner, and ch_mutex::queue.

Referenced by __factory_init().

Here is the call graph for this function:

◆ chMtxLock()

void chMtxLock ( mutex_t * mp )

Locks the specified mutex.

Postcondition: The mutex is locked and inserted in the per-thread stack of owned mutexes.

Parameters

[in] mp pointer to the mutex_t structure

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 123 of file chmtx.c.

References chMtxLockS(), chSysLock, and chSysUnlock.

Here is the call graph for this function:

◆ chMtxLockS()

void chMtxLockS ( mutex_t * mp )

Locks the specified mutex.

Postcondition: The mutex is locked and inserted in the per-thread stack of owned mutexes.

Parameters

[in] mp pointer to the mutex_t structure

Function Class:: This is an S-Class API, this function can be invoked from within a system lock zone by threads only.

Definition at line 139 of file chmtx.c.

References chThdGetSelfX.

Referenced by chMtxLock().

◆ chMtxTryLock()

bool chMtxTryLock ( mutex_t * mp )

Tries to lock a mutex.

This function attempts to lock a mutex, if the mutex is already locked by another thread then the function exits without waiting.

Postcondition: The mutex is locked and inserted in the per-thread stack of owned mutexes.

Note: This function does not have any overhead related to the priority inheritance mechanism because it does not try to enter a sleep state.

Parameters

[in] mp pointer to the mutex_t structure

Returns: The operation status.

Return values

true	if the mutex has been successfully acquired
false	if the lock attempt failed.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 257 of file chmtx.c.

References chMtxTryLockS(), chSysLock, and chSysUnlock.

Here is the call graph for this function:

◆ chMtxTryLockS()

bool chMtxTryLockS ( mutex_t * mp )

Tries to lock a mutex.

This function attempts to lock a mutex, if the mutex is already taken by another thread then the function exits without waiting.

Postcondition: The mutex is locked and inserted in the per-thread stack of owned mutexes.

Note: This function does not have any overhead related to the priority inheritance mechanism because it does not try to enter a sleep state.

Parameters

[in] mp pointer to the mutex_t structure

Returns: The operation status.

Return values

true	if the mutex has been successfully acquired
false	if the lock attempt failed.

Function Class:: This is an S-Class API, this function can be invoked from within a system lock zone by threads only.

Definition at line 284 of file chmtx.c.

References chThdGetSelfX.

Referenced by chMtxTryLock().

◆ chMtxUnlock()

void chMtxUnlock ( mutex_t * mp )

Unlocks the specified mutex.

Note: Mutexes must be unlocked in reverse lock order. Violating this rules will result in a panic if assertions are enabled.

Precondition: The invoking thread must have at least one owned mutex.

Postcondition: The mutex is unlocked and removed from the per-thread stack of owned mutexes.

Parameters

[in] mp pointer to the mutex_t structure

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 326 of file chmtx.c.

References ch_queue_fifo_remove(), chDbgAssert, chDbgCheck, chMtxQueueNotEmptyS(), chSchReadyI(), chSchRescheduleS(), chSysLock, chSysUnlock, chThdGetSelfX, ch_mutex::cnt, ch_thread::hdr, ch_thread::mtxlist, ch_mutex::next, ch_queue::next, ch_mutex::owner, ch_thread::pqueue, ch_priority_queue::prio, ch_mutex::queue, and ch_thread::realprio.

Here is the call graph for this function:

◆ chMtxUnlockS()

void chMtxUnlockS ( mutex_t * mp )

Unlocks the specified mutex.

Note: Mutexes must be unlocked in reverse lock order. Violating this rules will result in a panic if assertions are enabled.

Precondition: The invoking thread must have at least one owned mutex.

Postcondition: The mutex is unlocked and removed from the per-thread stack of owned mutexes.; This function does not reschedule so a call to a rescheduling function must be performed before unlocking the kernel.

Parameters

[in] mp pointer to the mutex_t structure

Function Class:: This is an S-Class API, this function can be invoked from within a system lock zone by threads only.

Definition at line 413 of file chmtx.c.

References chThdGetSelfX.

◆ chMtxUnlockAllS()

void chMtxUnlockAllS ( void )

Unlocks all mutexes owned by the invoking thread.

Postcondition: The stack of owned mutexes is emptied and all the found mutexes are unlocked.; This function does not reschedule so a call to a rescheduling function must be performed before unlocking the kernel.

Note: This function is MUCH MORE efficient than releasing the mutexes one by one and not just because the call overhead, this function does not have any overhead related to the priority inheritance mechanism.

Function Class:: This is an S-Class API, this function can be invoked from within a system lock zone by threads only.

Definition at line 490 of file chmtx.c.

References ch_queue_fifo_remove(), chMtxQueueNotEmptyS(), chSchReadyI(), chSchRescheduleS(), chThdGetSelfX, ch_mutex::cnt, ch_thread::hdr, ch_thread::mtxlist, ch_mutex::next, ch_mutex::owner, ch_thread::pqueue, ch_priority_queue::prio, ch_mutex::queue, and ch_thread::realprio.

Referenced by chMtxUnlockAll().

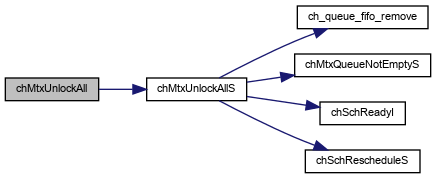

Here is the call graph for this function:

◆ chMtxUnlockAll()

void chMtxUnlockAll ( void )

Unlocks all mutexes owned by the invoking thread.

Postcondition: The stack of owned mutexes is emptied and all the found mutexes are unlocked.

Note: This function is MUCH MORE efficient than releasing the mutexes one by one and not just because the call overhead, this function does not have any overhead related to the priority inheritance mechanism.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 531 of file chmtx.c.

References chMtxUnlockAllS(), chSysLock, and chSysUnlock.

Here is the call graph for this function:

◆ chMtxQueueNotEmptyS()

static bool chMtxQueueNotEmptyS ( mutex_t * mp )

inlinestatic

Returns true if the mutex queue contains at least a waiting thread.

Parameters

[out] mp pointer to a mutex_t structure

Returns: The mutex queue status.

Function Class:: This is an S-Class API, this function can be invoked from within a system lock zone by threads only.

Definition at line 128 of file chmtx.h.

Referenced by chMtxUnlock(), and chMtxUnlockAllS().

◆ chMtxGetOwnerI()

static thread_t* chMtxGetOwnerI ( mutex_t * mp )

inlinestatic

Returns the mutex owner thread.

Parameters

[out] mp pointer to a mutex_t structure

Returns: The owner thread.

Return values

NULL	if the mutex is not owned.

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 144 of file chmtx.h.

◆ chMtxGetNextMutexX()

static mutex_t* chMtxGetNextMutexX ( void )

inlinestatic

Returns the next mutex in the mutexes stack of the current thread.

Returns: A pointer to the next mutex in the stack.

Return values

NULL	if the stack is empty.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 159 of file chmtx.h.

References chThdGetSelfX.

Referenced by chCondWaitS(), and chCondWaitTimeoutS().
