thread_descriptor_t Struct Reference

Type of a thread descriptor. More...

#include <chthreads.h>

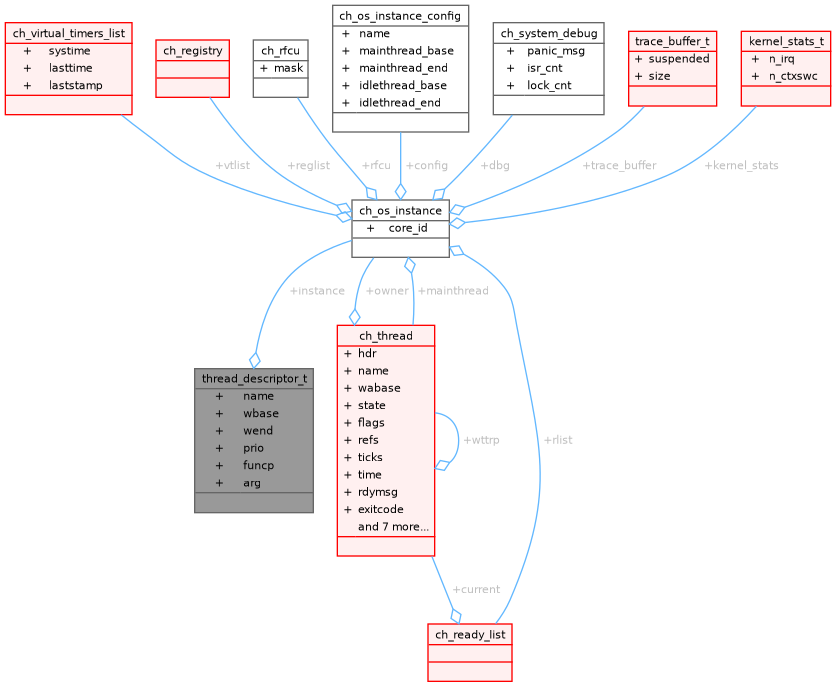

Collaboration diagram for thread_descriptor_t:

Data Fields
const char *	name
	Thread name.
stkalign_t *	wbase
	Pointer to the working area base.
stkalign_t *	wend
	Pointer to the working area end.
tprio_t	prio
	Thread priority.
tfunc_t	funcp
	Thread function pointer.
void *	arg
	Thread argument.
os_instance_t *	instance
	OS instance affinity or NULL for current one.

Detailed Description

Type of a thread descriptor.

Definition at line 56 of file chthreads.h.

Field Documentation

name

const char* thread_descriptor_t::name

Thread name.

Definition at line 60 of file chthreads.h.

Referenced by chThdCreateSuspendedI().

wbase

stkalign_t* thread_descriptor_t::wbase

Pointer to the working area base.

Definition at line 64 of file chthreads.h.

Referenced by chInstanceObjectInit(), chThdCreate(), chThdCreateI(), chThdCreateSuspended(), and chThdCreateSuspendedI().

wend

stkalign_t* thread_descriptor_t::wend

Pointer to the working area end.

Definition at line 68 of file chthreads.h.

Referenced by chInstanceObjectInit(), chThdCreate(), chThdCreateI(), chThdCreateSuspended(), and chThdCreateSuspendedI().

prio

tprio_t thread_descriptor_t::prio

Thread priority.

Definition at line 72 of file chthreads.h.

Referenced by chThdCreateI(), and chThdCreateSuspendedI().

funcp

tfunc_t thread_descriptor_t::funcp

Thread function pointer.

Definition at line 76 of file chthreads.h.

Referenced by chSysInit(), chThdCreateI(), and chThdCreateSuspendedI().

arg

void* thread_descriptor_t::arg

Thread argument.

Definition at line 80 of file chthreads.h.

Referenced by chThdCreateI(), and chThdCreateSuspendedI().

instance

os_instance_t* thread_descriptor_t::instance

OS instance affinity or NULL for current one.

Definition at line 85 of file chthreads.h.

Referenced by chThdCreateSuspendedI().
