I/O Ports Abstraction Layer. More...

Detailed Description

I/O Ports Abstraction Layer.

This module defines an abstract interface for digital I/O ports. Note that most I/O ports functions are just macros. The macros have default software implementations that can be redefined in a PAL Low Level Driver if the target hardware supports special features like, for example, atomic bit set/reset/masking. Please refer to the ports specific documentation for details.
The PAL Driver driver has the advantage to make the access to the I/O ports platform independent and still be optimized for the specific architectures.
Note that the PAL Low Level Driver may also offer non standard macro and functions in order to support specific features but, of course, the use of such interfaces would not be portable. Such interfaces shall be marked with the architecture name inside the function names.

Precondition: In order to use the PAL driver the HAL_USE_PAL option must be enabled in halconf.h.

Implementation Rules

In implementing a PAL Low Level Driver there are some rules/behaviors that should be respected.

Writing on input pads

The behavior is not specified but there are implementations better than others, this is the list of possible implementations, preferred options are on top:

The written value is not actually output but latched, should the pads be reprogrammed as outputs the value would be in effect.
The write operation is ignored.
The write operation has side effects, as example disabling/enabling pull up/down resistors or changing the pad direction. This scenario is discouraged, please try to avoid this scenario.

Reading from output pads

The behavior is not specified but there are implementations better than others, this is the list of possible implementations, preferred options are on top:

The actual pads states are read (not the output latch).
The output latch value is read (regardless of the actual pads states).
Unspecified, please try to avoid this scenario.

Writing unused or unimplemented port bits

The behavior is not specified.

Reading from unused or unimplemented port bits

The behavior is not specified.

Reading or writing on pins associated to other functionalities

The behavior is not specified.

Collaboration diagram for PAL Driver:

Pads mode constants
#define	PAL_MODE_RESET 0U
	After reset state.
#define	PAL_MODE_UNCONNECTED 1U
	Safe state for unconnected pads.
#define	PAL_MODE_INPUT 2U
	Regular input high-Z pad.
#define	PAL_MODE_INPUT_PULLUP 3U
	Input pad with weak pull up resistor.
#define	PAL_MODE_INPUT_PULLDOWN 4U
	Input pad with weak pull down resistor.
#define	PAL_MODE_INPUT_ANALOG 5U
	Analog input mode.
#define	PAL_MODE_OUTPUT_PUSHPULL 6U
	Push-pull output pad.
#define	PAL_MODE_OUTPUT_OPENDRAIN 7U
	Open-drain output pad.

Logic level constants
#define	PAL_LOW 0U
	Logical low state.
#define	PAL_HIGH 1U
	Logical high state.

PAL event modes
#define	PAL_EVENT_MODE_EDGES_MASK 3U
	Mask of edges field.
#define	PAL_EVENT_MODE_DISABLED 0U
	Channel disabled.
#define	PAL_EVENT_MODE_RISING_EDGE 1U
	Rising edge callback.
#define	PAL_EVENT_MODE_FALLING_EDGE 2U
	Falling edge callback.
#define	PAL_EVENT_MODE_BOTH_EDGES 3U
	Both edges callback.

PAL configuration options
#define	PAL_USE_CALLBACKS TRUE
	Enables synchronous APIs.
#define	PAL_USE_WAIT TRUE
	Enables synchronous APIs.

Low level driver helper macros
#define	_pal_init_event(e)
	Initializes a PAL event object.
#define	_pal_init_event(e)
	Initializes a PAL event object.
#define	_pal_init_event(e)
	Initializes a PAL event object.
#define	_pal_clear_event(e)
	Clears a PAL event object.
#define	_pal_clear_event(e)
	Clears a PAL event object.
#define	_pal_clear_event(e)
	Clears a PAL event object.
#define	_pal_isr_code(e)
	Common ISR code.
#define	_pal_isr_code(e)
	Common ISR code.
#define	_pal_isr_code(e)
	Common ISR code.

Macro Functions
#define	palInit()
	PAL subsystem initialization.
#define	palReadPort(port)
	Reads the physical I/O port states.
#define	palReadLatch(port)
	Reads the output latch.
#define	palWritePort(port, bits)
	Writes a bits mask on a I/O port.
#define	palSetPort(port, bits)
	Sets a bits mask on a I/O port.
#define	palClearPort(port, bits)
	Clears a bits mask on a I/O port.
#define	palTogglePort(port, bits)
	Toggles a bits mask on a I/O port.
#define	palReadGroup(port, mask, offset)
	Reads a group of bits.
#define	palReadGroupLatch(port, mask, offset)
	Reads the group latch.
#define	palWriteGroup(port, mask, offset, bits)
	Writes a group of bits.
#define	palSetGroupMode(port, mask, offset, mode)
	Pads group mode setup.
#define	palReadPad(port, pad)
	Reads an input pad logic state.
#define	palWritePad(port, pad, bit)
	Writes a logic state on an output pad.
#define	palSetPad(port, pad)
	Sets a pad logic state to `PAL_HIGH`.
#define	palClearPad(port, pad)
	Clears a pad logic state to `PAL_LOW`.
#define	palTogglePad(port, pad)
	Toggles a pad logic state.
#define	palSetPadMode(port, pad, mode)
	Pad mode setup.
#define	palReadLine(line)
	Reads an input line logic state.
#define	palWriteLine(line, bit)
	Writes a logic state on an output line.
#define	palSetLine(line)
	Sets a line logic state to `PAL_HIGH`.
#define	palClearLine(line)
	Clears a line logic state to `PAL_LOW`.
#define	palToggleLine(line)
	Toggles a line logic state.
#define	palSetLineMode(line, mode)
	Line mode setup.
#define	palEnablePadEventI(port, pad, mode)
	Pad event enable.
#define	palDisablePadEventI(port, pad)
	Pad event disable.
#define	palEnablePadEvent(port, pad, mode)
	Pad event enable.
#define	palDisablePadEvent(port, pad)
	Pad event disable.
#define	palEnableLineEventI(line, mode)
	Line event enable.
#define	palDisableLineEventI(line)
	Line event disable.
#define	palEnableLineEvent(line, mode)
	Line event enable.
#define	palDisableLineEvent(line)
	Line event disable.
#define	palIsPadEventEnabledX(port, pad)
	Pad event enable check.
#define	palIsLineEventEnabledX(line)
	Line event enable check.
#define	palSetPadCallback(port, pad, cb, arg)
	Associates a callback to a pad.
#define	palSetLineCallback(line, cb, arg)
	Associates a callback to a line.

Port related definitions
#define	PAL_IOPORTS_WIDTH 16U
	Width, in bits, of an I/O port.
#define	PAL_WHOLE_PORT ((ioportmask_t)0xFFFFU)
	Whole port mask.

Line handling macros
#define	PAL_LINE(port, pad)
	Forms a line identifier.
#define	PAL_PORT(line)
	Decodes a port identifier from a line identifier.
#define	PAL_PAD(line)
	Decodes a pad identifier from a line identifier.
#define	PAL_NOLINE 0U
	Value identifying an invalid line.

Data Structures
struct	palevent_t
	Type of a PAL event record. More...
struct	IOBus
	I/O bus descriptor. More...
struct	PALConfig
	Generic I/O ports static initializer. More...

Macros
#define	PAL_PORT_BIT(n)
	Port bit helper macro.
#define	PAL_GROUP_MASK(width)
	Bits group mask helper.
#define	_IOBUS_DATA(name, port, width, offset)
	Data part of a static I/O bus initializer.
#define	IOBUS_DECL(name, port, width, offset)
	Static I/O bus initializer.
#define	PAL_NEW_INIT
#define	IOPORT1 0
	First I/O port identifier.
#define	pal_lld_init()
	Low level PAL subsystem initialization.
#define	pal_lld_readport(port)
	Reads the physical I/O port states.
#define	pal_lld_readlatch(port)
	Reads the output latch.
#define	pal_lld_writeport(port, bits)
	Writes a bits mask on a I/O port.
#define	pal_lld_setport(port, bits)
	Sets a bits mask on a I/O port.
#define	pal_lld_clearport(port, bits)
	Clears a bits mask on a I/O port.
#define	pal_lld_toggleport(port, bits)
	Toggles a bits mask on a I/O port.
#define	pal_lld_readgroup(port, mask, offset)
	Reads a group of bits.
#define	pal_lld_writegroup(port, mask, offset, bits)
	Writes a group of bits.
#define	pal_lld_setgroupmode(port, mask, offset, mode)
	Pads group mode setup.
#define	pal_lld_readpad(port, pad)
	Reads a logical state from an I/O pad.
#define	pal_lld_writepad(port, pad, bit)
	Writes a logical state on an output pad.
#define	pal_lld_setpad(port, pad)
	Sets a pad logical state to `PAL_HIGH`.
#define	pal_lld_clearpad(port, pad)
	Clears a pad logical state to `PAL_LOW`.
#define	pal_lld_togglepad(port, pad)
	Toggles a pad logical state.
#define	pal_lld_setpadmode(port, pad, mode)
	Pad mode setup.
#define	pal_lld_get_pad_event(port, pad)
	Returns a PAL event structure associated to a pad.
#define	pal_lld_get_line_event(line)
	Returns a PAL event structure associated to a line.

Typedefs
typedef void(*	palcallback_t) (void *arg)
	Type of a PAL event callback.
typedef uint32_t	ioportmask_t
	Digital I/O port sized unsigned type.
typedef uint32_t	iomode_t
	Digital I/O modes.
typedef uint32_t	ioline_t
	Type of an I/O line.
typedef uint32_t	ioportid_t
	Port Identifier.
typedef uint32_t	iopadid_t
	Type of an pad identifier.

Functions
ioportmask_t	palReadBus (const IOBus *bus)
	Read from an I/O bus.
void	palWriteBus (const IOBus *bus, ioportmask_t bits)
	Write to an I/O bus.
void	palSetBusMode (const IOBus *bus, iomode_t mode)
	Programs a bus with the specified mode.
void	palSetPadCallbackI (ioportid_t port, iopadid_t pad, palcallback_t cb, void *arg)
	Associates a callback to a port/pad.
void	palSetLineCallbackI (ioline_t line, palcallback_t cb, void *arg)
	Associates a callback to a line.
msg_t	palWaitPadTimeoutS (ioportid_t port, iopadid_t pad, sysinterval_t timeout)
	Waits for an edge on the specified port/pad.
msg_t	palWaitPadTimeout (ioportid_t port, iopadid_t pad, sysinterval_t timeout)
	Waits for an edge on the specified port/pad.
msg_t	palWaitLineTimeoutS (ioline_t line, sysinterval_t timeout)
	Waits for an edge on the specified line.

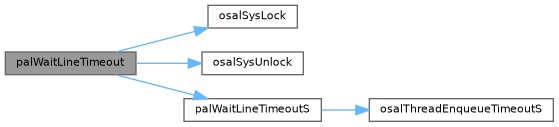

msg_t	palWaitLineTimeout (ioline_t line, sysinterval_t timeout)
	Waits for an edge on the specified line.
void	_pal_lld_init (void)
	STM32 I/O ports configuration.
void	_pal_lld_setgroupmode (ioportid_t port, ioportmask_t mask, iomode_t mode)
	Pads mode setup.

Macro Definition Documentation

◆ PAL_MODE_RESET

#define PAL_MODE_RESET 0U

After reset state.

The state itself is not specified and is architecture dependent, it is guaranteed to be equal to the after-reset state. It is usually an input state.

Definition at line 44 of file hal_pal.h.

◆ PAL_MODE_UNCONNECTED

#define PAL_MODE_UNCONNECTED 1U

Safe state for unconnected pads.

The state itself is not specified and is architecture dependent, it may be mapped on PAL_MODE_INPUT_PULLUP, PAL_MODE_INPUT_PULLDOWN or PAL_MODE_OUTPUT_PUSHPULL for example.

Definition at line 53 of file hal_pal.h.

◆ PAL_MODE_INPUT

#define PAL_MODE_INPUT 2U

Regular input high-Z pad.

Definition at line 58 of file hal_pal.h.

◆ PAL_MODE_INPUT_PULLUP

#define PAL_MODE_INPUT_PULLUP 3U

Input pad with weak pull up resistor.

Definition at line 63 of file hal_pal.h.

◆ PAL_MODE_INPUT_PULLDOWN

#define PAL_MODE_INPUT_PULLDOWN 4U

Input pad with weak pull down resistor.

Definition at line 68 of file hal_pal.h.

◆ PAL_MODE_INPUT_ANALOG

#define PAL_MODE_INPUT_ANALOG 5U

Analog input mode.

Definition at line 73 of file hal_pal.h.

◆ PAL_MODE_OUTPUT_PUSHPULL

#define PAL_MODE_OUTPUT_PUSHPULL 6U

Push-pull output pad.

Definition at line 78 of file hal_pal.h.

◆ PAL_MODE_OUTPUT_OPENDRAIN

#define PAL_MODE_OUTPUT_OPENDRAIN 7U

Open-drain output pad.

Definition at line 83 of file hal_pal.h.

◆ PAL_LOW

#define PAL_LOW 0U

Logical low state.

Definition at line 93 of file hal_pal.h.

◆ PAL_HIGH

#define PAL_HIGH 1U

Logical high state.

Definition at line 98 of file hal_pal.h.

◆ PAL_EVENT_MODE_EDGES_MASK

#define PAL_EVENT_MODE_EDGES_MASK 3U

Mask of edges field.

Definition at line 105 of file hal_pal.h.

◆ PAL_EVENT_MODE_DISABLED

#define PAL_EVENT_MODE_DISABLED 0U

Channel disabled.

Definition at line 106 of file hal_pal.h.

◆ PAL_EVENT_MODE_RISING_EDGE

#define PAL_EVENT_MODE_RISING_EDGE 1U

Rising edge callback.

Definition at line 107 of file hal_pal.h.

◆ PAL_EVENT_MODE_FALLING_EDGE

#define PAL_EVENT_MODE_FALLING_EDGE 2U

Falling edge callback.

Definition at line 108 of file hal_pal.h.

◆ PAL_EVENT_MODE_BOTH_EDGES

#define PAL_EVENT_MODE_BOTH_EDGES 3U

Both edges callback.

Definition at line 109 of file hal_pal.h.

◆ PAL_USE_CALLBACKS

#define PAL_USE_CALLBACKS TRUE

Enables synchronous APIs.

Note: Disabling this option saves both code and data space.

Definition at line 125 of file hal_pal.h.

◆ PAL_USE_WAIT

#define PAL_USE_WAIT TRUE

Enables synchronous APIs.

Note: Disabling this option saves both code and data space.

Definition at line 133 of file hal_pal.h.

◆ PAL_PORT_BIT

#define PAL_PORT_BIT ( n )

Value:

((ioportmask_t)(1U << (n)))

ioportmask_t

uint32_t ioportmask_t

Digital I/O port sized unsigned type.

Definition hal_pal_lld.h:104

Port bit helper macro.

This macro calculates the mask of a bit within a port.

Parameters

[in] n bit position within the port

Returns: The bit mask.

Definition at line 212 of file hal_pal.h.

◆ PAL_GROUP_MASK

#define PAL_GROUP_MASK ( width )

Value:

((ioportmask_t)(1U << (width)) - 1U)

Bits group mask helper.

This macro calculates the mask of a bits group.

Parameters

[in] width group width

Returns: The group mask.

Definition at line 223 of file hal_pal.h.

◆ _IOBUS_DATA

#define _IOBUS_DATA	(	name,
		port,
		width,
		offset )

Value:

{port, PAL_GROUP_MASK(width), offset}

PAL_GROUP_MASK

#define PAL_GROUP_MASK(width)

Bits group mask helper.

Definition hal_pal.h:223

Data part of a static I/O bus initializer.

This macro should be used when statically initializing an I/O bus that is part of a bigger structure.

Parameters

[in]	name	name of the IOBus variable
[in]	port	I/O port descriptor
[in]	width	bus width in bits
[in]	offset	bus bit offset within the port

Definition at line 236 of file hal_pal.h.

◆ IOBUS_DECL

#define IOBUS_DECL	(	name,
		port,
		width,
		offset )

Value:

IOBus name = _IOBUS_DATA(name, port, width, offset)

_IOBUS_DATA

#define _IOBUS_DATA(name, port, width, offset)

Data part of a static I/O bus initializer.

Definition hal_pal.h:236

IOBus

I/O bus descriptor.

Definition hal_pal.h:183

Static I/O bus initializer.

Parameters

[in]	name	name of the IOBus variable
[in]	port	I/O port descriptor
[in]	width	bus width in bits
[in]	offset	bus bit offset within the port

Definition at line 247 of file hal_pal.h.

◆ _pal_init_event [1/3]

#define _pal_init_event ( e )

Value:

  do {                                                                      \
    osalThreadQueueObjectInit(&_pal_events[e].threads);                     \
    _pal_events[e].cb = NULL;                                               \
    _pal_events[e].arg = NULL;                                              \
  } while (false)

Initializes a PAL event object.

Parameters

[in] e event index

Function Class:: Not an API, this function is for internal use only.

Definition at line 265 of file hal_pal.h.

◆ _pal_init_event [2/3]

#define _pal_init_event ( e )

Value:

  do {                                                                      \
    _pal_events[e].cb = NULL;                                               \
    _pal_events[e].arg = NULL;                                              \
  } while (false)

Initializes a PAL event object.

Parameters

[in] e event index

Function Class:: Not an API, this function is for internal use only.

Definition at line 265 of file hal_pal.h.

◆ _pal_init_event [3/3]

#define _pal_init_event ( e )

Value:

  do {                                                                      \
    osalThreadQueueObjectInit(&_pal_events[e].threads);                     \
  } while (false)

Initializes a PAL event object.

Parameters

[in] e event index

Function Class:: Not an API, this function is for internal use only.

Definition at line 265 of file hal_pal.h.

◆ _pal_clear_event [1/3]

#define _pal_clear_event ( e )

Value:

  do {                                                                      \
    osalThreadDequeueAllI(&_pal_events[pad].threads, MSG_RESET);            \
    _pal_events[e].cb = NULL;                                               \
    _pal_events[e].arg = NULL;                                              \
  } while (false)

Clears a PAL event object.

Parameters

[in] e event index

Function Class:: Not an API, this function is for internal use only.

Definition at line 296 of file hal_pal.h.

◆ _pal_clear_event [2/3]

#define _pal_clear_event ( e )

Value:

  do {                                                                      \
    _pal_events[e].cb = NULL;                                               \
    _pal_events[e].arg = NULL;                                              \
  } while (false)

Clears a PAL event object.

Parameters

[in] e event index

Function Class:: Not an API, this function is for internal use only.

Definition at line 296 of file hal_pal.h.

◆ _pal_clear_event [3/3]

#define _pal_clear_event ( e )

Value:

  do {                                                                      \
    osalThreadDequeueAllI(&_pal_events[pad].threads, MSG_RESET);            \
  } while (false)

Clears a PAL event object.

Parameters

[in] e event index

Function Class:: Not an API, this function is for internal use only.

Definition at line 296 of file hal_pal.h.

◆ _pal_isr_code [1/3]

#define _pal_isr_code ( e )

Value:

  do {                                                                      \
    if (_pal_events[e].cb != NULL) {                                        \
      _pal_events[e].cb(_pal_events[e].arg);                                \
    }                                                                       \
    osalSysLockFromISR();                                                   \
    osalThreadDequeueAllI(&_pal_events[e].threads, MSG_OK);                 \
    osalSysUnlockFromISR();                                                 \
  } while (false)

Common ISR code.

Note: This macro is meant to be used in the low level drivers implementation only.

Parameters

[in] e event index

Function Class:: Not an API, this function is for internal use only.

Definition at line 330 of file hal_pal.h.

◆ _pal_isr_code [2/3]

#define _pal_isr_code ( e )

Value:

  do {                                                                      \
    if (_pal_events[e].cb != NULL) {                                        \
      _pal_events[e].cb(_pal_events[e].arg);                                \
    }                                                                       \
  } while (false)

Common ISR code.

Note: This macro is meant to be used in the low level drivers implementation only.

Parameters

[in] e event index

Function Class:: Not an API, this function is for internal use only.

Definition at line 330 of file hal_pal.h.

◆ _pal_isr_code [3/3]

#define _pal_isr_code ( e )

Value:

  do {                                                                      \
    osalSysLockFromISR();                                                   \
    osalThreadDequeueAllI(&_pal_events[e].threads, MSG_OK);                 \
    osalSysUnlockFromISR();                                                 \
  } while (false)

Common ISR code.

Note: This macro is meant to be used in the low level drivers implementation only.

Parameters

[in] e event index

Function Class:: Not an API, this function is for internal use only.

Definition at line 330 of file hal_pal.h.

◆ palInit

#define palInit ( )

Value:

pal_lld_init()

pal_lld_init

#define pal_lld_init()

Low level PAL subsystem initialization.

Definition hal_pal_lld.h:150

PAL subsystem initialization.

Note: This function is implicitly invoked by halInit(), there is no need to explicitly initialize the driver.

Function Class:: Object or module nitializer function.

Definition at line 375 of file hal_pal.h.

Referenced by halInit().

◆ palReadPort

#define palReadPort ( port )

Value:

((void)(port), 0U)

Reads the physical I/O port states.

Note: The function can be called from any context.

Parameters

[in] port port identifier

Returns: The port logic states.

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 390 of file hal_pal.h.

◆ palReadLatch

#define palReadLatch ( port )

Value:

((void)(port), 0U)

Reads the output latch.

The purpose of this function is to read back the latched output value.

Note: The function can be called from any context.

Parameters

[in] port port identifier

Returns: The latched logic states.

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 407 of file hal_pal.h.

◆ palWritePort

#define palWritePort	(		port,
			bits )

Value:

((void)(port), (void)(bits))

Writes a bits mask on a I/O port.

Note: The function can be called from any context.

Parameters

[in]	port	port identifier
[in]	bits	bits to be written on the specified port

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 422 of file hal_pal.h.

◆ palSetPort

#define palSetPort	(		port,
			bits )

Value:

palWritePort(port, palReadLatch(port) | (bits))

palReadLatch

#define palReadLatch(port)

Reads the output latch.

Definition hal_pal.h:407

palWritePort

#define palWritePort(port, bits)

Writes a bits mask on a I/O port.

Definition hal_pal.h:422

Sets a bits mask on a I/O port.

Note: The operation is not guaranteed to be atomic on all the architectures, for atomicity and/or portability reasons you may need to enclose port I/O operations between osalSysLock() and osalSysUnlock().; The function can be called from any context.

Parameters

[in]	port	port identifier
[in]	bits	bits to be ORed on the specified port

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 441 of file hal_pal.h.

◆ palClearPort

#define palClearPort	(		port,
			bits )

Value:

palWritePort(port, palReadLatch(port) & ~(bits))

Clears a bits mask on a I/O port.

Note: The operation is not guaranteed to be atomic on all the architectures, for atomicity and/or portability reasons you may need to enclose port I/O operations between osalSysLock() and osalSysUnlock().; The function can be called from any context.

Parameters

[in]	port	port identifier
[in]	bits	bits to be cleared on the specified port

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 461 of file hal_pal.h.

◆ palTogglePort

#define palTogglePort	(		port,
			bits )

Value:

palWritePort(port, palReadLatch(port) ^ (bits))

Toggles a bits mask on a I/O port.

Note: The operation is not guaranteed to be atomic on all the architectures, for atomicity and/or portability reasons you may need to enclose port I/O operations between osalSysLock() and osalSysUnlock().; The function can be called from any context.

Parameters

[in]	port	port identifier
[in]	bits	bits to be XORed on the specified port

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 481 of file hal_pal.h.

◆ palReadGroup

#define palReadGroup	(	port,
		mask,
		offset )

Value:

((palReadPort(port) >> (offset)) & (mask))

palReadPort

#define palReadPort(port)

Reads the physical I/O port states.

Definition hal_pal.h:390

Reads a group of bits.

Note: The function can be called from any context.

Parameters

[in]	port	port identifier
[in]	mask	group mask, a logic AND is performed on the input data
[in]	offset	group bit offset within the port

Returns: The group logic states.

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 500 of file hal_pal.h.

Referenced by palReadBus().

◆ palReadGroupLatch

#define palReadGroupLatch	(	port,
		mask,
		offset )

Value:

((palReadLatch(port) >> (offset)) & (mask))

Reads the group latch.

Note: The function can be called from any context.

Parameters

[in]	port	port identifier
[in]	mask	group mask, a logic AND is performed on the input data
[in]	offset	group bit offset within the port

Returns: The group logic states.

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 519 of file hal_pal.h.

◆ palWriteGroup

#define palWriteGroup	(	port,
		mask,
		offset,
		bits )

Value:

palWritePort(port, (palReadLatch(port) & ~((mask) << (offset))) | \

(((bits) & (mask)) << (offset)))

Writes a group of bits.

Note: The operation is not guaranteed to be atomic on all the architectures, for atomicity and/or portability reasons you may need to enclose port I/O operations between osalSysLock() and osalSysUnlock().; The function can be called from any context.

Parameters

[in]	port	port identifier
[in]	mask	group mask, a logic AND is performed on the output data
[in]	offset	group bit offset within the port
[in]	bits	bits to be written. Values exceeding the group width are masked.

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 543 of file hal_pal.h.

Referenced by palWriteBus().

◆ palSetGroupMode

#define palSetGroupMode	(	port,
		mask,
		offset,
		mode )

Value:

  do {                                                                      \
    (void)(port);                                                           \
    (void)(mask);                                                           \
    (void)(offset);                                                         \
    (void)(port);                                                           \
  } while (mode)

Pads group mode setup.

This function programs a pads group belonging to the same port with the specified mode.

Note: The operation is not guaranteed to be atomic on all the architectures, for atomicity and/or portability reasons you may need to enclose port I/O operations between osalSysLock() and osalSysUnlock().; Programming an unknown or unsupported mode is silently ignored.; The function can be called from any context.

Parameters

[in]	port	port identifier
[in]	mask	group mask
[in]	offset	group bit offset within the port
[in]	mode	group mode

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 570 of file hal_pal.h.

Referenced by palSetBusMode().

◆ palReadPad

#define palReadPad	(		port,
			pad )

Value:

((palReadPort(port) >> (pad)) & 1U)

Reads an input pad logic state.

Note: The function can be called from any context.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port

Returns: The logic state.

Return values

PAL_LOW	low logic state.
PAL_HIGH	high logic state.

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 595 of file hal_pal.h.

◆ palWritePad

#define palWritePad	(	port,
		pad,
		bit )

Value:

palWritePort(port, (palReadLatch(port) & ~PAL_PORT_BIT(pad)) | \

(((bit) & 1U) << pad))

PAL_PORT_BIT

#define PAL_PORT_BIT(n)

Port bit helper macro.

Definition hal_pal.h:212

Writes a logic state on an output pad.

Note: The operation is not guaranteed to be atomic on all the architectures, for atomicity and/or portability reasons you may need to enclose port I/O operations between osalSysLock() and osalSysUnlock().; The function can be called from any context.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port
[in]	bit	logic value, the value must be `PAL_LOW` or `PAL_HIGH`

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 616 of file hal_pal.h.

◆ palSetPad

#define palSetPad	(		port,
			pad )

Value:

palSetPort(port, PAL_PORT_BIT(pad))

palSetPort

#define palSetPort(port, bits)

Sets a bits mask on a I/O port.

Definition hal_pal.h:441

Sets a pad logic state to PAL_HIGH.

Note: The operation is not guaranteed to be atomic on all the architectures, for atomicity and/or portability reasons you may need to enclose port I/O operations between osalSysLock() and osalSysUnlock().; The function can be called from any context.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 637 of file hal_pal.h.

◆ palClearPad

#define palClearPad	(		port,
			pad )

Value:

palClearPort(port, PAL_PORT_BIT(pad))

palClearPort

#define palClearPort(port, bits)

Clears a bits mask on a I/O port.

Definition hal_pal.h:461

Clears a pad logic state to PAL_LOW.

Note: The operation is not guaranteed to be atomic on all the architectures, for atomicity and/or portability reasons you may need to enclose port I/O operations between osalSysLock() and osalSysUnlock().; The function can be called from any context.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 656 of file hal_pal.h.

◆ palTogglePad

#define palTogglePad	(		port,
			pad )

Value:

palTogglePort(port, PAL_PORT_BIT(pad))

palTogglePort

#define palTogglePort(port, bits)

Toggles a bits mask on a I/O port.

Definition hal_pal.h:481

Toggles a pad logic state.

Note: The operation is not guaranteed to be atomic on all the architectures, for atomicity and/or portability reasons you may need to enclose port I/O operations between osalSysLock() and osalSysUnlock().; The function can be called from any context.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 675 of file hal_pal.h.

◆ palSetPadMode

#define palSetPadMode	(	port,
		pad,
		mode )

Value:

palSetGroupMode(port, PAL_PORT_BIT(pad), 0U, mode)

palSetGroupMode

#define palSetGroupMode(port, mask, offset, mode)

Pads group mode setup.

Definition hal_pal.h:570

Pad mode setup.

This function programs a pad with the specified mode.

Note: The operation is not guaranteed to be atomic on all the architectures, for atomicity and/or portability reasons you may need to enclose port I/O operations between osalSysLock() and osalSysUnlock().; Programming an unknown or unsupported mode is silently ignored.; The function can be called from any context.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port
[in]	mode	pad mode

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 697 of file hal_pal.h.

◆ palReadLine

#define palReadLine ( line )

Value:

palReadPad(PAL_PORT(line), PAL_PAD(line))

palReadPad

#define palReadPad(port, pad)

Reads an input pad logic state.

Definition hal_pal.h:595

PAL_PORT

#define PAL_PORT(line)

Decodes a port identifier from a line identifier.

Definition hal_pal_lld.h:73

PAL_PAD

#define PAL_PAD(line)

Decodes a pad identifier from a line identifier.

Definition hal_pal_lld.h:79

Reads an input line logic state.

Note: The function can be called from any context.

Parameters

[in] line line identifier

Returns: The logic state.

Return values

PAL_LOW	low logic state.
PAL_HIGH	high logic state.

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 715 of file hal_pal.h.

◆ palWriteLine

#define palWriteLine	(		line,
			bit )

Value:

palWritePad(PAL_PORT(line), PAL_PAD(line), bit)

palWritePad

#define palWritePad(port, pad, bit)

Writes a logic state on an output pad.

Definition hal_pal.h:616

Writes a logic state on an output line.

Note: The operation is not guaranteed to be atomic on all the architectures, for atomicity and/or portability reasons you may need to enclose port I/O operations between osalSysLock() and osalSysUnlock().; The function can be called from any context.

Parameters

[in]	line	line identifier
[in]	bit	logic value, the value must be `PAL_LOW` or `PAL_HIGH`

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 735 of file hal_pal.h.

◆ palSetLine

#define palSetLine ( line )

Value:

palSetPad(PAL_PORT(line), PAL_PAD(line))

palSetPad

#define palSetPad(port, pad)

Sets a pad logic state to PAL_HIGH.

Definition hal_pal.h:637

Sets a line logic state to PAL_HIGH.

Note: The operation is not guaranteed to be atomic on all the architectures, for atomicity and/or portability reasons you may need to enclose port I/O operations between osalSysLock() and osalSysUnlock().; The function can be called from any context.

Parameters

[in] line line identifier

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 753 of file hal_pal.h.

◆ palClearLine

#define palClearLine ( line )

Value:

palClearPad(PAL_PORT(line), PAL_PAD(line))

palClearPad

#define palClearPad(port, pad)

Clears a pad logic state to PAL_LOW.

Definition hal_pal.h:656

Clears a line logic state to PAL_LOW.

Note: The operation is not guaranteed to be atomic on all the architectures, for atomicity and/or portability reasons you may need to enclose port I/O operations between osalSysLock() and osalSysUnlock().; The function can be called from any context.

Parameters

[in] line line identifier

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 771 of file hal_pal.h.

◆ palToggleLine

#define palToggleLine ( line )

Value:

palTogglePad(PAL_PORT(line), PAL_PAD(line))

palTogglePad

#define palTogglePad(port, pad)

Toggles a pad logic state.

Definition hal_pal.h:675

Toggles a line logic state.

Note: The operation is not guaranteed to be atomic on all the architectures, for atomicity and/or portability reasons you may need to enclose port I/O operations between osalSysLock() and osalSysUnlock().; The function can be called from any context.

Parameters

[in] line line identifier

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 789 of file hal_pal.h.

◆ palSetLineMode

#define palSetLineMode	(		line,
			mode )

Value:

palSetPadMode(PAL_PORT(line), PAL_PAD(line), mode)

palSetPadMode

#define palSetPadMode(port, pad, mode)

Pad mode setup.

Definition hal_pal.h:697

Line mode setup.

Note: The operation is not guaranteed to be atomic on all the architectures, for atomicity and/or portability reasons you may need to enclose port I/O operations between osalSysLock() and osalSysUnlock().; The function can be called from any context.

Parameters

[in]	line	line identifier
[in]	mode	pad mode

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 808 of file hal_pal.h.

◆ palEnablePadEventI

#define palEnablePadEventI	(	port,
		pad,
		mode )

Pad event enable.

Note: Programming an unknown or unsupported mode is silently ignored.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port
[in]	mode	pad event mode

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 827 of file hal_pal.h.

◆ palDisablePadEventI

#define palDisablePadEventI	(		port,
			pad )

Pad event disable.

This function also disables previously programmed event callbacks.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 843 of file hal_pal.h.

◆ palEnablePadEvent

#define palEnablePadEvent	(	port,
		pad,
		mode )

Value:

  do {                                                                      \
    osalSysLock();                                                          \
    palEnablePadEventI(port, pad, mode);                                    \
    osalSysUnlock();                                                        \
  } while (false)

Pad event enable.

Note: Programming an unknown or unsupported mode is silently ignored.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port
[in]	mode	pad event mode

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 859 of file hal_pal.h.

◆ palDisablePadEvent

#define palDisablePadEvent	(		port,
			pad )

Value:

  do {                                                                      \
    osalSysLock();                                                          \
    palDisablePadEventI(port, pad);                                         \
    osalSysUnlock();                                                        \
  } while (false)

Pad event disable.

This function also disables previously programmed event callbacks.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 875 of file hal_pal.h.

◆ palEnableLineEventI

#define palEnableLineEventI	(		line,
			mode )

Value:

palEnablePadEventI(PAL_PORT(line), PAL_PAD(line), mode)

palEnablePadEventI

#define palEnablePadEventI(port, pad, mode)

Pad event enable.

Definition hal_pal.h:827

Line event enable.

Note: Programming an unknown or unsupported mode is silently ignored.

Parameters

[in]	line	line identifier
[in]	mode	line event mode

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 892 of file hal_pal.h.

◆ palDisableLineEventI

#define palDisableLineEventI ( line )

Value:

palDisablePadEventI(PAL_PORT(line), PAL_PAD(line))

palDisablePadEventI

#define palDisablePadEventI(port, pad)

Pad event disable.

Definition hal_pal.h:843

Line event disable.

This function also disables previously programmed event callbacks.

Parameters

[in] line line identifier

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 908 of file hal_pal.h.

◆ palEnableLineEvent

#define palEnableLineEvent	(		line,
			mode )

Value:

  do {                                                                      \
    osalSysLock();                                                          \
    palEnableLineEventI(line, mode);                                        \
    osalSysUnlock();                                                        \
  } while (false)

Line event enable.

Note: Programming an unknown or unsupported mode is silently ignored.

Parameters

[in]	line	line identifier
[in]	mode	line event mode

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 923 of file hal_pal.h.

◆ palDisableLineEvent

#define palDisableLineEvent ( line )

Value:

  do {                                                                      \
    osalSysLock();                                                          \
    palDisableLineEventI(line);                                             \
    osalSysUnlock();                                                        \
  } while (false)

Line event disable.

This function also disables previously programmed event callbacks.

Parameters

[in] line line identifier

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 938 of file hal_pal.h.

◆ palIsPadEventEnabledX

#define palIsPadEventEnabledX	(		port,
			pad )

Value:

false

Pad event enable check.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port

Returns: Pad event status.

Return values

false	if the pad event is disabled.
true	if the pad event is enabled.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 957 of file hal_pal.h.

◆ palIsLineEventEnabledX

#define palIsLineEventEnabledX ( line )

Value:

pal_lld_ispadeventenabled(PAL_PORT(line), PAL_PAD(line))

Line event enable check.

Parameters

[in] line line identifier

Returns: Line event status.

Return values

false	if the line event is disabled.
true	if the line event is enabled.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 974 of file hal_pal.h.

◆ palSetPadCallback

#define palSetPadCallback	(	port,
		pad,
		cb,
		arg )

Value:

  do {                                                                      \
    osalSysLock();                                                          \
    palSetPadCallbackI(port, pad, cb, arg);                                 \
    osalSysUnlock();                                                        \
  } while (false)

Associates a callback to a pad.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port
[in]	cb	event callback function
[in]	arg	callback argument

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 994 of file hal_pal.h.

◆ palSetLineCallback

#define palSetLineCallback	(	line,
		cb,
		arg )

Value:

  do {                                                                      \
    osalSysLock();                                                          \
    palSetLineCallbackI(line, cb, arg);                                     \
    osalSysUnlock();                                                        \
  } while (false)

Associates a callback to a line.

Parameters

[in]	line	line identifier
[in]	cb	event callback function
[in]	arg	callback argument

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 1010 of file hal_pal.h.

◆ PAL_NEW_INIT

#define PAL_NEW_INIT

Definition at line 36 of file hal_pal_lld.h.

◆ PAL_IOPORTS_WIDTH

#define PAL_IOPORTS_WIDTH 16U

Width, in bits, of an I/O port.

Definition at line 49 of file hal_pal_lld.h.

Referenced by palReadBus(), palSetBusMode(), and palWriteBus().

◆ PAL_WHOLE_PORT

#define PAL_WHOLE_PORT ((ioportmask_t)0xFFFFU)

Whole port mask.

This macro specifies all the valid bits into a port.

Definition at line 55 of file hal_pal_lld.h.

◆ PAL_LINE

#define PAL_LINE	(		port,
			pad )

Value:

((ioline_t)((uint32_t)(port)) | ((uint32_t)(pad)))

ioline_t

uint32_t ioline_t

Type of an I/O line.

Definition hal_pal_lld.h:114

Forms a line identifier.

A port/pad pair are encoded into an ioline_t type. The encoding of this type is platform-dependent.

Definition at line 67 of file hal_pal_lld.h.

◆ PAL_PORT

#define PAL_PORT ( line )

Value:

((stm32_gpio_t *)(((uint32_t)(line)) & 0xFFFFFFF0U))

Decodes a port identifier from a line identifier.

Definition at line 73 of file hal_pal_lld.h.

◆ PAL_PAD

#define PAL_PAD ( line )

Value:

((uint32_t)((uint32_t)(line) & 0x0000000FU))

Decodes a pad identifier from a line identifier.

Definition at line 79 of file hal_pal_lld.h.

◆ PAL_NOLINE

#define PAL_NOLINE 0U

Value identifying an invalid line.

Definition at line 85 of file hal_pal_lld.h.

◆ IOPORT1

#define IOPORT1 0

First I/O port identifier.

Low level drivers can define multiple ports, it is suggested to use this naming convention.

Definition at line 138 of file hal_pal_lld.h.

◆ pal_lld_init

#define pal_lld_init ( )

Value:

_pal_lld_init()

_pal_lld_init

void _pal_lld_init(void)

STM32 I/O ports configuration.

Definition hal_pal_lld.c:58

Low level PAL subsystem initialization.

Function Class:: Not an API, this function is for internal use only.

Definition at line 150 of file hal_pal_lld.h.

◆ pal_lld_readport

#define pal_lld_readport ( port )

Value:

0U

Reads the physical I/O port states.

Parameters

[in] port port identifier

Returns: The port bits.

Function Class:: Not an API, this function is for internal use only.

Definition at line 160 of file hal_pal_lld.h.

◆ pal_lld_readlatch

#define pal_lld_readlatch ( port )

Value:

0U

Reads the output latch.

The purpose of this function is to read back the latched output value.

Parameters

[in] port port identifier

Returns: The latched logical states.

Function Class:: Not an API, this function is for internal use only.

Definition at line 172 of file hal_pal_lld.h.

◆ pal_lld_writeport

#define pal_lld_writeport	(		port,
			bits )

Value:

  do {                                                                      \
    (void)port;                                                             \
    (void)bits;                                                             \
  } while (false)

Writes a bits mask on a I/O port.

Parameters

[in]	port	port identifier
[in]	bits	bits to be written on the specified port

Function Class:: Not an API, this function is for internal use only.

Definition at line 182 of file hal_pal_lld.h.

◆ pal_lld_setport

#define pal_lld_setport	(		port,
			bits )

Value:

  do {                                                                      \
    (void)port;                                                             \
    (void)bits;                                                             \
  } while (false)

Sets a bits mask on a I/O port.

Note: The PAL Driver provides a default software implementation of this functionality, implement this function if can optimize it by using special hardware functionalities or special coding.

Parameters

[in]	port	port identifier
[in]	bits	bits to be ORed on the specified port

Function Class:: Not an API, this function is for internal use only.

Definition at line 199 of file hal_pal_lld.h.

◆ pal_lld_clearport

#define pal_lld_clearport	(		port,
			bits )

Value:

  do {                                                                      \
    (void)port;                                                             \
    (void)bits;                                                             \
  } while (false)

Clears a bits mask on a I/O port.

Note: The PAL Driver provides a default software implementation of this functionality, implement this function if can optimize it by using special hardware functionalities or special coding.

Parameters

[in]	port	port identifier
[in]	bits	bits to be cleared on the specified port

Function Class:: Not an API, this function is for internal use only.

Definition at line 216 of file hal_pal_lld.h.

◆ pal_lld_toggleport

#define pal_lld_toggleport	(		port,
			bits )

Value:

  do {                                                                      \
    (void)port;                                                             \
    (void)bits;                                                             \
  } while (false)

Toggles a bits mask on a I/O port.

Note: The PAL Driver provides a default software implementation of this functionality, implement this function if can optimize it by using special hardware functionalities or special coding.

Parameters

[in]	port	port identifier
[in]	bits	bits to be XORed on the specified port

Function Class:: Not an API, this function is for internal use only.

Definition at line 233 of file hal_pal_lld.h.

◆ pal_lld_readgroup

#define pal_lld_readgroup	(	port,
		mask,
		offset )

Value:

0U

Reads a group of bits.

Note: The PAL Driver provides a default software implementation of this functionality, implement this function if can optimize it by using special hardware functionalities or special coding.

Parameters

[in]	port	port identifier
[in]	mask	group mask
[in]	offset	group bit offset within the port

Returns: The group logical states.

Function Class:: Not an API, this function is for internal use only.

Definition at line 252 of file hal_pal_lld.h.

◆ pal_lld_writegroup

#define pal_lld_writegroup	(	port,
		mask,
		offset,
		bits )

Value:

  do {                                                                      \
    (void)port;                                                             \
    (void)mask;                                                             \
    (void)offset;                                                           \
    (void)bits;                                                             \
  } while (false)

Writes a group of bits.

Note: The PAL Driver provides a default software implementation of this functionality, implement this function if can optimize it by using special hardware functionalities or special coding.

Parameters

[in]	port	port identifier
[in]	mask	group mask
[in]	offset	group bit offset within the port
[in]	bits	bits to be written. Values exceeding the group width are masked.

Function Class:: Not an API, this function is for internal use only.

Definition at line 268 of file hal_pal_lld.h.

◆ pal_lld_setgroupmode

#define pal_lld_setgroupmode	(	port,
		mask,
		offset,
		mode )

Value:

_pal_lld_setgroupmode(port, mask << offset, mode)

_pal_lld_setgroupmode

void _pal_lld_setgroupmode(ioportid_t port, ioportmask_t mask, iomode_t mode)

Pads mode setup.

Definition hal_pal_lld.c:73

Pads group mode setup.

This function programs a pads group belonging to the same port with the specified mode.

Note: Programming an unknown or unsupported mode is silently ignored.

Parameters

[in]	port	port identifier
[in]	mask	group mask
[in]	offset	group bit offset within the port
[in]	mode	group mode

Function Class:: Not an API, this function is for internal use only.

Definition at line 289 of file hal_pal_lld.h.

◆ pal_lld_readpad

#define pal_lld_readpad	(		port,
			pad )

Value:

PAL_LOW

#define PAL_LOW

Logical low state.

Definition hal_pal.h:93

Reads a logical state from an I/O pad.

Note: The PAL Driver provides a default software implementation of this functionality, implement this function if can optimize it by using special hardware functionalities or special coding.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port

Returns: The logical state.

Return values

PAL_LOW	low logical state.
PAL_HIGH	high logical state.

Function Class:: Not an API, this function is for internal use only.

Definition at line 306 of file hal_pal_lld.h.

◆ pal_lld_writepad

#define pal_lld_writepad	(	port,
		pad,
		bit )

Value:

  do {                                                                      \
    (void)port;                                                             \
    (void)pad;                                                              \
    (void)bit;                                                              \
  } while (false)

Writes a logical state on an output pad.

Note: This function is not meant to be invoked directly by the application code.; The PAL Driver provides a default software implementation of this functionality, implement this function if can optimize it by using special hardware functionalities or special coding.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port
[in]	bit	logical value, the value must be `PAL_LOW` or `PAL_HIGH`

Function Class:: Not an API, this function is for internal use only.

Definition at line 323 of file hal_pal_lld.h.

◆ pal_lld_setpad

#define pal_lld_setpad	(		port,
			pad )

Value:

  do {                                                                      \
    (void)port;                                                             \
    (void)pad;                                                              \
  } while (false)

Sets a pad logical state to PAL_HIGH.

Note: The PAL Driver provides a default software implementation of this functionality, implement this function if can optimize it by using special hardware functionalities or special coding.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port

Function Class:: Not an API, this function is for internal use only.

Definition at line 341 of file hal_pal_lld.h.

◆ pal_lld_clearpad

#define pal_lld_clearpad	(		port,
			pad )

Value:

  do {                                                                      \
    (void)port;                                                             \
    (void)pad;                                                              \
  } while (false)

Clears a pad logical state to PAL_LOW.

Note: The PAL Driver provides a default software implementation of this functionality, implement this function if can optimize it by using special hardware functionalities or special coding.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port

Function Class:: Not an API, this function is for internal use only.

Definition at line 358 of file hal_pal_lld.h.

◆ pal_lld_togglepad

#define pal_lld_togglepad	(		port,
			pad )

Value:

  do {                                                                      \
    (void)port;                                                             \
    (void)pad;                                                              \
  } while (false)

Toggles a pad logical state.

Note: The PAL Driver provides a default software implementation of this functionality, implement this function if can optimize it by using special hardware functionalities or special coding.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port

Function Class:: Not an API, this function is for internal use only.

Definition at line 375 of file hal_pal_lld.h.

◆ pal_lld_setpadmode

#define pal_lld_setpadmode	(	port,
		pad,
		mode )

Value:

  do {                                                                      \
    (void)port;                                                             \
    (void)pad;                                                              \
    (void)mode;                                                             \
  } while (false)

Pad mode setup.

This function programs a pad with the specified mode.

Note: The PAL Driver provides a default software implementation of this functionality, implement this function if can optimize it by using special hardware functionalities or special coding.; Programming an unknown or unsupported mode is silently ignored.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port
[in]	mode	pad mode

Function Class:: Not an API, this function is for internal use only.

Definition at line 395 of file hal_pal_lld.h.

◆ pal_lld_get_pad_event

#define pal_lld_get_pad_event	(		port,
			pad )

Value:

&_pal_events[0]; (void)(port); (void)pad

Returns a PAL event structure associated to a pad.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port

Function Class:: Not an API, this function is for internal use only.

Definition at line 410 of file hal_pal_lld.h.

Referenced by palSetPadCallbackI(), and palWaitPadTimeoutS().

◆ pal_lld_get_line_event

#define pal_lld_get_line_event ( line )

Value:

&_pal_events[0]; (void)line

Returns a PAL event structure associated to a line.

Parameters

[in] line line identifier

Function Class:: Not an API, this function is for internal use only.

Definition at line 420 of file hal_pal_lld.h.

Referenced by palSetLineCallbackI(), and palWaitLineTimeoutS().

Typedef Documentation

◆ palcallback_t

typedef void(* palcallback_t) (void *arg)

Type of a PAL event callback.

Definition at line 148 of file hal_pal.h.

◆ ioportmask_t

typedef uint32_t ioportmask_t

Digital I/O port sized unsigned type.

Definition at line 104 of file hal_pal_lld.h.

◆ iomode_t

typedef uint32_t iomode_t

Digital I/O modes.

Definition at line 109 of file hal_pal_lld.h.

◆ ioline_t

typedef uint32_t ioline_t

Type of an I/O line.

Definition at line 114 of file hal_pal_lld.h.

◆ ioportid_t

typedef uint32_t ioportid_t

Port Identifier.

This type can be a scalar or some kind of pointer, do not make any assumption about it, use the provided macros when populating variables of this type.

Definition at line 122 of file hal_pal_lld.h.

◆ iopadid_t

typedef uint32_t iopadid_t

Type of an pad identifier.

Definition at line 127 of file hal_pal_lld.h.

Function Documentation

◆ palReadBus()

ioportmask_t palReadBus ( const IOBus * bus )

Read from an I/O bus.

Note: The operation is not guaranteed to be atomic on all the architectures, for atomicity and/or portability reasons you may need to enclose port I/O operations between osalSysLock() and osalSysUnlock().; The function internally uses the palReadGroup() macro. The use of this function is preferred when you value code size, readability and error checking over speed.; The function can be called from any context.

Parameters

[in] bus the I/O bus, pointer to a IOBus structure

Returns: The bus logical states.

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 65 of file hal_pal.c.

References IOBus::mask, IOBus::offset, osalDbgCheck, PAL_IOPORTS_WIDTH, palReadGroup, and IOBus::portid.

◆ palWriteBus()

void palWriteBus	(	const IOBus *	bus,
		ioportmask_t	bits )

Write to an I/O bus.

Note: The operation is not guaranteed to be atomic on all the architectures, for atomicity and/or portability reasons you may need to enclose port I/O operations between osalSysLock() and osalSysUnlock().; The default implementation is non atomic and not necessarily optimal. Low level drivers may optimize the function by using specific hardware or coding.; The function can be called from any context.

Parameters

[in]	bus	the I/O bus, pointer to a `IOBus` structure
[in]	bits	the bits to be written on the I/O bus. Values exceeding the bus width are masked so most significant bits are lost.

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 90 of file hal_pal.c.

References IOBus::mask, IOBus::offset, osalDbgCheck, PAL_IOPORTS_WIDTH, palWriteGroup, and IOBus::portid.

◆ palSetBusMode()

void palSetBusMode	(	const IOBus *	bus,
		iomode_t	mode )

Programs a bus with the specified mode.

Note: The operation is not guaranteed to be atomic on all the architectures, for atomicity and/or portability reasons you may need to enclose port I/O operations between osalSysLock() and osalSysUnlock().; The default implementation is non atomic and not necessarily optimal. Low level drivers may optimize the function by using specific hardware or coding.; The function can be called from any context.

Parameters

[in]	bus	the I/O bus, pointer to a `IOBus` structure
[in]	mode	the mode

Function Class:: Special function, this function has special requirements see the notes.

Definition at line 113 of file hal_pal.c.

References IOBus::mask, IOBus::offset, osalDbgCheck, PAL_IOPORTS_WIDTH, palSetGroupMode, and IOBus::portid.

◆ palSetPadCallbackI()

void palSetPadCallbackI	(	ioportid_t	port,
		iopadid_t	pad,
		palcallback_t	cb,
		void *	arg )

Associates a callback to a port/pad.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port
[in]	cb	event callback function
[in]	arg	callback argument

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 131 of file hal_pal.c.

References palevent_t::arg, palevent_t::cb, and pal_lld_get_pad_event.

◆ palSetLineCallbackI()

void palSetLineCallbackI	(	ioline_t	line,
		palcallback_t	cb,
		void *	arg )

Associates a callback to a line.

Parameters

[in]	line	line identifier
[in]	cb	event callback function
[in]	arg	callback argument

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 148 of file hal_pal.c.

References palevent_t::arg, palevent_t::cb, and pal_lld_get_line_event.

◆ palWaitPadTimeoutS()

msg_t palWaitPadTimeoutS	(	ioportid_t	port,
		iopadid_t	pad,
		sysinterval_t	timeout )

Waits for an edge on the specified port/pad.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port
[in]	timeout	the number of ticks before the operation timeouts, the following special values are allowed: TIME_IMMEDIATE immediate timeout. TIME_INFINITE no timeout.

Returns: The operation state.

Return values

MSG_OK	if an edge has been detected.
MSG_TIMEOUT	if a timeout occurred before an edge could be detected.
MSG_RESET	if the event has been disabled while the thread was waiting for an edge.

Function Class:: This is an S-Class API, this function can be invoked from within a system lock zone by threads only.

Definition at line 174 of file hal_pal.c.

References osalThreadEnqueueTimeoutS(), pal_lld_get_pad_event, and palevent_t::threads.

Referenced by palWaitPadTimeout().

Here is the call graph for this function:

◆ palWaitPadTimeout()

msg_t palWaitPadTimeout	(	ioportid_t	port,
		iopadid_t	pad,
		sysinterval_t	timeout )

Waits for an edge on the specified port/pad.

Parameters

[in]	port	port identifier
[in]	pad	pad number within the port
[in]	timeout	the number of ticks before the operation timeouts, the following special values are allowed: TIME_IMMEDIATE immediate timeout. TIME_INFINITE no timeout.

Returns: The operation state.

Return values

MSG_OK	if an edge has been detected.
MSG_TIMEOUT	if a timeout occurred before an edge cound be detected.
MSG_RESET	if the event has been disabled while the thread was waiting for an edge.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 199 of file hal_pal.c.

References osalSysLock(), osalSysUnlock(), and palWaitPadTimeoutS().

Here is the call graph for this function:

◆ palWaitLineTimeoutS()

msg_t palWaitLineTimeoutS	(	ioline_t	line,
		sysinterval_t	timeout )

Waits for an edge on the specified line.

Parameters

[in]	line	line identifier
[in]	timeout	operation timeout

Returns: The operation state.

Return values

MSG_OK	if an edge has been detected.
MSG_TIMEOUT	if a timeout occurred before an edge could be detected.
MSG_RESET	if the event has been disabled while the thread was waiting for an edge.

Function Class:: This is an S-Class API, this function can be invoked from within a system lock zone by threads only.

Definition at line 223 of file hal_pal.c.

References osalThreadEnqueueTimeoutS(), pal_lld_get_line_event, and palevent_t::threads.

Referenced by palWaitLineTimeout().

Here is the call graph for this function:

◆ palWaitLineTimeout()

msg_t palWaitLineTimeout	(	ioline_t	line,
		sysinterval_t	timeout )

Waits for an edge on the specified line.

Parameters

[in]	line	line identifier
[in]	timeout	operation timeout

Returns: The operation state.

Return values

MSG_OK	if an edge has been detected.
MSG_TIMEOUT	if a timeout occurred before an edge cound be detected.
MSG_RESET	if the event has been disabled while the thread was waiting for an edge.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 243 of file hal_pal.c.

References osalSysLock(), osalSysUnlock(), and palWaitLineTimeoutS().

Here is the call graph for this function:

◆ _pal_lld_init()

void _pal_lld_init ( void )

STM32 I/O ports configuration.

Function Class:: Not an API, this function is for internal use only.

Definition at line 58 of file hal_pal_lld.c.

◆ _pal_lld_setgroupmode()

void _pal_lld_setgroupmode	(	ioportid_t	port,
		ioportmask_t	mask,
		iomode_t	mode )

Pads mode setup.

This function programs a pads group belonging to the same port with the specified mode.

Parameters

[in]	port	the port identifier
[in]	mask	the group mask
[in]	mode	the mode

Function Class:: Not an API, this function is for internal use only.

Definition at line 73 of file hal_pal_lld.c.

Detailed Description

Implementation Rules

Writing on input pads

Reading from output pads

Writing unused or unimplemented port bits

Reading from unused or unimplemented port bits

Reading or writing on pins associated to other functionalities

Pads mode constants

Logic level constants

PAL event modes

PAL configuration options

Low level driver helper macros

Macro Functions

Port related definitions

Line handling macros

Data Structures

Macros

Typedefs

Functions

Macro Definition Documentation

◆ PAL_MODE_RESET

◆ PAL_MODE_UNCONNECTED

◆ PAL_MODE_INPUT

◆ PAL_MODE_INPUT_PULLUP

◆ PAL_MODE_INPUT_PULLDOWN

◆ PAL_MODE_INPUT_ANALOG

◆ PAL_MODE_OUTPUT_PUSHPULL

◆ PAL_MODE_OUTPUT_OPENDRAIN

◆ PAL_LOW

◆ PAL_HIGH

◆ PAL_EVENT_MODE_EDGES_MASK

◆ PAL_EVENT_MODE_DISABLED

◆ PAL_EVENT_MODE_RISING_EDGE

◆ PAL_EVENT_MODE_FALLING_EDGE

◆ PAL_EVENT_MODE_BOTH_EDGES

◆ PAL_USE_CALLBACKS

◆ PAL_USE_WAIT

◆ PAL_PORT_BIT

◆ PAL_GROUP_MASK

◆ _IOBUS_DATA

◆ IOBUS_DECL

◆ _pal_init_event [1/3]

◆ _pal_init_event [2/3]

◆ _pal_init_event [3/3]

◆ _pal_clear_event [1/3]

◆ _pal_clear_event [2/3]

◆ _pal_clear_event [3/3]

◆ _pal_isr_code [1/3]

◆ _pal_isr_code [2/3]

◆ _pal_isr_code [3/3]

◆ palInit

◆ palReadPort

◆ palReadLatch

◆ palWritePort

◆ palSetPort

◆ palClearPort

◆ palTogglePort

◆ palReadGroup

◆ palReadGroupLatch

◆ palWriteGroup

◆ palSetGroupMode

◆ palReadPad

◆ palWritePad

◆ palSetPad

◆ palClearPad

◆ palTogglePad

◆ palSetPadMode

◆ palReadLine

◆ palWriteLine

◆ palSetLine

◆ palClearLine

◆ palToggleLine

◆ palSetLineMode

◆ palEnablePadEventI

◆ palDisablePadEventI

◆ palEnablePadEvent

◆ palDisablePadEvent

◆ palEnableLineEventI

◆ palDisableLineEventI

◆ palEnableLineEvent
