Generic SIO Driver. More...

Collaboration diagram for SIO Driver:

Detailed Description

Generic SIO Driver.

This driver abstracts a generic serial communication channel, usually an UART, this driver is similar to Serial and UART drivers but follows a different concept:

Very close to HW.
No buffering done in SW, the driver relies on the peripheral internal FIFO, if any.
Asynchronous, the API is always non blocking.
Callbacks capable, operations completion and other events are notified using callbacks.
Very short code paths, especially in ISRs.

Precondition: In order to use the SIO driver the HAL_USE_SIO option must be enabled in halconf.h.

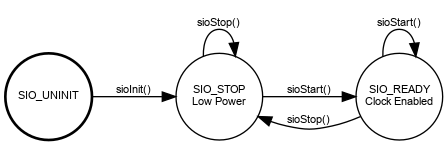

Driver State Machine

The driver implements a state machine internally, not all the driver functionalities can be used in any moment, any transition not explicitly shown in the following diagram has to be considered an error and shall be captured by an assertion (if enabled).

Macros
#define	_sio_driver_methods _base_channel_methods
	`SIODriver` specific methods. More...

#define	sioGetFlagsX(siop) sio_lld_get_flags(siop)
	Returns the current set of flags and clears it. More...

#define	sioIsRXEmptyX(siop) sio_lld_is_rx_empty(siop)
	Determines the state of the RX FIFO. More...

#define	sioIsTXFullX(siop) sio_lld_is_tx_full(siop)
	Determines the state of the TX FIFO. More...

#define	sioGetAndClearEventsI(siop) sio_lld_get_and_clear_events(siop)
	Return the pending SIO events flags. More...

#define	sioGetX(siop) sio_lld_get(siop)
	Returns one frame from the RX FIFO. More...

#define	sioPutX(siop, data) sio_lld_put(siop, data)
	Pushes one frame into the TX FIFO. More...

#define	sioAsyncReadI(siop, size, buffer) sio_lld_read(siop, size, buffer)
	Reads data from the RX FIFO. More...

#define	sioAsyncWriteI(siop, size, buffer) sio_lld_write(siop, size, buffer)
	Writes data into the TX FIFO. More...

#define	sioControlX(siop, operation, arg) sio_lld_control(siop, operation, arg)
	Control operation on a serial port. More...

#define	sio_lld_driver_fields uint32_t dummy
	Low level fields of the SIO driver structure. More...

#define	sio_lld_config_fields uint32_t dummy
	Low level fields of the SIO configuration structure. More...

#define	sio_lld_is_rx_empty(siop) false
	Determines the state of the RX FIFO. More...

#define	sio_lld_is_tx_full(siop) false
	Determines the state of the TX FIFO. More...

#define	sio_lld_is_tx_ongoing(siop) false
	Determines the transmission state. More...

SIO status flags
#define	SIO_NO_ERROR 0
	No pending conditions. More...

#define	SIO_PARITY_ERROR 4
	Parity error happened. More...

#define	SIO_FRAMING_ERROR 8
	Framing error happened. More...

#define	SIO_OVERRUN_ERROR 16
	Overflow happened. More...

#define	SIO_NOISE_ERROR 32
	Noise on the line. More...

#define	SIO_BREAK_DETECTED 64
	Break detected. More...

SIO additional messages
#define	SIO_MSG_IDLE 1

#define	SIO_MSG_ERRORS 2

SIO configuration options
#define	SIO_DEFAULT_BITRATE 38400
	Default bit rate. More...

#define	SIO_USE_SYNCHRONIZATION TRUE
	Support for thread synchronization API. More...

Low level driver helper macros
#define	__sio_callback_rx(siop)
	RX callback. More...

#define	__sio_callback_rx_idle(siop)
	RX idle callback. More...

#define	__sio_callback_tx(siop)
	TX callback. More...

#define	__sio_callback_tx_end(siop)
	TX end callback. More...

#define	__sio_callback_rx_evt(siop)
	RX event callback. More...

#define	__sio_wakeup_rx(siop, msg)
	Wakes up the RX-waiting thread. More...

#define	__sio_wakeup_tx(siop, msg)
	Wakes up the TX-waiting thread. More...

#define	__sio_wakeup_txend(siop, msg)
	Wakes up the TXend-waiting thread. More...

PLATFORM configuration options
#define	PLATFORM_SIO_USE_SIO1 FALSE
	SIO driver enable switch. More...

Typedefs
typedef uint_fast8_t	sioflags_t
	SIO driver condition flags type. More...

typedef struct hal_sio_driver	SIODriver
	Type of structure representing a SIO driver. More...

typedef struct hal_sio_config	SIOConfig
	Type of structure representing a SIO configuration. More...

typedef struct hal_sio_operation	SIOOperation
	Type of structure representing a SIO operation. More...

typedef void(*	siocb_t) (SIODriver *siop)
	Generic SIO notification callback type. More...

typedef uint32_t	sio_events_mask_t
	Type of a SIO events mask. More...

Data Structures
struct	hal_sio_config
	Driver configuration structure. More...

struct	sio_driver_vmt
	`SIODriver` virtual methods table. More...

struct	hal_sio_driver
	Structure representing a SIO driver. More...

struct	hal_sio_operation
	Structure representing a SIO operation. More...

Functions
void	sioInit (void)
	SIO Driver initialization. More...

void	sioObjectInit (SIODriver *siop)
	Initializes the standard part of a `SIODriver` structure. More...

bool	sioStart (SIODriver siop, const SIOConfig config)
	Configures and activates the SIO peripheral. More...

void	sioStop (SIODriver *siop)
	Deactivates the SIO peripheral. More...

void	sioStartOperation (SIODriver siop, const SIOOperation operation)
	Starts a SIO operation. More...

void	sioStopOperation (SIODriver *siop)
	Stops an ongoing SIO operation, if any. More...

sio_events_mask_t	sioGetAndClearEvents (SIODriver *siop)
	Return the pending SIO events flags. More...

size_t	sioAsyncRead (SIODriver siop, uint8_t buffer, size_t n)
	Reads data from the RX FIFO. More...

size_t	sioAsyncWrite (SIODriver siop, const uint8_t buffer, size_t n)
	Writes data into the TX FIFO. More...

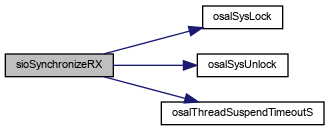

msg_t	sioSynchronizeRX (SIODriver *siop, sysinterval_t timeout)
	Synchronizes with RX FIFO data availability. More...

msg_t	sioSynchronizeTX (SIODriver *siop, sysinterval_t timeout)
	Synchronizes with TX FIFO space availability. More...

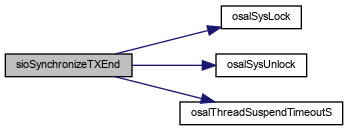

msg_t	sioSynchronizeTXEnd (SIODriver *siop, sysinterval_t timeout)
	Synchronizes with TX completion. More...

void	sio_lld_init (void)
	Low level SIO driver initialization. More...

bool	sio_lld_start (SIODriver *siop)
	Configures and activates the SIO peripheral. More...

void	sio_lld_stop (SIODriver *siop)
	Deactivates the SIO peripheral. More...

void	sio_lld_start_operation (SIODriver *siop)
	Starts a SIO operation. More...

void	sio_lld_stop_operation (SIODriver *siop)
	Stops an ongoing SIO operation, if any. More...

sio_events_mask_t	sio_lld_get_and_clear_events (SIODriver *siop)
	Return the pending SIO events flags. More...

size_t	sio_lld_read (SIODriver siop, uint8_t buffer, size_t n)
	Reads data from the RX FIFO. More...

size_t	sio_lld_write (SIODriver siop, const uint8_t buffer, size_t n)
	Writes data into the TX FIFO. More...

msg_t	sio_lld_get (SIODriver *siop)
	Returns one frame from the RX FIFO. More...

void	sio_lld_put (SIODriver *siop, uint_fast16_t data)
	Pushes one frame into the TX FIFO. More...

msg_t	sio_lld_control (SIODriver siop, unsigned int operation, void arg)
	Control operation on a serial port. More...

Enumerations
enum	siostate_t { SIO_UNINIT = 0, SIO_STOP = 1, SIO_READY = 2, SIO_ACTIVE = 3 }
	Driver state machine possible states. More...

Variables
SIODriver	SIOD1
	SIO1 driver identifier. More...

Macro Definition Documentation

◆ SIO_NO_ERROR

#define SIO_NO_ERROR 0

No pending conditions.

Definition at line 38 of file hal_sio.h.

◆ SIO_PARITY_ERROR

#define SIO_PARITY_ERROR 4

Parity error happened.

Definition at line 39 of file hal_sio.h.

◆ SIO_FRAMING_ERROR

#define SIO_FRAMING_ERROR 8

Framing error happened.

Definition at line 40 of file hal_sio.h.

◆ SIO_OVERRUN_ERROR

#define SIO_OVERRUN_ERROR 16

Overflow happened.

Definition at line 41 of file hal_sio.h.

◆ SIO_NOISE_ERROR

#define SIO_NOISE_ERROR 32

Noise on the line.

Definition at line 42 of file hal_sio.h.

◆ SIO_BREAK_DETECTED

#define SIO_BREAK_DETECTED 64

Break detected.

Definition at line 43 of file hal_sio.h.

◆ SIO_DEFAULT_BITRATE

#define SIO_DEFAULT_BITRATE 38400

Default bit rate.

Configuration parameter, this is the baud rate selected for the default configuration.

Definition at line 68 of file hal_sio.h.

◆ SIO_USE_SYNCHRONIZATION

#define SIO_USE_SYNCHRONIZATION TRUE

Support for thread synchronization API.

Definition at line 75 of file hal_sio.h.

◆ _sio_driver_methods

#define _sio_driver_methods _base_channel_methods

SIODriver specific methods.

Definition at line 139 of file hal_sio.h.

◆ sioGetFlagsX

#define sioGetFlagsX ( siop ) sio_lld_get_flags(siop)

Returns the current set of flags and clears it.

Definition at line 234 of file hal_sio.h.

◆ sioIsRXEmptyX

#define sioIsRXEmptyX ( siop ) sio_lld_is_rx_empty(siop)

Determines the state of the RX FIFO.

Parameters

[in] siop pointer to the SIODriver object

Returns: The RX FIFO state.

Return values

false	if RX FIFO is not empty
true	if RX FIFO is empty

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 246 of file hal_sio.h.

◆ sioIsTXFullX

#define sioIsTXFullX ( siop ) sio_lld_is_tx_full(siop)

Determines the state of the TX FIFO.

Parameters

[in] siop pointer to the SIODriver object

Returns: The TX FIFO state.

Return values

false	if TX FIFO is not full
true	if TX FIFO is full

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 258 of file hal_sio.h.

◆ sioGetAndClearEventsI

#define sioGetAndClearEventsI ( siop ) sio_lld_get_and_clear_events(siop)

Return the pending SIO events flags.

Parameters

[in] siop pointer to the SIODriver object

Returns: The pending event flags.

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 268 of file hal_sio.h.

◆ sioGetX

#define sioGetX ( siop ) sio_lld_get(siop)

Returns one frame from the RX FIFO.

Note: If the FIFO is empty then the returned value is unpredictable.

Parameters

[in] siop pointer to the SIODriver object

Returns: The frame from RX FIFO.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 279 of file hal_sio.h.

◆ sioPutX

#define sioPutX	(	siop,
		data
	)	sio_lld_put(siop, data)

Pushes one frame into the TX FIFO.

Note: If the FIFO is full then the behavior is unpredictable.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	data	frame to be written

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 290 of file hal_sio.h.

◆ sioAsyncReadI

#define sioAsyncReadI	(	siop,
		size,
		buffer
	)	sio_lld_read(siop, size, buffer)

Reads data from the RX FIFO.

This function is non-blocking, data is read if present and the effective amount is returned.

Note: This function can be called from any context but it is meant to be called from the rxne_cb callback handler.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	size	maximum number of frames to read
[in]	buffer	buffer for the received data

Returns: The number of received frames.

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 306 of file hal_sio.h.

◆ sioAsyncWriteI

#define sioAsyncWriteI	(	siop,
		size,
		buffer
	)	sio_lld_write(siop, size, buffer)

Writes data into the TX FIFO.

This function is non-blocking, data is written if there is space in the FIFO and the effective amount is returned.

Note: This function can be called from any context but it is meant to be called from the txnf_cb callback handler.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	size	maximum number of frames to read
[out]	buffer	buffer containing the data to be transmitted

Returns: The number of transmitted frames.

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 322 of file hal_sio.h.

◆ sioControlX

#define sioControlX	(	siop,
		operation,
		arg
	)	sio_lld_control(siop, operation, arg)

Control operation on a serial port.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	operation	control operation code
[in,out]	arg	operation argument

Returns: The control operation status.

Return values

MSG_OK	in case of success.
MSG_TIMEOUT	in case of operation timeout.
MSG_RESET	in case of operation reset.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 338 of file hal_sio.h.

◆ __sio_callback_rx

#define __sio_callback_rx ( siop )

Value:

  {                                           \
  if ((siop)->operation->rx_cb != NULL) {                                   \
    (siop)->operation->rx_cb(siop);                                         \
  }                                                                         \
}

RX callback.

Parameters

[in] siop pointer to the SIODriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 351 of file hal_sio.h.

◆ __sio_callback_rx_idle

#define __sio_callback_rx_idle ( siop )

Value:

  {                                      \
  if ((siop)->operation->rx_idle_cb != NULL) {                              \
    (siop)->operation->rx_idle_cb(siop);                                    \
  }                                                                         \
}

RX idle callback.

Parameters

[in] siop pointer to the SIODriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 364 of file hal_sio.h.

◆ __sio_callback_tx

#define __sio_callback_tx ( siop )

Value:

  {                                           \
  if ((siop)->operation->tx_cb != NULL) {                                   \
    (siop)->operation->tx_cb(siop);                                         \
  }                                                                         \
}

TX callback.

Parameters

[in] siop pointer to the SIODriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 377 of file hal_sio.h.

◆ __sio_callback_tx_end

#define __sio_callback_tx_end ( siop )

Value:

  {                                       \
  if ((siop)->operation->tx_end_cb != NULL) {                               \
    (siop)->operation->tx_end_cb(siop);                                     \
  }                                                                         \
}

TX end callback.

Parameters

[in] siop pointer to the SIODriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 390 of file hal_sio.h.

◆ __sio_callback_rx_evt

#define __sio_callback_rx_evt ( siop )

Value:

  {                                       \
  if ((siop)->operation->rx_evt_cb != NULL) {                               \
    (siop)->operation->rx_evt_cb(siop);                                     \
  }                                                                         \
}

RX event callback.

Parameters

[in] siop pointer to the SIODriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 403 of file hal_sio.h.

◆ __sio_wakeup_rx

#define __sio_wakeup_rx	(	siop,
		msg
	)

Value:

  {                                        \
  osalSysLockFromISR();                                                     \
  osalThreadResumeI(&(siop)->sync_rx, msg);                                 \
  osalSysUnlockFromISR();                                                   \
}

Wakes up the RX-waiting thread.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	msg	the wake up message

Function Class:: Not an API, this function is for internal use only.

Definition at line 418 of file hal_sio.h.

◆ __sio_wakeup_tx

#define __sio_wakeup_tx	(	siop,
		msg
	)

Value:

  {                                        \
  osalSysLockFromISR();                                                     \
  osalThreadResumeI(&(siop)->sync_tx, msg);                                 \
  osalSysUnlockFromISR();                                                   \
}

Wakes up the TX-waiting thread.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	msg	the wake up message

Function Class:: Not an API, this function is for internal use only.

Definition at line 432 of file hal_sio.h.

◆ __sio_wakeup_txend

#define __sio_wakeup_txend	(	siop,
		msg
	)

Value:

  {                                     \
  osalSysLockFromISR();                                                     \
  osalThreadResumeI(&(siop)->sync_txend, msg);                              \
  osalSysUnlockFromISR();                                                   \
}

Wakes up the TXend-waiting thread.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	msg	the wake up message

Function Class:: Not an API, this function is for internal use only.

Definition at line 446 of file hal_sio.h.

◆ PLATFORM_SIO_USE_SIO1

#define PLATFORM_SIO_USE_SIO1 FALSE

SIO driver enable switch.

If set to TRUE the support for SIO1 is included.

Note: The default is FALSE.

Definition at line 48 of file hal_sio_lld.h.

◆ sio_lld_driver_fields

#define sio_lld_driver_fields uint32_t dummy

Low level fields of the SIO driver structure.

Definition at line 72 of file hal_sio_lld.h.

◆ sio_lld_config_fields

#define sio_lld_config_fields uint32_t dummy

Low level fields of the SIO configuration structure.

Definition at line 78 of file hal_sio_lld.h.

◆ sio_lld_is_rx_empty

#define sio_lld_is_rx_empty ( siop ) false

Determines the state of the RX FIFO.

Parameters

[in] siop pointer to the SIODriver object

Returns: The RX FIFO state.

Return values

false	if RX FIFO is not empty
true	if RX FIFO is empty

Function Class:: Not an API, this function is for internal use only.

Definition at line 91 of file hal_sio_lld.h.

◆ sio_lld_is_tx_full

#define sio_lld_is_tx_full ( siop ) false

Determines the state of the TX FIFO.

Parameters

[in] siop pointer to the SIODriver object

Returns: The TX FIFO state.

Return values

false	if TX FIFO is not full
true	if TX FIFO is full

Function Class:: Not an API, this function is for internal use only.

Definition at line 103 of file hal_sio_lld.h.

◆ sio_lld_is_tx_ongoing

#define sio_lld_is_tx_ongoing ( siop ) false

Determines the transmission state.

Parameters

[in] siop pointer to the SIODriver object

Returns: The TX FIFO state.

Return values

false	if transmission is idle
true	if transmission is ongoing

Function Class:: Not an API, this function is for internal use only.

Definition at line 115 of file hal_sio_lld.h.

Typedef Documentation

◆ sioflags_t

typedef uint_fast8_t sioflags_t

SIO driver condition flags type.

Definition at line 90 of file hal_sio.h.

◆ SIODriver

typedef struct hal_sio_driver SIODriver

Type of structure representing a SIO driver.

Definition at line 95 of file hal_sio.h.

◆ SIOConfig

typedef struct hal_sio_config SIOConfig

Type of structure representing a SIO configuration.

Definition at line 100 of file hal_sio.h.

◆ SIOOperation

typedef struct hal_sio_operation SIOOperation

Type of structure representing a SIO operation.

Definition at line 105 of file hal_sio.h.

◆ siocb_t

typedef void(* siocb_t) (SIODriver *siop)

Generic SIO notification callback type.

Parameters

[in] siop pointer to the SIODriver object

Definition at line 112 of file hal_sio.h.

◆ sio_events_mask_t

typedef uint32_t sio_events_mask_t

Type of a SIO events mask.

Definition at line 63 of file hal_sio_lld.h.

Enumeration Type Documentation

◆ siostate_t

enum siostate_t

Driver state machine possible states.

Enumerator
SIO_UNINIT	Not initialized.
SIO_STOP	Stopped.
SIO_READY	Ready.
SIO_ACTIVE	Operation ongoing.

Definition at line 117 of file hal_sio.h.

Function Documentation

◆ sioInit()

void sioInit ( void )

SIO Driver initialization.

Note: This function is implicitly invoked by halInit(), there is no need to explicitly initialize the driver.

Function Class:: Initializer, this function just initializes an object and can be invoked before the kernel is initialized.

Definition at line 213 of file hal_sio.c.

References sio_lld_init().

Referenced by halInit().

Here is the call graph for this function:

◆ sioObjectInit()

void sioObjectInit ( SIODriver * siop )

Initializes the standard part of a SIODriver structure.

Parameters

[out] siop pointer to the SIODriver object

Function Class:: Initializer, this function just initializes an object and can be invoked before the kernel is initialized.

Definition at line 225 of file hal_sio.c.

References hal_sio_driver::vmt.

Referenced by sio_lld_init().

◆ sioStart()

bool sioStart	(	SIODriver *	siop,
		const SIOConfig *	config
	)

Configures and activates the SIO peripheral.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	config	pointer to the `SIOConfig` object, can be `NULL` if the default configuration is desired

Returns: The operation status.

Return values

false	if the driver has been correctly started.
true	if an error occurred.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 251 of file hal_sio.c.

References hal_sio_driver::config, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), sio_lld_start(), SIO_READY, SIO_STOP, and hal_sio_driver::state.

Here is the call graph for this function:

◆ sioStop()

void sioStop ( SIODriver * siop )

Deactivates the SIO peripheral.

Parameters

[in] siop pointer to the SIODriver object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 277 of file hal_sio.c.

References hal_sio_driver::config, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), sio_lld_stop(), SIO_READY, SIO_STOP, and hal_sio_driver::state.

Here is the call graph for this function:

◆ sioStartOperation()

void sioStartOperation	(	SIODriver *	siop,
		const SIOOperation *	operation
	)

Starts a SIO operation.

Parameters

[in]	siop	pointer to an `SIODriver` structure
[in]	operation	pointer to an `SIOOperation` structure, can be `NULL` if callbacks are not required encoding the operation to be performed

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 303 of file hal_sio.c.

References hal_sio_driver::operation, osalDbgAssert, osalDbgCheck, osalSysLock(), SIO_READY, and hal_sio_driver::state.

Here is the call graph for this function:

◆ sioStopOperation()

void sioStopOperation ( SIODriver * siop )

Stops an ongoing SIO operation, if any.

Parameters

[in] siop pointer to an SIODriver structure

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 333 of file hal_sio.c.

References MSG_RESET, hal_sio_driver::operation, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), osalThreadResumeI(), SIO_ACTIVE, sio_lld_stop_operation(), SIO_READY, hal_sio_driver::state, hal_sio_driver::sync_rx, hal_sio_driver::sync_tx, and hal_sio_driver::sync_txend.

Here is the call graph for this function:

◆ sioGetAndClearEvents()

sio_events_mask_t sioGetAndClearEvents ( SIODriver * siop )

Return the pending SIO events flags.

Parameters

[in] siop pointer to the SIODriver object

Returns: The pending event flags.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 364 of file hal_sio.c.

References osalDbgCheck, osalSysLock(), osalSysUnlock(), and sioGetAndClearEventsI.

Here is the call graph for this function:

◆ sioAsyncRead()

size_t sioAsyncRead	(	SIODriver *	siop,
		uint8_t *	buffer,
		size_t	n
	)

Reads data from the RX FIFO.

This function is non-blocking, data is read if present and the effective amount is returned.

Note: This function can be called from any context but it is meant to be called from the rxne_cb callback handler.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	buffer	buffer for the received data
[in]	n	maximum number of frames to read

Returns: The number of received frames.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 392 of file hal_sio.c.

References osalDbgCheck, osalSysLock(), osalSysUnlock(), and sioAsyncReadI.

Here is the call graph for this function:

◆ sioAsyncWrite()

size_t sioAsyncWrite	(	SIODriver *	siop,
		const uint8_t *	buffer,
		size_t	n
	)

Writes data into the TX FIFO.

This function is non-blocking, data is written if there is space in the FIFO and the effective amount is returned.

Note: This function can be called from any context but it is meant to be called from the txnf_cb callback handler.

Parameters

[in]	siop	pointer to the `SIODriver` object
[out]	buffer	buffer containing the data to be transmitted
[in]	n	maximum number of frames to read

Returns: The number of transmitted frames.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 419 of file hal_sio.c.

References osalDbgCheck, osalSysLock(), osalSysUnlock(), and sioAsyncWriteI.

Here is the call graph for this function:

◆ sioSynchronizeRX()

msg_t sioSynchronizeRX	(	SIODriver *	siop,
		sysinterval_t	timeout
	)

Synchronizes with RX FIFO data availability.

Note: The exact behavior depends on low level FIFO settings such as thresholds, etc.; This function can only be called by a single thread at time.

Parameters

[in]	siop	pointer to an `SIODriver` structure
[in]	timeout	synchronization timeout

Returns: The synchronization result.

Return values

MSG_OK	if there is data in the RX FIFO.
MSG_TIMEOUT	if synchronization timed out.
MSG_RESET	operation has been stopped while waiting.
SIO_MSG_IDLE	if RX line went idle.
SIO_MSG_ERRORS	if RX errors occurred during wait.

Definition at line 448 of file hal_sio.c.

References MSG_OK, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), osalThreadSuspendTimeoutS(), SIO_ACTIVE, sio_lld_is_rx_empty, hal_sio_driver::state, and hal_sio_driver::sync_rx.

Here is the call graph for this function:

◆ sioSynchronizeTX()

msg_t sioSynchronizeTX	(	SIODriver *	siop,
		sysinterval_t	timeout
	)

Synchronizes with TX FIFO space availability.

Note: The exact behavior depends on low level FIFO settings such as thresholds, etc.; This function can only be called by a single thread at time.

Parameters

[in]	siop	pointer to an `SIODriver` structure
[in]	timeout	synchronization timeout

Returns: The synchronization result.

Return values

MSG_OK	if there is space in the TX FIFO.
MSG_TIMEOUT	if synchronization timed out.
MSG_RESET	operation has been stopped while waiting.

Definition at line 483 of file hal_sio.c.

References MSG_OK, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), osalThreadSuspendTimeoutS(), SIO_ACTIVE, sio_lld_is_tx_full, hal_sio_driver::state, and hal_sio_driver::sync_tx.

Here is the call graph for this function:

◆ sioSynchronizeTXEnd()

msg_t sioSynchronizeTXEnd	(	SIODriver *	siop,
		sysinterval_t	timeout
	)

Synchronizes with TX completion.

Note: This function can only be called by a single thread at time.

Parameters

[in]	siop	pointer to an `SIODriver` structure
[in]	timeout	synchronization timeout

Returns: The synchronization result.

Return values

MSG_OK	if TX operation finished.
MSG_TIMEOUT	if synchronization timed out.

Definition at line 515 of file hal_sio.c.

References MSG_OK, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), osalThreadSuspendTimeoutS(), SIO_ACTIVE, sio_lld_is_tx_ongoing, hal_sio_driver::state, and hal_sio_driver::sync_txend.

Here is the call graph for this function:

◆ sio_lld_init()

void sio_lld_init ( void )

Low level SIO driver initialization.

Function Class:: Not an API, this function is for internal use only.

Definition at line 65 of file hal_sio_lld.c.

References SIOD1, and sioObjectInit().

Referenced by sioInit().

Here is the call graph for this function:

◆ sio_lld_start()

bool sio_lld_start ( SIODriver * siop )

Configures and activates the SIO peripheral.

Parameters

[in] siop pointer to the SIODriver object

Returns: The operation status.

Return values

false	if the driver has been correctly started.
true	if an error occurred.

Function Class:: Not an API, this function is for internal use only.

Definition at line 83 of file hal_sio_lld.c.

References SIO_STOP, SIOD1, and hal_sio_driver::state.

Referenced by sioStart().

◆ sio_lld_stop()

void sio_lld_stop ( SIODriver * siop )

Deactivates the SIO peripheral.

Parameters

[in] siop pointer to the SIODriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 105 of file hal_sio_lld.c.

References SIO_READY, SIOD1, and hal_sio_driver::state.

Referenced by sioStop().

◆ sio_lld_start_operation()

void sio_lld_start_operation ( SIODriver * siop )

Starts a SIO operation.

Parameters

[in] siop pointer to an SIODriver structure

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 126 of file hal_sio_lld.c.

◆ sio_lld_stop_operation()

void sio_lld_stop_operation ( SIODriver * siop )

Stops an ongoing SIO operation, if any.

Parameters

[in] siop pointer to an SIODriver structure

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 138 of file hal_sio_lld.c.

Referenced by sioStopOperation().

◆ sio_lld_get_and_clear_events()

sio_events_mask_t sio_lld_get_and_clear_events ( SIODriver * siop )

Return the pending SIO events flags.

Parameters

[in] siop pointer to the SIODriver object

Returns: The pending event flags.

Function Class:: Not an API, this function is for internal use only.

Definition at line 151 of file hal_sio_lld.c.

◆ sio_lld_read()

size_t sio_lld_read	(	SIODriver *	siop,
		uint8_t *	buffer,
		size_t	n
	)

Reads data from the RX FIFO.

The function is not blocking, it writes frames until there is space available without waiting.

Parameters

[in]	siop	pointer to an `SIODriver` structure
[in]	buffer	pointer to the buffer for read frames
[in]	n	maximum number of frames to be read

Returns: The number of frames copied from the buffer.

Return values

0	if the TX FIFO is full.

Definition at line 170 of file hal_sio_lld.c.

◆ sio_lld_write()

size_t sio_lld_write	(	SIODriver *	siop,
		const uint8_t *	buffer,
		size_t	n
	)

Writes data into the TX FIFO.

The function is not blocking, it writes frames until there is space available without waiting.

Parameters

[in]	siop	pointer to an `SIODriver` structure
[in]	buffer	pointer to the buffer for read frames
[in]	n	maximum number of frames to be written

Returns: The number of frames copied from the buffer.

Return values

0	if the TX FIFO is full.

Definition at line 189 of file hal_sio_lld.c.

◆ sio_lld_get()

msg_t sio_lld_get ( SIODriver * siop )

Returns one frame from the RX FIFO.

Note: If the FIFO is empty then the returned value is unpredictable.

Parameters

[in] siop pointer to the SIODriver object

Returns: The frame from RX FIFO.

Function Class:: Not an API, this function is for internal use only.

Definition at line 206 of file hal_sio_lld.c.

◆ sio_lld_put()

void sio_lld_put	(	SIODriver *	siop,
		uint_fast16_t	data
	)

Pushes one frame into the TX FIFO.

Note: If the FIFO is full then the behavior is unpredictable.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	data	frame to be written

Function Class:: Not an API, this function is for internal use only.

Definition at line 223 of file hal_sio_lld.c.

◆ sio_lld_control()

msg_t sio_lld_control	(	SIODriver *	siop,
		unsigned int	operation,
		void *	arg
	)

Control operation on a serial port.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	operation	control operation code
[in,out]	arg	operation argument

Returns: The control operation status.

Return values

MSG_OK	in case of success.
MSG_TIMEOUT	in case of operation timeout.
MSG_RESET	in case of operation reset.

Function Class:: Not an API, this function is for internal use only.

Definition at line 243 of file hal_sio_lld.c.

References MSG_OK.

Variable Documentation

◆ SIOD1

SIODriver SIOD1

SIO1 driver identifier.

Definition at line 41 of file hal_sio_lld.c.

Referenced by sio_lld_init(), sio_lld_start(), and sio_lld_stop().

Detailed Description

Driver State Machine

Macros

SIO status flags

SIO additional messages

SIO configuration options

Low level driver helper macros

PLATFORM configuration options

Typedefs

Data Structures

Functions

Enumerations

Variables

Macro Definition Documentation

◆ SIO_NO_ERROR

◆ SIO_PARITY_ERROR

◆ SIO_FRAMING_ERROR

◆ SIO_OVERRUN_ERROR

◆ SIO_NOISE_ERROR

◆ SIO_BREAK_DETECTED

◆ SIO_DEFAULT_BITRATE

◆ SIO_USE_SYNCHRONIZATION

◆ _sio_driver_methods

◆ sioGetFlagsX

◆ sioIsRXEmptyX

◆ sioIsTXFullX

◆ sioGetAndClearEventsI

◆ sioGetX

◆ sioPutX

◆ sioAsyncReadI

◆ sioAsyncWriteI

◆ sioControlX

◆ __sio_callback_rx

◆ __sio_callback_rx_idle

◆ __sio_callback_tx

◆ __sio_callback_tx_end

◆ __sio_callback_rx_evt

◆ __sio_wakeup_rx

◆ __sio_wakeup_tx

◆ __sio_wakeup_txend

◆ PLATFORM_SIO_USE_SIO1

◆ sio_lld_driver_fields

◆ sio_lld_config_fields

◆ sio_lld_is_rx_empty

◆ sio_lld_is_tx_full

◆ sio_lld_is_tx_ongoing

Typedef Documentation

◆ sioflags_t

◆ SIODriver

◆ SIOConfig

◆ SIOOperation

◆ siocb_t

◆ sio_events_mask_t

Enumeration Type Documentation

◆ siostate_t

Function Documentation

◆ sioInit()

◆ sioObjectInit()

◆ sioStart()

◆ sioStop()

◆ sioStartOperation()

◆ sioStopOperation()

◆ sioGetAndClearEvents()

◆ sioAsyncRead()

◆ sioAsyncWrite()

◆ sioSynchronizeRX()

◆ sioSynchronizeTX()

◆ sioSynchronizeTXEnd()

◆ sio_lld_init()

◆ sio_lld_start()

◆ sio_lld_stop()

◆ sio_lld_start_operation()

◆ sio_lld_stop_operation()

◆ sio_lld_get_and_clear_events()

◆ sio_lld_read()

◆ sio_lld_write()

◆ sio_lld_get()

◆ sio_lld_put()

◆ sio_lld_control()

Variable Documentation
