mmc_spi_driver_t Struct Reference

Structure representing a MMC/SD over SPI driver. More...

#include <hal_mmc_spi.h>

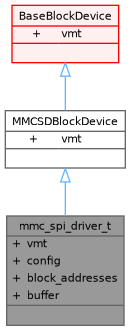

Inheritance diagram for mmc_spi_driver_t:

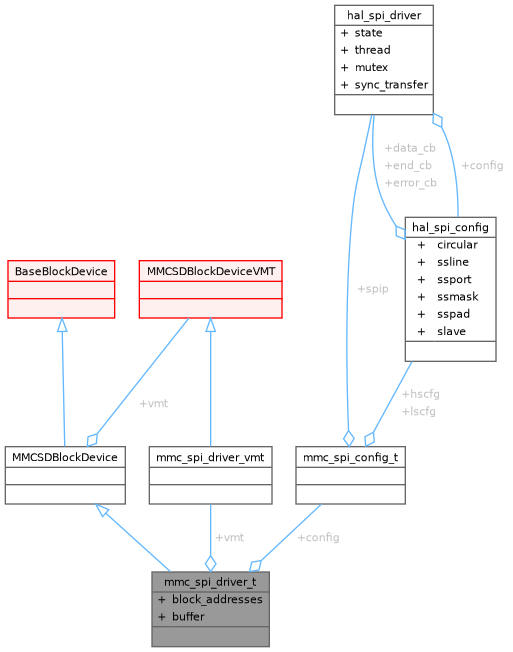

Collaboration diagram for mmc_spi_driver_t:

Data Fields
const struct mmc_spi_driver_vmt *	vmt
	Virtual Methods Table.
_mmcsd_block_device_data const mmc_spi_config_t *	config
	Current configuration data.
bool	block_addresses
	Addresses use blocks instead of bytes.
uint8_t *	buffer
	Pointer to an un-cacheable buffer of size MMC_BUFFER_SIZE.
Data Fields inherited from MMCSDBlockDevice
const struct MMCSDBlockDeviceVMT *	vmt
	Virtual Methods Table.
Data Fields inherited from BaseBlockDevice
const struct BaseBlockDeviceVMT *	vmt
	Virtual Methods Table.
Data Fields inherited from BaseObject
const struct BaseObjectVMT *	vmt
	Virtual Methods Table.

Detailed Description

Structure representing a MMC/SD over SPI driver.

Definition at line 130 of file hal_mmc_spi.h.

Field Documentation

vmt

const struct mmc_spi_driver_vmt* mmc_spi_driver_t::vmt

Virtual Methods Table.

Definition at line 134 of file hal_mmc_spi.h.

Referenced by mmcObjectInit().

config

_mmcsd_block_device_data const mmc_spi_config_t* mmc_spi_driver_t::config

Current configuration data.

Definition at line 139 of file hal_mmc_spi.h.

Referenced by mmc_connect(), mmc_disconnect(), mmc_read(), mmc_read_CxD(), mmc_recvr1(), mmc_recvr3(), mmc_send_command_R1(), mmc_send_command_R3(), mmc_send_hdr(), mmc_sync(), mmc_wait_idle(), mmc_write(), mmcConnect(), mmcDisconnect(), mmcObjectInit(), mmcSequentialRead(), mmcSequentialWrite(), mmcStart(), mmcStartSequentialRead(), mmcStartSequentialWrite(), mmcStop(), mmcStopSequentialRead(), mmcStopSequentialWrite(), and mmcSync().

block_addresses

bool mmc_spi_driver_t::block_addresses

Addresses use blocks instead of bytes.

Definition at line 143 of file hal_mmc_spi.h.

Referenced by mmcConnect(), mmcErase(), mmcObjectInit(), mmcStartSequentialRead(), and mmcStartSequentialWrite().

buffer

uint8_t* mmc_spi_driver_t::buffer

Pointer to an un-cacheable buffer of size MMC_BUFFER_SIZE.

Definition at line 147 of file hal_mmc_spi.h.

Referenced by mmc_read_CxD(), mmc_recvr1(), mmc_recvr3(), mmc_send_hdr(), mmc_wait_idle(), mmcConnect(), mmcObjectInit(), mmcSequentialRead(), and mmcSequentialWrite().
