Generic MMC driver. More...

Detailed Description

Generic MMC driver.

This module implements a portable MMC/SD driver that uses a SPI driver as physical layer. Hot plugging and removal are supported through kernel events.

Precondition: In order to use the MMC_SPI driver the HAL_USE_MMC_SPI and HAL_USE_SPI options must be enabled in halconf.h.

Driver State Machine

This driver implements a state machine internally, see the Abstract I/O Block Device module documentation for details.

Driver Operations

This driver allows to read or write single or multiple 512 bytes blocks on a SD Card.

Collaboration diagram for MMC over SPI Driver:

MMC_SPI configuration options
#define	MMC_IDLE_TIMEOUT_MS 1000
	Timeout before assuming a failure while waiting for card idle.
#define	MMC_USE_MUTUAL_EXCLUSION TRUE
	Mutual exclusion on the SPI bus.

Macro Functions
#define	mmcIsCardInserted(mmcp)
	Returns the card insertion status.
#define	mmcIsWriteProtected(mmcp)
	Returns the write protect status.

Data Structures
struct	mmc_spi_config_t
	Type of a MMC/SD over SPI driver configuration structure. More...
struct	mmc_spi_driver_vmt
	`MMCDriver` virtual methods table. More...
struct	mmc_spi_driver_t
	Structure representing a MMC/SD over SPI driver. More...

Macros
#define	MMC_CMD0_RETRY 10U
#define	MMC_CMD1_RETRY 100U
#define	MMC_ACMD41_RETRY 100U
#define	MMC_WAIT_DATA 10000U
#define	MMC_BUFFER_SIZE 16U
	Size of the buffer to be supplied to the driver.
#define	__mmc_driver_methods _mmcsd_block_device_methods
	`MMCDriver` specific methods.

Typedefs
typedef mmc_spi_config_t	MMCConfig
	Legacy name for compatibility.
typedef mmc_spi_driver_t	MMCDriver
	Legacy name for compatibility.

Functions
static bool	mmc_is_card_inserted (void *instance)
static bool	mmc_is_write_protected (void *instance)
static bool	mmc_connect (void *instance)
static bool	mmc_disconnect (void *instance)
static bool	mmc_read (void instance, uint32_t startblk, uint8_t buffer, uint32_t n)
static bool	mmc_write (void instance, uint32_t startblk, const uint8_t buffer, uint32_t n)
static bool	mmc_sync (void *instance)
static bool	mmc_get_info (void instance, BlockDeviceInfo bdip)
static uint8_t	mmc_crc7 (uint8_t crc, const uint8_t *buffer, size_t len)
	Calculate the MMC standard CRC-7 based on a lookup table.
static bool	mmc_wait_idle (MMCDriver *mmcp)
	Waits an idle condition.
static bool	mmc_send_hdr (MMCDriver *mmcp, uint8_t cmd, uint32_t arg)
	Sends a command header.
static bool	mmc_recvr1 (MMCDriver mmcp, uint8_t r1p)
	Receives a single byte response.
static bool	mmc_recvr3 (MMCDriver mmcp, uint8_t r1p)
	Receives a three byte response.
static bool	mmc_send_command_R1 (MMCDriver mmcp, uint8_t cmd, uint32_t arg, uint8_t r1p)
	Sends a command an returns a single byte response.
static bool	mmc_send_command_R3 (MMCDriver mmcp, uint8_t cmd, uint32_t arg, uint8_t r1p)
	Sends a command which returns a five bytes response (R3).
static bool	mmc_read_CxD (MMCDriver *mmcp, uint8_t cmd, uint32_t cxd[4])
	Reads the CSD.
void	mmcInit (void)
	MMC over SPI driver initialization.
void	mmcObjectInit (MMCDriver mmcp, uint8_t buffer)
	Initializes an instance.
msg_t	mmcStart (MMCDriver mmcp, const MMCConfig config)
	Configures and activates the MMC peripheral.
void	mmcStop (MMCDriver *mmcp)
	Disables the MMC peripheral.
bool	mmcConnect (MMCDriver *mmcp)
	Performs the initialization procedure on the inserted card.
bool	mmcDisconnect (MMCDriver *mmcp)
	Brings the driver in a state safe for card removal.
bool	mmcStartSequentialRead (MMCDriver *mmcp, uint32_t startblk)
	Starts a sequential read.
bool	mmcSequentialRead (MMCDriver mmcp, uint8_t buffer)
	Reads a block within a sequential read operation.
bool	mmcStopSequentialRead (MMCDriver *mmcp)
	Stops a sequential read gracefully.
bool	mmcStartSequentialWrite (MMCDriver *mmcp, uint32_t startblk)
	Starts a sequential write.
bool	mmcSequentialWrite (MMCDriver mmcp, const uint8_t buffer)
	Writes a block within a sequential write operation.
bool	mmcStopSequentialWrite (MMCDriver *mmcp)
	Stops a sequential write gracefully.
bool	mmcSync (MMCDriver *mmcp)
	Waits for card idle condition.
bool	mmcGetInfo (MMCDriver mmcp, BlockDeviceInfo bdip)
	Returns the media info.
bool	mmcErase (MMCDriver *mmcp, uint32_t startblk, uint32_t endblk)
	Erases blocks.
bool	mmc_lld_is_card_inserted (MMCDriver *mmcp)
bool	mmc_lld_is_write_protected (MMCDriver *mmcp)

Variables
static const struct mmc_spi_driver_vmt	mmc_vmt
	Virtual methods table.
static const uint8_t	mmc_crc7_lookup_table [256]
	Lookup table for CRC-7 ( based on polynomial x^7 + x^3 + 1).

Macro Definition Documentation

◆ MMC_CMD0_RETRY

#define MMC_CMD0_RETRY 10U

Definition at line 34 of file hal_mmc_spi.h.

Referenced by mmcConnect().

◆ MMC_CMD1_RETRY

#define MMC_CMD1_RETRY 100U

Definition at line 35 of file hal_mmc_spi.h.

Referenced by mmcConnect().

◆ MMC_ACMD41_RETRY

#define MMC_ACMD41_RETRY 100U

Definition at line 36 of file hal_mmc_spi.h.

Referenced by mmcConnect().

◆ MMC_WAIT_DATA

#define MMC_WAIT_DATA 10000U

Definition at line 37 of file hal_mmc_spi.h.

Referenced by mmc_read_CxD(), and mmcSequentialRead().

◆ MMC_BUFFER_SIZE

#define MMC_BUFFER_SIZE 16U

Size of the buffer to be supplied to the driver.

Note: The buffer is meant to be non-cacheable on platforms with data cache.

Definition at line 44 of file hal_mmc_spi.h.

◆ MMC_IDLE_TIMEOUT_MS

#define MMC_IDLE_TIMEOUT_MS 1000

Timeout before assuming a failure while waiting for card idle.

Note: Time is in milliseconds.

Definition at line 59 of file hal_mmc_spi.h.

Referenced by mmc_wait_idle().

◆ MMC_USE_MUTUAL_EXCLUSION

#define MMC_USE_MUTUAL_EXCLUSION TRUE

Mutual exclusion on the SPI bus.

Definition at line 66 of file hal_mmc_spi.h.

◆ __mmc_driver_methods

#define __mmc_driver_methods _mmcsd_block_device_methods

MMCDriver specific methods.

Definition at line 113 of file hal_mmc_spi.h.

◆ mmcIsCardInserted

#define mmcIsCardInserted ( mmcp )

Value:

mmc_lld_is_card_inserted(mmcp)

mmc_lld_is_card_inserted

bool mmc_lld_is_card_inserted(MMCDriver *mmcp)

Returns the card insertion status.

Note: This macro wraps a low level function named sdc_lld_is_card_inserted(), this function must be provided by the application because it is not part of the SDC driver.

Parameters

[in] mmcp pointer to the MMCDriver object

Returns: The card state.

Return values

false	card not inserted.
true	card inserted.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 178 of file hal_mmc_spi.h.

Referenced by mmc_is_card_inserted().

◆ mmcIsWriteProtected

#define mmcIsWriteProtected ( mmcp )

Value:

mmc_lld_is_write_protected(mmcp)

mmc_lld_is_write_protected

bool mmc_lld_is_write_protected(MMCDriver *mmcp)

Returns the write protect status.

Parameters

[in] mmcp pointer to the MMCDriver object

Returns: The card state.

Return values

false	card not inserted.
true	card inserted.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 190 of file hal_mmc_spi.h.

Referenced by mmc_is_write_protected().

Typedef Documentation

◆ MMCConfig

typedef mmc_spi_config_t MMCConfig

Legacy name for compatibility.

Deprecated

Definition at line 108 of file hal_mmc_spi.h.

◆ MMCDriver

typedef mmc_spi_driver_t MMCDriver

Legacy name for compatibility.

Deprecated

Definition at line 154 of file hal_mmc_spi.h.

Function Documentation

◆ mmc_is_card_inserted()

bool mmc_is_card_inserted ( void * instance )

static

Definition at line 105 of file hal_mmc_spi.c.

References mmcIsCardInserted.

◆ mmc_is_write_protected()

bool mmc_is_write_protected ( void * instance )

static

Definition at line 114 of file hal_mmc_spi.c.

References mmcIsWriteProtected.

◆ mmc_connect()

bool mmc_connect ( void * instance )

static

Definition at line 123 of file hal_mmc_spi.c.

References mmc_spi_driver_t::config, mmcConnect(), spiAcquireBus(), mmc_spi_config_t::spip, and spiReleaseBus().

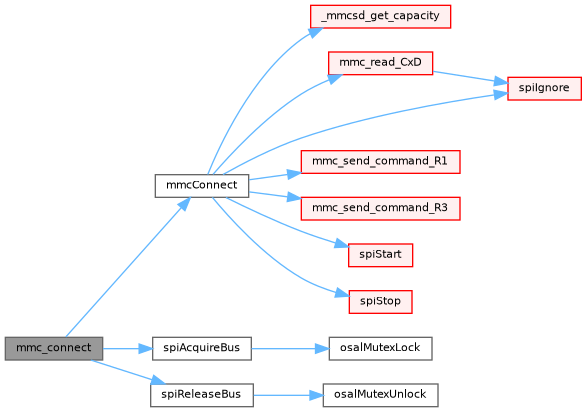

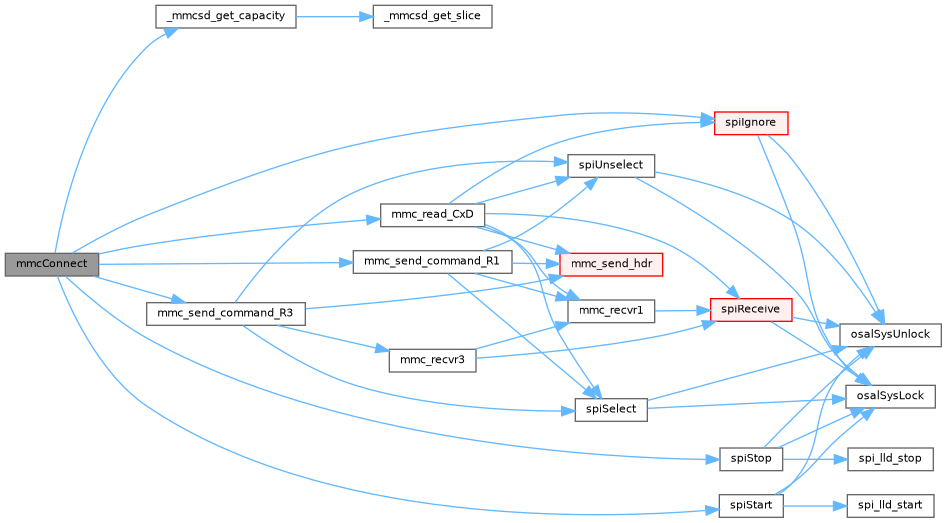

Here is the call graph for this function:

◆ mmc_disconnect()

bool mmc_disconnect ( void * instance )

static

Definition at line 140 of file hal_mmc_spi.c.

References mmc_spi_driver_t::config, mmcDisconnect(), spiAcquireBus(), mmc_spi_config_t::spip, and spiReleaseBus().

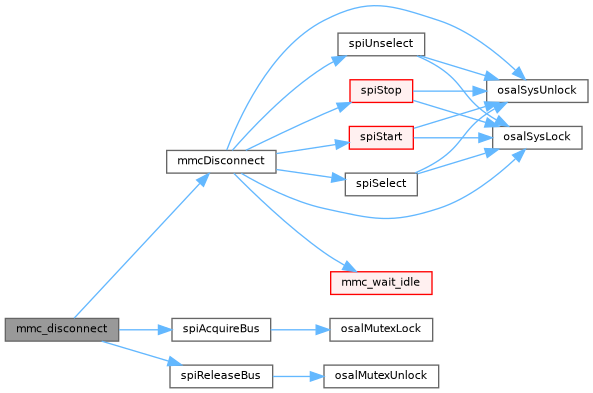

Here is the call graph for this function:

◆ mmc_read()

bool mmc_read	(	void *	instance,
		uint32_t	startblk,
		uint8_t *	buffer,
		uint32_t	n )

static

Definition at line 157 of file hal_mmc_spi.c.

References mmc_spi_driver_t::config, HAL_FAILED, HAL_SUCCESS, MMCSD_BLOCK_SIZE, mmcSequentialRead(), mmcStartSequentialRead(), mmcStopSequentialRead(), spiAcquireBus(), mmc_spi_config_t::spip, and spiReleaseBus().

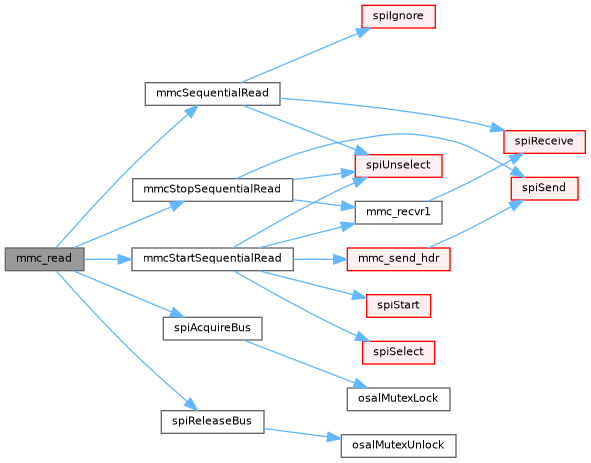

Here is the call graph for this function:

◆ mmc_write()

bool mmc_write	(	void *	instance,
		uint32_t	startblk,
		const uint8_t *	buffer,
		uint32_t	n )

static

Definition at line 193 of file hal_mmc_spi.c.

References mmc_spi_driver_t::config, HAL_FAILED, HAL_SUCCESS, MMCSD_BLOCK_SIZE, mmcSequentialWrite(), mmcStartSequentialWrite(), mmcStopSequentialWrite(), spiAcquireBus(), mmc_spi_config_t::spip, and spiReleaseBus().

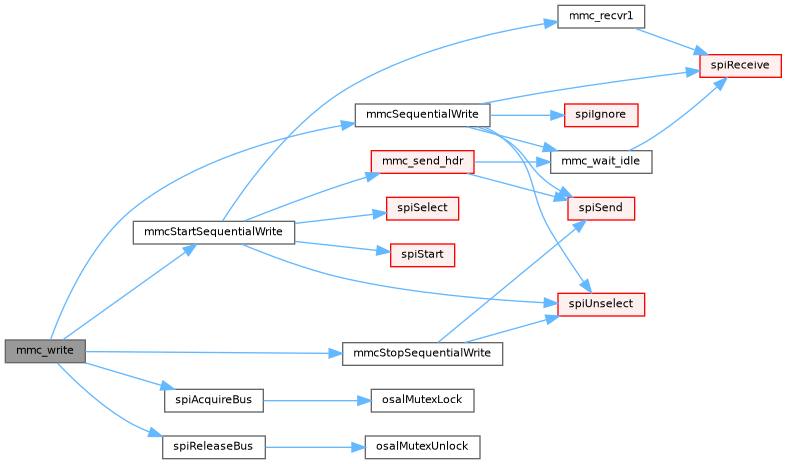

Here is the call graph for this function:

◆ mmc_sync()

bool mmc_sync ( void * instance )

static

Definition at line 229 of file hal_mmc_spi.c.

References mmc_spi_driver_t::config, mmcSync(), spiAcquireBus(), mmc_spi_config_t::spip, and spiReleaseBus().

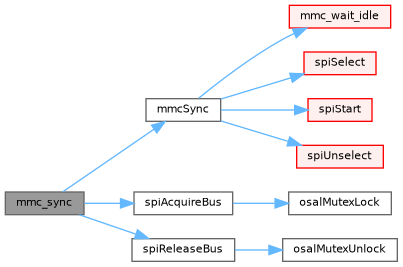

Here is the call graph for this function:

◆ mmc_get_info()

bool mmc_get_info	(	void *	instance,
		BlockDeviceInfo *	bdip )

static

Definition at line 246 of file hal_mmc_spi.c.

References mmcGetInfo().

Here is the call graph for this function:

◆ mmc_crc7()

uint8_t mmc_crc7	(	uint8_t	crc,
		const uint8_t *	buffer,
		size_t	len )

static

Calculate the MMC standard CRC-7 based on a lookup table.

Parameters

[in]	crc	start value for CRC
[in]	buffer	pointer to data buffer
[in]	len	length of data

Returns: Calculated CRC

Definition at line 263 of file hal_mmc_spi.c.

References mmc_crc7_lookup_table.

Referenced by mmc_send_hdr().

◆ mmc_wait_idle()

bool mmc_wait_idle ( MMCDriver * mmcp )

static

Waits an idle condition.

Parameters

[in] mmcp pointer to the MMCDriver object

Returns: The operation status.

Return values

HAL_SUCCESS	if the operation succeeded.
HAL_FAILED	if the operation failed.

Function Class:: Not an API, this function is for internal use only.

Definition at line 282 of file hal_mmc_spi.c.

References mmc_spi_driver_t::buffer, mmc_spi_driver_t::config, HAL_FAILED, HAL_SUCCESS, MMC_IDLE_TIMEOUT_MS, osalThreadSleepMilliseconds, mmc_spi_config_t::spip, and spiReceive().

Referenced by mmc_send_hdr(), mmcDisconnect(), mmcSequentialWrite(), and mmcSync().

Here is the call graph for this function:

◆ mmc_send_hdr()

bool mmc_send_hdr	(	MMCDriver *	mmcp,
		uint8_t	cmd,
		uint32_t	arg )

static

Sends a command header.

Parameters

[in]	mmcp	pointer to the `MMCDriver` object
[in]	cmd	the command id
[in]	arg	the command argument

Returns: The operation status.

Return values

HAL_SUCCESS	if the operation succeeded.
HAL_FAILED	if the operation failed.

Function Class:: Not an API, this function is for internal use only.

Definition at line 319 of file hal_mmc_spi.c.

References mmc_spi_driver_t::buffer, mmc_spi_driver_t::config, HAL_FAILED, HAL_SUCCESS, mmc_crc7(), mmc_wait_idle(), mmc_spi_config_t::spip, and spiSend().

Referenced by mmc_read_CxD(), mmc_send_command_R1(), mmc_send_command_R3(), mmcStartSequentialRead(), and mmcStartSequentialWrite().

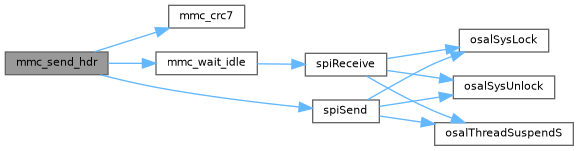

Here is the call graph for this function:

◆ mmc_recvr1()

bool mmc_recvr1	(	MMCDriver *	mmcp,
		uint8_t *	r1p )

static

Receives a single byte response.

Parameters

[in]	mmcp	pointer to the `MMCDriver` object
[out]	r1p	pointer to buffer for R1 answer

Returns: Operation status.

Return values

HAL_SUCCESS	if the operation succeeded.
HAL_FAILED	if the operation failed.

Function Class:: Not an API, this function is for internal use only.

Definition at line 350 of file hal_mmc_spi.c.

References mmc_spi_driver_t::buffer, mmc_spi_driver_t::config, HAL_FAILED, HAL_SUCCESS, mmc_spi_config_t::spip, and spiReceive().

Referenced by mmc_read_CxD(), mmc_recvr3(), mmc_send_command_R1(), mmcStartSequentialRead(), mmcStartSequentialWrite(), and mmcStopSequentialRead().

Here is the call graph for this function:

◆ mmc_recvr3()

bool mmc_recvr3	(	MMCDriver *	mmcp,
		uint8_t *	r1p )

static

Receives a three byte response.

Parameters

[in]	mmcp	pointer to the `MMCDriver` object
[out]	r1p	pointer to buffer for R1 answer

Returns: Operation status.

Return values

HAL_SUCCESS	if the operation succeeded.
HAL_FAILED	if the operation failed.

Function Class:: Not an API, this function is for internal use only.

Definition at line 374 of file hal_mmc_spi.c.

References mmc_spi_driver_t::buffer, mmc_spi_driver_t::config, mmc_recvr1(), mmc_spi_config_t::spip, and spiReceive().

Referenced by mmc_send_command_R3().

Here is the call graph for this function:

◆ mmc_send_command_R1()

bool mmc_send_command_R1	(	MMCDriver *	mmcp,
		uint8_t	cmd,
		uint32_t	arg,
		uint8_t *	r1p )

static

Sends a command an returns a single byte response.

Parameters

[in]	mmcp	pointer to the `MMCDriver` object
[in]	cmd	the command id
[in]	arg	the command argument
[out]	r1p	pointer to buffer for R1 answer

Returns: Operation status.

Return values

HAL_SUCCESS	if the operation succeeded.
HAL_FAILED	if the operation failed.

Function Class:: Not an API, this function is for internal use only.

Definition at line 396 of file hal_mmc_spi.c.

References mmc_spi_driver_t::config, mmc_recvr1(), mmc_send_hdr(), mmc_spi_config_t::spip, spiSelect(), and spiUnselect().

Referenced by mmcConnect(), and mmcErase().

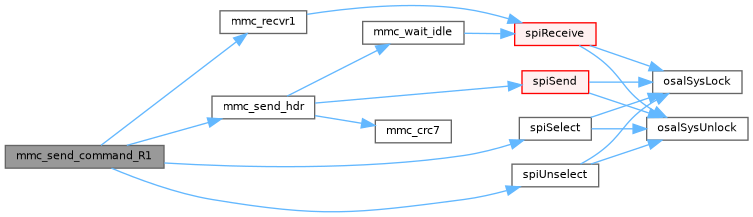

Here is the call graph for this function:

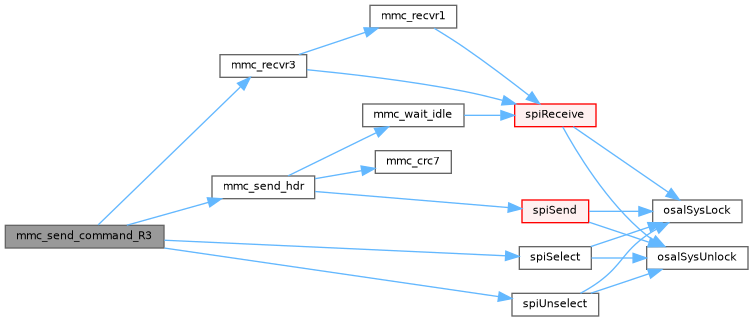

◆ mmc_send_command_R3()

bool mmc_send_command_R3	(	MMCDriver *	mmcp,
		uint8_t	cmd,
		uint32_t	arg,
		uint8_t *	r1p )

static

Sends a command which returns a five bytes response (R3).

Parameters

[in]	mmcp	pointer to the `MMCDriver` object
[in]	cmd	the command id
[in]	arg	the command argument
[out]	r1p	pointer to buffer for R1 answer

Returns: The first byte of the response (R1) as an uint8_t value.

Return values

0xFF	timed out.

Function Class:: Not an API, this function is for internal use only.

Definition at line 423 of file hal_mmc_spi.c.

References mmc_spi_driver_t::config, mmc_recvr3(), mmc_send_hdr(), mmc_spi_config_t::spip, spiSelect(), and spiUnselect().

Referenced by mmcConnect().

Here is the call graph for this function:

◆ mmc_read_CxD()

bool mmc_read_CxD	(	MMCDriver *	mmcp,
		uint8_t	cmd,
		uint32_t	cxd[4] )

static

Reads the CSD.

Parameters

[in]	mmcp	pointer to the `MMCDriver` object
[out]	cmd	command
[out]	cxd	pointer to the CSD/CID buffer

Returns: The operation status.

Return values

HAL_SUCCESS	if the operation succeeded.
HAL_FAILED	if the operation failed.

Function Class:: Not an API, this function is for internal use only.

Definition at line 450 of file hal_mmc_spi.c.

References mmc_spi_driver_t::buffer, mmc_spi_driver_t::config, HAL_FAILED, HAL_SUCCESS, mmc_recvr1(), mmc_send_hdr(), MMC_WAIT_DATA, spiIgnore(), mmc_spi_config_t::spip, spiReceive(), spiSelect(), and spiUnselect().

Referenced by mmcConnect().

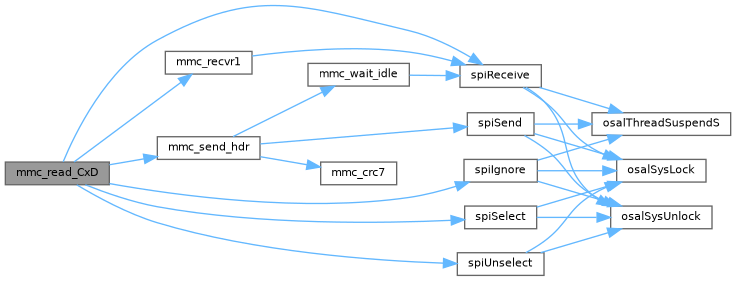

Here is the call graph for this function:

◆ mmcInit()

void mmcInit ( void )

MMC over SPI driver initialization.

Note: This function is implicitly invoked by halInit(), there is no need to explicitly initialize the driver.

Function Class:: Object or module nitializer function.

Definition at line 504 of file hal_mmc_spi.c.

Referenced by halInit().

◆ mmcObjectInit()

void mmcObjectInit	(	MMCDriver *	mmcp,
		uint8_t *	buffer )

Initializes an instance.

Parameters

[out]	mmcp	pointer to the `MMCDriver` object
[in]	buffer	operations buffer

Function Class:: Object or module nitializer function.

Definition at line 516 of file hal_mmc_spi.c.

References BLK_STOP, mmc_spi_driver_t::block_addresses, mmc_spi_driver_t::buffer, mmc_spi_driver_t::config, mmc_vmt, and mmc_spi_driver_t::vmt.

◆ mmcStart()

msg_t mmcStart	(	MMCDriver *	mmcp,
		const MMCConfig *	config )

Configures and activates the MMC peripheral.

Parameters

[in]	mmcp	pointer to the `MMCDriver` object
[in]	config	pointer to the `MMCConfig` object.

Returns: The operation status.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 534 of file hal_mmc_spi.c.

References BLK_ACTIVE, BLK_STOP, mmc_spi_driver_t::config, HAL_RET_SUCCESS, osalDbgAssert, and osalDbgCheck.

◆ mmcStop()

void mmcStop ( MMCDriver * mmcp )

Disables the MMC peripheral.

Parameters

[in] mmcp pointer to the MMCDriver object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 553 of file hal_mmc_spi.c.

References BLK_ACTIVE, BLK_STOP, mmc_spi_driver_t::config, osalDbgAssert, osalDbgCheck, mmc_spi_config_t::spip, and spiStop().

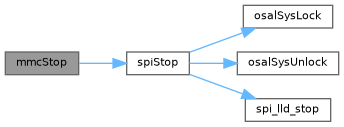

Here is the call graph for this function:

◆ mmcConnect()

bool mmcConnect ( MMCDriver * mmcp )

Performs the initialization procedure on the inserted card.

This function should be invoked when a card is inserted and brings the driver in the MMC_READY state where it is possible to perform read and write operations.

Note: It is possible to invoke this function from the insertion event handler.

Parameters

[in] mmcp pointer to the MMCDriver object

Returns: The operation status.

Return values

HAL_SUCCESS	if the operation succeeded.
HAL_FAILED	if the operation failed.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 581 of file hal_mmc_spi.c.

References _mmcsd_get_capacity(), BLK_ACTIVE, BLK_CONNECTING, BLK_READY, mmc_spi_driver_t::block_addresses, mmc_spi_driver_t::buffer, mmc_spi_driver_t::config, HAL_FAILED, HAL_SUCCESS, mmc_spi_config_t::hscfg, mmc_spi_config_t::lscfg, MMC_ACMD41_RETRY, MMC_CMD0_RETRY, MMC_CMD1_RETRY, mmc_read_CxD(), mmc_send_command_R1(), mmc_send_command_R3(), MMCSD_BLOCK_SIZE, MMCSD_CMD8_PATTERN, MMCSD_CMD_APP_CMD, MMCSD_CMD_APP_OP_COND, MMCSD_CMD_GO_IDLE_STATE, MMCSD_CMD_INIT, MMCSD_CMD_READ_OCR, MMCSD_CMD_SEND_CID, MMCSD_CMD_SEND_CSD, MMCSD_CMD_SEND_IF_COND, MMCSD_CMD_SET_BLOCKLEN, osalDbgAssert, osalDbgCheck, osalThreadSleepMilliseconds, spiIgnore(), mmc_spi_config_t::spip, spiStart(), and spiStop().

Referenced by mmc_connect().

Here is the call graph for this function:

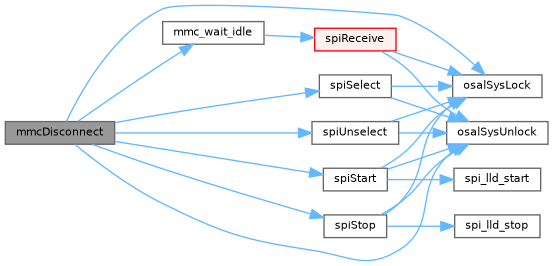

◆ mmcDisconnect()

bool mmcDisconnect ( MMCDriver * mmcp )

Brings the driver in a state safe for card removal.

Parameters

[in] mmcp pointer to the MMCDriver object

Returns: The operation status.

Return values

HAL_SUCCESS	if the operation succeeded.
HAL_FAILED	if the operation failed.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 719 of file hal_mmc_spi.c.

References BLK_ACTIVE, BLK_DISCONNECTING, BLK_READY, mmc_spi_driver_t::config, HAL_SUCCESS, mmc_spi_config_t::hscfg, mmc_wait_idle(), osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), mmc_spi_config_t::spip, spiSelect(), spiStart(), spiStop(), and spiUnselect().

Referenced by mmc_disconnect().

Here is the call graph for this function:

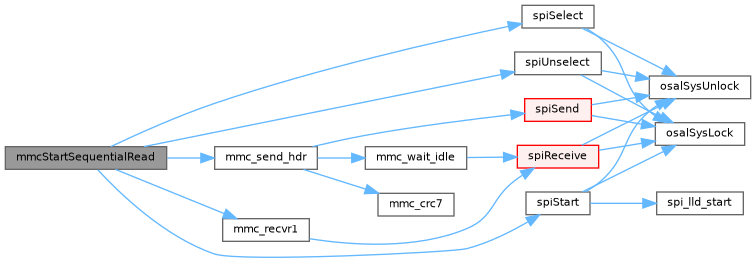

◆ mmcStartSequentialRead()

bool mmcStartSequentialRead	(	MMCDriver *	mmcp,
		uint32_t	startblk )

Starts a sequential read.

Parameters

[in]	mmcp	pointer to the `MMCDriver` object
[in]	startblk	first block to read

Returns: The operation status.

Return values

HAL_SUCCESS	if the operation succeeded.
HAL_FAILED	if the operation failed.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 764 of file hal_mmc_spi.c.

References BLK_READING, BLK_READY, mmc_spi_driver_t::block_addresses, mmc_spi_driver_t::config, HAL_FAILED, HAL_SUCCESS, mmc_spi_config_t::hscfg, mmc_recvr1(), mmc_send_hdr(), MMCSD_BLOCK_SIZE, MMCSD_CMD_READ_MULTIPLE_BLOCK, osalDbgAssert, osalDbgCheck, mmc_spi_config_t::spip, spiSelect(), spiStart(), and spiUnselect().

Referenced by mmc_read().

Here is the call graph for this function:

◆ mmcSequentialRead()

bool mmcSequentialRead	(	MMCDriver *	mmcp,
		uint8_t *	buffer )

Reads a block within a sequential read operation.

Parameters

[in]	mmcp	pointer to the `MMCDriver` object
[out]	buffer	pointer to the read buffer

Returns: The operation status.

Return values

HAL_SUCCESS	if the operation succeeded.
HAL_FAILED	if the operation failed.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 817 of file hal_mmc_spi.c.

References BLK_READING, BLK_READY, mmc_spi_driver_t::buffer, mmc_spi_driver_t::config, HAL_FAILED, HAL_SUCCESS, MMC_WAIT_DATA, MMCSD_BLOCK_SIZE, osalDbgCheck, spiIgnore(), mmc_spi_config_t::spip, spiReceive(), and spiUnselect().

Referenced by mmc_read().

Here is the call graph for this function:

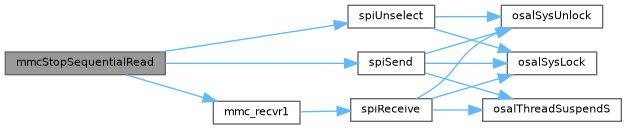

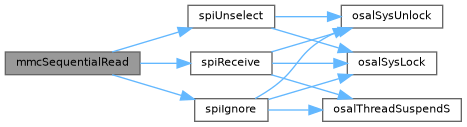

◆ mmcStopSequentialRead()

bool mmcStopSequentialRead ( MMCDriver * mmcp )

Stops a sequential read gracefully.

Parameters

[in] mmcp pointer to the MMCDriver object

Returns: The operation status.

Return values

HAL_SUCCESS	if the operation succeeded.
HAL_FAILED	if the operation failed.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 855 of file hal_mmc_spi.c.

References BLK_READING, BLK_READY, mmc_spi_driver_t::config, HAL_FAILED, HAL_SUCCESS, mmc_recvr1(), MMCSD_CMD_STOP_TRANSMISSION, osalDbgCheck, mmc_spi_config_t::spip, spiSend(), and spiUnselect().

Referenced by mmc_read().

Here is the call graph for this function:

◆ mmcStartSequentialWrite()

bool mmcStartSequentialWrite	(	MMCDriver *	mmcp,
		uint32_t	startblk )

Starts a sequential write.

Parameters

[in]	mmcp	pointer to the `MMCDriver` object
[in]	startblk	first block to write

Returns: The operation status.

Return values

HAL_SUCCESS	if the operation succeeded.
HAL_FAILED	if the operation failed.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 893 of file hal_mmc_spi.c.

References BLK_READY, BLK_WRITING, mmc_spi_driver_t::block_addresses, mmc_spi_driver_t::config, HAL_FAILED, HAL_SUCCESS, mmc_spi_config_t::hscfg, mmc_recvr1(), mmc_send_hdr(), MMCSD_BLOCK_SIZE, MMCSD_CMD_WRITE_MULTIPLE_BLOCK, osalDbgAssert, osalDbgCheck, mmc_spi_config_t::spip, spiSelect(), spiStart(), and spiUnselect().

Referenced by mmc_write().

Here is the call graph for this function:

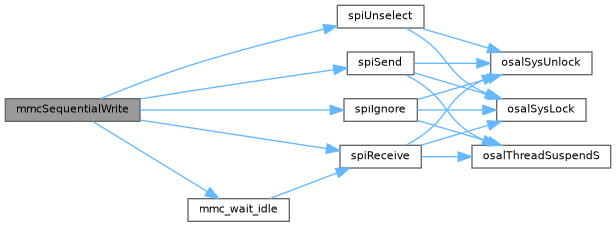

◆ mmcSequentialWrite()

bool mmcSequentialWrite	(	MMCDriver *	mmcp,
		const uint8_t *	buffer )

Writes a block within a sequential write operation.

Parameters

[in]	mmcp	pointer to the `MMCDriver` object
[out]	buffer	pointer to the write buffer

Returns: The operation status.

Return values

HAL_SUCCESS	if the operation succeeded.
HAL_FAILED	if the operation failed.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 942 of file hal_mmc_spi.c.

References BLK_READY, BLK_WRITING, mmc_spi_driver_t::buffer, mmc_spi_driver_t::config, HAL_FAILED, mmc_wait_idle(), MMCSD_BLOCK_SIZE, osalDbgCheck, spiIgnore(), mmc_spi_config_t::spip, spiReceive(), spiSend(), and spiUnselect().

Referenced by mmc_write().

Here is the call graph for this function:

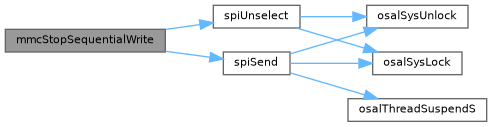

◆ mmcStopSequentialWrite()

bool mmcStopSequentialWrite ( MMCDriver * mmcp )

Stops a sequential write gracefully.

Parameters

[in] mmcp pointer to the MMCDriver object

Returns: The operation status.

Return values

HAL_SUCCESS	if the operation succeeded.
HAL_FAILED	if the operation failed.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 978 of file hal_mmc_spi.c.

References BLK_READY, BLK_WRITING, mmc_spi_driver_t::config, HAL_FAILED, HAL_SUCCESS, osalDbgCheck, mmc_spi_config_t::spip, spiSend(), and spiUnselect().

Referenced by mmc_write().

Here is the call graph for this function:

◆ mmcSync()

bool mmcSync ( MMCDriver * mmcp )

Waits for card idle condition.

Parameters

[in] mmcp pointer to the MMCDriver object

Returns: The operation status.

Return values

HAL_SUCCESS	if the operation succeeded.
HAL_FAILED	if the operation failed.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 1007 of file hal_mmc_spi.c.

References BLK_READY, BLK_SYNCING, mmc_spi_driver_t::config, HAL_FAILED, mmc_spi_config_t::hscfg, mmc_wait_idle(), osalDbgCheck, mmc_spi_config_t::spip, spiSelect(), spiStart(), and spiUnselect().

Referenced by mmc_sync().

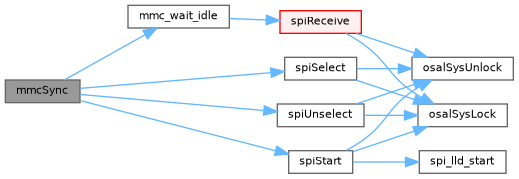

Here is the call graph for this function:

◆ mmcGetInfo()

bool mmcGetInfo	(	MMCDriver *	mmcp,
		BlockDeviceInfo *	bdip )

Returns the media info.

Parameters

[in]	mmcp	pointer to the `MMCDriver` object
[out]	bdip	pointer to a `BlockDeviceInfo` structure

Returns: The operation status.

Return values

HAL_SUCCESS	if the operation succeeded.
HAL_FAILED	if the operation failed.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 1044 of file hal_mmc_spi.c.

References BlockDeviceInfo::blk_num, BLK_READY, BlockDeviceInfo::blk_size, HAL_FAILED, HAL_SUCCESS, MMCSD_BLOCK_SIZE, and osalDbgCheck.

Referenced by mmc_get_info().

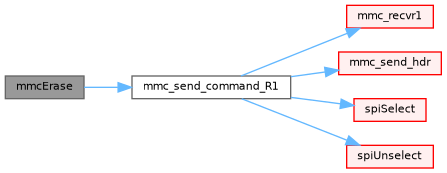

◆ mmcErase()

bool mmcErase	(	MMCDriver *	mmcp,
		uint32_t	startblk,
		uint32_t	endblk )

Erases blocks.

Parameters

[in]	mmcp	pointer to the `MMCDriver` object
[in]	startblk	starting block number
[in]	endblk	ending block number

Returns: The operation status.

Return values

HAL_SUCCESS	if the operation succeeded.
HAL_FAILED	if the operation failed.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 1071 of file hal_mmc_spi.c.

References BLK_READY, BLK_WRITING, mmc_spi_driver_t::block_addresses, HAL_FAILED, HAL_SUCCESS, mmc_send_command_R1(), MMCSD_BLOCK_SIZE, MMCSD_CMD_ERASE, MMCSD_CMD_ERASE_RW_BLK_END, MMCSD_CMD_ERASE_RW_BLK_START, and osalDbgCheck.

Here is the call graph for this function:

◆ mmc_lld_is_card_inserted()

bool mmc_lld_is_card_inserted ( MMCDriver * mmcp )

◆ mmc_lld_is_write_protected()

bool mmc_lld_is_write_protected ( MMCDriver * mmcp )

Variable Documentation

◆ mmc_vmt

const struct mmc_spi_driver_vmt mmc_vmt

static

Initial value:

= {
  (size_t)0,
  mmc_is_card_inserted,
  mmc_is_write_protected,
  mmc_connect,
  mmc_disconnect,
  mmc_read,
  mmc_write,
  mmc_sync,
  mmc_get_info
}

Virtual methods table.

Definition at line 61 of file hal_mmc_spi.c.

Referenced by mmcObjectInit().

◆ mmc_crc7_lookup_table

const uint8_t mmc_crc7_lookup_table[256]

static

Initial value:

= {
  0x00, 0x09, 0x12, 0x1b, 0x24, 0x2d, 0x36, 0x3f, 0x48, 0x41, 0x5a, 0x53,
  0x6c, 0x65, 0x7e, 0x77, 0x19, 0x10, 0x0b, 0x02, 0x3d, 0x34, 0x2f, 0x26,
  0x51, 0x58, 0x43, 0x4a, 0x75, 0x7c, 0x67, 0x6e, 0x32, 0x3b, 0x20, 0x29,
  0x16, 0x1f, 0x04, 0x0d, 0x7a, 0x73, 0x68, 0x61, 0x5e, 0x57, 0x4c, 0x45,
  0x2b, 0x22, 0x39, 0x30, 0x0f, 0x06, 0x1d, 0x14, 0x63, 0x6a, 0x71, 0x78,
  0x47, 0x4e, 0x55, 0x5c, 0x64, 0x6d, 0x76, 0x7f, 0x40, 0x49, 0x52, 0x5b,
  0x2c, 0x25, 0x3e, 0x37, 0x08, 0x01, 0x1a, 0x13, 0x7d, 0x74, 0x6f, 0x66,
  0x59, 0x50, 0x4b, 0x42, 0x35, 0x3c, 0x27, 0x2e, 0x11, 0x18, 0x03, 0x0a,
  0x56, 0x5f, 0x44, 0x4d, 0x72, 0x7b, 0x60, 0x69, 0x1e, 0x17, 0x0c, 0x05,
  0x3a, 0x33, 0x28, 0x21, 0x4f, 0x46, 0x5d, 0x54, 0x6b, 0x62, 0x79, 0x70,
  0x07, 0x0e, 0x15, 0x1c, 0x23, 0x2a, 0x31, 0x38, 0x41, 0x48, 0x53, 0x5a,
  0x65, 0x6c, 0x77, 0x7e, 0x09, 0x00, 0x1b, 0x12, 0x2d, 0x24, 0x3f, 0x36,
  0x58, 0x51, 0x4a, 0x43, 0x7c, 0x75, 0x6e, 0x67, 0x10, 0x19, 0x02, 0x0b,
  0x34, 0x3d, 0x26, 0x2f, 0x73, 0x7a, 0x61, 0x68, 0x57, 0x5e, 0x45, 0x4c,
  0x3b, 0x32, 0x29, 0x20, 0x1f, 0x16, 0x0d, 0x04, 0x6a, 0x63, 0x78, 0x71,
  0x4e, 0x47, 0x5c, 0x55, 0x22, 0x2b, 0x30, 0x39, 0x06, 0x0f, 0x14, 0x1d,
  0x25, 0x2c, 0x37, 0x3e, 0x01, 0x08, 0x13, 0x1a, 0x6d, 0x64, 0x7f, 0x76,
  0x49, 0x40, 0x5b, 0x52, 0x3c, 0x35, 0x2e, 0x27, 0x18, 0x11, 0x0a, 0x03,
  0x74, 0x7d, 0x66, 0x6f, 0x50, 0x59, 0x42, 0x4b, 0x17, 0x1e, 0x05, 0x0c,
  0x33, 0x3a, 0x21, 0x28, 0x5f, 0x56, 0x4d, 0x44, 0x7b, 0x72, 0x69, 0x60,
  0x0e, 0x07, 0x1c, 0x15, 0x2a, 0x23, 0x38, 0x31, 0x46, 0x4f, 0x54, 0x5d,
  0x62, 0x6b, 0x70, 0x79
}

Lookup table for CRC-7 ( based on polynomial x^7 + x^3 + 1).

Definition at line 76 of file hal_mmc_spi.c.

Referenced by mmc_crc7().

Detailed Description

Driver State Machine

Driver Operations

MMC_SPI configuration options

Macro Functions

Data Structures

Macros

Typedefs

Functions

Variables

Macro Definition Documentation

◆ MMC_CMD0_RETRY

◆ MMC_CMD1_RETRY

◆ MMC_ACMD41_RETRY

◆ MMC_WAIT_DATA

◆ MMC_BUFFER_SIZE

◆ MMC_IDLE_TIMEOUT_MS

◆ MMC_USE_MUTUAL_EXCLUSION

◆ __mmc_driver_methods

◆ mmcIsCardInserted

◆ mmcIsWriteProtected

Typedef Documentation

◆ MMCConfig

◆ MMCDriver

Function Documentation

◆ mmc_is_card_inserted()

◆ mmc_is_write_protected()

◆ mmc_connect()

◆ mmc_disconnect()

◆ mmc_read()

◆ mmc_write()

◆ mmc_sync()

◆ mmc_get_info()

◆ mmc_crc7()

◆ mmc_wait_idle()

◆ mmc_send_hdr()

◆ mmc_recvr1()

◆ mmc_recvr3()

◆ mmc_send_command_R1()

◆ mmc_send_command_R3()

◆ mmc_read_CxD()

◆ mmcInit()

◆ mmcObjectInit()

◆ mmcStart()

◆ mmcStop()

◆ mmcConnect()

◆ mmcDisconnect()

◆ mmcStartSequentialRead()

◆ mmcSequentialRead()

◆ mmcStopSequentialRead()

◆ mmcStartSequentialWrite()

◆ mmcSequentialWrite()

◆ mmcStopSequentialWrite()

◆ mmcSync()

◆ mmcGetInfo()

◆ mmcErase()

◆ mmc_lld_is_card_inserted()

◆ mmc_lld_is_write_protected()

Variable Documentation

◆ mmc_vmt

◆ mmc_crc7_lookup_table
