ch_objects_cache Struct Reference

Structure representing a cache object. More...

#include <chobjcaches.h>

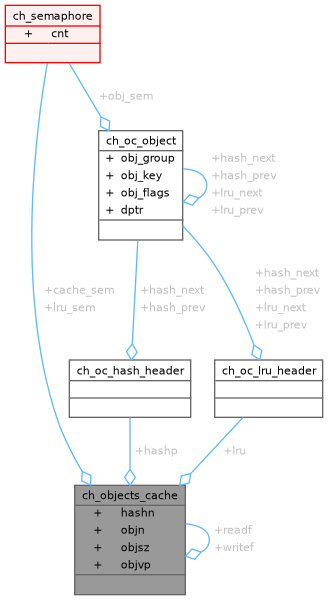

Collaboration diagram for ch_objects_cache:

Data Fields
ucnt_t	hashn
	Number of elements in the hash table.
oc_hash_header_t *	hashp
	Pointer to the hash table.
ucnt_t	objn
	Number of elements in the objects table.
size_t	objsz
	Size of elements in the objects table.
void *	objvp
	Pointer to the objects table.
oc_lru_header_t	lru
	LRU list header.
semaphore_t	cache_sem
	Semaphore for cache access.
semaphore_t	lru_sem
	Semaphore for LRU access.
oc_readf_t	readf
	Reader functions for cached objects.
oc_writef_t	writef
	Writer functions for cached objects.

Detailed Description

Structure representing a cache object.

Definition at line 197 of file chobjcaches.h.

Field Documentation

hashn

ucnt_t ch_objects_cache::hashn

Number of elements in the hash table.

Definition at line 201 of file chobjcaches.h.

Referenced by chCacheObjectInit().

hashp

oc_hash_header_t* ch_objects_cache::hashp

Pointer to the hash table.

Definition at line 205 of file chobjcaches.h.

Referenced by chCacheObjectInit(), and hash_get_s().

objn

ucnt_t ch_objects_cache::objn

Number of elements in the objects table.

Definition at line 209 of file chobjcaches.h.

Referenced by chCacheObjectInit().

objsz

size_t ch_objects_cache::objsz

Size of elements in the objects table.

Definition at line 213 of file chobjcaches.h.

objvp

void* ch_objects_cache::objvp

Pointer to the objects table.

Definition at line 217 of file chobjcaches.h.

Referenced by chCacheObjectInit().

lru

oc_lru_header_t ch_objects_cache::lru

LRU list header.

Definition at line 221 of file chobjcaches.h.

Referenced by chCacheObjectInit(), and lru_get_last_s().

cache_sem

semaphore_t ch_objects_cache::cache_sem

Semaphore for cache access.

Definition at line 225 of file chobjcaches.h.

Referenced by chCacheObjectInit().

lru_sem

semaphore_t ch_objects_cache::lru_sem

Semaphore for LRU access.

Definition at line 229 of file chobjcaches.h.

Referenced by chCacheObjectInit(), chCacheReleaseObjectI(), and lru_get_last_s().

readf

oc_readf_t ch_objects_cache::readf

Reader functions for cached objects.

Definition at line 233 of file chobjcaches.h.

Referenced by chCacheObjectInit(), and chCacheReadObject().

writef

oc_writef_t ch_objects_cache::writef

Writer functions for cached objects.

Definition at line 237 of file chobjcaches.h.

Referenced by chCacheObjectInit(), chCacheWriteObject(), and lru_get_last_s().
