Collaboration diagram for M25Q:

Detailed Description

Macros
#define	_m25q_methods _jesd216_flash_methods
	`M25Q` specific methods. More...

Version identification
#define	EX_M25Q_VERSION "1.0.0"
	M25Q driver version string. More...

#define	EX_M25Q_MAJOR 1
	M25Q driver version major number. More...

#define	EX_M25Q_MINOR 0
	M25Q driver version minor number. More...

#define	EX_M25Q_PATCH 0
	M25Q driver version patch number. More...

Command codes
#define	M25Q_CMD_RESET_ENABLE 0x66

#define	M25Q_CMD_RESET_MEMORY 0x99

#define	M25Q_CMD_READ_ID 0x9F

#define	M25Q_CMD_MULTIPLE_IO_READ_ID 0xAF

#define	M25Q_CMD_READ_DISCOVERY_PARAMETER 0x5A

#define	M25Q_CMD_READ 0x03

#define	M25Q_CMD_FAST_READ 0x0B

#define	M25Q_CMD_WRITE_ENABLE 0x06

#define	M25Q_CMD_WRITE_DISABLE 0x04

#define	M25Q_CMD_READ_STATUS_REGISTER 0x05

#define	M25Q_CMD_WRITE_STATUS_REGISTER 0x01

#define	M25Q_CMD_READ_LOCK_REGISTER 0xE8

#define	M25Q_CMD_WRITE_LOCK_REGISTER 0xE5

#define	M25Q_CMD_READ_FLAG_STATUS_REGISTER 0x70

#define	M25Q_CMD_CLEAR_FLAG_STATUS_REGISTER 0x50

#define	M25Q_CMD_READ_NV_CONFIGURATION_REGISTER 0xB5

#define	M25Q_CMD_WRITE_NV_CONFIGURATION_REGISTER 0xB1

#define	M25Q_CMD_READ_V_CONF_REGISTER 0x85

#define	M25Q_CMD_WRITE_V_CONF_REGISTER 0x81

#define	M25Q_CMD_READ_ENHANCED_V_CONF_REGISTER 0x65

#define	M25Q_CMD_WRITE_ENHANCED_V_CONF_REGISTER 0x61

#define	M25Q_CMD_PAGE_PROGRAM 0x02

#define	M25Q_CMD_SUBSECTOR_ERASE 0x20

#define	M25Q_CMD_SECTOR_ERASE 0xD8

#define	M25Q_CMD_BULK_ERASE 0xC7

#define	M25Q_CMD_PROGRAM_ERASE_RESUME 0x7A

#define	M25Q_CMD_PROGRAM_ERASE_SUSPEND 0x75

#define	M25Q_CMD_READ_OTP_ARRAY 0x4B

#define	M25Q_CMD_PROGRAM_OTP_ARRAY 0x42

Flags status register bits
#define	M25Q_FLAGS_PROGRAM_ERASE 0x80U

#define	M25Q_FLAGS_ERASE_SUSPEND 0x40U

#define	M25Q_FLAGS_ERASE_ERROR 0x20U

#define	M25Q_FLAGS_PROGRAM_ERROR 0x10U

#define	M25Q_FLAGS_VPP_ERROR 0x08U

#define	M25Q_FLAGS_PROGRAM_SUSPEND 0x04U

#define	M25Q_FLAGS_PROTECTION_ERROR 0x02U

#define	M25Q_FLAGS_RESERVED 0x01U

#define	M25Q_FLAGS_ALL_ERRORS

Configuration options
#define	M25Q_READ_DUMMY_CYCLES 8
	Number of dummy cycles for fast read (1..15). More...

#define	M25Q_SWITCH_WIDTH TRUE
	Switch QSPI bus width on initialization. More...

#define	M25Q_NICE_WAITING TRUE
	Delays insertions. More...

#define	M25Q_USE_SUB_SECTORS FALSE
	Uses 4kB sub-sectors rather than 64kB sectors. More...

#define	M25Q_SUPPORTED_MANUFACTURE_IDS {0x20}
	Supported JEDEC manufacturer identifiers. More...

#define	M25Q_SUPPORTED_MEMORY_TYPE_IDS {0xBA, 0xBB}
	Supported memory type identifiers. More...

#define	M25Q_COMPARE_BUFFER_SIZE 32
	Size of the compare buffer. More...

Data Structures
struct	M25QConfig
	Type of a M25Q configuration structure. More...

struct	M25QDriverVMT
	`M25Q` virtual methods table. More...

struct	M25QDriver
	Type of M25Q flash class. More...

Functions
void	m25qObjectInit (M25QDriver *devp)
	Initializes an instance. More...

void	m25qStart (M25QDriver devp, const M25QConfig config)
	Configures and activates N25Q128 driver. More...

void	m25qStop (M25QDriver *devp)
	Deactivates the N25Q128 driver. More...

void	m25qMemoryMap (M25QDriver devp, uint8_t *addrp)
	Enters the memory Mapping mode. More...

void	m25qMemoryUnmap (M25QDriver *devp)
	Leaves the memory Mapping mode. More...

Variables
static const struct M25QDriverVMT	m25q_vmt
	Virtual methods table. More...

static flash_descriptor_t	m25q_descriptor
	N25Q128 descriptor. More...

Macro Definition Documentation

#define EX_M25Q_VERSION "1.0.0"

M25Q driver version string.

Definition at line 45 of file m25q.h.

#define EX_M25Q_MAJOR 1

M25Q driver version major number.

Definition at line 50 of file m25q.h.

#define EX_M25Q_MINOR 0

M25Q driver version minor number.

Definition at line 55 of file m25q.h.

#define EX_M25Q_PATCH 0

M25Q driver version patch number.

Definition at line 60 of file m25q.h.

#define M25Q_READ_DUMMY_CYCLES 8

Number of dummy cycles for fast read (1..15).

This is the number of dummy cycles to be used for fast read operations.

Definition at line 130 of file m25q.h.

Referenced by m25qMemoryMap(), and m25qStart().

#define M25Q_SWITCH_WIDTH TRUE

Switch QSPI bus width on initialization.

A bus width initialization is performed by writing the Enhanced Volatile Configuration Register. If the flash device is configured using the Non Volatile Configuration Register then this option is not required.

Note: This option is only valid in QSPI bus modes.

Definition at line 142 of file m25q.h.

#define M25Q_NICE_WAITING TRUE

Delays insertions.

If enabled this options inserts delays into the flash waiting routines releasing some extra CPU time for threads with lower priority, this may slow down the driver a bit however.

Definition at line 152 of file m25q.h.

#define M25Q_USE_SUB_SECTORS FALSE

Uses 4kB sub-sectors rather than 64kB sectors.

Definition at line 159 of file m25q.h.

#define M25Q_SUPPORTED_MANUFACTURE_IDS {0x20}

Supported JEDEC manufacturer identifiers.

Definition at line 166 of file m25q.h.

#define M25Q_SUPPORTED_MEMORY_TYPE_IDS {0xBA, 0xBB}

Supported memory type identifiers.

Definition at line 173 of file m25q.h.

#define M25Q_COMPARE_BUFFER_SIZE 32

Size of the compare buffer.

This buffer is allocated in the stack frame of the function flashVerifyErase() and its size must be a power of two. Larger buffers lead to better verify performance but increase stack usage for that function.

Definition at line 184 of file m25q.h.

#define _m25q_methods _jesd216_flash_methods

M25Q specific methods.

Definition at line 214 of file m25q.h.

Function Documentation

void m25qObjectInit ( M25QDriver * devp )

Initializes an instance.

Parameters

[out] devp pointer to the M25QDriver object

Function Class:Initializer, this function just initializes an object and can be invoked before the kernel is initialized.

Definition at line 627 of file m25q.c.

References M25QDriver::config, m25q_vmt, osalDbgCheck, and M25QDriver::vmt.

void m25qStart	(	M25QDriver *	devp,
		const M25QConfig *	config
	)

Configures and activates N25Q128 driver.

Parameters

[in]	devp	pointer to the `M25QDriver` object
[in]	config	pointer to the configuration

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 644 of file m25q.c.

References M25QDriver::config, M25QDriver::device_id, M25Q_READ_DUMMY_CYCLES, osalDbgAssert, osalDbgCheck, qspiCommand(), qspiReceive(), qspiSend(), and flash_descriptor_t::sectors_count.

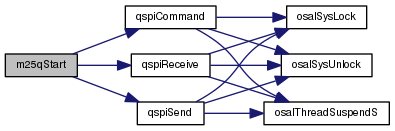

Here is the call graph for this function:

void m25qStop ( M25QDriver * devp )

Deactivates the N25Q128 driver.

Parameters

[in] devp pointer to the M25QDriver object

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 735 of file m25q.c.

References M25QDriver::config, osalDbgAssert, and osalDbgCheck.

void m25qMemoryMap	(	M25QDriver *	devp,
		uint8_t **	addrp
	)

Enters the memory Mapping mode.

The memory mapping mode is only available when the QSPI mode is selected and the underlying QSPI controller supports the feature.

Parameters

[in]	devp	pointer to the `M25QDriver` object
[out]	addrp	pointer to the memory start address of the mapped flash or `NULL`

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 773 of file m25q.c.

References M25QDriver::config, M25Q_READ_DUMMY_CYCLES, and qspiMapFlash().

Here is the call graph for this function:

void m25qMemoryUnmap ( M25QDriver * devp )

Leaves the memory Mapping mode.

Parameters

[in] devp pointer to the M25QDriver object

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 821 of file m25q.c.

References M25QDriver::config, and qspiUnmapFlash().

Here is the call graph for this function:

Variable Documentation

const struct M25QDriverVMT m25q_vmt

static

Initial value:

= {
  (size_t)0,
  m25q_get_descriptor, m25q_read, m25q_program,
  m25q_start_erase_all, m25q_start_erase_sector,
  m25q_query_erase, m25q_verify_erase,
  m25q_read_sfdp
}

Virtual methods table.

Definition at line 73 of file m25q.c.

Referenced by m25qObjectInit().

flash_descriptor_t m25q_descriptor

static

Initial value:

= {
  .attributes       = FLASH_ATTR_ERASED_IS_ONE | FLASH_ATTR_REWRITABLE |
                      FLASH_ATTR_SUSPEND_ERASE_CAPABLE,
  .page_size        = 256U,
  .sectors_count    = 0U,
  .sectors          = NULL,
  .sectors_size     = SECTOR_SIZE,
  .address          = 0U
}

N25Q128 descriptor.

Definition at line 84 of file m25q.c.
