System data structure. More...

#include <ch.h>

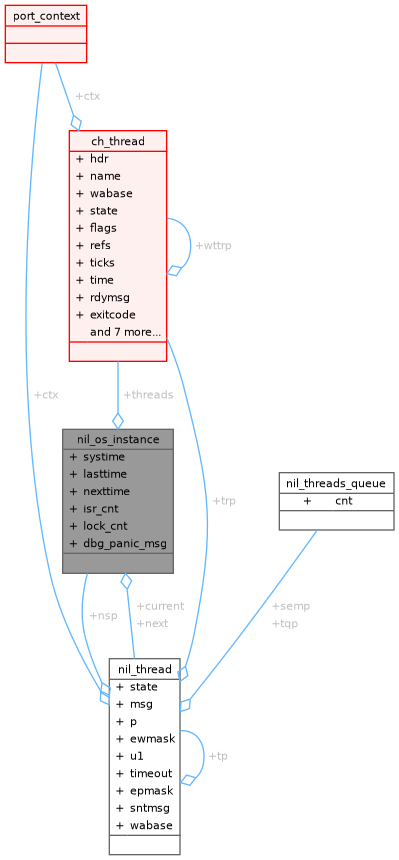

Collaboration diagram for nil_os_instance:

Data Fields
thread_t *	current
	Pointer to the running thread.
thread_t *	next
	Pointer to the next thread to be executed.
volatile systime_t	systime
	System time.
systime_t	lasttime
	System time of the last tick event.
systime_t	nexttime
	Time of the next scheduled tick event.
cnt_t	isr_cnt
	ISR nesting level.
cnt_t	lock_cnt
	Lock nesting level.
const char *volatile	dbg_panic_msg
	Panic message.
thread_t	threads [CH_CFG_MAX_THREADS+1]
	Thread structures for all the defined threads.

Detailed Description

System data structure.

Note: This structure contain all the data areas used by the OS except stacks.

Definition at line 560 of file nil/include/ch.h.

Field Documentation

◆ current

thread_t* nil_os_instance::current

Pointer to the running thread.

Definition at line 564 of file nil/include/ch.h.

◆ next

thread_t* nil_os_instance::next

Pointer to the next thread to be executed.

Note: This pointer must point at the same thread pointed by current or to an higher priority thread if a switch is required.

Definition at line 570 of file nil/include/ch.h.

◆ systime

volatile systime_t nil_os_instance::systime

System time.

Definition at line 575 of file nil/include/ch.h.

◆ lasttime

systime_t nil_os_instance::lasttime

System time of the last tick event.

Definition at line 581 of file nil/include/ch.h.

◆ nexttime

systime_t nil_os_instance::nexttime

Time of the next scheduled tick event.

Definition at line 585 of file nil/include/ch.h.

◆ isr_cnt

cnt_t nil_os_instance::isr_cnt

ISR nesting level.

Definition at line 591 of file nil/include/ch.h.

◆ lock_cnt

cnt_t nil_os_instance::lock_cnt

Lock nesting level.

Definition at line 595 of file nil/include/ch.h.

◆ dbg_panic_msg

const char* volatile nil_os_instance::dbg_panic_msg

Panic message.

Note: This field is only present if some debug options have been activated.; Accesses to this pointer must never be optimized out so the field itself is declared volatile.

Definition at line 605 of file nil/include/ch.h.

◆ threads

thread_t nil_os_instance::threads[CH_CFG_MAX_THREADS+1]

Thread structures for all the defined threads.

Definition at line 610 of file nil/include/ch.h.
