LPS22HB

Collaboration diagram for LPS22HB:

Detailed Description

Macros
#define	lps22hbI2CWriteRegister(i2cp, sad, txbuf, n)
	Writes a value into a register using I2C. More...
#define	lps22hbBarometerGetAxesNumber(devp)   barometerGetAxesNumber(&((devp)->baro_if))
	Return the number of axes of the BaseBarometer. More...
#define	lps22hbBarometerReadRaw(devp, axes)   barometerReadRaw(&((devp)->baro_if), axes)
	Retrieves raw data from the BaseBarometer. More...
#define	lps22hbBarometerReadCooked(devp, axes)   barometerReadCooked(&((devp)->baro_if), axes)
	Retrieves cooked data from the BaseBarometer. More...
#define	lps22hbBarometerSetBias(devp, bp)   barometerSetBias(&((devp)->baro_if), bp)
	Set bias values for the BaseBarometer. More...
#define	lps22hbBarometerResetBias(devp)   barometerResetBias(&((devp)->baro_if))
	Reset bias values for the BaseBarometer. More...
#define	lps22hbBarometerSetSensitivity(devp, sp)   barometerSetSensitivity(&((devp)->baro_if), sp)
	Set sensitivity values for the BaseBarometer. More...
#define	lps22hbBarometerResetSensitivity(devp)   barometerResetSensitivity(&((devp)->baro_if))
	Reset sensitivity values for the BaseBarometer. More...
#define	lps22hbThermometerGetAxesNumber(devp)   thermometerGetAxesNumber(&((devp)->thermo_if))
	Return the number of axes of the BaseThermometer. More...
#define	lps22hbThermometerReadRaw(devp, axes)   thermometerReadRaw(&((devp)->thermo_if), axes)
	Retrieves raw data from the BaseThermometer. More...
#define	lps22hbThermometerReadCooked(devp, axes)   thermometerReadCooked(&((devp)->thermo_if), axes)
	Retrieves cooked data from the BaseThermometer. More...
#define	lps22hbThermometerSetBias(devp, bp)   thermometerSetBias(&((devp)->thermo_if), bp)
	Set bias values for the BaseThermometer. More...
#define	lps22hbThermometerResetBias(devp)   thermometerResetBias(&((devp)->thermo_if))
	Reset bias values for the BaseThermometer. More...
#define	lps22hbThermometerSetSensitivity(devp, sp)   thermometerSetSensitivity(&((devp)->thermo_if), sp)
	Set sensitivity values for the BaseThermometer. More...
#define	lps22hbThermometerResetSensitivity(devp)   thermometerResetSensitivity(&((devp)->thermo_if))
	Reset sensitivity values for the BaseThermometer. More...

Version identification
#define	EX_LPS22HB_VERSION   "1.0.2"
	LPS22HB driver version string. More...
#define	EX_LPS22HB_MAJOR   1
	LPS22HB driver version major number. More...
#define	EX_LPS22HB_MINOR   0
	LPS22HB driver version minor number. More...
#define	EX_LPS22HB_PATCH   2
	LPS22HB driver version patch number. More...
#define	LPS22HB_BARO_NUMBER_OF_AXES   1U
	LPS22HB barometer subsystem characteristics. More...
#define	LPS22HB_THERMO_NUMBER_OF_AXES   1U
	LPS22HB thermometer subsystem characteristics. More...

LPS22HB communication interfaces related bit masks
#define	LPS22HB_DI_MASK   0xFF
#define	LPS22HB_DI(n)   (1 << n)
#define	LPS22HB_AD_MASK   0x3F
#define	LPS22HB_AD(n)   (1 << n)
#define	LPS22HB_MS   (1 << 6)
#define	LPS22HB_RW   (1 << 7)
#define	LPS22HB_SUB_MS   (1 << 7)

LPS22HB register addresses
#define	LPS22HB_AD_INT_CFG   0x0B
#define	LPS22HB_AD_THS_P_L   0x0C
#define	LPS22HB_AD_THS_P_H   0x0D
#define	LPS22HB_AD_WHO_AM_I   0x0F
#define	LPS22HB_AD_CTRL_REG1   0x10
#define	LPS22HB_AD_CTRL_REG2   0x11
#define	LPS22HB_AD_CTRL_REG3   0x12
#define	LPS22HB_AD_FIFO_CTRL   0x14
#define	LPS22HB_AD_REF_P_XL   0x15
#define	LPS22HB_AD_REF_P_L   0x16
#define	LPS22HB_AD_REF_P_H   0x17
#define	LPS22HB_AD_RPDS_L   0x18
#define	LPS22HB_AD_RPDS_H   0x19
#define	LPS22HB_AD_RES_CONF   0x1A
#define	LPS22HB_AD_INT_SRC   0x25
#define	LPS22HB_AD_FIFO_SRC   0x26
#define	LPS22HB_AD_STATUS_REG   0x27
#define	LPS22HB_AD_PRESS_OUT_XL   0x28
#define	LPS22HB_AD_PRESS_OUT_L   0x29
#define	LPS22HB_AD_PRESS_OUT_H   0x2A
#define	LPS22HB_AD_TEMP_OUT_L   0x2B
#define	LPS22HB_AD_TEMP_OUT_H   0x2C
#define	LPS22HB_AD_LPFP_RES   0x33

LPS22HB_INT_CFG register bits definitions
#define	LPS22HB_INT_CFG_MASK   0xFF
#define	LPS22HB_INT_CFG_PHE   (1 << 0)
#define	LPS22HB_INT_CFG_PLE   (1 << 1)
#define	LPS22HB_INT_CFG_LIR   (1 << 2)
#define	LPS22HB_INT_CFG_DIFF_EN   (1 << 3)
#define	LPS22HB_INT_CFG_RESET_AZ   (1 << 4)
#define	LPS22HB_INT_CFG_AUTOZERO   (1 << 5)
#define	LPS22HB_INT_CFG_RESET_ARP   (1 << 6)
#define	LPS22HB_INT_CFG_AUTORIFP   (1 << 7)

LPS22HB_CTRL_REG1 register bits definitions
#define	LPS22HB_CTRL_REG1_MASK   0x7F
#define	LPS22HB_CTRL_REG1_SIM   (1 << 0)
#define	LPS22HB_CTRL_REG1_BDU   (1 << 1)
#define	LPS22HB_CTRL_REG1_LPFP_CFG   (1 << 2)
#define	LPS22HB_CTRL_REG1_LPFP_EN   (1 << 3)
#define	LPS22HB_CTRL_REG1_ODR0   (1 << 4)
#define	LPS22HB_CTRL_REG1_ODR1   (1 << 5)
#define	LPS22HB_CTRL_REG1_ODR2   (1 << 6)

LPS22HB_CTRL_REG2 register bits definitions
#define	LPS22HB_CTRL_REG2_MASK   0xFD
#define	LPS22HB_CTRL_REG2_ONE_SHOT   (1 << 0)
#define	LPS22HB_CTRL_REG2_SWRESET   (1 << 2)
#define	LPS22HB_CTRL_REG2_I2C_DIS   (1 << 3)
#define	LPS22HB_CTRL_REG2_IF_ADD_INC   (1 << 4)
#define	LPS22HB_CTRL_REG2_STOP_ON_FTH   (1 << 5)
#define	LPS22HB_CTRL_REG2_FIFO_EN   (1 << 6)
#define	LPS22HB_CTRL_REG2_BOOT   (1 << 7)

LPS22HB_CTRL_REG3 register bits definitions
#define	LPS22HB_CTRL_REG3_MASK   0xFF
#define	LPS22HB_CTRL_REG3_INT_S1   (1 << 0)
#define	LPS22HB_CTRL_REG3_INT_S2   (1 << 1)
#define	LPS22HB_CTRL_REG3_DRDY   (1 << 2)
#define	LPS22HB_CTRL_REG3_F_OVR   (1 << 3)
#define	LPS22HB_CTRL_REG3_F_FTH   (1 << 4)
#define	LPS22HB_CTRL_REG3_F_FSS5   (1 << 5)
#define	LPS22HB_CTRL_REG3_PP_OD   (1 << 6)
#define	LPS22HB_CTRL_REG3_INT_H_L   (1 << 7)

LPS22HB_INT_SRC register bits definitions
#define	LPS22HB_INT_SRC_MASK   0x87
#define	LPS22HB_INT_SRC_PH   (1 << 0)
#define	LPS22HB_INT_SRC_PL   (1 << 1)
#define	LPS22HB_INT_SRC_IA   (1 << 2)
#define	LPS22HB_INT_SRC_BOOT_STATUS   (1 << 8)

Configuration options
#define	LPS22HB_USE_SPI   FALSE
	LPS22HB SPI interface switch. More...
#define	LPS22HB_SHARED_SPI   FALSE
	LPS22HB shared SPI switch. More...
#define	LPS22HB_USE_I2C   TRUE
	LPS22HB I2C interface switch. More...
#define	LPS22HB_SHARED_I2C   FALSE
	LPS22HB shared I2C switch. More...
#define	LPS22HB_USE_ADVANCED   FALSE
	LPS22HB advanced configurations switch. More...

LPS22HB data structures and types.
Todo: Add support for LPS22HB over SPI.
typedef struct LPS22HBDriver	LPS22HBDriver
	Structure representing a LPS22HB driver. More...
#define	_lps22hb_methods_alone
	LPS22HB specific methods. More...
#define	_lps22hb_methods
	LPS22HB specific methods with inherited ones. More...
#define	_lps22hb_data
	LPS22HBDriver specific data. More...

Data Structures
struct	LPS22HBConfig
	LPS22HB configuration structure. More...
struct	LPS22HBVMT
	LPS22HB virtual methods table. More...
struct	LPS22HBDriver
	LPS22HB 2-axis barometer/thermometer class. More...

Functions

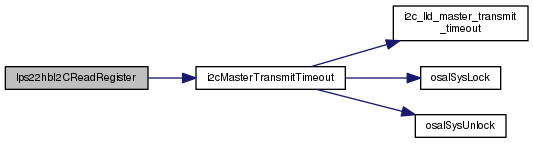

static msg_t	lps22hbI2CReadRegister (I2CDriver *i2cp, lps22hb_sad_t sad, uint8_t reg, uint8_t *rxbuf, size_t n)
	Reads registers value using I2C. More...
static size_t	baro_get_axes_number (void *ip)
	Return the number of axes of the BaseBarometer. More...

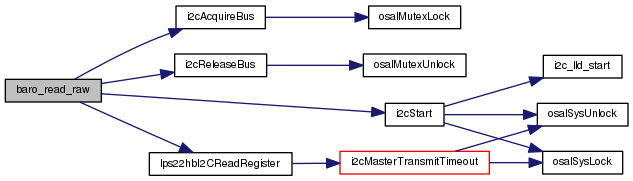

static msg_t	baro_read_raw (void *ip, int32_t axes[])
	Retrieves raw data from the BaseBarometer. More...

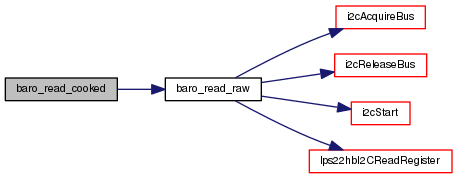

static msg_t	baro_read_cooked (void *ip, float axes[])
	Retrieves cooked data from the BaseBarometer. More...
static msg_t	baro_set_bias (void *ip, float *bp)
	Set bias values for the BaseBarometer. More...
static msg_t	baro_reset_bias (void *ip)
	Reset bias values for the BaseBarometer. More...
static msg_t	baro_set_sensitivity (void *ip, float *sp)
	Set sensitivity values for the BaseBarometer. More...
static msg_t	baro_reset_sensitivity (void *ip)
	Reset sensitivity values for the BaseBarometer. More...
static size_t	thermo_get_axes_number (void *ip)
	Return the number of axes of the BaseThermometer. More...
static msg_t	thermo_read_raw (void *ip, int32_t axes[])
	Retrieves raw data from the BaseThermometer. More...
static msg_t	thermo_read_cooked (void *ip, float *axis)
	Retrieves cooked data from the BaseThermometer. More...
static msg_t	thermo_set_bias (void *ip, float *bp)
	Set bias values for the BaseThermometer. More...
static msg_t	thermo_reset_bias (void *ip)
	Reset bias values for the BaseThermometer. More...
static msg_t	thermo_set_sensitivity (void *ip, float *sp)
	Set sensitivity values for the BaseThermometer. More...
static msg_t	thermo_reset_sensitivity (void *ip)
	Reset sensitivity values for the BaseThermometer. More...
void	lps22hbObjectInit (LPS22HBDriver *devp)
	Initializes an instance. More...
void	lps22hbStart (LPS22HBDriver *devp, const LPS22HBConfig *config)
	Configures and activates LPS22HB Complex Driver peripheral. More...

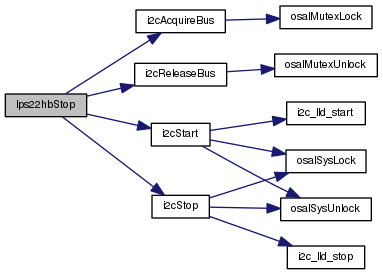

void	lps22hbStop (LPS22HBDriver *devp)
	Deactivates the LPS22HB Complex Driver peripheral. More...

Macro Definition Documentation

#define lps22hbI2CWriteRegister	(		i2cp,
			sad,
			txbuf,
			n
	)

Value:

i2cMasterTransmitTimeout(i2cp, sad, txbuf, n + 1, NULL, 0,          \
                                  TIME_INFINITE)

Writes a value into a register using I2C.

Precondition

The I2C interface must be initialized and the driver started.

Parameters

[in]	i2cp	pointer to the I2C interface
[in]	sad	slave address without R bit
[in]	txbuf	buffer containing sub-address value in first position and values to write
[in]	n	size of txbuf less one (not considering the first element)

Returns

the operation status.

Function Class:Not an API, this function is for internal use only.

Definition at line 84 of file lps22hb.c.

Referenced by lps22hbStart(), and lps22hbStop().

#define EX_LPS22HB_VERSION   "1.0.2"

LPS22HB driver version string.

Definition at line 46 of file lps22hb.h.

#define EX_LPS22HB_MAJOR   1

LPS22HB driver version major number.

Definition at line 51 of file lps22hb.h.

#define EX_LPS22HB_MINOR   0

LPS22HB driver version minor number.

Definition at line 56 of file lps22hb.h.

#define EX_LPS22HB_PATCH   2

LPS22HB driver version patch number.

Definition at line 61 of file lps22hb.h.

#define LPS22HB_BARO_NUMBER_OF_AXES   1U

LPS22HB barometer subsystem characteristics.

Note

Sensitivity is expressed as hPa/LSB whereas hPa stand for hectopascal.

Bias is expressed as hPa.

Definition at line 72 of file lps22hb.h.

Referenced by baro_get_axes_number(), and lps22hbObjectInit().

#define LPS22HB_THERMO_NUMBER_OF_AXES   1U

LPS22HB thermometer subsystem characteristics.

Note

Sensitivity is expressed as °C/LSB.

Bias is expressed as °C.

Definition at line 85 of file lps22hb.h.

Referenced by lps22hbObjectInit(), and thermo_get_axes_number().

#define LPS22HB_USE_SPI   FALSE

LPS22HB SPI interface switch.

If set to TRUE the support for SPI is included.

Note

The default is FALSE.

Definition at line 217 of file lps22hb.h.

#define LPS22HB_SHARED_SPI   FALSE

LPS22HB shared SPI switch.

If set to TRUE the device acquires SPI bus ownership on each transaction.

Note

The default is FALSE. Requires SPI_USE_MUTUAL_EXCLUSION.

Definition at line 227 of file lps22hb.h.

#define LPS22HB_USE_I2C   TRUE

LPS22HB I2C interface switch.

If set to TRUE the support for I2C is included.

Note

The default is TRUE.

Definition at line 236 of file lps22hb.h.

#define LPS22HB_SHARED_I2C   FALSE

LPS22HB shared I2C switch.

If set to TRUE the device acquires I2C bus ownership on each transaction.

Note

The default is FALSE. Requires I2C_USE_MUTUAL_EXCLUSION.

Definition at line 246 of file lps22hb.h.

#define LPS22HB_USE_ADVANCED   FALSE

LPS22HB advanced configurations switch.

If set to TRUE more configurations are available.

Note

The default is FALSE.

Definition at line 255 of file lps22hb.h.

#define _lps22hb_methods_alone

LPS22HB specific methods.

Note

No methods so far, just a common ancestor interface.

Definition at line 414 of file lps22hb.h.

#define _lps22hb_methods

Value:

_base_object_methods                                                      \
  _lps22hb_methods_alone

LPS22HB specific methods with inherited ones.

Definition at line 419 of file lps22hb.h.

#define _lps22hb_data

Value:

/* Driver state.*/                                                        \
  lps22hb_state_t           state;                                          \
  /* Current configuration data.*/                                          \
  const LPS22HBConfig       *config;                                        \
  /* Barometer subsystem axes number.*/                                     \
  size_t                    baroaxes;                                       \
  /* Barometer subsystem current sensitivity.*/                             \
  float                     barosensitivity;                                \
  /* Barometer subsystem current bias .*/                                   \
  float                     barobias;                                       \
  /* Thermometer subsystem axes number.*/                                   \
  size_t                    thermoaxes;                                     \
  /* Thermometer subsystem current sensitivity.*/                           \
  float                     thermosensitivity;                              \
  /* Thermometer subsystem current bias.*/                                  \
  float                     thermobias;

LPS22HBDriver specific data.

Definition at line 435 of file lps22hb.h.

#define lps22hbBarometerGetAxesNumber

(

devp

)

barometerGetAxesNumber(&((devp)->baro_if))

Return the number of axes of the BaseBarometer.

Parameters

[in]

devp

pointer to LPS22HBDriver.

Returns

the number of axes.

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 480 of file lps22hb.h.

#define lps22hbBarometerReadRaw	(		devp,
			axes
	)		barometerReadRaw(&((devp)->baro_if), axes)

Retrieves raw data from the BaseBarometer.

Note

This data is retrieved from MEMS register without any algebraical manipulation.

The axes array must be at least the same size of the BaseBarometer axes number.

Parameters

[in]	devp	pointer to LPS22HBDriver.
[out]	axes	a buffer which would be filled with raw data.

Returns

The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using i2cGetErrors().
MSG_TIMEOUT	if a timeout occurred before operation end.

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 501 of file lps22hb.h.

#define lps22hbBarometerReadCooked	(		devp,
			axes
	)		barometerReadCooked(&((devp)->baro_if), axes)

Retrieves cooked data from the BaseBarometer.

Note

This data is manipulated according to the formula cooked = (raw * sensitivity) - bias.

Final data is expressed as hPa.

The axes array must be at least the same size of the BaseBarometer axes number.

Parameters

[in]	devp	pointer to LPS22HBDriver.
[out]	axes	a buffer which would be filled with cooked data.

Returns

The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using i2cGetErrors().
MSG_TIMEOUT	if a timeout occurred before operation end.

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 523 of file lps22hb.h.

#define lps22hbBarometerSetBias	(		devp,
			bp
	)		barometerSetBias(&((devp)->baro_if), bp)

Set bias values for the BaseBarometer.

Note

Bias must be expressed as hPa.

The bias buffer must be at least the same size of the BaseBarometer axes number.

Parameters

[in]	devp	pointer to LPS22HBDriver.
[in]	bp	a buffer which contains biases.

Returns

The operation status.

Return values

MSG_OK

if the function succeeded.

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 540 of file lps22hb.h.

#define lps22hbBarometerResetBias

(

devp

)

barometerResetBias(&((devp)->baro_if))

Reset bias values for the BaseBarometer.

Note

Default biases value are obtained from device datasheet when available otherwise they are considered zero.

Parameters

[in]

devp

pointer to LPS22HBDriver.

Returns

The operation status.

Return values

MSG_OK

if the function succeeded.

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 555 of file lps22hb.h.

#define lps22hbBarometerSetSensitivity	(		devp,
			sp
	)		barometerSetSensitivity(&((devp)->baro_if), sp)

Set sensitivity values for the BaseBarometer.

Note

Sensitivity must be expressed as hPa/LSB.

The sensitivity buffer must be at least the same size of the BaseBarometer axes number.

Parameters

[in]	devp	pointer to LPS22HBDriver.
[in]	sp	a buffer which contains sensitivities.

Returns

The operation status.

Return values

MSG_OK

if the function succeeded.

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 572 of file lps22hb.h.

#define lps22hbBarometerResetSensitivity

(

devp

)

barometerResetSensitivity(&((devp)->baro_if))

Reset sensitivity values for the BaseBarometer.

Note

Default sensitivities value are obtained from device datasheet.

Parameters

[in]

devp

pointer to LPS22HBDriver.

Returns

The operation status.

Return values

MSG_OK

if the function succeeded.

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 586 of file lps22hb.h.

#define lps22hbThermometerGetAxesNumber

(

devp

)

thermometerGetAxesNumber(&((devp)->thermo_if))

Return the number of axes of the BaseThermometer.

Parameters

[in]

devp

pointer to LPS22HBDriver.

Returns

the number of axes.

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 598 of file lps22hb.h.

#define lps22hbThermometerReadRaw	(		devp,
			axes
	)		thermometerReadRaw(&((devp)->thermo_if), axes)

Retrieves raw data from the BaseThermometer.

Note

This data is retrieved from MEMS register without any algebraical manipulation.

The axes array must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	devp	pointer to LPS22HBDriver.
[out]	axes	a buffer which would be filled with raw data.

Returns

The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using i2cGetErrors().
MSG_TIMEOUT	if a timeout occurred before operation end.

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 619 of file lps22hb.h.

#define lps22hbThermometerReadCooked	(		devp,
			axes
	)		thermometerReadCooked(&((devp)->thermo_if), axes)

Retrieves cooked data from the BaseThermometer.

Note

This data is manipulated according to the formula cooked = (raw * sensitivity) - bias.

Final data is expressed as °C.

The axes array must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	devp	pointer to LPS22HBDriver.
[out]	axes	a buffer which would be filled with cooked data.

Returns

The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using i2cGetErrors().
MSG_TIMEOUT	if a timeout occurred before operation end.

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 641 of file lps22hb.h.

#define lps22hbThermometerSetBias	(		devp,
			bp
	)		thermometerSetBias(&((devp)->thermo_if), bp)

Set bias values for the BaseThermometer.

Note

Bias must be expressed as °C.

The bias buffer must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	devp	pointer to LPS22HBDriver.
[in]	bp	a buffer which contains biases.

Returns

The operation status.

Return values

MSG_OK

if the function succeeded.

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 658 of file lps22hb.h.

#define lps22hbThermometerResetBias

(

devp

)

thermometerResetBias(&((devp)->thermo_if))

Reset bias values for the BaseThermometer.

Note

Default biases value are obtained from device datasheet when available otherwise they are considered zero.

Parameters

[in]

devp

pointer to LPS22HBDriver.

Returns

The operation status.

Return values

MSG_OK

if the function succeeded.

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 673 of file lps22hb.h.

#define lps22hbThermometerSetSensitivity	(		devp,
			sp
	)		thermometerSetSensitivity(&((devp)->thermo_if), sp)

Set sensitivity values for the BaseThermometer.

Note

Sensitivity must be expressed as °C/LSB.

The sensitivity buffer must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	devp	pointer to LPS22HBDriver.
[in]	sp	a buffer which contains sensitivities.

Returns

The operation status.

Return values

MSG_OK

if the function succeeded.

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 690 of file lps22hb.h.

#define lps22hbThermometerResetSensitivity

(

devp

)

thermometerResetSensitivity(&((devp)->thermo_if))

Reset sensitivity values for the BaseThermometer.

Note

Default sensitivities value are obtained from device datasheet.

Parameters

[in]

devp

pointer to LPS22HBDriver.

Returns

The operation status.

Return values

MSG_OK

if the function succeeded.

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 704 of file lps22hb.h.

Typedef Documentation

typedef struct LPS22HBDriver LPS22HBDriver

Structure representing a LPS22HB driver.

Definition at line 301 of file lps22hb.h.

Enumeration Type Documentation

enum lps22hb_sad_t

LPS22HB slave address.

Enumerator
LPS22HB_SAD_GND	Slave Address when SA0 is to GND
LPS22HB_SAD_VCC	Slave Address when SA0 is to VCC

Definition at line 306 of file lps22hb.h.

enum lps22hb_odr_t

LPS22HB output data rate and bandwidth.

Enumerator
LPS22HB_ODR_PD	Power down.
LPS22HB_ODR_1HZ	Output data rate 1 Hz.
LPS22HB_ODR_10HZ	Output data rate 10 Hz.
LPS22HB_ODR_25HZ	Output data rate 25 Hz.
LPS22HB_ODR_50HZ	Output data rate 50 Hz.
LPS22HB_ODR_75HZ	Output data rate 75 Hz.

Definition at line 314 of file lps22hb.h.

enum lps22hb_lp_t

LPS22HB pressure resolution.

Enumerator
LPS22HB_LP_DISABLED	LP Filter disabled.
LPS22HB_LP_ODR_9	LP Filter enabled. Cut-off ORD/9.
LPS22HB_LP_ODR_20	LP Filter enabled. Cut-off ORD/20.

Definition at line 326 of file lps22hb.h.

enum lps22hb_bdu_t

LPS22HB block data update.

Enumerator
LPS22HB_BDU_CONTINUOUS	Block data continuously updated.
LPS22HB_BDU_BLOCKED	Block data updated after reading.

Definition at line 335 of file lps22hb.h.

enum lps22hb_state_t

Driver state machine possible states.

Enumerator
LPS22HB_UNINIT	Not initialized.
LPS22HB_STOP	Stopped.
LPS22HB_READY	Ready.

Definition at line 343 of file lps22hb.h.

Function Documentation

static msg_t lps22hbI2CReadRegister ( I2CDriver *  i2cp, lps22hb_sad_t  sad, uint8_t  reg, uint8_t *  rxbuf, size_t  n  )

static

Reads registers value using I2C.

Precondition

The I2C interface must be initialized and the driver started.

Parameters

[in]	i2cp	pointer to the I2C interface
[in]	sad	slave address without R bit
[in]	reg	first sub-register address
[out]	rxbuf	pointer to an output buffer
[in]	n	number of consecutive register to read

Returns

the operation status.

Function Class:Not an API, this function is for internal use only.

Definition at line 63 of file lps22hb.c.

References i2cMasterTransmitTimeout(), and TIME_INFINITE.

Referenced by baro_read_raw(), and thermo_read_raw().

Here is the call graph for this function:

static size_t baro_get_axes_number ( void *  ip )

static

Return the number of axes of the BaseBarometer.

Parameters

[in]

ip

pointer to BaseBarometer interface.

Returns

the number of axes.

Definition at line 96 of file lps22hb.c.

References LPS22HB_BARO_NUMBER_OF_AXES.

Referenced by thermo_reset_sensitivity().

static msg_t baro_read_raw ( void *  ip, int32_t  axes[]  )

static

Retrieves raw data from the BaseBarometer.

Note

This data is retrieved from MEMS register without any algebraical manipulation.

The axes array must be at least the same size of the BaseBarometer axes number.

Parameters

[in]	ip	pointer to BaseBarometer interface.
[out]	axes	a buffer which would be filled with raw data.

Returns

The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using i2cGetErrors().
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 118 of file lps22hb.c.

References I2C_READY, i2cAcquireBus(), i2cReleaseBus(), i2cStart(), LPS22HB_READY, lps22hbI2CReadRegister(), MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

Referenced by baro_read_cooked(), and thermo_reset_sensitivity().

Here is the call graph for this function:

static msg_t baro_read_cooked ( void *  ip, float  axes[]  )

static

Retrieves cooked data from the BaseBarometer.

Note

This data is manipulated according to the formula cooked = (raw * sensitivity) - bias.

Final data is expressed as hPa.

The axes array must be at least the same size of the BaseBarometer axes number.

Parameters

[in]	ip	pointer to BaseBarometer interface.
[out]	axes	a buffer which would be filled with cooked data.

Returns

The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using i2cGetErrors().
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 170 of file lps22hb.c.

References baro_read_raw(), LPS22HB_READY, objGetInstance, osalDbgAssert, and osalDbgCheck.

Referenced by thermo_reset_sensitivity().

Here is the call graph for this function:

static msg_t baro_set_bias ( void *  ip, float *  bp  )

static

Set bias values for the BaseBarometer.

Note

Bias must be expressed as hPa.

The bias buffer must be at least the same size of the BaseBarometer axes number.

Parameters

[in]	ip	pointer to BaseBarometer interface.
[in]	bp	a buffer which contains biases.

Returns

The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using i2cGetErrors().
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 205 of file lps22hb.c.

References LPS22HB_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

Referenced by thermo_reset_sensitivity().

static msg_t baro_reset_bias ( void *  ip )

static

Reset bias values for the BaseBarometer.

Note

Default biases value are obtained from device datasheet when available otherwise they are considered zero.

Parameters

[in]

ip

pointer to BaseBarometer interface.

Returns

The operation status.

Return values

MSG_OK

if the function succeeded.

Definition at line 231 of file lps22hb.c.

References LPS22HB_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

Referenced by thermo_reset_sensitivity().

static msg_t baro_set_sensitivity ( void *  ip, float *  sp  )

static

Set sensitivity values for the BaseBarometer.

Note

Sensitivity must be expressed as hPa/LSB.

The sensitivity buffer must be at least the same size of the BaseBarometer axes number.

Parameters

[in]	ip	pointer to BaseBarometer interface.
[in]	sp	a buffer which contains sensitivities.

Returns

The operation status.

Return values

MSG_OK

if the function succeeded.

Definition at line 259 of file lps22hb.c.

References LPS22HB_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

Referenced by thermo_reset_sensitivity().

static msg_t baro_reset_sensitivity ( void *  ip )

static

Reset sensitivity values for the BaseBarometer.

Note

Default sensitivities value are obtained from device datasheet.

Parameters

[in]

ip

pointer to BaseBarometer interface.

Returns

The operation status.

Return values

MSG_OK

if the function succeeded.

Definition at line 284 of file lps22hb.c.

References LPS22HB_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

Referenced by thermo_reset_sensitivity().

static size_t thermo_get_axes_number ( void *  ip )

static

Return the number of axes of the BaseThermometer.

Parameters

[in]

ip

pointer to BaseThermometer interface.

Returns

the number of axes.

Definition at line 307 of file lps22hb.c.

References LPS22HB_THERMO_NUMBER_OF_AXES.

Referenced by thermo_reset_sensitivity().

static msg_t thermo_read_raw ( void *  ip, int32_t  axes[]  )

static

Retrieves raw data from the BaseThermometer.

Note

This data is retrieved from MEMS register without any algebraical manipulation.

The axes array must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	ip	pointer to BaseThermometer interface.
[out]	axes	a buffer which would be filled with raw data.

Returns

The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using i2cGetErrors().
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 329 of file lps22hb.c.

References I2C_READY, i2cAcquireBus(), i2cReleaseBus(), i2cStart(), LPS22HB_READY, lps22hbI2CReadRegister(), MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

Referenced by thermo_read_cooked(), and thermo_reset_sensitivity().

Here is the call graph for this function:

static msg_t thermo_read_cooked ( void *  ip, float *  axis  )

static

Retrieves cooked data from the BaseThermometer.

Note

This data is manipulated according to the formula cooked = (raw * sensitivity) - bias.

Final data is expressed as °C.

The axes array must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	ip	pointer to BaseThermometer interface.
[out]	axis	a buffer which would be filled with cooked data.

Returns

The operation status.

Return values

MSG_OK	if the function succeeded.
MSG_RESET	if one or more I2C errors occurred, the errors can be retrieved using i2cGetErrors().
MSG_TIMEOUT	if a timeout occurred before operation end.

Definition at line 383 of file lps22hb.c.

References LPS22HB_READY, objGetInstance, osalDbgAssert, osalDbgCheck, and thermo_read_raw().

Referenced by thermo_reset_sensitivity().

Here is the call graph for this function:

static msg_t thermo_set_bias ( void *  ip, float *  bp  )

static

Set bias values for the BaseThermometer.

Note

Bias must be expressed as °C.

The bias buffer must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	ip	pointer to BaseThermometer interface.
[in]	bp	a buffer which contains biases.

Returns

The operation status.

Return values

MSG_OK

if the function succeeded.

Definition at line 415 of file lps22hb.c.

References LPS22HB_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

Referenced by thermo_reset_sensitivity().

static msg_t thermo_reset_bias ( void *  ip )

static

Reset bias values for the BaseThermometer.

Note

Default biases value are obtained from device datasheet when available otherwise they are considered zero.

Parameters

[in]

ip

pointer to BaseThermometer interface.

Returns

The operation status.

Return values

MSG_OK

if the function succeeded.

Definition at line 442 of file lps22hb.c.

References LPS22HB_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

Referenced by thermo_reset_sensitivity().

static msg_t thermo_set_sensitivity ( void *  ip, float *  sp  )

static

Set sensitivity values for the BaseThermometer.

Note

Sensitivity must be expressed as °C/LSB.

The sensitivity buffer must be at least the same size of the BaseThermometer axes number.

Parameters

[in]	ip	pointer to BaseThermometer interface.
[in]	sp	a buffer which contains sensitivities.

Returns

The operation status.

Return values

MSG_OK

if the function succeeded.

Definition at line 471 of file lps22hb.c.

References LPS22HB_READY, MSG_OK, objGetInstance, osalDbgAssert, and osalDbgCheck.

Referenced by thermo_reset_sensitivity().

static msg_t thermo_reset_sensitivity ( void *  ip )

static

Reset sensitivity values for the BaseThermometer.

Note

Default sensitivities value are obtained from device datasheet.

Parameters

[in]

ip

pointer to BaseThermometer interface.

Returns

The operation status.

Return values

MSG_OK

if the function succeeded.

Definition at line 497 of file lps22hb.c.

References baro_get_axes_number(), baro_read_cooked(), baro_read_raw(), baro_reset_bias(), baro_reset_sensitivity(), baro_set_bias(), baro_set_sensitivity(), LPS22HB_READY, MSG_OK, objGetInstance, osalDbgAssert, osalDbgCheck, thermo_get_axes_number(), thermo_read_cooked(), thermo_read_raw(), thermo_reset_bias(), thermo_set_bias(), and thermo_set_sensitivity().

Here is the call graph for this function:

void lps22hbObjectInit

(

LPS22HBDriver *

devp

)

Initializes an instance.

Parameters

[out]

devp

pointer to the LPS22HBDriver object

Function Class:Initializer, this function just initializes an object and can be invoked before the kernel is initialized.

Definition at line 543 of file lps22hb.c.

References LPS22HBDriver::baro_if, LPS22HB_BARO_NUMBER_OF_AXES, LPS22HB_STOP, LPS22HB_THERMO_NUMBER_OF_AXES, LPS22HBDriver::thermo_if, BaseThermometer::vmt, BaseBarometer::vmt, and LPS22HBDriver::vmt.

void lps22hbStart	(	LPS22HBDriver *	devp,
		const LPS22HBConfig *	config
	)

Configures and activates LPS22HB Complex Driver peripheral.

Parameters

[in]	devp	pointer to the LPS22HBDriver object
[in]	config	pointer to the LPS22HBConfig object

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 565 of file lps22hb.c.

References I2CDriver::config, i2cAcquireBus(), LPS22HBConfig::i2cp, i2cReleaseBus(), i2cStart(), LPS22HB_READY, LPS22HB_STOP, lps22hbI2CWriteRegister, osalDbgAssert, osalDbgCheck, and osalThreadSleepMilliseconds.

Here is the call graph for this function:

void lps22hbStop

(

LPS22HBDriver *

devp

)

Deactivates the LPS22HB Complex Driver peripheral.

Parameters

[in]

devp

pointer to the LPS22HBDriver object

Function Class:Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 659 of file lps22hb.c.

References i2cAcquireBus(), i2cReleaseBus(), i2cStart(), i2cStop(), LPS22HB_READY, LPS22HB_STOP, lps22hbI2CWriteRegister, osalDbgAssert, and osalDbgCheck.

Here is the call graph for this function:
