Generic SIO Driver. More...

Detailed Description

Generic SIO Driver.

This driver abstracts a generic serial communication channel, usually an UART, this driver is similar to Serial and UART drivers but follows a different concept:

Very close to HW.
No buffering done in SW, the driver relies on the peripheral internal FIFO, if any.
Asynchronous, the API is always non blocking.
Callbacks capable, operations completion and other events are notified using callbacks.
Very short code paths, especially in ISRs.

Precondition: In order to use the SIO driver the HAL_USE_SIO option must be enabled in halconf.h.

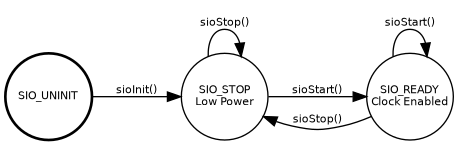

Driver State Machine

The driver implements a state machine internally, not all the driver functionalities can be used in any moment, any transition not explicitly shown in the following diagram has to be considered an error and shall be captured by an assertion (if enabled).

Collaboration diagram for SIO Driver:

SIO masks offsets
#define	SIO_EV_RXNOTEMPY_POS 2 /* CHN_INPUT_AVAILABLE */
#define	SIO_EV_TXNOTFULL_POS 3 /* CHN_OUTPUT_EMPTY */
#define	SIO_EV_TXDONE_POS 4 /* CHN_TRANSMISSION_END */
#define	SIO_EV_ALL_ERRORS_POS SIO_EV_PARITY_ERR_POS
#define	SIO_EV_PARITY_ERR_POS 5 /* CHN_PARITY_ERROR */
#define	SIO_EV_FRAMING_ERR_POS 6 /* CHN_FRAMING_ERROR */
#define	SIO_EV_NOISE_ERR_POS 7 /* CHN_NOISE_ERROR */
#define	SIO_EV_OVERRUN_ERR_POS 8 /* CHN_OVERRUN_ERROR */
#define	SIO_EV_RXIDLE_POS 9 /* CHN_IDLE_DETECTED */
#define	SIO_EV_RXBREAK_POS 10 /* CHN_BREAK_DETECTED */

Event flags (compatible with channel and serial events)
#define	SIO_EV_NONE 0U
#define	SIO_EV_RXNOTEMPY (1U << SIO_EV_RXNOTEMPY_POS)
#define	SIO_EV_TXNOTFULL (1U << SIO_EV_TXNOTFULL_POS)
#define	SIO_EV_ALL_DATA (SIO_EV_RXNOTEMPY \| SIO_EV_TXNOTFULL)
#define	SIO_EV_TXDONE (1U << SIO_EV_TXDONE_POS)
#define	SIO_EV_PARITY_ERR (1U << SIO_EV_PARITY_ERR_POS)
#define	SIO_EV_FRAMING_ERR (1U << SIO_EV_FRAMING_ERR_POS)
#define	SIO_EV_NOISE_ERR (1U << SIO_EV_NOISE_ERR_POS)
#define	SIO_EV_OVERRUN_ERR (1U << SIO_EV_OVERRUN_ERR_POS)
#define	SIO_EV_RXIDLE (1U << SIO_EV_RXIDLE_POS)
#define	SIO_EV_RXBREAK (1U << SIO_EV_RXBREAK_POS)
#define	SIO_EV_ALL_ERRORS
#define	SIO_EV_ALL_EVENTS

Additional messages
#define	SIO_MSG_ERRORS (msg_t)1

SIO configuration options
#define	SIO_DEFAULT_BITRATE 38400
	Default bit rate.
#define	SIO_USE_SYNCHRONIZATION TRUE
	Support for thread synchronization API.
#define	SIO_USE_STREAMS_INTERFACE SIO_USE_SYNCHRONIZATION
	Support for streams interfacwe.

Low level driver helper macros
#define	__sio_callback(siop)
	SIO callback.
#define	__sio_wakeup_errors(siop)
	Wakes up because RX errors.
#define	__sio_wakeup_rx(siop)
	Wakes up the RX-waiting thread.
#define	__sio_wakeup_rxidle(siop)
	Wakes up the RX-idle-waiting thread.
#define	__sio_wakeup_tx(siop)
	Wakes up the TX-waiting thread.
#define	__sio_wakeup_txend(siop)
	Wakes up the TXend-waiting thread.

PLATFORM configuration options
#define	PLATFORM_SIO_USE_SIO1 FALSE
	SIO driver enable switch.

Data Structures
struct	hal_sio_config
	Driver configuration structure. More...
struct	sio_driver_vmt
	`SIODriver` virtual methods table. More...
struct	hal_sio_driver
	Structure representing a SIO driver. More...

Macros
#define	_sio_driver_methods _base_channel_methods
	`SIODriver` specific methods.
#define	sioSetCallbackX(siop, f)
	Associates a callback to the SIO instance.
#define	sioIsRXEmptyX(siop)
	Determines the state of the RX FIFO.
#define	sioIsRXIdleX(siop)
	Determines the activity state of the receiver.
#define	sioHasRXErrorsX(siop)
	Determines if RX has pending errors to be read and cleared.
#define	sioIsTXFullX(siop)
	Determines the state of the TX FIFO.
#define	sioIsTXOngoingX(siop)
	Determines the transmission state.
#define	sioWriteEnableFlagsX(siop, mask)
	Writes the enabled events mask.
#define	sioSetEnableFlagsX(siop, mask)
	Sets flags into the enabled events flags mask.
#define	sioClearEnableFlagsX(siop, mask)
	Clears flags from the enabled events flags mask.
#define	sioGetEnableFlagsX(siop)
	Return the enabled condition flags mask.
#define	sioGetAndClearErrorsX(siop)
	Get and clears SIO error event flags.
#define	sioGetAndClearEventsX(siop)
	Get and clears SIO event flags.
#define	sioGetEventsX(siop)
	Returns the pending SIO event flags.
#define	sioGetX(siop)
	Returns one frame from the RX FIFO.
#define	sioPutX(siop, data)
	Pushes one frame into the TX FIFO.
#define	sioAsyncReadX(siop, size, buffer)
	Reads data from the RX FIFO.
#define	sioAsyncWriteX(siop, size, buffer)
	Writes data into the TX FIFO.
#define	sioControlX(siop, operation, arg)
	Control operation on a serial port.
#define	__sio_reloc_field(v, m, s, d)
	Relocates a bit field.
#define	sio_lld_driver_fields uint32_t dummy;
	Low level fields of the SIO driver structure.
#define	sio_lld_config_fields uint32_t dummy;
	Low level fields of the SIO configuration structure.
#define	sio_lld_is_rx_empty(siop)
	Determines the state of the RX FIFO.
#define	sio_lld_is_rx_idle(siop)
	Determines the activity state of the receiver.
#define	sio_lld_has_rx_errors(siop)
	Determines if RX has pending error events to be read and cleared.
#define	sio_lld_is_tx_full(siop)
	Determines the state of the TX FIFO.
#define	sio_lld_is_tx_ongoing(siop)
	Determines the transmission state.

Typedefs
typedef eventflags_t	sioevents_t
	Type of event flags.
typedef struct hal_sio_driver	SIODriver
	Type of structure representing a SIO driver.
typedef struct hal_sio_config	SIOConfig
	Type of structure representing a SIO configuration.
typedef void(*	siocb_t) (SIODriver *siop)
	Generic SIO notification callback type.

Enumerations
enum	siostate_t { SIO_UNINIT = 0 , SIO_STOP = 1 , SIO_READY = 2 }
	Driver state machine possible states. More...

Functions

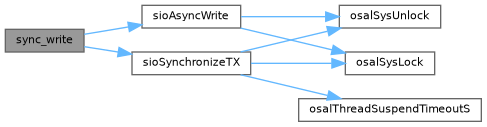

static size_t	sync_write (void ip, const uint8_t bp, size_t n, sysinterval_t timeout)
static size_t	sync_read (void ip, uint8_t bp, size_t n, sysinterval_t timeout)
static size_t	__write (void ip, const uint8_t bp, size_t n)
static size_t	__read (void ip, uint8_t bp, size_t n)
static msg_t	__put (void *ip, uint8_t b)

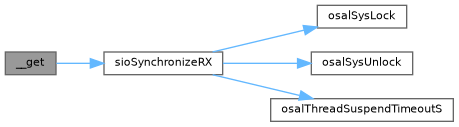

static msg_t	__get (void *ip)

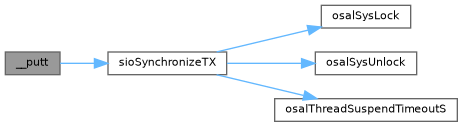

static msg_t	__putt (void *ip, uint8_t b, sysinterval_t timeout)
static msg_t	__gett (void *ip, sysinterval_t timeout)
static size_t	__writet (void ip, const uint8_t bp, size_t n, sysinterval_t timeout)
static size_t	__readt (void ip, uint8_t bp, size_t n, sysinterval_t timeout)
static msg_t	__ctl (void ip, unsigned int operation, void arg)
void	sioInit (void)
	SIO Driver initialization.
void	sioObjectInit (SIODriver *siop)
	Initializes the standard part of a `SIODriver` structure.
msg_t	sioStart (SIODriver siop, const SIOConfig config)
	Configures and activates the SIO peripheral.
void	sioStop (SIODriver *siop)
	Deactivates the SIO peripheral.
void	sioWriteEnableFlags (SIODriver *siop, sioevents_t mask)
	Writes the enabled events flags mask.
void	sioSetEnableFlags (SIODriver *siop, sioevents_t mask)
	Sets flags into the enabled events flags mask.
void	sioClearEnableFlags (SIODriver *siop, sioevents_t mask)
	Clears flags from the enabled events flags mask.
sioevents_t	sioGetAndClearErrors (SIODriver *siop)
	Get and clears SIO error event flags.
sioevents_t	sioGetAndClearEvents (SIODriver *siop)
	Get and clears SIO event flags.
sioevents_t	sioGetEvents (SIODriver *siop)
	Returns the pending SIO event flags.
size_t	sioAsyncRead (SIODriver siop, uint8_t buffer, size_t n)
	Reads data from the RX FIFO.
size_t	sioAsyncWrite (SIODriver siop, const uint8_t buffer, size_t n)
	Writes data into the TX FIFO.
msg_t	sioSynchronizeRX (SIODriver *siop, sysinterval_t timeout)
	Synchronizes with RX FIFO data availability.

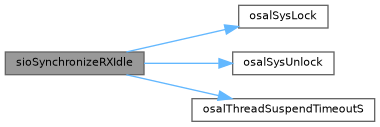

msg_t	sioSynchronizeRXIdle (SIODriver *siop, sysinterval_t timeout)
	Synchronizes with RX going idle.

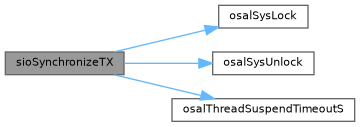

msg_t	sioSynchronizeTX (SIODriver *siop, sysinterval_t timeout)
	Synchronizes with TX FIFO space availability.

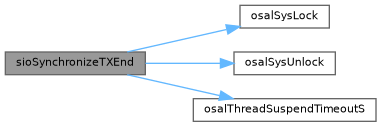

msg_t	sioSynchronizeTXEnd (SIODriver *siop, sysinterval_t timeout)
	Synchronizes with TX completion.
void	sio_lld_init (void)
	Low level SIO driver initialization.
msg_t	sio_lld_start (SIODriver *siop)
	Configures and activates the SIO peripheral.
void	sio_lld_stop (SIODriver *siop)
	Deactivates the SIO peripheral.
void	sio_lld_update_enable_flags (SIODriver *siop)
	Enable flags change notification.
sioevents_t	sio_lld_get_and_clear_errors (SIODriver *siop)
	Get and clears SIO error event flags.
sioevents_t	sio_lld_get_and_clear_events (SIODriver *siop)
	Get and clears SIO event flags.
sioevents_t	sio_lld_get_events (SIODriver *siop)
	Returns the pending SIO event flags.
size_t	sio_lld_read (SIODriver siop, uint8_t buffer, size_t n)
	Reads data from the RX FIFO.
size_t	sio_lld_write (SIODriver siop, const uint8_t buffer, size_t n)
	Writes data into the TX FIFO.
msg_t	sio_lld_get (SIODriver *siop)
	Returns one frame from the RX FIFO.
void	sio_lld_put (SIODriver *siop, uint_fast16_t data)
	Pushes one frame into the TX FIFO.
msg_t	sio_lld_control (SIODriver siop, unsigned int operation, void arg)
	Control operation on a serial port.
void	sio_lld_serve_interrupt (SIODriver *siop)
	Serves an UART interrupt.

Variables
static const struct sio_driver_vmt	vmt
SIODriver	SIOD1
	SIO1 driver identifier.

Macro Definition Documentation

◆ SIO_EV_RXNOTEMPY_POS

#define SIO_EV_RXNOTEMPY_POS 2 /* CHN_INPUT_AVAILABLE */

Definition at line 38 of file hal_sio.h.

◆ SIO_EV_TXNOTFULL_POS

#define SIO_EV_TXNOTFULL_POS 3 /* CHN_OUTPUT_EMPTY */

Definition at line 39 of file hal_sio.h.

◆ SIO_EV_TXDONE_POS

#define SIO_EV_TXDONE_POS 4 /* CHN_TRANSMISSION_END */

Definition at line 40 of file hal_sio.h.

◆ SIO_EV_ALL_ERRORS_POS

#define SIO_EV_ALL_ERRORS_POS SIO_EV_PARITY_ERR_POS

Definition at line 41 of file hal_sio.h.

◆ SIO_EV_PARITY_ERR_POS

#define SIO_EV_PARITY_ERR_POS 5 /* CHN_PARITY_ERROR */

Definition at line 42 of file hal_sio.h.

◆ SIO_EV_FRAMING_ERR_POS

#define SIO_EV_FRAMING_ERR_POS 6 /* CHN_FRAMING_ERROR */

Definition at line 43 of file hal_sio.h.

◆ SIO_EV_NOISE_ERR_POS

#define SIO_EV_NOISE_ERR_POS 7 /* CHN_NOISE_ERROR */

Definition at line 44 of file hal_sio.h.

◆ SIO_EV_OVERRUN_ERR_POS

#define SIO_EV_OVERRUN_ERR_POS 8 /* CHN_OVERRUN_ERROR */

Definition at line 45 of file hal_sio.h.

◆ SIO_EV_RXIDLE_POS

#define SIO_EV_RXIDLE_POS 9 /* CHN_IDLE_DETECTED */

Definition at line 46 of file hal_sio.h.

◆ SIO_EV_RXBREAK_POS

#define SIO_EV_RXBREAK_POS 10 /* CHN_BREAK_DETECTED */

Definition at line 47 of file hal_sio.h.

◆ SIO_EV_NONE

#define SIO_EV_NONE 0U

Definition at line 56 of file hal_sio.h.

Referenced by sioStart().

◆ SIO_EV_RXNOTEMPY

#define SIO_EV_RXNOTEMPY (1U << SIO_EV_RXNOTEMPY_POS)

Definition at line 57 of file hal_sio.h.

Referenced by __bsio_default_cb().

◆ SIO_EV_TXNOTFULL

#define SIO_EV_TXNOTFULL (1U << SIO_EV_TXNOTFULL_POS)

Definition at line 58 of file hal_sio.h.

Referenced by __bsio_default_cb().

◆ SIO_EV_ALL_DATA

#define SIO_EV_ALL_DATA (SIO_EV_RXNOTEMPY | SIO_EV_TXNOTFULL)

Definition at line 59 of file hal_sio.h.

Referenced by __bsio_default_cb().

◆ SIO_EV_TXDONE

#define SIO_EV_TXDONE (1U << SIO_EV_TXDONE_POS)

Definition at line 60 of file hal_sio.h.

◆ SIO_EV_PARITY_ERR

#define SIO_EV_PARITY_ERR (1U << SIO_EV_PARITY_ERR_POS)

Definition at line 61 of file hal_sio.h.

◆ SIO_EV_FRAMING_ERR

#define SIO_EV_FRAMING_ERR (1U << SIO_EV_FRAMING_ERR_POS)

Definition at line 62 of file hal_sio.h.

◆ SIO_EV_NOISE_ERR

#define SIO_EV_NOISE_ERR (1U << SIO_EV_NOISE_ERR_POS)

Definition at line 63 of file hal_sio.h.

◆ SIO_EV_OVERRUN_ERR

#define SIO_EV_OVERRUN_ERR (1U << SIO_EV_OVERRUN_ERR_POS)

Definition at line 64 of file hal_sio.h.

◆ SIO_EV_RXIDLE

#define SIO_EV_RXIDLE (1U << SIO_EV_RXIDLE_POS)

Definition at line 65 of file hal_sio.h.

◆ SIO_EV_RXBREAK

#define SIO_EV_RXBREAK (1U << SIO_EV_RXBREAK_POS)

Definition at line 66 of file hal_sio.h.

◆ SIO_EV_ALL_ERRORS

#define SIO_EV_ALL_ERRORS

Value:

                                         (SIO_EV_PARITY_ERR  |               \
                                         SIO_EV_FRAMING_ERR |               \
                                         SIO_EV_OVERRUN_ERR |               \
                                         SIO_EV_NOISE_ERR   |               \
                                         SIO_EV_RXBREAK)

Definition at line 67 of file hal_sio.h.

◆ SIO_EV_ALL_EVENTS

#define SIO_EV_ALL_EVENTS

Value:

                                         (SIO_EV_ALL_DATA    |               \
                                         SIO_EV_ALL_ERRORS  |               \
                                         SIO_EV_TXDONE      |               \
                                         SIO_EV_RXIDLE)

Definition at line 72 of file hal_sio.h.

Referenced by bsioStart(), and sioStart().

◆ SIO_MSG_ERRORS

#define SIO_MSG_ERRORS (msg_t)1

Definition at line 83 of file hal_sio.h.

Referenced by sioSynchronizeRX(), and sioSynchronizeRXIdle().

◆ SIO_DEFAULT_BITRATE

#define SIO_DEFAULT_BITRATE 38400

Default bit rate.

Configuration parameter, this is the baud rate selected for the default configuration.

Definition at line 100 of file hal_sio.h.

◆ SIO_USE_SYNCHRONIZATION

#define SIO_USE_SYNCHRONIZATION TRUE

Support for thread synchronization API.

Definition at line 107 of file hal_sio.h.

◆ SIO_USE_STREAMS_INTERFACE

#define SIO_USE_STREAMS_INTERFACE SIO_USE_SYNCHRONIZATION

Support for streams interfacwe.

Definition at line 114 of file hal_sio.h.

◆ _sio_driver_methods

#define _sio_driver_methods _base_channel_methods

SIODriver specific methods.

Definition at line 179 of file hal_sio.h.

◆ sioSetCallbackX

#define sioSetCallbackX	(		siop,
			f )

Value:

(siop)->cb = (f)

Associates a callback to the SIO instance.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	f	callback to be associated

Definition at line 260 of file hal_sio.h.

Referenced by bsioStart().

◆ sioIsRXEmptyX

#define sioIsRXEmptyX ( siop )

Value:

sio_lld_is_rx_empty(siop)

sio_lld_is_rx_empty

#define sio_lld_is_rx_empty(siop)

Determines the state of the RX FIFO.

Definition hal_sio_lld.h:87

Determines the state of the RX FIFO.

Parameters

[in] siop pointer to the SIODriver object

Returns: The RX FIFO state.

Return values

false	if RX FIFO is not empty.
true	if RX FIFO is empty.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 272 of file hal_sio.h.

Referenced by __bsio_pop_data(), and sioSynchronizeRX().

◆ sioIsRXIdleX

#define sioIsRXIdleX ( siop )

Value:

sio_lld_is_rx_idle(siop)

sio_lld_is_rx_idle

#define sio_lld_is_rx_idle(siop)

Determines the activity state of the receiver.

Definition hal_sio_lld.h:100

Determines the activity state of the receiver.

Parameters

[in] siop pointer to the SIODriver object

Returns: The RX activity state.

Return values

false	if RX is in active state.
true	if RX is in idle state.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 284 of file hal_sio.h.

Referenced by sioSynchronizeRXIdle().

◆ sioHasRXErrorsX

#define sioHasRXErrorsX ( siop )

Value:

sio_lld_has_rx_errors(siop)

sio_lld_has_rx_errors

#define sio_lld_has_rx_errors(siop)

Determines if RX has pending error events to be read and cleared.

Definition hal_sio_lld.h:115

Determines if RX has pending errors to be read and cleared.

Note: Only errors are handled, data and idle events are not considered.

Parameters

[in] siop pointer to the SIODriver object

Returns: The RX error events.

Return values

false	if RX has no pending events.
true	if RX has pending events.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 297 of file hal_sio.h.

Referenced by sioSynchronizeRX(), and sioSynchronizeRXIdle().

◆ sioIsTXFullX

#define sioIsTXFullX ( siop )

Value:

sio_lld_is_tx_full(siop)

sio_lld_is_tx_full

#define sio_lld_is_tx_full(siop)

Determines the state of the TX FIFO.

Definition hal_sio_lld.h:128

Determines the state of the TX FIFO.

Parameters

[in] siop pointer to the SIODriver object

Returns: The TX FIFO state.

Return values

false	if TX FIFO is not full.
true	if TX FIFO is full.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 309 of file hal_sio.h.

Referenced by __bsio_push_data(), and sioSynchronizeTX().

◆ sioIsTXOngoingX

#define sioIsTXOngoingX ( siop )

Value:

sio_lld_is_tx_ongoing(siop)

sio_lld_is_tx_ongoing

#define sio_lld_is_tx_ongoing(siop)

Determines the transmission state.

Definition hal_sio_lld.h:141

Determines the transmission state.

Parameters

[in] siop pointer to the SIODriver object

Returns: The TX FIFO state.

Return values

false	if transmission is over.
true	if transmission is ongoing.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 321 of file hal_sio.h.

Referenced by sioSynchronizeTXEnd().

◆ sioWriteEnableFlagsX

#define sioWriteEnableFlagsX	(		siop,
			mask )

Value:

  do {                               \
  (siop)->enabled = (mask);                                                 \
  sio_lld_update_enable_flags(siop);                                        \
} while (false)

Writes the enabled events mask.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	mask	enabled events mask to be written

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 331 of file hal_sio.h.

Referenced by bsioStart(), sioStart(), and sioWriteEnableFlags().

◆ sioSetEnableFlagsX

#define sioSetEnableFlagsX	(		siop,
			mask )

Value:

  do {                                 \
  (siop)->enabled |= (mask);                                                \
  sio_lld_update_enable_flags(siop);                                        \
} while (false)

Sets flags into the enabled events flags mask.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	mask	enabled events mask to be set

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 344 of file hal_sio.h.

Referenced by sioSetEnableFlags().

◆ sioClearEnableFlagsX

#define sioClearEnableFlagsX	(		siop,
			mask )

Value:

  do {                               \
  (siop)->enabled &= ~(mask);                                               \
  sio_lld_update_enable_flags(siop);                                        \
} while (false)

Clears flags from the enabled events flags mask.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	mask	enabled events mask to be cleared

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 357 of file hal_sio.h.

Referenced by sioClearEnableFlags().

◆ sioGetEnableFlagsX

#define sioGetEnableFlagsX ( siop )

Value:

(siop)->enabled

Return the enabled condition flags mask.

Parameters

[in] siop pointer to the SIODriver object

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 369 of file hal_sio.h.

◆ sioGetAndClearErrorsX

#define sioGetAndClearErrorsX ( siop )

Value:

sio_lld_get_and_clear_errors(siop)

sio_lld_get_and_clear_errors

sioevents_t sio_lld_get_and_clear_errors(SIODriver *siop)

Get and clears SIO error event flags.

Definition hal_sio_lld.c:146

Get and clears SIO error event flags.

Parameters

[in] siop pointer to the SIODriver object

Returns: The pending error event flags.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 379 of file hal_sio.h.

Referenced by sioGetAndClearErrors().

◆ sioGetAndClearEventsX

#define sioGetAndClearEventsX ( siop )

Value:

sio_lld_get_and_clear_events(siop)

sio_lld_get_and_clear_events

sioevents_t sio_lld_get_and_clear_events(SIODriver *siop)

Get and clears SIO event flags.

Definition hal_sio_lld.c:162

Get and clears SIO event flags.

Parameters

[in] siop pointer to the SIODriver object

Returns: The pending event flags.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 389 of file hal_sio.h.

Referenced by __bsio_default_cb(), and sioGetAndClearEvents().

◆ sioGetEventsX

#define sioGetEventsX ( siop )

Value:

sio_lld_get_events(siop)

sio_lld_get_events

sioevents_t sio_lld_get_events(SIODriver *siop)

Returns the pending SIO event flags.

Definition hal_sio_lld.c:178

Returns the pending SIO event flags.

Parameters

[in] siop pointer to the SIODriver object

Returns: The pending event flags.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 399 of file hal_sio.h.

Referenced by sioGetEvents().

◆ sioGetX

#define sioGetX ( siop )

Value:

sio_lld_get(siop)

sio_lld_get

msg_t sio_lld_get(SIODriver *siop)

Returns one frame from the RX FIFO.

Definition hal_sio_lld.c:233

Returns one frame from the RX FIFO.

Note: If the FIFO is empty then the returned value is unpredictable.

Parameters

[in] siop pointer to the SIODriver object

Returns: The frame from RX FIFO.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 410 of file hal_sio.h.

Referenced by __bsio_pop_data(), __get(), and __gett().

◆ sioPutX

#define sioPutX	(		siop,
			data )

Value:

sio_lld_put(siop, data)

sio_lld_put

void sio_lld_put(SIODriver *siop, uint_fast16_t data)

Pushes one frame into the TX FIFO.

Definition hal_sio_lld.c:250

Pushes one frame into the TX FIFO.

Note: If the FIFO is full then the behavior is unpredictable.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	data	frame to be written

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 421 of file hal_sio.h.

Referenced by __bsio_push_data(), __put(), and __putt().

◆ sioAsyncReadX

#define sioAsyncReadX	(	siop,
		size,
		buffer )

Value:

sio_lld_read(siop, size, buffer)

sio_lld_read

size_t sio_lld_read(SIODriver *siop, uint8_t *buffer, size_t n)

Reads data from the RX FIFO.

Definition hal_sio_lld.c:197

Reads data from the RX FIFO.

This function is non-blocking, data is read if present and the effective amount is returned.

Note: This function can be called from any context but it is meant to be called from the rxne_cb callback handler.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	size	maximum number of frames to read
[in]	buffer	buffer for the received data

Returns: The number of received frames.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 437 of file hal_sio.h.

Referenced by sioAsyncRead().

◆ sioAsyncWriteX

#define sioAsyncWriteX	(	siop,
		size,
		buffer )

Value:

sio_lld_write(siop, size, buffer)

sio_lld_write

size_t sio_lld_write(SIODriver *siop, const uint8_t *buffer, size_t n)

Writes data into the TX FIFO.

Definition hal_sio_lld.c:216

Writes data into the TX FIFO.

This function is non-blocking, data is written if there is space in the FIFO and the effective amount is returned.

Note: This function can be called from any context but it is meant to be called from the txnf_cb callback handler.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	size	maximum number of frames to read
[out]	buffer	buffer containing the data to be transmitted

Returns: The number of transmitted frames.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 453 of file hal_sio.h.

Referenced by sioAsyncWrite().

◆ sioControlX

#define sioControlX	(	siop,
		operation,
		arg )

Value:

sio_lld_control(siop, operation, arg)

sio_lld_control

msg_t sio_lld_control(SIODriver *siop, unsigned int operation, void *arg)

Control operation on a serial port.

Definition hal_sio_lld.c:270

Control operation on a serial port.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	operation	control operation code
[in,out]	arg	operation argument

Returns: The control operation status.

Return values

MSG_OK	in case of success.
MSG_TIMEOUT	in case of operation timeout.
MSG_RESET	in case of operation reset.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 469 of file hal_sio.h.

Referenced by __bsio_ctl().

◆ __sio_callback

#define __sio_callback ( siop )

Value:

  do {                                           \
  if ((siop)->cb != NULL) {                                                 \
    (siop)->cb(siop);                                                       \
  }                                                                         \
} while (false)

SIO callback.

Parameters

[in] siop pointer to the SIODriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 482 of file hal_sio.h.

◆ __sio_wakeup_errors

#define __sio_wakeup_errors ( siop )

Value:

  do {                                      \
  osalSysLockFromISR();                                                     \
  osalThreadResumeI(&(siop)->sync_rx, SIO_MSG_ERRORS);                      \
  osalThreadResumeI(&(siop)->sync_rxidle, SIO_MSG_ERRORS);                  \
  osalSysUnlockFromISR();                                                   \
} while (false)

Wakes up because RX errors.

Parameters

[in] siop pointer to the SIODriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 496 of file hal_sio.h.

◆ __sio_wakeup_rx

#define __sio_wakeup_rx ( siop )

Value:

  do {                                          \
  osalSysLockFromISR();                                                     \
  osalThreadResumeI(&(siop)->sync_rx, MSG_OK);                              \
  osalSysUnlockFromISR();                                                   \
} while (false)

Wakes up the RX-waiting thread.

Parameters

[in] siop pointer to the SIODriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 510 of file hal_sio.h.

◆ __sio_wakeup_rxidle

#define __sio_wakeup_rxidle ( siop )

Value:

  do {                                      \
  osalSysLockFromISR();                                                     \
  osalThreadResumeI(&(siop)->sync_rxidle, MSG_OK);                          \
  osalSysUnlockFromISR();                                                   \
} while (false)

Wakes up the RX-idle-waiting thread.

Parameters

[in] siop pointer to the SIODriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 523 of file hal_sio.h.

◆ __sio_wakeup_tx

#define __sio_wakeup_tx ( siop )

Value:

  do {                                          \
  osalSysLockFromISR();                                                     \
  osalThreadResumeI(&(siop)->sync_tx, MSG_OK);                              \
  osalSysUnlockFromISR();                                                   \
} while (false)

Wakes up the TX-waiting thread.

Parameters

[in] siop pointer to the SIODriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 536 of file hal_sio.h.

◆ __sio_wakeup_txend

#define __sio_wakeup_txend ( siop )

Value:

  do {                                       \
  osalSysLockFromISR();                                                     \
  osalThreadResumeI(&(siop)->sync_txend, MSG_OK);                           \
  osalSysUnlockFromISR();                                                   \
} while (false)

Wakes up the TXend-waiting thread.

Parameters

[in] siop pointer to the SIODriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 549 of file hal_sio.h.

◆ __sio_reloc_field

#define __sio_reloc_field	(	v,
		m,
		s,
		d )

Value:

((((v) & m) >> (s)) << (d))

Relocates a bit field.

Parameters

[in]	v	value
[in]	m	mask of the bit field
[in]	s	source bit offset
[in]	d	destination bit offset

Definition at line 571 of file hal_sio.h.

◆ PLATFORM_SIO_USE_SIO1

#define PLATFORM_SIO_USE_SIO1 FALSE

SIO driver enable switch.

If set to TRUE the support for SIO1 is included.

Note: The default is FALSE.

Definition at line 48 of file hal_sio_lld.h.

◆ sio_lld_driver_fields

#define sio_lld_driver_fields uint32_t dummy;

Low level fields of the SIO driver structure.

Definition at line 67 of file hal_sio_lld.h.

◆ sio_lld_config_fields

#define sio_lld_config_fields uint32_t dummy;

Low level fields of the SIO configuration structure.

Definition at line 73 of file hal_sio_lld.h.

◆ sio_lld_is_rx_empty

#define sio_lld_is_rx_empty ( siop )

Value:

false

Determines the state of the RX FIFO.

Parameters

[in] siop pointer to the SIODriver object

Returns: The RX FIFO state.

Return values

false	if RX FIFO is not empty
true	if RX FIFO is empty

Function Class:: Not an API, this function is for internal use only.

Definition at line 87 of file hal_sio_lld.h.

◆ sio_lld_is_rx_idle

#define sio_lld_is_rx_idle ( siop )

Value:

false

Determines the activity state of the receiver.

Parameters

[in] siop pointer to the SIODriver object

Returns: The RX activity state.

Return values

false	if RX is in active state.
true	if RX is in idle state.

Function Class:: Not an API, this function is for internal use only.

Definition at line 100 of file hal_sio_lld.h.

◆ sio_lld_has_rx_errors

#define sio_lld_has_rx_errors ( siop )

Value:

false

Determines if RX has pending error events to be read and cleared.

Note: Only error and protocol errors are handled, data events are not considered.

Parameters

[in] siop pointer to the SIODriver object

Returns: The RX error events.

Return values

false	if RX has no pending events
true	if RX has pending events

Function Class:: Not an API, this function is for internal use only.

Definition at line 115 of file hal_sio_lld.h.

◆ sio_lld_is_tx_full

#define sio_lld_is_tx_full ( siop )

Value:

false

Determines the state of the TX FIFO.

Parameters

[in] siop pointer to the SIODriver object

Returns: The TX FIFO state.

Return values

false	if TX FIFO is not full
true	if TX FIFO is full

Function Class:: Not an API, this function is for internal use only.

Definition at line 128 of file hal_sio_lld.h.

◆ sio_lld_is_tx_ongoing

#define sio_lld_is_tx_ongoing ( siop )

Value:

false

Determines the transmission state.

Parameters

[in] siop pointer to the SIODriver object

Returns: The TX FIFO state.

Return values

false	if transmission is idle
true	if transmission is ongoing

Function Class:: Not an API, this function is for internal use only.

Definition at line 141 of file hal_sio_lld.h.

Typedef Documentation

◆ sioevents_t

typedef eventflags_t sioevents_t

Type of event flags.

Definition at line 133 of file hal_sio.h.

◆ SIODriver

typedef struct hal_sio_driver SIODriver

Type of structure representing a SIO driver.

Definition at line 138 of file hal_sio.h.

◆ SIOConfig

typedef struct hal_sio_config SIOConfig

Type of structure representing a SIO configuration.

Definition at line 143 of file hal_sio.h.

◆ siocb_t

typedef void(* siocb_t) (SIODriver *siop)

Generic SIO notification callback type.

Parameters

[in] siop pointer to the SIODriver object

Definition at line 150 of file hal_sio.h.

Enumeration Type Documentation

◆ siostate_t

enum siostate_t

Driver state machine possible states.

Enumerator
SIO_UNINIT	Not initialized.
SIO_STOP	Stopped.
SIO_READY	Ready.

Definition at line 155 of file hal_sio.h.

Function Documentation

◆ sync_write()

size_t sync_write	(	void *	ip,
		const uint8_t *	bp,
		size_t	n,
		sysinterval_t	timeout )

static

Definition at line 46 of file hal_sio.c.

References MSG_OK, sioAsyncWrite(), and sioSynchronizeTX().

Referenced by __write(), and __writet().

Here is the call graph for this function:

◆ sync_read()

size_t sync_read	(	void *	ip,
		uint8_t *	bp,
		size_t	n,
		sysinterval_t	timeout )

static

Definition at line 68 of file hal_sio.c.

References MSG_OK, sioAsyncRead(), and sioSynchronizeRX().

Referenced by __read(), and __readt().

Here is the call graph for this function:

◆ __write()

size_t __write	(	void *	ip,
		const uint8_t *	bp,
		size_t	n )

static

Definition at line 95 of file hal_sio.c.

References sync_write(), and TIME_INFINITE.

Here is the call graph for this function:

◆ __read()

size_t __read	(	void *	ip,
		uint8_t *	bp,
		size_t	n )

static

Definition at line 100 of file hal_sio.c.

References sync_read(), and TIME_INFINITE.

Here is the call graph for this function:

◆ __put()

msg_t __put	(	void *	ip,
		uint8_t	b )

static

Definition at line 105 of file hal_sio.c.

References MSG_OK, sioPutX, sioSynchronizeTX(), and TIME_INFINITE.

Here is the call graph for this function:

◆ __get()

msg_t __get ( void * ip )

static

Definition at line 118 of file hal_sio.c.

References MSG_OK, sioGetX, sioSynchronizeRX(), and TIME_INFINITE.

Here is the call graph for this function:

◆ __putt()

msg_t __putt	(	void *	ip,
		uint8_t	b,
		sysinterval_t	timeout )

static

Definition at line 130 of file hal_sio.c.

References MSG_OK, sioPutX, and sioSynchronizeTX().

Here is the call graph for this function:

◆ __gett()

msg_t __gett	(	void *	ip,
		sysinterval_t	timeout )

static

Definition at line 143 of file hal_sio.c.

References MSG_OK, sioGetX, and sioSynchronizeRX().

Here is the call graph for this function:

◆ __writet()

size_t __writet	(	void *	ip,
		const uint8_t *	bp,
		size_t	n,
		sysinterval_t	timeout )

static

Definition at line 155 of file hal_sio.c.

References sync_write().

Here is the call graph for this function:

◆ __readt()

size_t __readt	(	void *	ip,
		uint8_t *	bp,
		size_t	n,
		sysinterval_t	timeout )

static

Definition at line 161 of file hal_sio.c.

References sync_read().

Here is the call graph for this function:

◆ __ctl()

msg_t __ctl	(	void *	ip,
		unsigned int	operation,
		void *	arg )

static

Definition at line 167 of file hal_sio.c.

References CHN_CTL_INVALID, CHN_CTL_NOP, HAL_RET_SUCCESS, HAL_RET_UNKNOWN_CTL, osalDbgCheck, and sio_lld_control().

Here is the call graph for this function:

◆ sioInit()

void sioInit ( void )

SIO Driver initialization.

Note: This function is implicitly invoked by halInit(), there is no need to explicitly initialize the driver.

Function Class:: Object or module nitializer function.

Definition at line 204 of file hal_sio.c.

References sio_lld_init().

Referenced by halInit().

Here is the call graph for this function:

◆ sioObjectInit()

void sioObjectInit ( SIODriver * siop )

Initializes the standard part of a SIODriver structure.

Parameters

[out] siop pointer to the SIODriver object

Function Class:: Object or module nitializer function.

Definition at line 216 of file hal_sio.c.

References hal_sio_driver::arg, hal_sio_driver::cb, hal_sio_driver::config, hal_sio_driver::enabled, SIO_STOP, hal_sio_driver::state, hal_sio_driver::sync_rx, hal_sio_driver::sync_rxidle, hal_sio_driver::sync_tx, hal_sio_driver::sync_txend, hal_sio_driver::vmt, and vmt.

Referenced by sio_lld_init().

◆ sioStart()

msg_t sioStart	(	SIODriver *	siop,
		const SIOConfig *	config )

Configures and activates the SIO peripheral.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	config	pointer to the `SIOConfig` object, can be `NULL` if the default configuration is desired

Returns: The operation status.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 249 of file hal_sio.c.

References hal_sio_driver::config, HAL_RET_SUCCESS, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), SIO_EV_ALL_EVENTS, SIO_EV_NONE, sio_lld_start(), SIO_READY, SIO_STOP, sioWriteEnableFlagsX, and hal_sio_driver::state.

Referenced by bsioStart().

Here is the call graph for this function:

◆ sioStop()

void sioStop ( SIODriver * siop )

Deactivates the SIO peripheral.

Parameters

[in] siop pointer to the SIODriver object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 292 of file hal_sio.c.

References hal_sio_driver::arg, hal_sio_driver::cb, hal_sio_driver::config, MSG_RESET, osalDbgAssert, osalDbgCheck, osalOsRescheduleS(), osalSysLock(), osalSysUnlock(), osalThreadResumeI(), sio_lld_stop(), SIO_READY, SIO_STOP, hal_sio_driver::state, hal_sio_driver::sync_rx, hal_sio_driver::sync_rxidle, hal_sio_driver::sync_tx, and hal_sio_driver::sync_txend.

Referenced by bsioStop().

Here is the call graph for this function:

◆ sioWriteEnableFlags()

void sioWriteEnableFlags	(	SIODriver *	siop,
		sioevents_t	mask )

Writes the enabled events flags mask.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	mask	enabled events mask to be written

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 327 of file hal_sio.c.

References osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), SIO_READY, sioWriteEnableFlagsX, and hal_sio_driver::state.

Here is the call graph for this function:

◆ sioSetEnableFlags()

void sioSetEnableFlags	(	SIODriver *	siop,
		sioevents_t	mask )

Sets flags into the enabled events flags mask.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	mask	enabled events mask to be set

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 348 of file hal_sio.c.

References osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), SIO_READY, sioSetEnableFlagsX, and hal_sio_driver::state.

Here is the call graph for this function:

◆ sioClearEnableFlags()

void sioClearEnableFlags	(	SIODriver *	siop,
		sioevents_t	mask )

Clears flags from the enabled events flags mask.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	mask	enabled events mask to be cleared

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 369 of file hal_sio.c.

References osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), SIO_READY, sioClearEnableFlagsX, and hal_sio_driver::state.

Here is the call graph for this function:

◆ sioGetAndClearErrors()

sioevents_t sioGetAndClearErrors ( SIODriver * siop )

Get and clears SIO error event flags.

Parameters

[in] siop pointer to the SIODriver object

Returns: The pending error event flags.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 390 of file hal_sio.c.

References osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), SIO_READY, sioGetAndClearErrorsX, and hal_sio_driver::state.

Here is the call graph for this function:

◆ sioGetAndClearEvents()

sioevents_t sioGetAndClearEvents ( SIODriver * siop )

Get and clears SIO event flags.

Parameters

[in] siop pointer to the SIODriver object

Returns: The pending event flags.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 414 of file hal_sio.c.

References osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), SIO_READY, sioGetAndClearEventsX, and hal_sio_driver::state.

Here is the call graph for this function:

◆ sioGetEvents()

sioevents_t sioGetEvents ( SIODriver * siop )

Returns the pending SIO event flags.

Parameters

[in] siop pointer to the SIODriver object

Returns: The pending event flags.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 438 of file hal_sio.c.

References osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), SIO_READY, sioGetEventsX, and hal_sio_driver::state.

Here is the call graph for this function:

◆ sioAsyncRead()

size_t sioAsyncRead	(	SIODriver *	siop,
		uint8_t *	buffer,
		size_t	n )

Reads data from the RX FIFO.

This function is non-blocking, data is read if present and the effective amount is returned.

Note: This function can be called from any context but it is meant to be called from the rxne_cb callback handler.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	buffer	buffer for the received data
[in]	n	maximum number of frames to read

Returns: The number of received frames.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 468 of file hal_sio.c.

References osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), SIO_READY, sioAsyncReadX, and hal_sio_driver::state.

Referenced by sync_read().

Here is the call graph for this function:

◆ sioAsyncWrite()

size_t sioAsyncWrite	(	SIODriver *	siop,
		const uint8_t *	buffer,
		size_t	n )

Writes data into the TX FIFO.

This function is non-blocking, data is written if there is space in the FIFO and the effective amount is returned.

Note: This function can be called from any context but it is meant to be called from the txnf_cb callback handler.

Parameters

[in]	siop	pointer to the `SIODriver` object
[out]	buffer	buffer containing the data to be transmitted
[in]	n	maximum number of frames to read

Returns: The number of transmitted frames.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 497 of file hal_sio.c.

References osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), SIO_READY, sioAsyncWriteX, and hal_sio_driver::state.

Referenced by sync_write().

Here is the call graph for this function:

◆ sioSynchronizeRX()

msg_t sioSynchronizeRX	(	SIODriver *	siop,
		sysinterval_t	timeout )

Synchronizes with RX FIFO data availability.

Note: The exact behavior depends on low level FIFO settings such as thresholds, etc.; This function can only be called by a single thread at time.

Parameters

[in]	siop	pointer to an `SIODriver` structure
[in]	timeout	synchronization timeout

Returns: The synchronization result.

Return values

MSG_OK	if there is data in the RX FIFO.
MSG_TIMEOUT	if synchronization timed out.
MSG_RESET	it the operation has been stopped while waiting.
SIO_MSG_ERRORS	if RX errors occurred before or during wait.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 529 of file hal_sio.c.

References MSG_OK, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), osalThreadSuspendTimeoutS(), SIO_MSG_ERRORS, SIO_READY, sioHasRXErrorsX, sioIsRXEmptyX, hal_sio_driver::state, and hal_sio_driver::sync_rx.

Referenced by __get(), __gett(), and sync_read().

Here is the call graph for this function:

◆ sioSynchronizeRXIdle()

msg_t sioSynchronizeRXIdle	(	SIODriver *	siop,
		sysinterval_t	timeout )

Synchronizes with RX going idle.

Note: This function can only be called by a single thread at time.

Parameters

[in]	siop	pointer to an `SIODriver` structure
[in]	timeout	synchronization timeout

Returns: The synchronization result.

Return values

MSG_OK	if RW went idle.
MSG_TIMEOUT	if synchronization timed out.
MSG_RESET	it the operation has been stopped while waiting.
SIO_MSG_ERRORS	if RX errors occurred before or during wait.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 574 of file hal_sio.c.

References MSG_OK, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), osalThreadSuspendTimeoutS(), SIO_MSG_ERRORS, SIO_READY, sioHasRXErrorsX, sioIsRXIdleX, hal_sio_driver::state, and hal_sio_driver::sync_rxidle.

Here is the call graph for this function:

◆ sioSynchronizeTX()

msg_t sioSynchronizeTX	(	SIODriver *	siop,
		sysinterval_t	timeout )

Synchronizes with TX FIFO space availability.

Note: The exact behavior depends on low level FIFO settings such as thresholds, etc.; This function can only be called by a single thread at time.

Parameters

[in]	siop	pointer to an `SIODriver` structure
[in]	timeout	synchronization timeout

Returns: The synchronization result.

Return values

MSG_OK	if there is space in the TX FIFO.
MSG_TIMEOUT	if synchronization timed out.
MSG_RESET	operation has been stopped while waiting.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 621 of file hal_sio.c.

References MSG_OK, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), osalThreadSuspendTimeoutS(), SIO_READY, sioIsTXFullX, hal_sio_driver::state, and hal_sio_driver::sync_tx.

Referenced by __put(), __putt(), and sync_write().

Here is the call graph for this function:

◆ sioSynchronizeTXEnd()

msg_t sioSynchronizeTXEnd	(	SIODriver *	siop,
		sysinterval_t	timeout )

Synchronizes with TX completion.

Note: This function can only be called by a single thread at time.

Parameters

[in]	siop	pointer to an `SIODriver` structure
[in]	timeout	synchronization timeout

Returns: The synchronization result.

Return values

MSG_OK	if TX operation finished.
MSG_TIMEOUT	if synchronization timed out.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 659 of file hal_sio.c.

References MSG_OK, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), osalThreadSuspendTimeoutS(), SIO_READY, sioIsTXOngoingX, hal_sio_driver::state, and hal_sio_driver::sync_txend.

Here is the call graph for this function:

◆ sio_lld_init()

void sio_lld_init ( void )

Low level SIO driver initialization.

Function Class:: Not an API, this function is for internal use only.

Definition at line 65 of file hal_sio_lld.c.

References SIOD1, and sioObjectInit().

Referenced by sioInit().

Here is the call graph for this function:

◆ sio_lld_start()

msg_t sio_lld_start ( SIODriver * siop )

Configures and activates the SIO peripheral.

Parameters

[in] siop pointer to the SIODriver object

Returns: The operation status.

Function Class:: Not an API, this function is for internal use only.

Definition at line 81 of file hal_sio_lld.c.

References HAL_RET_IS_INVALID, HAL_RET_SUCCESS, osalDbgAssert, SIO_STOP, SIOD1, and hal_sio_driver::state.

Referenced by sioStart().

◆ sio_lld_stop()

void sio_lld_stop ( SIODriver * siop )

Deactivates the SIO peripheral.

Parameters

[in] siop pointer to the SIODriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 114 of file hal_sio_lld.c.

References SIO_READY, SIOD1, and hal_sio_driver::state.

Referenced by sioStop().

◆ sio_lld_update_enable_flags()

void sio_lld_update_enable_flags ( SIODriver * siop )

Enable flags change notification.

Parameters

[in] siop pointer to the SIODriver object

Definition at line 133 of file hal_sio_lld.c.

◆ sio_lld_get_and_clear_errors()

sioevents_t sio_lld_get_and_clear_errors ( SIODriver * siop )

Get and clears SIO error event flags.

Parameters

[in] siop pointer to the SIODriver object

Returns: The pending event flags.

Function Class:: Not an API, this function is for internal use only.

Definition at line 146 of file hal_sio_lld.c.

◆ sio_lld_get_and_clear_events()

sioevents_t sio_lld_get_and_clear_events ( SIODriver * siop )

Get and clears SIO event flags.

Parameters

[in] siop pointer to the SIODriver object

Returns: The pending event flags.

Function Class:: Not an API, this function is for internal use only.

Definition at line 162 of file hal_sio_lld.c.

◆ sio_lld_get_events()

sioevents_t sio_lld_get_events ( SIODriver * siop )

Returns the pending SIO event flags.

Parameters

[in] siop pointer to the SIODriver object

Returns: The pending event flags.

Function Class:: Not an API, this function is for internal use only.

Definition at line 178 of file hal_sio_lld.c.

◆ sio_lld_read()

size_t sio_lld_read	(	SIODriver *	siop,
		uint8_t *	buffer,
		size_t	n )

Reads data from the RX FIFO.

The function is not blocking, it writes frames until there is space available without waiting.

Parameters

[in]	siop	pointer to an `SIODriver` structure
[in]	buffer	pointer to the buffer for read frames
[in]	n	maximum number of frames to be read

Returns: The number of frames copied from the buffer.

Return values

0	if the TX FIFO is full.

Definition at line 197 of file hal_sio_lld.c.

◆ sio_lld_write()

size_t sio_lld_write	(	SIODriver *	siop,
		const uint8_t *	buffer,
		size_t	n )

Writes data into the TX FIFO.

The function is not blocking, it writes frames until there is space available without waiting.

Parameters

[in]	siop	pointer to an `SIODriver` structure
[in]	buffer	pointer to the buffer for read frames
[in]	n	maximum number of frames to be written

Returns: The number of frames copied from the buffer.

Return values

0	if the TX FIFO is full.

Definition at line 216 of file hal_sio_lld.c.

◆ sio_lld_get()

msg_t sio_lld_get ( SIODriver * siop )

Returns one frame from the RX FIFO.

Note: If the FIFO is empty then the returned value is unpredictable.

Parameters

[in] siop pointer to the SIODriver object

Returns: The frame from RX FIFO.

Function Class:: Not an API, this function is for internal use only.

Definition at line 233 of file hal_sio_lld.c.

◆ sio_lld_put()

void sio_lld_put	(	SIODriver *	siop,
		uint_fast16_t	data )

Pushes one frame into the TX FIFO.

Note: If the FIFO is full then the behavior is unpredictable.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	data	frame to be written

Function Class:: Not an API, this function is for internal use only.

Definition at line 250 of file hal_sio_lld.c.

◆ sio_lld_control()

msg_t sio_lld_control	(	SIODriver *	siop,
		unsigned int	operation,
		void *	arg )

Control operation on a serial port.

Parameters

[in]	siop	pointer to the `SIODriver` object
[in]	operation	control operation code
[in,out]	arg	operation argument

Returns: The control operation status.

Return values

MSG_OK	in case of success.
MSG_TIMEOUT	in case of operation timeout.
MSG_RESET	in case of operation reset.

Function Class:: Not an API, this function is for internal use only.

Definition at line 270 of file hal_sio_lld.c.

References MSG_OK.

Referenced by __ctl().

◆ sio_lld_serve_interrupt()

void sio_lld_serve_interrupt ( SIODriver * siop )

Serves an UART interrupt.

Parameters

[in] siop pointer to the SIODriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 286 of file hal_sio_lld.c.

Variable Documentation

◆ vmt

const struct sio_driver_vmt vmt

static

Initial value:

= {
  (size_t)0,
  __write, __read, __put,    __get,
  __putt,  __gett, __writet, __readt,
  __ctl
}

Definition at line 185 of file hal_sio.c.

◆ SIOD1

SIODriver SIOD1

SIO1 driver identifier.

Definition at line 41 of file hal_sio_lld.c.

Referenced by sio_lld_init(), sio_lld_start(), and sio_lld_stop().

Detailed Description

Driver State Machine

SIO masks offsets

Event flags (compatible with channel and serial events)

Additional messages

SIO configuration options

Low level driver helper macros

PLATFORM configuration options

Data Structures

Macros

Typedefs

Enumerations

Functions

Variables

Macro Definition Documentation

◆ SIO_EV_RXNOTEMPY_POS

◆ SIO_EV_TXNOTFULL_POS

◆ SIO_EV_TXDONE_POS

◆ SIO_EV_ALL_ERRORS_POS

◆ SIO_EV_PARITY_ERR_POS

◆ SIO_EV_FRAMING_ERR_POS

◆ SIO_EV_NOISE_ERR_POS

◆ SIO_EV_OVERRUN_ERR_POS

◆ SIO_EV_RXIDLE_POS

◆ SIO_EV_RXBREAK_POS

◆ SIO_EV_NONE

◆ SIO_EV_RXNOTEMPY

◆ SIO_EV_TXNOTFULL

◆ SIO_EV_ALL_DATA

◆ SIO_EV_TXDONE

◆ SIO_EV_PARITY_ERR

◆ SIO_EV_FRAMING_ERR

◆ SIO_EV_NOISE_ERR

◆ SIO_EV_OVERRUN_ERR

◆ SIO_EV_RXIDLE

◆ SIO_EV_RXBREAK

◆ SIO_EV_ALL_ERRORS

◆ SIO_EV_ALL_EVENTS

◆ SIO_MSG_ERRORS

◆ SIO_DEFAULT_BITRATE

◆ SIO_USE_SYNCHRONIZATION

◆ SIO_USE_STREAMS_INTERFACE

◆ _sio_driver_methods

◆ sioSetCallbackX

◆ sioIsRXEmptyX

◆ sioIsRXIdleX

◆ sioHasRXErrorsX

◆ sioIsTXFullX

◆ sioIsTXOngoingX

◆ sioWriteEnableFlagsX

◆ sioSetEnableFlagsX

◆ sioClearEnableFlagsX

◆ sioGetEnableFlagsX

◆ sioGetAndClearErrorsX

◆ sioGetAndClearEventsX

◆ sioGetEventsX

◆ sioGetX

◆ sioPutX

◆ sioAsyncReadX

◆ sioAsyncWriteX

◆ sioControlX

◆ __sio_callback

◆ __sio_wakeup_errors

◆ __sio_wakeup_rx

◆ __sio_wakeup_rxidle

◆ __sio_wakeup_tx

◆ __sio_wakeup_txend

◆ __sio_reloc_field

◆ PLATFORM_SIO_USE_SIO1

◆ sio_lld_driver_fields

◆ sio_lld_config_fields

◆ sio_lld_is_rx_empty

◆ sio_lld_is_rx_idle

◆ sio_lld_has_rx_errors

◆ sio_lld_is_tx_full

◆ sio_lld_is_tx_ongoing

Typedef Documentation

◆ sioevents_t

◆ SIODriver

◆ SIOConfig
