Generic Serial Driver. More...

Detailed Description

Generic Serial Driver.

This module implements a generic full duplex serial driver. The driver implements a SerialDriver interface and uses I/O Queues for communication between the upper and the lower driver. Event flags are used to notify the application about incoming data, outgoing data and other I/O events.
The module also contains functions that make the implementation of the interrupt service routines much easier.

Precondition: In order to use the SERIAL driver the HAL_USE_SERIAL option must be enabled in halconf.h.

Driver State Machine

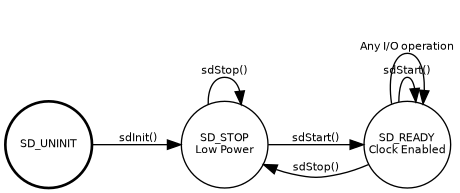

The driver implements a state machine internally, not all the driver functionalities can be used in any moment, any transition not explicitly shown in the following diagram has to be considered an error and shall be captured by an assertion (if enabled).

Collaboration diagram for Serial Driver:

Serial status flags (legacy)
#define	SD_PARITY_ERROR CHN_PARITY_ERROR
#define	SD_FRAMING_ERROR CHN_FRAMING_ERROR
#define	SD_OVERRUN_ERROR CHN_OVERRUN_ERROR
#define	SD_NOISE_ERROR CHN_NOISE_ERROR
#define	SD_BREAK_DETECTED CHN_BREAK_DETECTED
#define	SD_QUEUE_FULL_ERROR CHN_BUFFER_FULL_ERROR

Serial configuration options
#define	SERIAL_DEFAULT_BITRATE 38400
	Default bit rate.
#define	SERIAL_BUFFERS_SIZE 16
	Serial buffers size.

Macro Functions
#define	sdPutI(sdp, b)
	Direct write to a `SerialDriver`.
#define	sdPut(sdp, b)
	Direct write to a `SerialDriver`.
#define	sdPutTimeout(sdp, b, t)
	Direct write to a `SerialDriver` with timeout specification.
#define	sdGetI(sdp)
	Direct read from a `SerialDriver`.
#define	sdGet(sdp)
	Direct read from a `SerialDriver`.
#define	sdGetTimeout(sdp, t)
	Direct read from a `SerialDriver` with timeout specification.
#define	sdWriteI(sdp, b, n)
	Direct non-blocking write to a `SerialDriver`.
#define	sdWrite(sdp, b, n)
	Direct blocking write to a `SerialDriver`.
#define	sdWriteTimeout(sdp, b, n, t)
	Direct blocking write to a `SerialDriver` with timeout specification.
#define	sdAsynchronousWrite(sdp, b, n)
	Direct non-blocking write to a `SerialDriver`.
#define	sdReadI(sdp, b, n)
	Direct non-blocking read from a `SerialDriver`.
#define	sdRead(sdp, b, n)
	Direct blocking read from a `SerialDriver`.
#define	sdReadTimeout(sdp, b, n, t)
	Direct blocking read from a `SerialDriver` with timeout specification.
#define	sdAsynchronousRead(sdp, b, n)
	Direct non-blocking read from a `SerialDriver`.

PLATFORM configuration options
#define	PLATFORM_SERIAL_USE_USART1 FALSE
	USART1 driver enable switch.

Data Structures
struct	SerialDriverVMT
	`SerialDriver` virtual methods table. More...
struct	hal_serial_driver
	Full duplex serial driver class. More...
struct	hal_serial_config
	PLATFORM Serial Driver configuration structure. More...

Macros
#define	_serial_driver_methods _base_asynchronous_channel_methods
	`SerialDriver` specific methods.
#define	_serial_driver_data
	`SerialDriver` specific data.

Typedefs
typedef struct hal_serial_driver	SerialDriver
	Structure representing a serial driver.
typedef struct hal_serial_config	SerialConfig
	PLATFORM Serial Driver configuration structure.

Enumerations
enum	sdstate_t { SD_UNINIT = 0 , SD_STOP = 1 , SD_READY = 2 }
	Driver state machine possible states. More...

Functions

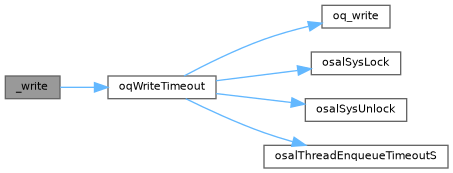

static size_t	_write (void ip, const uint8_t bp, size_t n)

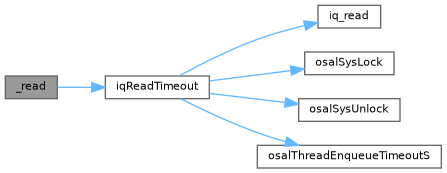

static size_t	_read (void ip, uint8_t bp, size_t n)

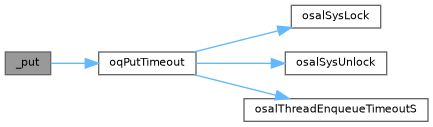

static msg_t	_put (void *ip, uint8_t b)
static msg_t	_get (void *ip)

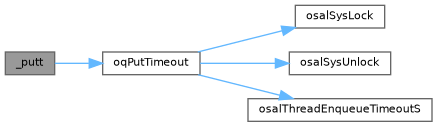

static msg_t	_putt (void *ip, uint8_t b, sysinterval_t timeout)

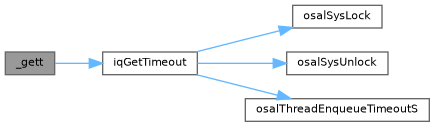

static msg_t	_gett (void *ip, sysinterval_t timeout)

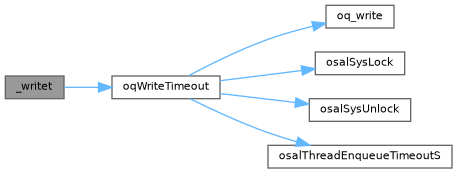

static size_t	_writet (void ip, const uint8_t bp, size_t n, sysinterval_t timeout)

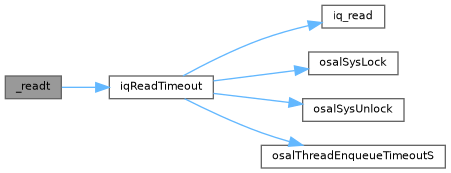

static size_t	_readt (void ip, uint8_t bp, size_t n, sysinterval_t timeout)
static msg_t	_ctl (void ip, unsigned int operation, void arg)
void	sdInit (void)
	Serial Driver initialization.

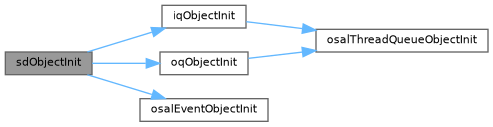

void	sdObjectInit (SerialDriver *sdp, qnotify_t inotify, qnotify_t onotify)
	Initializes a generic serial driver object.
msg_t	sdStart (SerialDriver sdp, const SerialConfig config)
	Configures and starts the driver.

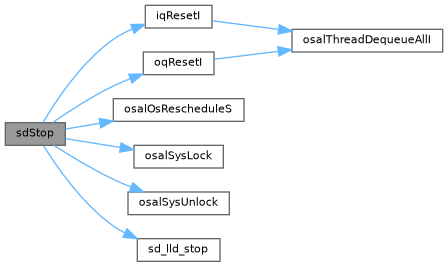

void	sdStop (SerialDriver *sdp)
	Stops the driver.
void	sdIncomingDataI (SerialDriver *sdp, uint8_t b)
	Handles incoming data.
msg_t	sdRequestDataI (SerialDriver *sdp)
	Handles outgoing data.
bool	sdPutWouldBlock (SerialDriver *sdp)
	Direct output check on a `SerialDriver`.
bool	sdGetWouldBlock (SerialDriver *sdp)
	Direct input check on a `SerialDriver`.
msg_t	sdControl (SerialDriver sdp, unsigned int operation, void arg)
	Control operation on a serial port.

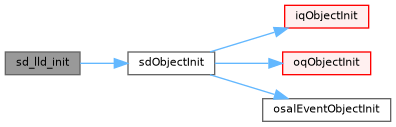

void	sd_lld_init (void)
	Low level serial driver initialization.
void	sd_lld_start (SerialDriver sdp, const SerialConfig config)
	Low level serial driver configuration and (re)start.
void	sd_lld_stop (SerialDriver *sdp)
	Low level serial driver stop.

Variables
static const struct SerialDriverVMT	vmt
SerialDriver	SD1
	USART1 serial driver identifier.
static const SerialConfig	default_config
	Driver default configuration.

Macro Definition Documentation

◆ SD_PARITY_ERROR

#define SD_PARITY_ERROR CHN_PARITY_ERROR

Definition at line 38 of file hal_serial.h.

◆ SD_FRAMING_ERROR

#define SD_FRAMING_ERROR CHN_FRAMING_ERROR

Definition at line 39 of file hal_serial.h.

◆ SD_OVERRUN_ERROR

#define SD_OVERRUN_ERROR CHN_OVERRUN_ERROR

Definition at line 40 of file hal_serial.h.

◆ SD_NOISE_ERROR

#define SD_NOISE_ERROR CHN_NOISE_ERROR

Definition at line 41 of file hal_serial.h.

◆ SD_BREAK_DETECTED

#define SD_BREAK_DETECTED CHN_BREAK_DETECTED

Definition at line 42 of file hal_serial.h.

◆ SD_QUEUE_FULL_ERROR

#define SD_QUEUE_FULL_ERROR CHN_BUFFER_FULL_ERROR

Definition at line 43 of file hal_serial.h.

Referenced by sdIncomingDataI().

◆ SERIAL_DEFAULT_BITRATE

#define SERIAL_DEFAULT_BITRATE 38400

Default bit rate.

Configuration parameter, this is the baud rate selected for the default configuration.

Definition at line 60 of file hal_serial.h.

◆ SERIAL_BUFFERS_SIZE

#define SERIAL_BUFFERS_SIZE 16

Serial buffers size.

Configuration parameter, you can change the depth of the queue buffers depending on the requirements of your application.

Note: The default is 16 bytes for both the transmission and receive buffers.; This is a global setting and it can be overridden by low level driver specific settings.

Definition at line 73 of file hal_serial.h.

Referenced by sdObjectInit().

◆ _serial_driver_methods

#define _serial_driver_methods _base_asynchronous_channel_methods

SerialDriver specific methods.

Definition at line 104 of file hal_serial.h.

◆ sdPutI

#define sdPutI	(		sdp,
			b )

Value:

oqPutI(&(sdp)->oqueue, b)

oqPutI

msg_t oqPutI(output_queue_t *oqp, uint8_t b)

Output queue non-blocking write.

Definition hal_queues.c:490

Direct write to a SerialDriver.

Note: This function bypasses the indirect access to the channel and writes directly on the output queue. This is faster but cannot be used to write to different channels implementations.

Parameters

[in]	sdp	pointer to a `SerialDriver` object
[in]	b	the byte value to be written in the output queue

Returns: The operation status.

Return values

MSG_OK	if the operation succeeded.
MSG_TIMEOUT	if the queue is full.

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 151 of file hal_serial.h.

◆ sdPut

#define sdPut	(		sdp,
			b )

Value:

oqPut(&(sdp)->oqueue, b)

oqPut

#define oqPut(oqp, b)

Output queue write.

Definition hal_queues.h:292

Direct write to a SerialDriver.

Note: This function bypasses the indirect access to the channel and writes directly on the output queue. This is faster but cannot be used to write to different channels implementations.

Parameters

[in]	sdp	pointer to a `SerialDriver` object
[in]	b	the byte value to be written in the output queue

Returns: The operation status.

Return values

MSG_OK	if the operation succeeded.
MSG_RESET	if the `SerialDriver` has been stopped.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 167 of file hal_serial.h.

◆ sdPutTimeout

#define sdPutTimeout	(	sdp,
		b,
		t )

Value:

oqPutTimeout(&(sdp)->oqueue, b, t)

oqPutTimeout

msg_t oqPutTimeout(output_queue_t *oqp, uint8_t b, sysinterval_t timeout)

Output queue write with timeout.

Definition hal_queues.c:535

Direct write to a SerialDriver with timeout specification.

Note: This function bypasses the indirect access to the channel and writes directly on the output queue. This is faster but cannot be used to write to different channels implementations.

Parameters

[in]	sdp	pointer to a `SerialDriver` object
[in]	b	the byte value to be written in the output queue
[in]	t	the number of ticks before the operation timeouts, the following special values are allowed: TIME_IMMEDIATE immediate timeout. TIME_INFINITE no timeout.

Returns: The operation status.

Return values

MSG_OK	if the operation succeeded.
MSG_TIMEOUT	if the specified time expired.
MSG_RESET	if the `SerialDriver` has been stopped.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 188 of file hal_serial.h.

◆ sdGetI

#define sdGetI ( sdp )

Value:

iqGetI(&(sdp)->iqueue)

iqGetI

msg_t iqGetI(input_queue_t *iqp)

Input queue non-blocking read.

Definition hal_queues.c:257

Direct read from a SerialDriver.

Note: This function bypasses the indirect access to the channel and reads directly from the input queue. This is faster but cannot be used to read from different channels implementations.

Parameters

[in] sdp pointer to a SerialDriver object

Returns: A byte value from the input queue.

Return values

MSG_TIMEOUT if the queue is empty.

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 202 of file hal_serial.h.

◆ sdGet

#define sdGet ( sdp )

Value:

iqGet(&(sdp)->iqueue)

iqGet

#define iqGet(iqp)

Input queue read.

Definition hal_queues.h:227

Direct read from a SerialDriver.

Note: This function bypasses the indirect access to the channel and reads directly from the input queue. This is faster but cannot be used to read from different channels implementations.

Parameters

[in] sdp pointer to a SerialDriver object

Returns: A byte value from the input queue.

Return values

MSG_RESET if the SerialDriver has been stopped.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 216 of file hal_serial.h.

◆ sdGetTimeout

#define sdGetTimeout	(		sdp,
			t )

Value:

iqGetTimeout(&(sdp)->iqueue, t)

iqGetTimeout

msg_t iqGetTimeout(input_queue_t *iqp, sysinterval_t timeout)

Input queue read with timeout.

Definition hal_queues.c:302

Direct read from a SerialDriver with timeout specification.

Note: This function bypasses the indirect access to the channel and reads directly from the input queue. This is faster but cannot be used to read from different channels implementations.

Parameters

[in]	sdp	pointer to a `SerialDriver` object
[in]	t	the number of ticks before the operation timeouts, the following special values are allowed: TIME_IMMEDIATE immediate timeout. TIME_INFINITE no timeout.

Returns: A byte value from the input queue.

Return values

MSG_TIMEOUT	if the specified time expired.
MSG_RESET	if the `SerialDriver` has been stopped.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 235 of file hal_serial.h.

◆ sdWriteI

#define sdWriteI	(	sdp,
		b,
		n )

Value:

oqWriteI(&(sdp)->oqueue, b, n)

oqWriteI

size_t oqWriteI(output_queue_t *oqp, const uint8_t *bp, size_t n)

Output queue non-blocking write.

Definition hal_queues.c:611

Direct non-blocking write to a SerialDriver.

Note: This function bypasses the indirect access to the channel and writes directly to the output queue. This is faster but cannot be used to write from different channels implementations.

Parameters

[in]	sdp	pointer to a `SerialDriver` object
[in]	b	pointer to the data buffer
[in]	n	the maximum amount of data to be transferred, the value 0 is reserved

Returns: The number of bytes effectively transferred.

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 251 of file hal_serial.h.

◆ sdWrite

#define sdWrite	(	sdp,
		b,
		n )

Value:

oqWriteTimeout(&(sdp)->oqueue, b, n, TIME_INFINITE)

oqWriteTimeout

size_t oqWriteTimeout(output_queue_t *oqp, const uint8_t *bp, size_t n, sysinterval_t timeout)

Output queue write with timeout.

Definition hal_queues.c:651

TIME_INFINITE

#define TIME_INFINITE

Definition osal.h:66

Direct blocking write to a SerialDriver.

Note: This function bypasses the indirect access to the channel and writes directly to the output queue. This is faster but cannot be used to write from different channels implementations.

Parameters

[in]	sdp	pointer to a `SerialDriver` object
[in]	b	pointer to the data buffer
[in]	n	the maximum amount of data to be transferred, the value 0 is reserved

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 266 of file hal_serial.h.

◆ sdWriteTimeout

#define sdWriteTimeout	(	sdp,
		b,
		n,
		t )

Value:

oqWriteTimeout(&(sdp)->oqueue, b, n, t)

Direct blocking write to a SerialDriver with timeout specification.

Note: This function bypasses the indirect access to the channel and writes directly to the output queue. This is faster but cannot be used to write to different channels implementations.

Parameters

[in]	sdp	pointer to a `SerialDriver` object
[in]	b	pointer to the data buffer
[in]	n	the maximum amount of data to be transferred, the value 0 is reserved
[in]	t	the number of ticks before the operation timeouts, the following special values are allowed: TIME_IMMEDIATE immediate timeout. TIME_INFINITE no timeout.

Returns: The number of bytes effectively transferred.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 287 of file hal_serial.h.

◆ sdAsynchronousWrite

#define sdAsynchronousWrite	(	sdp,
		b,
		n )

Value:

oqWriteTimeout(&(sdp)->oqueue, b, n, TIME_IMMEDIATE)

TIME_IMMEDIATE

#define TIME_IMMEDIATE

Definition osal.h:65

Direct non-blocking write to a SerialDriver.

Note: This function bypasses the indirect access to the channel and writes directly to the output queue. This is faster but cannot be used to write to different channels implementations.

Parameters

[in]	sdp	pointer to a `SerialDriver` object
[in]	b	pointer to the data buffer
[in]	n	the maximum amount of data to be transferred, the value 0 is reserved

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 303 of file hal_serial.h.

◆ sdReadI

#define sdReadI	(	sdp,
		b,
		n )

Value:

iqReadI(&(sdp)->iqueue, b, n)

iqReadI

size_t iqReadI(input_queue_t *iqp, uint8_t *bp, size_t n)

Input queue non-blocking read.

Definition hal_queues.c:346

Direct non-blocking read from a SerialDriver.

Note: This function bypasses the indirect access to the channel and reads directly from the input queue. This is faster but cannot be used to read from different channels implementations.

Parameters

[in]	sdp	pointer to a `SerialDriver` object
[in]	b	pointer to the data buffer
[in]	n	the maximum amount of data to be transferred, the value 0 is reserved

Returns: The number of bytes effectively transferred.

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 320 of file hal_serial.h.

◆ sdRead

#define sdRead	(	sdp,
		b,
		n )

Value:

iqReadTimeout(&(sdp)->iqueue, b, n, TIME_INFINITE)

iqReadTimeout

size_t iqReadTimeout(input_queue_t *iqp, uint8_t *bp, size_t n, sysinterval_t timeout)

Input queue read with timeout.

Definition hal_queues.c:386

Direct blocking read from a SerialDriver.

Note: This function bypasses the indirect access to the channel and reads directly from the input queue. This is faster but cannot be used to read from different channels implementations.

Parameters

[in]	sdp	pointer to a `SerialDriver` object
[in]	b	pointer to the data buffer
[in]	n	the maximum amount of data to be transferred, the value 0 is reserved

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 335 of file hal_serial.h.

◆ sdReadTimeout

#define sdReadTimeout	(	sdp,
		b,
		n,
		t )

Value:

iqReadTimeout(&(sdp)->iqueue, b, n, t)

Direct blocking read from a SerialDriver with timeout specification.

Note: This function bypasses the indirect access to the channel and reads directly from the input queue. This is faster but cannot be used to read from different channels implementations.

Parameters

[in]	sdp	pointer to a `SerialDriver` object
[in]	b	pointer to the data buffer
[in]	n	the maximum amount of data to be transferred, the value 0 is reserved
[in]	t	the number of ticks before the operation timeouts, the following special values are allowed: TIME_IMMEDIATE immediate timeout. TIME_INFINITE no timeout.

Returns: The number of bytes effectively transferred.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 356 of file hal_serial.h.

◆ sdAsynchronousRead

#define sdAsynchronousRead	(	sdp,
		b,
		n )

Value:

iqReadTimeout(&(sdp)->iqueue, b, n, TIME_IMMEDIATE)

Direct non-blocking read from a SerialDriver.

Note: This function bypasses the indirect access to the channel and reads directly from the input queue. This is faster but cannot be used to read from different channels implementations.

Parameters

[in]	sdp	pointer to a `SerialDriver` object
[in]	b	pointer to the data buffer
[in]	n	the maximum amount of data to be transferred, the value 0 is reserved

Returns: The number of bytes effectively transferred.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 372 of file hal_serial.h.

◆ PLATFORM_SERIAL_USE_USART1

#define PLATFORM_SERIAL_USE_USART1 FALSE

USART1 driver enable switch.

If set to TRUE the support for USART1 is included.

Note: The default is FALSE.

Definition at line 48 of file hal_serial_lld.h.

◆ _serial_driver_data

#define _serial_driver_data

Value:

  _base_asynchronous_channel_data                                           \
  /* Driver state.*/                                                        \
  sdstate_t                 state;                                          \
  /* Input queue.*/                                                         \
  input_queue_t             iqueue;                                         \
  /* Output queue.*/                                                        \
  output_queue_t            oqueue;                                         \
  /* Input circular buffer.*/                                               \
  uint8_t                   ib[SERIAL_BUFFERS_SIZE];                        \
  /* Output circular buffer.*/                                              \
  uint8_t                   ob[SERIAL_BUFFERS_SIZE];                        \
  /* End of the mandatory fields.*/

SerialDriver specific data.

Definition at line 79 of file hal_serial_lld.h.

Typedef Documentation

◆ SerialDriver

typedef struct hal_serial_driver SerialDriver

Structure representing a serial driver.

Definition at line 97 of file hal_serial.h.

◆ SerialConfig

typedef struct hal_serial_config SerialConfig

PLATFORM Serial Driver configuration structure.

An instance of this structure must be passed to sdStart() in order to configure and start a serial driver operations.

Note: This structure content is architecture dependent, each driver implementation defines its own version and the custom static initializers.

Enumeration Type Documentation

◆ sdstate_t

enum sdstate_t

Driver state machine possible states.

Enumerator
SD_UNINIT	Not initialized.
SD_STOP	Stopped.
SD_READY	Ready.

Definition at line 88 of file hal_serial.h.

Function Documentation

◆ _write()

size_t _write	(	void *	ip,
		const uint8_t *	bp,
		size_t	n )

static

Definition at line 50 of file hal_serial.c.

References oqWriteTimeout(), and TIME_INFINITE.

Here is the call graph for this function:

◆ _read()

size_t _read	(	void *	ip,
		uint8_t *	bp,
		size_t	n )

static

Definition at line 56 of file hal_serial.c.

References iqReadTimeout(), and TIME_INFINITE.

Here is the call graph for this function:

◆ _put()

msg_t _put	(	void *	ip,
		uint8_t	b )

static

Definition at line 62 of file hal_serial.c.

References oqPutTimeout(), and TIME_INFINITE.

Here is the call graph for this function:

◆ _get()

msg_t _get ( void * ip )

static

Definition at line 67 of file hal_serial.c.

References iqGetTimeout(), and TIME_INFINITE.

Here is the call graph for this function:

◆ _putt()

msg_t _putt	(	void *	ip,
		uint8_t	b,
		sysinterval_t	timeout )

static

Definition at line 72 of file hal_serial.c.

References oqPutTimeout().

Here is the call graph for this function:

◆ _gett()

msg_t _gett	(	void *	ip,
		sysinterval_t	timeout )

static

Definition at line 77 of file hal_serial.c.

References iqGetTimeout().

Here is the call graph for this function:

◆ _writet()

size_t _writet	(	void *	ip,
		const uint8_t *	bp,
		size_t	n,
		sysinterval_t	timeout )

static

Definition at line 82 of file hal_serial.c.

References oqWriteTimeout().

Here is the call graph for this function:

◆ _readt()

size_t _readt	(	void *	ip,
		uint8_t *	bp,
		size_t	n,
		sysinterval_t	timeout )

static

Definition at line 88 of file hal_serial.c.

References iqReadTimeout().

Here is the call graph for this function:

◆ _ctl()

msg_t _ctl	(	void *	ip,
		unsigned int	operation,
		void *	arg )

static

Definition at line 94 of file hal_serial.c.

References CHN_CTL_INVALID, CHN_CTL_NOP, HAL_RET_SUCCESS, HAL_RET_UNKNOWN_CTL, and osalDbgCheck.

Referenced by sdControl().

◆ sdInit()

void sdInit ( void )

Serial Driver initialization.

Note: This function is implicitly invoked by halInit(), there is no need to explicitly initialize the driver.

Function Class:: Object or module nitializer function.

Definition at line 134 of file hal_serial.c.

References sd_lld_init().

Referenced by halInit().

Here is the call graph for this function:

◆ sdObjectInit()

void sdObjectInit	(	SerialDriver *	sdp,
		qnotify_t	inotify,
		qnotify_t	onotify )

Initializes a generic serial driver object.

The HW dependent part of the initialization has to be performed outside, usually in the hardware initialization code.

Parameters

[out]	sdp	pointer to a `SerialDriver` structure
[in]	inotify	pointer to a callback function that is invoked when some data is read from the Queue. The value can be `NULL`.
[in]	onotify	pointer to a callback function that is invoked when some data is written in the Queue. The value can be `NULL`.

Function Class:: Object or module nitializer function.

Definition at line 157 of file hal_serial.c.

References iqObjectInit(), oqObjectInit(), osalEventObjectInit(), SD_STOP, SERIAL_BUFFERS_SIZE, hal_serial_driver::vmt, and vmt.

Referenced by sd_lld_init().

Here is the call graph for this function:

◆ sdStart()

msg_t sdStart	(	SerialDriver *	sdp,
		const SerialConfig *	config )

Configures and starts the driver.

Parameters

[in]	sdp	pointer to a `SerialDriver` object
[in]	config	the architecture-dependent serial driver configuration. If this parameter is set to `NULL` then a default configuration is used.

Returns: The operation status.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 185 of file hal_serial.c.

References HAL_RET_SUCCESS, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), sd_lld_start(), SD_READY, and SD_STOP.

Here is the call graph for this function:

◆ sdStop()

void sdStop ( SerialDriver * sdp )

Stops the driver.

Any thread waiting on the driver's queues will be awakened with the message MSG_RESET.

Parameters

[in] sdp pointer to a SerialDriver object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 222 of file hal_serial.c.

References iqResetI(), oqResetI(), osalDbgAssert, osalDbgCheck, osalOsRescheduleS(), osalSysLock(), osalSysUnlock(), sd_lld_stop(), SD_READY, and SD_STOP.

Here is the call graph for this function:

◆ sdIncomingDataI()

void sdIncomingDataI	(	SerialDriver *	sdp,
		uint8_t	b )

Handles incoming data.

This function must be called from the input interrupt service routine in order to enqueue incoming data and generate the related events.

Note: The incoming data event is only generated when the input queue becomes non-empty.; In order to gain some performance it is suggested to not use this function directly but copy this code directly into the interrupt service routine.

Parameters

[in]	sdp	pointer to a `SerialDriver` structure
[in]	b	the byte to be written in the driver's Input Queue

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 256 of file hal_serial.c.

References CHN_INPUT_AVAILABLE, chnAddFlagsI, iqIsEmptyI, iqPutI(), MSG_OK, osalDbgCheck, osalDbgCheckClassI, and SD_QUEUE_FULL_ERROR.

Here is the call graph for this function:

◆ sdRequestDataI()

msg_t sdRequestDataI ( SerialDriver * sdp )

Handles outgoing data.

Must be called from the output interrupt service routine in order to get the next byte to be transmitted.

Note: In order to gain some performance it is suggested to not use this function directly but copy this code directly into the interrupt service routine.

Parameters

[in] sdp pointer to a SerialDriver structure

Returns: The byte value read from the driver's output queue.

Return values

MSG_TIMEOUT if the queue is empty (the lower driver usually disables the interrupt source when this happens).

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 282 of file hal_serial.c.

References CHN_OUTPUT_EMPTY, chnAddFlagsI, MSG_OK, oqGetI(), osalDbgCheck, and osalDbgCheckClassI.

Here is the call graph for this function:

◆ sdPutWouldBlock()

bool sdPutWouldBlock ( SerialDriver * sdp )

Direct output check on a SerialDriver.

Note: This function bypasses the indirect access to the channel and checks directly the output queue. This is faster but cannot be used to check different channels implementations.

Parameters

[in] sdp pointer to a SerialDriver structure

Returns: The queue status.

Return values

false	if the next write operation would not block.
true	if the next write operation would block.

Deprecated

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 309 of file hal_serial.c.

References oqIsFullI, osalSysLock(), and osalSysUnlock().

Here is the call graph for this function:

◆ sdGetWouldBlock()

bool sdGetWouldBlock ( SerialDriver * sdp )

Direct input check on a SerialDriver.

Note: This function bypasses the indirect access to the channel and checks directly the input queue. This is faster but cannot be used to check different channels implementations.

Parameters

[in] sdp pointer to a SerialDriver structure

Returns: The queue status.

Return values

false	if the next write operation would not block.
true	if the next write operation would block.

Deprecated

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 334 of file hal_serial.c.

References iqIsEmptyI, osalSysLock(), and osalSysUnlock().

Here is the call graph for this function:

◆ sdControl()

msg_t sdControl	(	SerialDriver *	sdp,
		unsigned int	operation,
		void *	arg )

Control operation on a serial port.

Parameters

[in]	sdp	pointer to a `SerialDriver` object
[in]	operation	control operation code
[in,out]	arg	operation argument

Returns: The control operation status.

Return values

MSG_OK	in case of success.
MSG_TIMEOUT	in case of operation timeout.
MSG_RESET	in case of operation reset.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 358 of file hal_serial.c.

References _ctl().

Here is the call graph for this function:

◆ sd_lld_init()

void sd_lld_init ( void )

Low level serial driver initialization.

Function Class:: Not an API, this function is for internal use only.

Definition at line 70 of file hal_serial_lld.c.

References SD1, and sdObjectInit().

Referenced by sdInit().

Here is the call graph for this function:

◆ sd_lld_start()

void sd_lld_start	(	SerialDriver *	sdp,
		const SerialConfig *	config )

Low level serial driver configuration and (re)start.

Parameters

[in]	sdp	pointer to a `SerialDriver` object
[in]	config	the architecture-dependent serial driver configuration. If this parameter is set to `NULL` then a default configuration is used.

Function Class:: Not an API, this function is for internal use only.

Definition at line 87 of file hal_serial_lld.c.

References default_config, SD1, and SD_STOP.

Referenced by sdStart().

◆ sd_lld_stop()

void sd_lld_stop ( SerialDriver * sdp )

Low level serial driver stop.

De-initializes the USART, stops the associated clock, resets the interrupt vector.

Parameters

[in] sdp pointer to a SerialDriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 113 of file hal_serial_lld.c.

References SD1, and SD_READY.

Referenced by sdStop().

Variable Documentation

◆ vmt

const struct SerialDriverVMT vmt

static

Initial value:

= {
  (size_t)0,
  _write, _read, _put, _get,
  _putt, _gett, _writet, _readt,
  _ctl
}

Definition at line 116 of file hal_serial.c.

◆ SD1

SerialDriver SD1

USART1 serial driver identifier.

Definition at line 39 of file hal_serial_lld.c.

Referenced by sd_lld_init(), sd_lld_start(), and sd_lld_stop().

◆ default_config

const SerialConfig default_config

static

Initial value:

= {
  38400
}

Driver default configuration.

Definition at line 49 of file hal_serial_lld.c.

Referenced by sd_lld_start().

Detailed Description

Driver State Machine

Serial status flags (legacy)

Serial configuration options

Macro Functions

PLATFORM configuration options

Data Structures

Macros

Typedefs

Enumerations

Functions

Variables

Macro Definition Documentation

◆ SD_PARITY_ERROR

◆ SD_FRAMING_ERROR

◆ SD_OVERRUN_ERROR

◆ SD_NOISE_ERROR

◆ SD_BREAK_DETECTED

◆ SD_QUEUE_FULL_ERROR

◆ SERIAL_DEFAULT_BITRATE

◆ SERIAL_BUFFERS_SIZE

◆ _serial_driver_methods

◆ sdPutI

◆ sdPut

◆ sdPutTimeout

◆ sdGetI

◆ sdGet

◆ sdGetTimeout

◆ sdWriteI

◆ sdWrite

◆ sdWriteTimeout

◆ sdAsynchronousWrite

◆ sdReadI

◆ sdRead

◆ sdReadTimeout

◆ sdAsynchronousRead

◆ PLATFORM_SERIAL_USE_USART1

◆ _serial_driver_data

Typedef Documentation

◆ SerialDriver

◆ SerialConfig

Enumeration Type Documentation

◆ sdstate_t

Function Documentation

◆ _write()

◆ _read()

◆ _put()

◆ _get()

◆ _putt()

◆ _gett()

◆ _writet()

◆ _readt()

◆ _ctl()

◆ sdInit()

◆ sdObjectInit()

◆ sdStart()

◆ sdStop()

◆ sdIncomingDataI()

◆ sdRequestDataI()

◆ sdPutWouldBlock()

◆ sdGetWouldBlock()

◆ sdControl()

◆ sd_lld_init()

◆ sd_lld_start()

◆ sd_lld_stop()

Variable Documentation

◆ vmt

◆ SD1

◆ default_config
