Generic MAC Driver. More...

Detailed Description

Generic MAC Driver.

This module implements a generic MAC (Media Access Control) driver for Ethernet controllers.

Precondition: In order to use the MAC driver the HAL_USE_MAC option must be enabled in halconf.h.

Collaboration diagram for MAC Driver:

MAC event flags
#define	MAC_FLAGS_TX (1U << 0)
#define	MAC_FLAGS_RX (1U << 1)

MAC configuration options
#define	MAC_USE_ZERO_COPY FALSE
	Enables an event sources for incoming packets.
#define	MAC_USE_EVENTS TRUE
	Enables an event sources for incoming packets.

Low level driver helper macros
#define	__mac_callback(macp)
	MAC callback.
#define	__mac_tx_wakeup(macp)
	MAC TX wakeup and event.
#define	__mac_rx_wakeup(macp)
	MAC RX wakeup and event.

Macro Functions
#define	macSetCallbackX(macp, f)
	Associates a callback to the MAC instance.
#define	macGetEventSource(macp)
	Returns the driver events source.
#define	macGetTransmitDescriptorX(macp, tdp)
	Returns a transmission descriptor.
#define	macReleaseTransmitDescriptorX(tdp)
	Releases a transmit descriptor and starts the transmission of the enqueued data as a single frame.
#define	macGetReceiveDescriptorX(macp, rdp)
	Returns a receive descriptor.
#define	macReleaseReceiveDescriptorX(rdp)
	Releases a receive descriptor.
#define	macWriteTransmitDescriptor(tdp, buf, size)
	Writes to a transmit descriptor's stream.
#define	macReadReceiveDescriptor(rdp, buf, size)
	Reads from a receive descriptor's stream.
#define	macGetNextTransmitBuffer(tdp, size, sizep)
	Returns a pointer to the next transmit buffer in the descriptor chain.
#define	macGetNextReceiveBuffer(rdp, sizep)
	Returns a pointer to the next receive buffer in the descriptor chain.

PLATFORM configuration options
#define	PLATFORM_MAC_USE_MAC1 FALSE
	MAC driver enable switch.

Data Structures
struct	hal_mac_config
	Driver configuration structure. More...
struct	hal_mac_driver
	Structure representing a MAC driver. More...
struct	hal_mac_transmit_descriptor
	Structure representing a MAC transmit descriptor. More...
struct	hal_mac_receive_descriptor
	Structure representing a MAC receive descriptor. More...

Macros
#define	MAC_SUPPORTS_ZERO_COPY TRUE
	This implementation supports the zero-copy mode API.
#define	mac_lld_driver_fields
	Low level fields of the MAC driver structure.
#define	mac_lld_config_fields
	Low level fields of the MAC configuration structure.
#define	mac_lld_transmit_descriptor_fields
	Low level fields of the MAC transmit descriptor structure.
#define	mac_lld_receive_descriptor_fields
	Low level fields of the MAC receive descriptor structure.

Typedefs
typedef struct hal_mac_driver	MACDriver
	Type of a structure representing a MAC driver.
typedef struct hal_mac_config	MACConfig
	Type of structure representing a MAC configuration.
typedef struct hal_mac_transmit_descriptor	MACTransmitDescriptor
	Type of structure representing a MAC transmit descriptor.
typedef struct hal_mac_receive_descriptor	MACReceiveDescriptor
	Type of structure representing a MAC receive descriptor.
typedef void(*	maccb_t) (MACDriver *macp)
	Generic ETH notification callback type.

Enumerations
enum	macstate_t { MAC_UNINIT = 0 , MAC_STOP = 1 , MAC_ACTIVE = 2 }
	Driver state machine possible states. More...

Functions
void	macInit (void)
	MAC Driver initialization.
void	macObjectInit (MACDriver *macp)
	Initialize the standard part of a `MACDriver` structure.
msg_t	macStart (MACDriver macp, const MACConfig config)
	Configures and activates the MAC peripheral.
void	macStop (MACDriver *macp)
	Deactivates the MAC peripheral.
eventflags_t	macGetAndClearEventsI (MACDriver *macp)
	Get and clears MAC event flags.
msg_t	macWaitTransmitDescriptor (MACDriver macp, MACTransmitDescriptor tdp, sysinterval_t timeout)
	Allocates a transmission descriptor.
msg_t	macWaitReceiveDescriptor (MACDriver macp, MACReceiveDescriptor rdp, sysinterval_t timeout)
	Waits for a received frame.
bool	macPollLinkStatus (MACDriver *macp)
	Updates and returns the link status.
void	macReleaseTransmitDescriptor (MACTransmitDescriptor *tdp)
void	macReleaseReceiveDescriptor (MACReceiveDescriptor *rdp)
void	mac_lld_init (void)
	Low level MAC initialization.
void	mac_lld_start (MACDriver *macp)
	Configures and activates the MAC peripheral.
void	mac_lld_stop (MACDriver *macp)
	Deactivates the MAC peripheral.
msg_t	mac_lld_get_transmit_descriptor (MACDriver macp, MACTransmitDescriptor tdp)
	Returns a transmission descriptor.
void	mac_lld_release_transmit_descriptor (MACTransmitDescriptor *tdp)
	Releases a transmit descriptor and starts the transmission of the enqueued data as a single frame.
msg_t	mac_lld_get_receive_descriptor (MACDriver macp, MACReceiveDescriptor rdp)
	Returns a receive descriptor.
void	mac_lld_release_receive_descriptor (MACReceiveDescriptor *rdp)
	Releases a receive descriptor.
bool	mac_lld_poll_link_status (MACDriver *macp)
	Updates and returns the link status.
size_t	mac_lld_write_transmit_descriptor (MACTransmitDescriptor tdp, uint8_t buf, size_t size)
	Writes to a transmit descriptor's stream.
size_t	mac_lld_read_receive_descriptor (MACReceiveDescriptor rdp, uint8_t buf, size_t size)
	Reads from a receive descriptor's stream.
uint8_t *	mac_lld_get_next_transmit_buffer (MACTransmitDescriptor tdp, size_t size, size_t sizep)
	Returns a pointer to the next transmit buffer in the descriptor chain.
const uint8_t *	mac_lld_get_next_receive_buffer (MACReceiveDescriptor rdp, size_t sizep)
	Returns a pointer to the next receive buffer in the descriptor chain.

Variables
MACDriver	ETHD1
	MAC1 driver identifier.

Macro Definition Documentation

◆ MAC_FLAGS_TX

#define MAC_FLAGS_TX (1U << 0)

Definition at line 37 of file hal_mac.h.

◆ MAC_FLAGS_RX

#define MAC_FLAGS_RX (1U << 1)

Definition at line 38 of file hal_mac.h.

◆ MAC_USE_ZERO_COPY

#define MAC_USE_ZERO_COPY FALSE

Enables an event sources for incoming packets.

Definition at line 53 of file hal_mac.h.

◆ MAC_USE_EVENTS

#define MAC_USE_EVENTS TRUE

Enables an event sources for incoming packets.

Definition at line 60 of file hal_mac.h.

◆ __mac_callback

#define __mac_callback ( macp )

Value:

  do {                                           \
  if ((macp)->cb != NULL) {                                                 \
    (macp)->cb(macp);                                                       \
  }                                                                         \
} while (false)

MAC callback.

Parameters

[in] macp pointer to the MACDriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 218 of file hal_mac.h.

◆ __mac_tx_wakeup

#define __mac_tx_wakeup ( macp )

Value:

  do {                                          \
  osalSysLockFromISR();                                                     \
  osalThreadDequeueAllI(&(macp)->tdqueue, MSG_OK);                          \
  (macp)->flags |= MAC_FLAGS_TX;                                            \
  osalEventBroadcastFlagsI(&(macp)->es, MAC_FLAGS_TX);                      \
  osalSysUnlockFromISR();                                                   \
} while (false)

MAC TX wakeup and event.

Parameters

[in] macp pointer to the MACDriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 232 of file hal_mac.h.

◆ __mac_rx_wakeup

#define __mac_rx_wakeup ( macp )

Value:

  do {                                          \
  osalSysLockFromISR();                                                     \
  osalThreadDequeueAllI(&(macp)->rdqueue, MSG_OK);                          \
  (macp)->flags |= MAC_FLAGS_RX;                                            \
  osalEventBroadcastFlagsI(&(macp)->es, MAC_FLAGS_RX);                      \
  osalSysUnlockFromISR();                                                   \
} while (false)

MAC RX wakeup and event.

Parameters

[in] macp pointer to the MACDriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 256 of file hal_mac.h.

◆ macSetCallbackX

#define macSetCallbackX	(		macp,
			f )

Value:

(siop)->cb = (f)

Associates a callback to the MAC instance.

Parameters

[in]	macp	pointer to the `MACDriver` object
[in]	f	callback to be associated

Definition at line 283 of file hal_mac.h.

◆ macGetEventSource

#define macGetEventSource ( macp )

Value:

(&(macp)->es)

Returns the driver events source.

Parameters

[in] macp pointer to the MACDriver object

Returns: The pointer to the EventSource structure.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 294 of file hal_mac.h.

◆ macGetTransmitDescriptorX

#define macGetTransmitDescriptorX	(		macp,
			tdp )

Value:

mac_lld_get_transmit_descriptor(macp, tdp)

mac_lld_get_transmit_descriptor

msg_t mac_lld_get_transmit_descriptor(MACDriver *macp, MACTransmitDescriptor *tdp)

Returns a transmission descriptor.

Definition hal_mac_lld.c:132

Returns a transmission descriptor.

One of the available transmission descriptors is locked and returned.

Parameters

[in]	macp	pointer to the `MACDriver` object
[out]	tdp	pointer to a `MACTransmitDescriptor` structure

Returns: The operation status.

Return values

MSG_OK	the descriptor has been obtained.
MSG_TIMEOUT	descriptor not available.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 310 of file hal_mac.h.

Referenced by macWaitTransmitDescriptor().

◆ macReleaseTransmitDescriptorX

#define macReleaseTransmitDescriptorX ( tdp )

Value:

mac_lld_release_transmit_descriptor(tdp)

mac_lld_release_transmit_descriptor

void mac_lld_release_transmit_descriptor(MACTransmitDescriptor *tdp)

Releases a transmit descriptor and starts the transmission of the enqueued data as a single frame.

Definition hal_mac_lld.c:149

Releases a transmit descriptor and starts the transmission of the enqueued data as a single frame.

Parameters

[in] tdp the pointer to the MACTransmitDescriptor structure

Function Class:: Not an API, this function is for internal use only.

Definition at line 321 of file hal_mac.h.

◆ macGetReceiveDescriptorX

#define macGetReceiveDescriptorX	(		macp,
			rdp )

Value:

mac_lld_get_receive_descriptor(macp, rdp)

mac_lld_get_receive_descriptor

msg_t mac_lld_get_receive_descriptor(MACDriver *macp, MACReceiveDescriptor *rdp)

Returns a receive descriptor.

Definition hal_mac_lld.c:166

Returns a receive descriptor.

Parameters

[in]	macp	pointer to the `MACDriver` object
[out]	rdp	pointer to a `MACReceiveDescriptor` structure

Returns: The operation status.

Return values

MSG_OK	the descriptor has been obtained.
MSG_TIMEOUT	descriptor not available.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 335 of file hal_mac.h.

Referenced by macWaitReceiveDescriptor().

◆ macReleaseReceiveDescriptorX

#define macReleaseReceiveDescriptorX ( rdp )

Value:

mac_lld_release_receive_descriptor(rdp)

mac_lld_release_receive_descriptor

void mac_lld_release_receive_descriptor(MACReceiveDescriptor *rdp)

Releases a receive descriptor.

Definition hal_mac_lld.c:184

Releases a receive descriptor.

The descriptor and its buffer are made available for more incoming frames.

Parameters

[in] rdp the pointer to the MACReceiveDescriptor structure

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 347 of file hal_mac.h.

◆ macWriteTransmitDescriptor

#define macWriteTransmitDescriptor	(	tdp,
		buf,
		size )

Value:

mac_lld_write_transmit_descriptor(tdp, buf, size)

mac_lld_write_transmit_descriptor

size_t mac_lld_write_transmit_descriptor(MACTransmitDescriptor *tdp, uint8_t *buf, size_t size)

Writes to a transmit descriptor's stream.

Definition hal_mac_lld.c:221

Writes to a transmit descriptor's stream.

Parameters

[in]	tdp	pointer to a `MACTransmitDescriptor` structure
[in]	buf	pointer to the buffer containing the data to be written
[in]	size	number of bytes to be written

Returns: The number of bytes written into the descriptor's stream, this value can be less than the amount specified in the parameter size if the maximum frame size is reached.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 363 of file hal_mac.h.

◆ macReadReceiveDescriptor

#define macReadReceiveDescriptor	(	rdp,
		buf,
		size )

Value:

mac_lld_read_receive_descriptor(rdp, buf, size)

mac_lld_read_receive_descriptor

size_t mac_lld_read_receive_descriptor(MACReceiveDescriptor *rdp, uint8_t *buf, size_t size)

Reads from a receive descriptor's stream.

Definition hal_mac_lld.c:244

Reads from a receive descriptor's stream.

Parameters

[in]	rdp	pointer to a `MACReceiveDescriptor` structure
[in]	buf	pointer to the buffer that will receive the read data
[in]	size	number of bytes to be read

Returns: The number of bytes read from the descriptor's stream, this value can be less than the amount specified in the parameter size if there are no more bytes to read.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 378 of file hal_mac.h.

◆ macGetNextTransmitBuffer

#define macGetNextTransmitBuffer	(	tdp,
		size,
		sizep )

Value:

mac_lld_get_next_transmit_buffer(tdp, size, sizep)

mac_lld_get_next_transmit_buffer

uint8_t * mac_lld_get_next_transmit_buffer(MACTransmitDescriptor *tdp, size_t size, size_t *sizep)

Returns a pointer to the next transmit buffer in the descriptor chain.

Definition hal_mac_lld.c:276

Returns a pointer to the next transmit buffer in the descriptor chain.

Note: The API guarantees that enough buffers can be requested to fill a whole frame.

Parameters

[in]	tdp	pointer to a `MACTransmitDescriptor` structure
[in]	size	size of the requested buffer. Specify the frame size on the first call then scale the value down subtracting the amount of data already copied into the previous buffers.
[out]	sizep	pointer to variable receiving the real buffer size. The returned value can be less than the amount requested, this means that more buffers must be requested in order to fill the frame data entirely.

Returns: Pointer to the returned buffer.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 401 of file hal_mac.h.

◆ macGetNextReceiveBuffer

#define macGetNextReceiveBuffer	(		rdp,
			sizep )

Value:

mac_lld_get_next_receive_buffer(rdp, sizep)

mac_lld_get_next_receive_buffer

const uint8_t * mac_lld_get_next_receive_buffer(MACReceiveDescriptor *rdp, size_t *sizep)

Returns a pointer to the next receive buffer in the descriptor chain.

Definition hal_mac_lld.c:301

Returns a pointer to the next receive buffer in the descriptor chain.

Note: The API guarantees that the descriptor chain contains a whole frame.

Parameters

[in]	rdp	pointer to a `MACReceiveDescriptor` structure
[out]	sizep	pointer to variable receiving the buffer size, it is zero when the last buffer has already been returned.

Returns: Pointer to the returned buffer.

Return values

NULL	if the buffer chain has been entirely scanned.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 418 of file hal_mac.h.

◆ MAC_SUPPORTS_ZERO_COPY

#define MAC_SUPPORTS_ZERO_COPY TRUE

This implementation supports the zero-copy mode API.

Definition at line 37 of file hal_mac_lld.h.

◆ PLATFORM_MAC_USE_MAC1

#define PLATFORM_MAC_USE_MAC1 FALSE

MAC driver enable switch.

If set to TRUE the support for MAC1 is included.

Note: The default is FALSE.

Definition at line 53 of file hal_mac_lld.h.

◆ mac_lld_driver_fields

#define mac_lld_driver_fields

Low level fields of the MAC driver structure.

Definition at line 72 of file hal_mac_lld.h.

◆ mac_lld_config_fields

#define mac_lld_config_fields

Low level fields of the MAC configuration structure.

Definition at line 77 of file hal_mac_lld.h.

◆ mac_lld_transmit_descriptor_fields

#define mac_lld_transmit_descriptor_fields

Low level fields of the MAC transmit descriptor structure.

Definition at line 82 of file hal_mac_lld.h.

◆ mac_lld_receive_descriptor_fields

#define mac_lld_receive_descriptor_fields

Low level fields of the MAC receive descriptor structure.

Definition at line 87 of file hal_mac_lld.h.

Typedef Documentation

◆ MACDriver

typedef struct hal_mac_driver MACDriver

Type of a structure representing a MAC driver.

Definition at line 75 of file hal_mac.h.

◆ MACConfig

typedef struct hal_mac_config MACConfig

Type of structure representing a MAC configuration.

Definition at line 80 of file hal_mac.h.

◆ MACTransmitDescriptor

typedef struct hal_mac_transmit_descriptor MACTransmitDescriptor

Type of structure representing a MAC transmit descriptor.

Definition at line 85 of file hal_mac.h.

◆ MACReceiveDescriptor

typedef struct hal_mac_receive_descriptor MACReceiveDescriptor

Type of structure representing a MAC receive descriptor.

Definition at line 90 of file hal_mac.h.

◆ maccb_t

typedef void(* maccb_t) (MACDriver *macp)

Generic ETH notification callback type.

Parameters

[in] macp pointer to the MACDriver object

Definition at line 97 of file hal_mac.h.

Enumeration Type Documentation

◆ macstate_t

enum macstate_t

Driver state machine possible states.

Enumerator
MAC_UNINIT	Not initialized.
MAC_STOP	Stopped.
MAC_ACTIVE	Active.

Definition at line 102 of file hal_mac.h.

Function Documentation

◆ macInit()

void macInit ( void )

MAC Driver initialization.

Note: This function is implicitly invoked by halInit(), there is no need to explicitly initialize the driver.

Function Class:: Object or module nitializer function.

Definition at line 64 of file hal_mac.c.

References mac_lld_init().

Referenced by halInit().

Here is the call graph for this function:

◆ macObjectInit()

void macObjectInit ( MACDriver * macp )

Initialize the standard part of a MACDriver structure.

Parameters

[out] macp pointer to the MACDriver object

Function Class:: Object or module nitializer function.

Definition at line 76 of file hal_mac.c.

References hal_mac_driver::arg, hal_mac_driver::cb, hal_mac_driver::config, hal_mac_driver::es, hal_mac_driver::flags, MAC_STOP, osalEventObjectInit(), osalThreadQueueObjectInit(), hal_mac_driver::rdqueue, hal_mac_driver::state, and hal_mac_driver::tdqueue.

Referenced by mac_lld_init().

Here is the call graph for this function:

◆ macStart()

msg_t macStart	(	MACDriver *	macp,
		const MACConfig *	config )

Configures and activates the MAC peripheral.

Parameters

[in]	macp	pointer to the `MACDriver` object
[in]	config	pointer to the `MACConfig` object

Returns: The operation status.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 99 of file hal_mac.c.

References hal_mac_driver::config, HAL_RET_SUCCESS, MAC_ACTIVE, mac_lld_start(), MAC_STOP, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), and hal_mac_driver::state.

Here is the call graph for this function:

◆ macStop()

void macStop ( MACDriver * macp )

Deactivates the MAC peripheral.

Parameters

[in] macp pointer to the MACDriver object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 136 of file hal_mac.c.

References hal_mac_driver::config, MAC_ACTIVE, mac_lld_stop(), MAC_STOP, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), and hal_mac_driver::state.

Here is the call graph for this function:

◆ macGetAndClearEventsI()

eventflags_t macGetAndClearEventsI ( MACDriver * macp )

Get and clears MAC event flags.

Parameters

[in] macp pointer to the MACDriver object

Returns: The pending event flags.

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 160 of file hal_mac.c.

References hal_mac_driver::flags.

◆ macWaitTransmitDescriptor()

msg_t macWaitTransmitDescriptor	(	MACDriver *	macp,
		MACTransmitDescriptor *	tdp,
		sysinterval_t	timeout )

Allocates a transmission descriptor.

One of the available transmission descriptors is locked and returned. If a descriptor is not currently available then the invoking thread is queued until one is freed.

Parameters

[in]	macp	pointer to the `MACDriver` object
[out]	tdp	pointer to a `MACTransmitDescriptor` structure
[in]	timeout	the number of ticks before the operation timeouts, the following special values are allowed: TIME_IMMEDIATE immediate timeout. TIME_INFINITE no timeout.

Returns: The operation status.

Return values

MSG_OK	the descriptor was obtained.
MSG_TIMEOUT	the operation timed out, descriptor not initialized.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 187 of file hal_mac.c.

References MAC_ACTIVE, macGetTransmitDescriptorX, MSG_OK, MSG_TIMEOUT, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), osalThreadEnqueueTimeoutS(), hal_mac_driver::state, and hal_mac_driver::tdqueue.

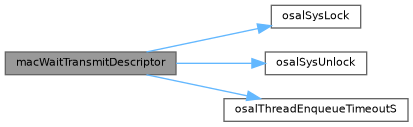

Here is the call graph for this function:

◆ macWaitReceiveDescriptor()

msg_t macWaitReceiveDescriptor	(	MACDriver *	macp,
		MACReceiveDescriptor *	rdp,
		sysinterval_t	timeout )

Waits for a received frame.

Stops until a frame is received and buffered. If a frame is not immediately available then the invoking thread is queued until one is received.

Parameters

[in]	macp	pointer to the `MACDriver` object
[out]	rdp	pointer to a `MACReceiveDescriptor` structure
[in]	timeout	the number of ticks before the operation timeouts, the following special values are allowed: TIME_IMMEDIATE immediate timeout. TIME_INFINITE no timeout.

Returns: The operation status.

Return values

MSG_OK	the descriptor was obtained.
MSG_TIMEOUT	the operation timed out, descriptor not initialized.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 227 of file hal_mac.c.

References MAC_ACTIVE, macGetReceiveDescriptorX, MSG_OK, MSG_TIMEOUT, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), osalThreadEnqueueTimeoutS(), hal_mac_driver::rdqueue, and hal_mac_driver::state.

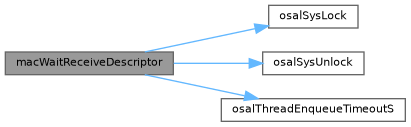

Here is the call graph for this function:

◆ macPollLinkStatus()

bool macPollLinkStatus ( MACDriver * macp )

Updates and returns the link status.

Parameters

[in] macp pointer to the MACDriver object

Returns: The link status.

Return values

true	if the link is active.
false	if the link is down.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 259 of file hal_mac.c.

References MAC_ACTIVE, mac_lld_poll_link_status(), osalDbgAssert, osalDbgCheck, and hal_mac_driver::state.

Here is the call graph for this function:

◆ macReleaseTransmitDescriptor()

void macReleaseTransmitDescriptor ( MACTransmitDescriptor * tdp )

◆ macReleaseReceiveDescriptor()

void macReleaseReceiveDescriptor ( MACReceiveDescriptor * rdp )

◆ mac_lld_init()

void mac_lld_init ( void )

Low level MAC initialization.

Function Class:: Not an API, this function is for internal use only.

Definition at line 69 of file hal_mac_lld.c.

References macObjectInit().

Referenced by macInit().

Here is the call graph for this function:

◆ mac_lld_start()

void mac_lld_start ( MACDriver * macp )

Configures and activates the MAC peripheral.

Parameters

[in] macp pointer to the MACDriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 84 of file hal_mac_lld.c.

References MAC_STOP, and hal_mac_driver::state.

Referenced by macStart().

◆ mac_lld_stop()

void mac_lld_stop ( MACDriver * macp )

Deactivates the MAC peripheral.

Parameters

[in] macp pointer to the MACDriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 105 of file hal_mac_lld.c.

References MAC_STOP, and hal_mac_driver::state.

Referenced by macStop().

◆ mac_lld_get_transmit_descriptor()

msg_t mac_lld_get_transmit_descriptor	(	MACDriver *	macp,
		MACTransmitDescriptor *	tdp )

Returns a transmission descriptor.

One of the available transmission descriptors is locked and returned.

Parameters

[in]	macp	pointer to the `MACDriver` object
[out]	tdp	pointer to a `MACTransmitDescriptor` structure

Returns: The operation status.

Return values

MSG_OK	the descriptor has been obtained.
MSG_TIMEOUT	descriptor not available.

Function Class:: Not an API, this function is for internal use only.

Definition at line 132 of file hal_mac_lld.c.

References MSG_OK.

◆ mac_lld_release_transmit_descriptor()

void mac_lld_release_transmit_descriptor ( MACTransmitDescriptor * tdp )

Releases a transmit descriptor and starts the transmission of the enqueued data as a single frame.

Parameters

[in] tdp the pointer to the MACTransmitDescriptor structure

Function Class:: Not an API, this function is for internal use only.

Definition at line 149 of file hal_mac_lld.c.

◆ mac_lld_get_receive_descriptor()

msg_t mac_lld_get_receive_descriptor	(	MACDriver *	macp,
		MACReceiveDescriptor *	rdp )

Returns a receive descriptor.

Parameters

[in]	macp	pointer to the `MACDriver` object
[out]	rdp	pointer to a `MACReceiveDescriptor` structure

Returns: The operation status.

Return values

MSG_OK	the descriptor has been obtained.
MSG_TIMEOUT	descriptor not available.

Function Class:: Not an API, this function is for internal use only.

Definition at line 166 of file hal_mac_lld.c.

References MSG_OK.

◆ mac_lld_release_receive_descriptor()

void mac_lld_release_receive_descriptor ( MACReceiveDescriptor * rdp )

Releases a receive descriptor.

The descriptor and its buffer are made available for more incoming frames.

Parameters

[in] rdp the pointer to the MACReceiveDescriptor structure

Function Class:: Not an API, this function is for internal use only.

Definition at line 184 of file hal_mac_lld.c.

◆ mac_lld_poll_link_status()

bool mac_lld_poll_link_status ( MACDriver * macp )

Updates and returns the link status.

Parameters

[in] macp pointer to the MACDriver object

Returns: The link status.

Return values

true	if the link is active.
false	if the link is down.

Function Class:: Not an API, this function is for internal use only.

Definition at line 200 of file hal_mac_lld.c.

Referenced by macPollLinkStatus().

◆ mac_lld_write_transmit_descriptor()

size_t mac_lld_write_transmit_descriptor	(	MACTransmitDescriptor *	tdp,
		uint8_t *	buf,
		size_t	size )

Writes to a transmit descriptor's stream.

Parameters

[in]	tdp	pointer to a `MACTransmitDescriptor` structure
[in]	buf	pointer to the buffer containing the data to be written
[in]	size	number of bytes to be written

Returns: The number of bytes written into the descriptor's stream, this value can be less than the amount specified in the parameter size if the maximum frame size is reached.

Function Class:: Not an API, this function is for internal use only.

Definition at line 221 of file hal_mac_lld.c.

◆ mac_lld_read_receive_descriptor()

size_t mac_lld_read_receive_descriptor	(	MACReceiveDescriptor *	rdp,
		uint8_t *	buf,
		size_t	size )

Reads from a receive descriptor's stream.

Parameters

[in]	rdp	pointer to a `MACReceiveDescriptor` structure
[in]	buf	pointer to the buffer that will receive the read data
[in]	size	number of bytes to be read

Returns: The number of bytes read from the descriptor's stream, this value can be less than the amount specified in the parameter size if there are no more bytes to read.

Function Class:: Not an API, this function is for internal use only.

Definition at line 244 of file hal_mac_lld.c.

◆ mac_lld_get_next_transmit_buffer()

uint8_t * mac_lld_get_next_transmit_buffer	(	MACTransmitDescriptor *	tdp,
		size_t	size,
		size_t *	sizep )

Returns a pointer to the next transmit buffer in the descriptor chain.

Note: The API guarantees that enough buffers can be requested to fill a whole frame.

Parameters

[in]	tdp	pointer to a `MACTransmitDescriptor` structure
[in]	size	size of the requested buffer. Specify the frame size on the first call then scale the value down subtracting the amount of data already copied into the previous buffers.
[out]	sizep	pointer to variable receiving the buffer size, it is zero when the last buffer has already been returned. Note that a returned size lower than the amount requested means that more buffers must be requested in order to fill the frame data entirely.

Returns: Pointer to the returned buffer.

Return values

NULL	if the buffer chain has been entirely scanned.

Function Class:: Not an API, this function is for internal use only.

Definition at line 276 of file hal_mac_lld.c.

◆ mac_lld_get_next_receive_buffer()

const uint8_t * mac_lld_get_next_receive_buffer	(	MACReceiveDescriptor *	rdp,
		size_t *	sizep )

Returns a pointer to the next receive buffer in the descriptor chain.

Note: The API guarantees that the descriptor chain contains a whole frame.

Parameters

[in]	rdp	pointer to a `MACReceiveDescriptor` structure
[out]	sizep	pointer to variable receiving the buffer size, it is zero when the last buffer has already been returned.

Returns: Pointer to the returned buffer.

Return values

NULL	if the buffer chain has been entirely scanned.

Function Class:: Not an API, this function is for internal use only.

Definition at line 301 of file hal_mac_lld.c.

Variable Documentation

◆ ETHD1

MACDriver ETHD1

MAC1 driver identifier.

Definition at line 45 of file hal_mac_lld.c.

Detailed Description

MAC event flags

MAC configuration options

Low level driver helper macros

Macro Functions

PLATFORM configuration options

Data Structures

Macros

Typedefs

Enumerations

Functions

Variables

Macro Definition Documentation

◆ MAC_FLAGS_TX

◆ MAC_FLAGS_RX

◆ MAC_USE_ZERO_COPY

◆ MAC_USE_EVENTS

◆ __mac_callback

◆ __mac_tx_wakeup

◆ __mac_rx_wakeup

◆ macSetCallbackX

◆ macGetEventSource

◆ macGetTransmitDescriptorX

◆ macReleaseTransmitDescriptorX

◆ macGetReceiveDescriptorX

◆ macReleaseReceiveDescriptorX

◆ macWriteTransmitDescriptor

◆ macReadReceiveDescriptor

◆ macGetNextTransmitBuffer

◆ macGetNextReceiveBuffer

◆ MAC_SUPPORTS_ZERO_COPY

◆ PLATFORM_MAC_USE_MAC1

◆ mac_lld_driver_fields

◆ mac_lld_config_fields

◆ mac_lld_transmit_descriptor_fields

◆ mac_lld_receive_descriptor_fields

Typedef Documentation

◆ MACDriver

◆ MACConfig

◆ MACTransmitDescriptor

◆ MACReceiveDescriptor

◆ maccb_t

Enumeration Type Documentation

◆ macstate_t

Function Documentation

◆ macInit()

◆ macObjectInit()

◆ macStart()

◆ macStop()

◆ macGetAndClearEventsI()

◆ macWaitTransmitDescriptor()

◆ macWaitReceiveDescriptor()

◆ macPollLinkStatus()

◆ macReleaseTransmitDescriptor()

◆ macReleaseReceiveDescriptor()

◆ mac_lld_init()

◆ mac_lld_start()

◆ mac_lld_stop()

◆ mac_lld_get_transmit_descriptor()

◆ mac_lld_release_transmit_descriptor()

◆ mac_lld_get_receive_descriptor()

◆ mac_lld_release_receive_descriptor()

◆ mac_lld_poll_link_status()

◆ mac_lld_write_transmit_descriptor()

◆ mac_lld_read_receive_descriptor()

◆ mac_lld_get_next_transmit_buffer()

◆ mac_lld_get_next_receive_buffer()

Variable Documentation

◆ ETHD1
