Generic GPT Driver. More...

Detailed Description

Generic GPT Driver.

This module implements a generic GPT (General Purpose Timer) driver. The timer can be programmed in order to trigger callbacks after a specified time period or continuously with a specified interval.

Precondition: In order to use the GPT driver the HAL_USE_GPT option must be enabled in halconf.h.

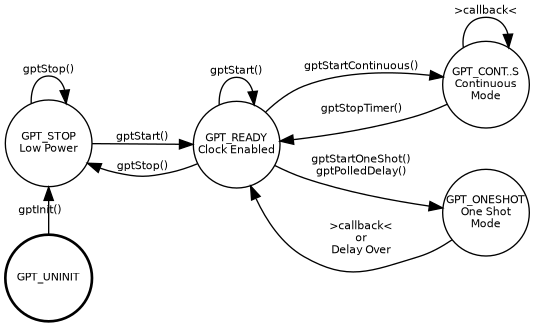

Driver State Machine

The driver implements a state machine internally, not all the driver functionalities can be used in any moment, any transition not explicitly shown in the following diagram has to be considered an error and shall be captured by an assertion (if enabled).

GPT Operations.

This driver abstracts a generic timer composed of:

A clock prescaler.
A main up counter.
A comparator register that resets the main counter to zero when the limit is reached. A callback is invoked when this happens.

The timer can operate in three different modes:

Continuous Mode, a periodic callback is invoked until the driver is explicitly stopped.
One Shot Mode, a callback is invoked after the programmed period and then the timer automatically stops.
Delay Mode, the timer is used for inserting a brief delay into the execution flow, no callback is invoked in this mode.

Collaboration diagram for GPT Driver:

PLATFORM configuration options
#define	PLATFORM_GPT_USE_GPT1 FALSE
	GPTD1 driver enable switch.

Data Structures
struct	GPTConfig
	Driver configuration structure. More...
struct	GPTDriver
	Structure representing a GPT driver. More...

Macros
#define	gptChangeIntervalI(gptp, interval)
	Changes the interval of GPT peripheral.
#define	gptGetIntervalX(gptp)
	Returns the interval of GPT peripheral.
#define	gptGetCounterX(gptp)
	Returns the counter value of GPT peripheral.
#define	_gpt_isr_invoke_cb(gptp)
	Common ISR code, GPT period event.
#define	gpt_lld_change_interval(gptp, interval)
	Changes the interval of GPT peripheral.

Typedefs
typedef struct GPTDriver	GPTDriver
	Type of a structure representing a GPT driver.
typedef void(*	gptcallback_t) (GPTDriver *gptp)
	GPT notification callback type.
typedef uint32_t	gptfreq_t
	GPT frequency type.
typedef uint16_t	gptcnt_t
	GPT counter type.

Enumerations
enum	gptstate_t { GPT_UNINIT = 0 , GPT_STOP = 1 , GPT_READY = 2 , GPT_CONTINUOUS = 3 , GPT_ONESHOT = 4 }
	Driver state machine possible states. More...

Functions
void	gptInit (void)
	GPT Driver initialization.
void	gptObjectInit (GPTDriver *gptp)
	Initializes the standard part of a `GPTDriver` structure.
msg_t	gptStart (GPTDriver gptp, const GPTConfig config)
	Configures and activates the GPT peripheral.
void	gptStop (GPTDriver *gptp)
	Deactivates the GPT peripheral.
void	gptChangeInterval (GPTDriver *gptp, gptcnt_t interval)
	Changes the interval of GPT peripheral.
void	gptStartContinuous (GPTDriver *gptp, gptcnt_t interval)
	Starts the timer in continuous mode.
void	gptStartContinuousI (GPTDriver *gptp, gptcnt_t interval)
	Starts the timer in continuous mode.
void	gptStartOneShot (GPTDriver *gptp, gptcnt_t interval)
	Starts the timer in one shot mode.
void	gptStartOneShotI (GPTDriver *gptp, gptcnt_t interval)
	Starts the timer in one shot mode.
void	gptStopTimer (GPTDriver *gptp)
	Stops the timer.
void	gptStopTimerI (GPTDriver *gptp)
	Stops the timer.
void	gptPolledDelay (GPTDriver *gptp, gptcnt_t interval)
	Starts the timer in one shot mode and waits for completion.
void	gpt_lld_init (void)
	Low level GPT driver initialization.
void	gpt_lld_start (GPTDriver *gptp)
	Configures and activates the GPT peripheral.
void	gpt_lld_stop (GPTDriver *gptp)
	Deactivates the GPT peripheral.
void	gpt_lld_start_timer (GPTDriver *gptp, gptcnt_t interval)
	Starts the timer in continuous mode.
void	gpt_lld_stop_timer (GPTDriver *gptp)
	Stops the timer.
void	gpt_lld_polled_delay (GPTDriver *gptp, gptcnt_t interval)
	Starts the timer in one shot mode and waits for completion.

Variables
GPTDriver	GPTD1
	GPTD1 driver identifier.

Macro Definition Documentation

◆ gptChangeIntervalI

#define gptChangeIntervalI	(		gptp,
			interval )

Value:

  {                                \
  gpt_lld_change_interval(gptp, interval);                                  \
}

Changes the interval of GPT peripheral.

This function changes the interval of a running GPT unit.

Precondition: The GPT unit must be running in continuous mode.

Postcondition: The GPT unit interval is changed to the new value.

Parameters

[in]	gptp	pointer to a `GPTDriver` object
[in]	interval	new cycle time in timer ticks

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 86 of file hal_gpt.h.

Referenced by gptChangeInterval().

◆ gptGetIntervalX

#define gptGetIntervalX ( gptp )

Value:

gpt_lld_get_interval(gptp)

Returns the interval of GPT peripheral.

Precondition: The GPT unit must be running in continuous mode.

Parameters

[in] gptp pointer to a GPTDriver object

Returns: The current interval.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 99 of file hal_gpt.h.

◆ gptGetCounterX

#define gptGetCounterX ( gptp )

Value:

gpt_lld_get_counter(gptp)

Returns the counter value of GPT peripheral.

Precondition: The GPT unit must be running in continuous mode.

Note: The nature of the counter is not defined, it may count upward or downward, it could be continuously running or not.

Parameters

[in] gptp pointer to a GPTDriver object

Returns: The current counter value.

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 112 of file hal_gpt.h.

◆ _gpt_isr_invoke_cb

#define _gpt_isr_invoke_cb ( gptp )

Value:

  do {                                       \
  if ((gptp)->state == GPT_ONESHOT) {                                       \
    (gptp)->state = GPT_READY;                                              \
      gpt_lld_stop_timer(gptp);                                             \
    }                                                                       \
    if ((gptp)->config->callback != NULL) {                                 \
      (gptp)->config->callback(gptp);                                       \
    }                                                                       \
} while (0)

Common ISR code, GPT period event.

Parameters

[in] gptp pointer to the GPTDriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 121 of file hal_gpt.h.

◆ PLATFORM_GPT_USE_GPT1

#define PLATFORM_GPT_USE_GPT1 FALSE

GPTD1 driver enable switch.

If set to TRUE the support for GPTD1 is included.

Note: The default is FALSE.

Definition at line 48 of file hal_gpt_lld.h.

◆ gpt_lld_change_interval

#define gpt_lld_change_interval	(		gptp,
			interval )

Value:

  {                           \
  (void)gptp;                                                               \
  (void)interval;                                                           \
}

Changes the interval of GPT peripheral.

This function changes the interval of a running GPT unit.

Precondition: The GPT unit must have been activated using gptStart().; The GPT unit must have been running in continuous mode using gptStartContinuous().

Postcondition: The GPT unit interval is changed to the new value.

Note: The function has effect at the next cycle start.

Parameters

[in]	gptp	pointer to a `GPTDriver` object
[in]	interval	new cycle time in timer ticks

Function Class:: Not an API, this function is for internal use only.

Definition at line 124 of file hal_gpt_lld.h.

Typedef Documentation

◆ GPTDriver

typedef struct GPTDriver GPTDriver

Type of a structure representing a GPT driver.

Definition at line 60 of file hal_gpt.h.

◆ gptcallback_t

typedef void(* gptcallback_t) (GPTDriver *gptp)

GPT notification callback type.

Parameters

[in] gptp pointer to a GPTDriver object

Definition at line 67 of file hal_gpt.h.

◆ gptfreq_t

typedef uint32_t gptfreq_t

GPT frequency type.

Definition at line 63 of file hal_gpt_lld.h.

◆ gptcnt_t

typedef uint16_t gptcnt_t

GPT counter type.

Definition at line 68 of file hal_gpt_lld.h.

Enumeration Type Documentation

◆ gptstate_t

enum gptstate_t

Driver state machine possible states.

Enumerator
GPT_UNINIT	Not initialized.
GPT_STOP	Stopped.
GPT_READY	Ready.
GPT_CONTINUOUS	Active in continuous mode.
GPT_ONESHOT	Active in one shot mode.

Definition at line 49 of file hal_gpt.h.

Function Documentation

◆ gptInit()

void gptInit ( void )

GPT Driver initialization.

Note: This function is implicitly invoked by halInit(), there is no need to explicitly initialize the driver.

Function Class:: Object or module nitializer function.

Definition at line 56 of file hal_gpt.c.

References gpt_lld_init().

Referenced by halInit().

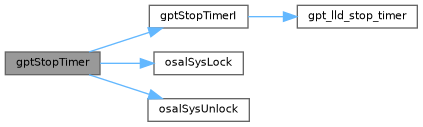

Here is the call graph for this function:

◆ gptObjectInit()

void gptObjectInit ( GPTDriver * gptp )

Initializes the standard part of a GPTDriver structure.

Parameters

[out] gptp pointer to the GPTDriver object

Function Class:: Object or module nitializer function.

Definition at line 68 of file hal_gpt.c.

References GPTDriver::config, GPT_STOP, and GPTDriver::state.

Referenced by gpt_lld_init().

◆ gptStart()

msg_t gptStart	(	GPTDriver *	gptp,
		const GPTConfig *	config )

Configures and activates the GPT peripheral.

Parameters

[in]	gptp	pointer to the `GPTDriver` object
[in]	config	pointer to the `GPTConfig` object

Returns: The operation status.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 83 of file hal_gpt.c.

References GPTDriver::config, gpt_lld_start(), GPT_READY, GPT_STOP, HAL_RET_SUCCESS, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), and GPTDriver::state.

Here is the call graph for this function:

◆ gptStop()

void gptStop ( GPTDriver * gptp )

Deactivates the GPT peripheral.

Parameters

[in] gptp pointer to the GPTDriver object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 121 of file hal_gpt.c.

References GPTDriver::config, gpt_lld_stop(), GPT_READY, GPT_STOP, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), and GPTDriver::state.

Here is the call graph for this function:

◆ gptChangeInterval()

void gptChangeInterval	(	GPTDriver *	gptp,
		gptcnt_t	interval )

Changes the interval of GPT peripheral.

This function changes the interval of a running GPT unit.

Precondition: The GPT unit must be running in continuous mode.

Postcondition: The GPT unit interval is changed to the new value.

Parameters

[in]	gptp	pointer to a `GPTDriver` object
[in]	interval	new cycle time in timer ticks

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 148 of file hal_gpt.c.

References GPT_CONTINUOUS, gptChangeIntervalI, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), and GPTDriver::state.

Here is the call graph for this function:

◆ gptStartContinuous()

void gptStartContinuous	(	GPTDriver *	gptp,
		gptcnt_t	interval )

Starts the timer in continuous mode.

Parameters

[in]	gptp	pointer to the `GPTDriver` object
[in]	interval	period in ticks

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 167 of file hal_gpt.c.

References gptStartContinuousI(), osalSysLock(), and osalSysUnlock().

Here is the call graph for this function:

◆ gptStartContinuousI()

void gptStartContinuousI	(	GPTDriver *	gptp,
		gptcnt_t	interval )

Starts the timer in continuous mode.

Parameters

[in]	gptp	pointer to the `GPTDriver` object
[in]	interval	period in ticks

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 182 of file hal_gpt.c.

References GPT_CONTINUOUS, gpt_lld_start_timer(), GPT_READY, osalDbgAssert, osalDbgCheck, osalDbgCheckClassI, and GPTDriver::state.

Referenced by gptStartContinuous().

Here is the call graph for this function:

◆ gptStartOneShot()

void gptStartOneShot	(	GPTDriver *	gptp,
		gptcnt_t	interval )

Starts the timer in one shot mode.

Parameters

[in]	gptp	pointer to the `GPTDriver` object
[in]	interval	time interval in ticks

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 201 of file hal_gpt.c.

References gptStartOneShotI(), osalSysLock(), and osalSysUnlock().

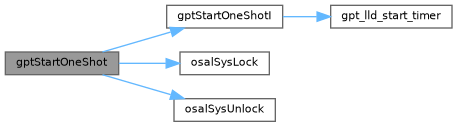

Here is the call graph for this function:

◆ gptStartOneShotI()

void gptStartOneShotI	(	GPTDriver *	gptp,
		gptcnt_t	interval )

Starts the timer in one shot mode.

Parameters

[in]	gptp	pointer to the `GPTDriver` object
[in]	interval	time interval in ticks

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 216 of file hal_gpt.c.

References GPTConfig::callback, GPTDriver::config, gpt_lld_start_timer(), GPT_ONESHOT, GPT_READY, osalDbgAssert, osalDbgCheck, osalDbgCheckClassI, and GPTDriver::state.

Referenced by gptStartOneShot().

Here is the call graph for this function:

◆ gptStopTimer()

void gptStopTimer ( GPTDriver * gptp )

Stops the timer.

Parameters

[in] gptp pointer to the GPTDriver object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 235 of file hal_gpt.c.

References gptStopTimerI(), osalSysLock(), and osalSysUnlock().

Here is the call graph for this function:

◆ gptStopTimerI()

void gptStopTimerI ( GPTDriver * gptp )

Stops the timer.

Parameters

[in] gptp pointer to the GPTDriver object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 249 of file hal_gpt.c.

References GPT_CONTINUOUS, gpt_lld_stop_timer(), GPT_ONESHOT, GPT_READY, osalDbgAssert, osalDbgCheck, osalDbgCheckClassI, and GPTDriver::state.

Referenced by gptStopTimer().

Here is the call graph for this function:

◆ gptPolledDelay()

void gptPolledDelay	(	GPTDriver *	gptp,
		gptcnt_t	interval )

Starts the timer in one shot mode and waits for completion.

This function specifically polls the timer waiting for completion in order to not have extra delays caused by interrupt servicing, this function is only recommended for short delays.

Note: The configured callback is not invoked when using this function.

Parameters

[in]	gptp	pointer to the `GPTDriver` object
[in]	interval	time interval in ticks

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 273 of file hal_gpt.c.

References gpt_lld_polled_delay(), GPT_ONESHOT, GPT_READY, osalDbgAssert, and GPTDriver::state.

Here is the call graph for this function:

◆ gpt_lld_init()

void gpt_lld_init ( void )

Low level GPT driver initialization.

Function Class:: Not an API, this function is for internal use only.

Definition at line 65 of file hal_gpt_lld.c.

References GPTD1, and gptObjectInit().

Referenced by gptInit().

Here is the call graph for this function:

◆ gpt_lld_start()

void gpt_lld_start ( GPTDriver * gptp )

Configures and activates the GPT peripheral.

Parameters

[in] gptp pointer to the GPTDriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 80 of file hal_gpt_lld.c.

References GPT_STOP, GPTD1, and GPTDriver::state.

Referenced by gptStart().

◆ gpt_lld_stop()

void gpt_lld_stop ( GPTDriver * gptp )

Deactivates the GPT peripheral.

Parameters

[in] gptp pointer to the GPTDriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 101 of file hal_gpt_lld.c.

References GPT_READY, GPTD1, and GPTDriver::state.

Referenced by gptStop().

◆ gpt_lld_start_timer()

void gpt_lld_start_timer	(	GPTDriver *	gptp,
		gptcnt_t	interval )

Starts the timer in continuous mode.

Parameters

[in]	gptp	pointer to the `GPTDriver` object
[in]	interval	period in ticks

Function Class:: Not an API, this function is for internal use only.

Definition at line 123 of file hal_gpt_lld.c.

Referenced by gptStartContinuousI(), and gptStartOneShotI().

◆ gpt_lld_stop_timer()

void gpt_lld_stop_timer ( GPTDriver * gptp )

Stops the timer.

Parameters

[in] gptp pointer to the GPTDriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 137 of file hal_gpt_lld.c.

Referenced by gptStopTimerI().

◆ gpt_lld_polled_delay()

void gpt_lld_polled_delay	(	GPTDriver *	gptp,
		gptcnt_t	interval )

Starts the timer in one shot mode and waits for completion.

This function specifically polls the timer waiting for completion in order to not have extra delays caused by interrupt servicing, this function is only recommended for short delays.

Parameters

[in]	gptp	pointer to the `GPTDriver` object
[in]	interval	time interval in ticks

Function Class:: Not an API, this function is for internal use only.

Definition at line 154 of file hal_gpt_lld.c.

Referenced by gptPolledDelay().

Variable Documentation

◆ GPTD1

GPTDriver GPTD1

GPTD1 driver identifier.

Definition at line 41 of file hal_gpt_lld.c.

Referenced by gpt_lld_init(), gpt_lld_start(), and gpt_lld_stop().

Detailed Description

Driver State Machine

GPT Operations.

PLATFORM configuration options

Data Structures

Macros

Typedefs

Enumerations

Functions

Variables

Macro Definition Documentation

◆ gptChangeIntervalI

◆ gptGetIntervalX

◆ gptGetCounterX

◆ _gpt_isr_invoke_cb

◆ PLATFORM_GPT_USE_GPT1

◆ gpt_lld_change_interval

Typedef Documentation

◆ GPTDriver

◆ gptcallback_t

◆ gptfreq_t

◆ gptcnt_t

Enumeration Type Documentation

◆ gptstate_t

Function Documentation

◆ gptInit()

◆ gptObjectInit()

◆ gptStart()

◆ gptStop()

◆ gptChangeInterval()

◆ gptStartContinuous()

◆ gptStartContinuousI()

◆ gptStartOneShot()

◆ gptStartOneShotI()

◆ gptStopTimer()

◆ gptStopTimerI()

◆ gptPolledDelay()

◆ gpt_lld_init()

◆ gpt_lld_start()

◆ gpt_lld_stop()

◆ gpt_lld_start_timer()

◆ gpt_lld_stop_timer()

◆ gpt_lld_polled_delay()

Variable Documentation

◆ GPTD1
