Generic CAN Driver. More...

Detailed Description

Generic CAN Driver.

This module implements a generic CAN (Controller Area Network) driver allowing the exchange of information at frame level.

Precondition: In order to use the CAN driver the HAL_USE_CAN option must be enabled in halconf.h.

Driver State Machine

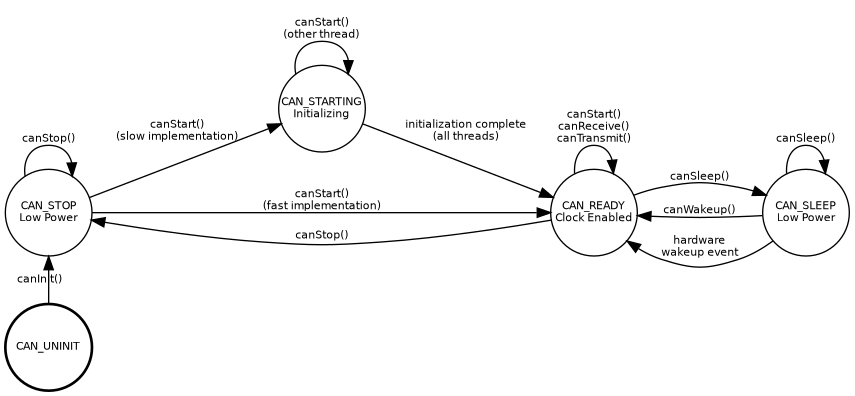

The driver implements a state machine internally, not all the driver functionalities can be used in any moment, any transition not explicitly shown in the following diagram has to be considered an error and shall be captured by an assertion (if enabled).

Collaboration diagram for CAN Driver:

CAN status flags
#define	CAN_LIMIT_WARNING 1U
	Errors rate warning.
#define	CAN_LIMIT_ERROR 2U
	Errors rate error.
#define	CAN_BUS_OFF_ERROR 4U
	Bus off condition reached.
#define	CAN_FRAMING_ERROR 8U
	Framing error of some kind on the CAN bus.
#define	CAN_OVERFLOW_ERROR 16U
	Overflow in receive queue.

CAN configuration options
#define	CAN_USE_SLEEP_MODE TRUE
	Sleep mode related APIs inclusion switch.
#define	CAN_ENFORCE_USE_CALLBACKS FALSE
	Enforces the driver to use direct callbacks rather than OSAL events.

Macro Functions
#define	CAN_MAILBOX_TO_MASK(mbx)
	Converts a mailbox index to a bit mask.
#define	canTransmit(canp, mailbox, ctfp, timeout)
	Legacy name for `canTransmitTimeout()`.
#define	canReceive(canp, mailbox, crfp, timeout)
	Legacy name for `canReceiveTimeout()`.

Low level driver helper macros
#define	_can_tx_empty_isr(canp, flags)
	TX mailbox empty event.
#define	_can_rx_full_isr(canp, flags)
	RX mailbox empty full event.
#define	_can_wakeup_isr(canp)
	Wakeup event.
#define	_can_error_isr(canp, flags)
	Error event.

PLATFORM configuration options
#define	PLATFORM_CAN_USE_CAN1 FALSE
	CAN1 driver enable switch.

Data Structures
struct	CANTxFrame
	CAN transmission frame. More...
struct	CANRxFrame
	CAN received frame. More...
struct	hal_can_config
	Type of a CAN configuration structure. More...
struct	hal_can_driver
	Structure representing an CAN driver. More...

Macros
#define	CAN_ANY_MAILBOX 0U
	Special mailbox identifier.
#define	CAN_TX_MAILBOXES 1
	Number of transmit mailboxes.
#define	CAN_RX_MAILBOXES 1
	Number of receive mailboxes.

Typedefs
typedef struct hal_can_driver	CANDriver
	Type of a structure representing an CAN driver.
typedef uint32_t	canmbx_t
	Type of a transmission mailbox index.
typedef void(*	can_callback_t) (CANDriver *canp, uint32_t flags)
	Type of a CAN notification callback.
typedef struct hal_can_config	CANConfig
	Type of a CAN configuration structure.

Enumerations
enum	canstate_t { CAN_UNINIT = 0 , CAN_STOP = 1 , CAN_STARTING = 2 , CAN_STOPPING = 3 , CAN_READY = 4 , CAN_SLEEP = 5 }
	Driver state machine possible states. More...

Functions
void	canInit (void)
	CAN Driver initialization.
void	canObjectInit (CANDriver *canp)
	Initializes the standard part of a `CANDriver` structure.
msg_t	canStart (CANDriver canp, const CANConfig config)
	Configures and activates the CAN peripheral.
void	canStop (CANDriver *canp)
	Deactivates the CAN peripheral.
bool	canTryTransmitI (CANDriver canp, canmbx_t mailbox, const CANTxFrame ctfp)
	Can frame transmission attempt.
bool	canTryReceiveI (CANDriver canp, canmbx_t mailbox, CANRxFrame crfp)
	Can frame receive attempt.
void	canTryAbortX (CANDriver *canp, canmbx_t mailbox)
	Tries to abort an ongoing transmission.
msg_t	canTransmitTimeout (CANDriver canp, canmbx_t mailbox, const CANTxFrame ctfp, sysinterval_t timeout)
	Can frame transmission.
msg_t	canReceiveTimeout (CANDriver canp, canmbx_t mailbox, CANRxFrame crfp, sysinterval_t timeout)
	Can frame receive.
void	canSleep (CANDriver *canp)
	Enters the sleep mode.
void	canWakeup (CANDriver *canp)
	Enforces leaving the sleep mode.
void	can_lld_init (void)
	Low level CAN driver initialization.
void	can_lld_start (CANDriver *canp)
	Configures and activates the CAN peripheral.
void	can_lld_stop (CANDriver *canp)
	Deactivates the CAN peripheral.
bool	can_lld_is_tx_empty (CANDriver *canp, canmbx_t mailbox)
	Determines whether a frame can be transmitted.
void	can_lld_transmit (CANDriver canp, canmbx_t mailbox, const CANTxFrame ctfp)
	Inserts a frame into the transmit queue.
bool	can_lld_is_rx_nonempty (CANDriver *canp, canmbx_t mailbox)
	Determines whether a frame has been received.
void	can_lld_receive (CANDriver canp, canmbx_t mailbox, CANRxFrame crfp)
	Receives a frame from the input queue.
void	can_lld_abort (CANDriver *canp, canmbx_t mailbox)
	Tries to abort an ongoing transmission.
void	can_lld_sleep (CANDriver *canp)
	Enters the sleep mode.
void	can_lld_wakeup (CANDriver *canp)
	Enforces leaving the sleep mode.

Variables
CANDriver	CAND1
	CAN1 driver identifier.

Macro Definition Documentation

◆ CAN_LIMIT_WARNING

#define CAN_LIMIT_WARNING 1U

Errors rate warning.

Definition at line 41 of file hal_can.h.

◆ CAN_LIMIT_ERROR

#define CAN_LIMIT_ERROR 2U

Errors rate error.

Definition at line 45 of file hal_can.h.

◆ CAN_BUS_OFF_ERROR

#define CAN_BUS_OFF_ERROR 4U

Bus off condition reached.

Definition at line 49 of file hal_can.h.

◆ CAN_FRAMING_ERROR

#define CAN_FRAMING_ERROR 8U

Framing error of some kind on the CAN bus.

Definition at line 53 of file hal_can.h.

◆ CAN_OVERFLOW_ERROR

#define CAN_OVERFLOW_ERROR 16U

Overflow in receive queue.

Definition at line 57 of file hal_can.h.

◆ CAN_ANY_MAILBOX

#define CAN_ANY_MAILBOX 0U

Special mailbox identifier.

Definition at line 63 of file hal_can.h.

Referenced by can_lld_is_rx_nonempty(), can_lld_is_tx_empty(), and canTryAbortX().

◆ CAN_USE_SLEEP_MODE

#define CAN_USE_SLEEP_MODE TRUE

Sleep mode related APIs inclusion switch.

This option can only be enabled if the CAN implementation supports the sleep mode, see the macro CAN_SUPPORTS_SLEEP exported by the underlying implementation.

Definition at line 80 of file hal_can.h.

◆ CAN_ENFORCE_USE_CALLBACKS

#define CAN_ENFORCE_USE_CALLBACKS FALSE

Enforces the driver to use direct callbacks rather than OSAL events.

Definition at line 87 of file hal_can.h.

◆ CAN_MAILBOX_TO_MASK

#define CAN_MAILBOX_TO_MASK ( mbx )

Value:

(1U << ((mbx) - 1U))

Converts a mailbox index to a bit mask.

Definition at line 124 of file hal_can.h.

◆ canTransmit

#define canTransmit	(	canp,
		mailbox,
		ctfp,
		timeout )

Value:

canTransmitTimeout(canp, mailbox, ctfp, timeout)

canTransmitTimeout

msg_t canTransmitTimeout(CANDriver *canp, canmbx_t mailbox, const CANTxFrame *ctfp, sysinterval_t timeout)

Can frame transmission.

Definition hal_can.c:274

Legacy name for canTransmitTimeout().

Deprecated

Definition at line 131 of file hal_can.h.

◆ canReceive

#define canReceive	(	canp,
		mailbox,
		crfp,
		timeout )

Value:

canReceiveTimeout(canp, mailbox, crfp, timeout)

canReceiveTimeout

msg_t canReceiveTimeout(CANDriver *canp, canmbx_t mailbox, CANRxFrame *crfp, sysinterval_t timeout)

Can frame receive.

Definition hal_can.c:321

Legacy name for canReceiveTimeout().

Deprecated

Definition at line 139 of file hal_can.h.

◆ _can_tx_empty_isr

#define _can_tx_empty_isr	(		canp,
			flags )

Value:

  {                                    \
  osalSysLockFromISR();                                                     \
  osalThreadDequeueAllI(&(canp)->txqueue, MSG_OK);                          \
  osalEventBroadcastFlagsI(&(canp)->txempty_event, flags);                  \
  osalSysUnlockFromISR();                                                   \
}

TX mailbox empty event.

Definition at line 151 of file hal_can.h.

◆ _can_rx_full_isr

#define _can_rx_full_isr	(		canp,
			flags )

Value:

  {                                     \
  osalSysLockFromISR();                                                     \
  osalThreadDequeueAllI(&(canp)->rxqueue, MSG_OK);                          \
  osalEventBroadcastFlagsI(&(canp)->rxfull_event, flags);                   \
  osalSysUnlockFromISR();                                                   \
}

RX mailbox empty full event.

Definition at line 161 of file hal_can.h.

◆ _can_wakeup_isr

#define _can_wakeup_isr ( canp )

Value:

  {                                             \
  osalSysLockFromISR();                                                     \
  osalEventBroadcastFlagsI(&(canp)->wakeup_event, 0U);                      \
  osalSysUnlockFromISR();                                                   \
}

Wakeup event.

Definition at line 171 of file hal_can.h.

◆ _can_error_isr

#define _can_error_isr	(		canp,
			flags )

Value:

  {                                       \
  osalSysLockFromISR();                                                     \
  osalEventBroadcastFlagsI(&(canp)->error_event, flags);                    \
  osalSysUnlockFromISR();                                                   \
}

Error event.

Definition at line 180 of file hal_can.h.

◆ CAN_TX_MAILBOXES

#define CAN_TX_MAILBOXES 1

Number of transmit mailboxes.

Definition at line 37 of file hal_can_lld.h.

Referenced by canTransmitTimeout(), canTryAbortX(), and canTryTransmitI().

◆ CAN_RX_MAILBOXES

#define CAN_RX_MAILBOXES 1

Number of receive mailboxes.

Definition at line 42 of file hal_can_lld.h.

Referenced by canReceiveTimeout(), and canTryReceiveI().

◆ PLATFORM_CAN_USE_CAN1

#define PLATFORM_CAN_USE_CAN1 FALSE

CAN1 driver enable switch.

If set to TRUE the support for CAN1 is included.

Note: The default is FALSE.

Definition at line 58 of file hal_can_lld.h.

Typedef Documentation

◆ CANDriver

typedef struct hal_can_driver CANDriver

Type of a structure representing an CAN driver.

Definition at line 73 of file hal_can_lld.h.

◆ canmbx_t

typedef uint32_t canmbx_t

Type of a transmission mailbox index.

Definition at line 78 of file hal_can_lld.h.

◆ can_callback_t

typedef void(* can_callback_t) (CANDriver *canp, uint32_t flags)

Type of a CAN notification callback.

Parameters

[in]	canp	pointer to the `CANDriver` object triggering the callback
[in]	flags	flags associated to the mailbox callback

Definition at line 88 of file hal_can_lld.h.

◆ CANConfig

typedef struct hal_can_config CANConfig

Type of a CAN configuration structure.

Enumeration Type Documentation

◆ canstate_t

enum canstate_t

Driver state machine possible states.

Enumerator
CAN_UNINIT	Not initialized.
CAN_STOP	Stopped.
CAN_STARTING	Starting.
CAN_STOPPING	Stopping.
CAN_READY	Ready.
CAN_SLEEP	Sleep state.

Definition at line 102 of file hal_can.h.

Function Documentation

◆ canInit()

void canInit ( void )

CAN Driver initialization.

Note: This function is implicitly invoked by halInit(), there is no need to explicitly initialize the driver.

Function Class:: Object or module nitializer function.

Definition at line 56 of file hal_can.c.

References can_lld_init().

Referenced by halInit().

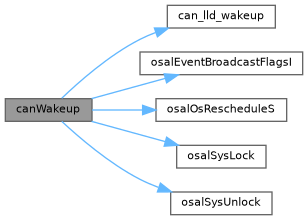

Here is the call graph for this function:

◆ canObjectInit()

void canObjectInit ( CANDriver * canp )

Initializes the standard part of a CANDriver structure.

Parameters

[out] canp pointer to the CANDriver object

Function Class:: Object or module nitializer function.

Definition at line 68 of file hal_can.c.

References CAN_STOP, hal_can_driver::config, hal_can_driver::error_event, osalEventObjectInit(), osalThreadQueueObjectInit(), hal_can_driver::rxfull_event, hal_can_driver::rxqueue, hal_can_driver::sleep_event, hal_can_driver::state, hal_can_driver::txempty_event, hal_can_driver::txqueue, and hal_can_driver::wakeup_event.

Referenced by can_lld_init().

Here is the call graph for this function:

◆ canStart()

msg_t canStart	(	CANDriver *	canp,
		const CANConfig *	config )

Configures and activates the CAN peripheral.

Note: Activating the CAN bus can be a slow operation.; Unlike other drivers it is not possible to restart the CAN driver without first stopping it using canStop().

Parameters

[in]	canp	pointer to the `CANDriver` object
[in]	config	pointer to the `CANConfig` object. Depending on the implementation the value can be `NULL`.

Returns: The operation status.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 105 of file hal_can.c.

References can_lld_start(), CAN_READY, CAN_STARTING, CAN_STOP, hal_can_driver::config, HAL_RET_SUCCESS, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), and hal_can_driver::state.

Here is the call graph for this function:

◆ canStop()

void canStop ( CANDriver * canp )

Deactivates the CAN peripheral.

Parameters

[in] canp pointer to the CANDriver object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 145 of file hal_can.c.

References can_lld_stop(), CAN_READY, CAN_STOP, CAN_STOPPING, hal_can_driver::config, MSG_RESET, osalDbgAssert, osalDbgCheck, osalOsRescheduleS(), osalSysLock(), osalSysUnlock(), osalThreadDequeueAllI(), hal_can_driver::rxqueue, hal_can_driver::state, and hal_can_driver::txqueue.

Here is the call graph for this function:

◆ canTryTransmitI()

bool canTryTransmitI	(	CANDriver *	canp,
		canmbx_t	mailbox,
		const CANTxFrame *	ctfp )

Can frame transmission attempt.

The specified frame is queued for transmission, if the hardware queue is full then the function fails.

Parameters

[in]	canp	pointer to the `CANDriver` object
[in]	mailbox	mailbox number, `CAN_ANY_MAILBOX` for any mailbox
[in]	ctfp	pointer to the CAN frame to be transmitted

Returns: The operation result.

Return values

false	Frame transmitted.
true	Mailbox full.

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 181 of file hal_can.c.

References can_lld_is_tx_empty(), can_lld_transmit(), CAN_READY, CAN_SLEEP, CAN_TX_MAILBOXES, osalDbgAssert, osalDbgCheck, osalDbgCheckClassI, and hal_can_driver::state.

Here is the call graph for this function:

◆ canTryReceiveI()

bool canTryReceiveI	(	CANDriver *	canp,
		canmbx_t	mailbox,
		CANRxFrame *	crfp )

Can frame receive attempt.

The function tries to fetch a frame from a mailbox.

Parameters

[in]	canp	pointer to the `CANDriver` object
[in]	mailbox	mailbox number, `CAN_ANY_MAILBOX` for any mailbox
[out]	crfp	pointer to the buffer where the CAN frame is copied

Returns: The operation result.

Return values

false	Frame fetched.
true	Mailbox empty.

Function Class:: This is an I-Class API, this function can be invoked from within a system lock zone by both threads and interrupt handlers.

Definition at line 215 of file hal_can.c.

References can_lld_is_rx_nonempty(), can_lld_receive(), CAN_READY, CAN_RX_MAILBOXES, CAN_SLEEP, osalDbgAssert, osalDbgCheck, osalDbgCheckClassI, and hal_can_driver::state.

Here is the call graph for this function:

◆ canTryAbortX()

void canTryAbortX	(	CANDriver *	canp,
		canmbx_t	mailbox )

Tries to abort an ongoing transmission.

Parameters

[in]	canp	pointer to the `CANDriver` object
[in]	mailbox	mailbox number

Function Class:: This is an X-Class API, this function can be invoked from any context.

Definition at line 244 of file hal_can.c.

References CAN_ANY_MAILBOX, can_lld_abort(), CAN_TX_MAILBOXES, and osalDbgCheck.

Here is the call graph for this function:

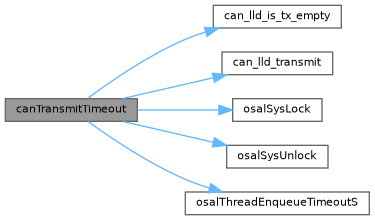

◆ canTransmitTimeout()

msg_t canTransmitTimeout	(	CANDriver *	canp,
		canmbx_t	mailbox,
		const CANTxFrame *	ctfp,
		sysinterval_t	timeout )

Can frame transmission.

The specified frame is queued for transmission, if the hardware queue is full then the invoking thread is queued.

Note: Trying to transmit while in sleep mode simply enqueues the thread.

Parameters

[in]	canp	pointer to the `CANDriver` object
[in]	mailbox	mailbox number, `CAN_ANY_MAILBOX` for any mailbox
[in]	ctfp	pointer to the CAN frame to be transmitted
[in]	timeout	the number of ticks before the operation timeouts, the following special values are allowed: TIME_IMMEDIATE immediate timeout. TIME_INFINITE no timeout.

Returns: The operation result.

Return values

MSG_OK	the frame has been queued for transmission.
MSG_TIMEOUT	The operation has timed out.
MSG_RESET	The driver has been stopped while waiting.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 274 of file hal_can.c.

References can_lld_is_tx_empty(), can_lld_transmit(), CAN_READY, CAN_SLEEP, CAN_TX_MAILBOXES, MSG_OK, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), osalThreadEnqueueTimeoutS(), hal_can_driver::state, and hal_can_driver::txqueue.

Here is the call graph for this function:

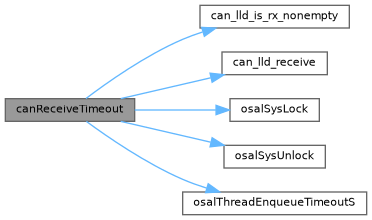

◆ canReceiveTimeout()

msg_t canReceiveTimeout	(	CANDriver *	canp,
		canmbx_t	mailbox,
		CANRxFrame *	crfp,
		sysinterval_t	timeout )

Can frame receive.

The function waits until a frame is received.

Note: Trying to receive while in sleep mode simply enqueues the thread.

Parameters

[in]	canp	pointer to the `CANDriver` object
[in]	mailbox	mailbox number, `CAN_ANY_MAILBOX` for any mailbox
[out]	crfp	pointer to the buffer where the CAN frame is copied
[in]	timeout	the number of ticks before the operation timeouts, the following special values are allowed: TIME_IMMEDIATE immediate timeout (useful in an event driven scenario where a thread never blocks for I/O). TIME_INFINITE no timeout.

Returns: The operation result.

Return values

MSG_OK	a frame has been received and placed in the buffer.
MSG_TIMEOUT	The operation has timed out.
MSG_RESET	The driver has been stopped while waiting.

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 321 of file hal_can.c.

References can_lld_is_rx_nonempty(), can_lld_receive(), CAN_READY, CAN_RX_MAILBOXES, CAN_SLEEP, MSG_OK, osalDbgAssert, osalDbgCheck, osalSysLock(), osalSysUnlock(), osalThreadEnqueueTimeoutS(), hal_can_driver::rxqueue, and hal_can_driver::state.

Here is the call graph for this function:

◆ canSleep()

void canSleep ( CANDriver * canp )

Enters the sleep mode.

This function puts the CAN driver in sleep mode and broadcasts the sleep_event event source.

Precondition: In order to use this function the option CAN_USE_SLEEP_MODE must be enabled and the CAN_SUPPORTS_SLEEP mode must be supported by the low level driver.

Parameters

[in] canp pointer to the CANDriver object

Function Class:: Normal API, this function can be invoked by regular system threads but not from within a lock zone.

Definition at line 360 of file hal_can.c.

References can_lld_sleep(), CAN_READY, CAN_SLEEP, osalDbgAssert, osalDbgCheck, osalEventBroadcastFlagsI(), osalOsRescheduleS(), osalSysLock(), osalSysUnlock(), hal_can_driver::sleep_event, and hal_can_driver::state.

Here is the call graph for this function:

◆ canWakeup()

void canWakeup ( CANDriver * canp )

Enforces leaving the sleep mode.

Note: The sleep mode is supposed to be usually exited automatically by an hardware event.

Parameters

[in] canp pointer to the CANDriver object

Definition at line 385 of file hal_can.c.

References can_lld_wakeup(), CAN_READY, CAN_SLEEP, osalDbgAssert, osalDbgCheck, osalEventBroadcastFlagsI(), osalOsRescheduleS(), osalSysLock(), osalSysUnlock(), hal_can_driver::state, and hal_can_driver::wakeup_event.

Here is the call graph for this function:

◆ can_lld_init()

void can_lld_init ( void )

Low level CAN driver initialization.

Function Class:: Not an API, this function is for internal use only.

Definition at line 65 of file hal_can_lld.c.

References CAND1, and canObjectInit().

Referenced by canInit().

Here is the call graph for this function:

◆ can_lld_start()

void can_lld_start ( CANDriver * canp )

Configures and activates the CAN peripheral.

Parameters

[in] canp pointer to the CANDriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 80 of file hal_can_lld.c.

References CAN_STOP, CAND1, and hal_can_driver::state.

Referenced by canStart().

◆ can_lld_stop()

void can_lld_stop ( CANDriver * canp )

Deactivates the CAN peripheral.

Parameters

[in] canp pointer to the CANDriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 101 of file hal_can_lld.c.

References CAN_READY, CAND1, and hal_can_driver::state.

Referenced by canStop().

◆ can_lld_is_tx_empty()

bool can_lld_is_tx_empty	(	CANDriver *	canp,
		canmbx_t	mailbox )

Determines whether a frame can be transmitted.

Parameters

[in]	canp	pointer to the `CANDriver` object
[in]	mailbox	mailbox number, `CAN_ANY_MAILBOX` for any mailbox

Returns: The queue space availability.

Return values

false	no space in the transmit queue.
true	transmit slot available.

Function Class:: Not an API, this function is for internal use only.

Definition at line 127 of file hal_can_lld.c.

References CAN_ANY_MAILBOX.

Referenced by canTransmitTimeout(), and canTryTransmitI().

◆ can_lld_transmit()

void can_lld_transmit	(	CANDriver *	canp,
		canmbx_t	mailbox,
		const CANTxFrame *	ctfp )

Inserts a frame into the transmit queue.

Parameters

[in]	canp	pointer to the `CANDriver` object
[in]	ctfp	pointer to the CAN frame to be transmitted
[in]	mailbox	mailbox number, `CAN_ANY_MAILBOX` for any mailbox

Function Class:: Not an API, this function is for internal use only.

Definition at line 154 of file hal_can_lld.c.

Referenced by canTransmitTimeout(), and canTryTransmitI().

◆ can_lld_is_rx_nonempty()

bool can_lld_is_rx_nonempty	(	CANDriver *	canp,
		canmbx_t	mailbox )

Determines whether a frame has been received.

Parameters

[in]	canp	pointer to the `CANDriver` object
[in]	mailbox	mailbox number, `CAN_ANY_MAILBOX` for any mailbox

Returns: The queue space availability.

Return values

false	no space in the transmit queue.
true	transmit slot available.

Function Class:: Not an API, this function is for internal use only.

Definition at line 176 of file hal_can_lld.c.

References CAN_ANY_MAILBOX.

Referenced by canReceiveTimeout(), and canTryReceiveI().

◆ can_lld_receive()

void can_lld_receive	(	CANDriver *	canp,
		canmbx_t	mailbox,
		CANRxFrame *	crfp )

Receives a frame from the input queue.

Parameters

[in]	canp	pointer to the `CANDriver` object
[in]	mailbox	mailbox number, `CAN_ANY_MAILBOX` for any mailbox
[out]	crfp	pointer to the buffer where the CAN frame is copied

Function Class:: Not an API, this function is for internal use only.

Definition at line 202 of file hal_can_lld.c.

Referenced by canReceiveTimeout(), and canTryReceiveI().

◆ can_lld_abort()

void can_lld_abort	(	CANDriver *	canp,
		canmbx_t	mailbox )

Tries to abort an ongoing transmission.

Parameters

[in]	canp	pointer to the `CANDriver` object
[in]	mailbox	mailbox number

Function Class:: Not an API, this function is for internal use only.

Definition at line 220 of file hal_can_lld.c.

Referenced by canTryAbortX().

◆ can_lld_sleep()

void can_lld_sleep ( CANDriver * canp )

Enters the sleep mode.

Parameters

[in] canp pointer to the CANDriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 235 of file hal_can_lld.c.

Referenced by canSleep().

◆ can_lld_wakeup()

void can_lld_wakeup ( CANDriver * canp )

Enforces leaving the sleep mode.

Parameters

[in] canp pointer to the CANDriver object

Function Class:: Not an API, this function is for internal use only.

Definition at line 248 of file hal_can_lld.c.

Referenced by canWakeup().

Variable Documentation

◆ CAND1

CANDriver CAND1

CAN1 driver identifier.

Definition at line 41 of file hal_can_lld.c.

Referenced by can_lld_init(), can_lld_start(), and can_lld_stop().

Detailed Description

Driver State Machine

CAN status flags

CAN configuration options

Macro Functions

Low level driver helper macros

PLATFORM configuration options

Data Structures

Macros

Typedefs

Enumerations

Functions

Variables

Macro Definition Documentation

◆ CAN_LIMIT_WARNING

◆ CAN_LIMIT_ERROR

◆ CAN_BUS_OFF_ERROR

◆ CAN_FRAMING_ERROR

◆ CAN_OVERFLOW_ERROR

◆ CAN_ANY_MAILBOX

◆ CAN_USE_SLEEP_MODE

◆ CAN_ENFORCE_USE_CALLBACKS

◆ CAN_MAILBOX_TO_MASK

◆ canTransmit

◆ canReceive

◆ _can_tx_empty_isr

◆ _can_rx_full_isr

◆ _can_wakeup_isr

◆ _can_error_isr

◆ CAN_TX_MAILBOXES

◆ CAN_RX_MAILBOXES

◆ PLATFORM_CAN_USE_CAN1

Typedef Documentation

◆ CANDriver

◆ canmbx_t

◆ can_callback_t

◆ CANConfig

Enumeration Type Documentation

◆ canstate_t

Function Documentation

◆ canInit()

◆ canObjectInit()

◆ canStart()

◆ canStop()

◆ canTryTransmitI()

◆ canTryReceiveI()

◆ canTryAbortX()

◆ canTransmitTimeout()

◆ canReceiveTimeout()

◆ canSleep()

◆ canWakeup()

◆ can_lld_init()

◆ can_lld_start()

◆ can_lld_stop()

◆ can_lld_is_tx_empty()

◆ can_lld_transmit()

◆ can_lld_is_rx_nonempty()

◆ can_lld_receive()

◆ can_lld_abort()

◆ can_lld_sleep()

◆ can_lld_wakeup()

Variable Documentation

◆ CAND1
